NSN 5315-00-826-1576 MS16555626, MS16555-626, MS16555630

Product Details | HEADLESS STRAIGHT PIN

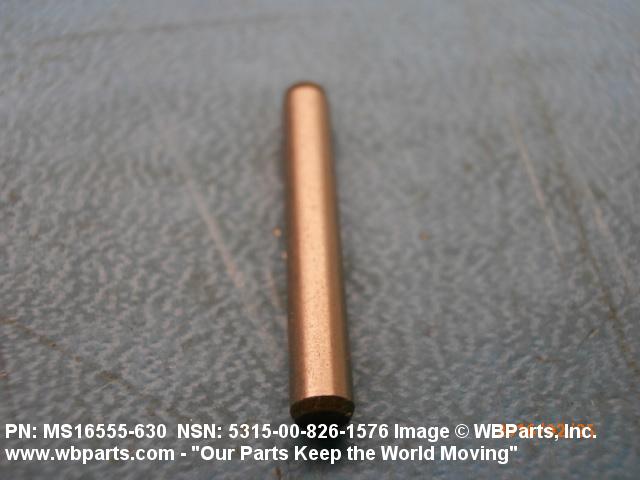

5315-00-826-1576 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS16555626, MS16555-626, MS16555630, MS16555-630, A03959, 104A901893, 5315-00-826-1576, 00-826-1576, 5315008261576, 008261576

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-826-1576	02390 ( PIN, STRAIGHT, HEADLESS )

Drawings & Photos | NSN 5315-00-826-1576

Part Number	Request Date	QTY	Origin
MS16555626	2025-10-279	2	US
MS16555626	2023-10-303	180	Korea
MS16555626	2023-03-79	170	Korea
MS16555-626	2019-08-232	1300	South Korea
MS16555626	2019-01-11	1	FR
MS16555626	2018-08-214	700	United States
MS16555626	2018-08-214	1400	United States
MS16555626	2017-02-32	110	Australia
MS16555626	2017-01-16	88	Australia
MS16555626	2017-01-11	400	United States
MS16555626	2016-07-189	1000	United States
MS16555626	2016-07-189	2000	United States
MS16555626	2016-04-118	500	US
MS16555626	2016-04-118	1000	US
MS16555626	2016-04-118	2500	US
MS16555626	2016-04-118	5000	US
MS16555626	2016-04-112	1800	United States
5315-00-826-1576	2016-01-19	100	Australia
MS16555630	2015-03-86	22	United States
MS16555626	2014-12-342	200	Australia
5315-00-826-1576	2014-02-34	1200	United States
MS16555630	2013-12-353	20	US
MS16555630	2013-12-353	30	US
MS16555630	2013-12-353	50	US
MS16555630	2013-12-353	100	US
MS16555626	2013-06-156	20	Australia
5315-00-826-1576	2013-05-151	3580	DIBBS
MS16555630	2013-04-113	1600	United States
5315-00-826-1576	2013-02-57	8368	DIBBS
MS16555626	2013-02-38	1000	US
MS16555626	2013-02-38	2000	US
MS16555630	2012-11-326	30	China
MS16555630	2012-08-236	20	United States
MS16555626	2012-07-193	100	US
MS16555626	2012-07-193	500	US
MS16555626	2012-07-193	800	US
5315-00-826-1576	2012-05-125	1000	DIBBS
5315-00-826-1576	2012-04-95	1000	DIBBS
MS16555626	2010-03-67	2000	India
5315-00-826-1576	2010-02-34	1000	DIBBS
MS16555626	2009-12-342	8	US
5315-00-826-1576	2009-10-295	26	US
5315-00-826-1576	2009-04-105	1000	DIBBS
5315-00-826-1576	2008-08-227	6	United States
MS16555630	2008-08-227	70	United States
5315-00-826-1576	2008-03-77	200	Germany
MS16555630	2008-01-09	2	Australia
MS16555630	2008-01-09	50	Australia

Cross Reference | NSN 5315-00-826-1576

Part Number	Cage Code	Manufacturer
104A901893	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
A03959	K0967	MBDA UK LTD
MS16555-626	36126	RAYTHEON CANADA LIMITED DBA ELCAN OPTICAL TECHNOLOGIES, DIV
MS16555-630	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16555-630	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16555-630	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-826-1576

Compare

Related Products | NSN 5315-00-826-1576

5315-00-826-1848, 5315-00-826-1851, 5315-00-826-1852, 5315-00-826-2413, 5315-00-826-2519

Technical Data | NSN 5315-00-826-1576

Characteristic	Specifications
MATERIAL	STEEL COMP 410 OR STEEL COMP 416 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL
SHEAR STRENGTH	1800 DOUBLE POUND
FIRST END STYLE	1 CHAMFERED
FIRST END TAPER LENGTH	0.190 INCHES NOMINAL
FIRST END TAPER ANGLE	4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	4 RADIUS
SECOND END CORNER RADIUS	0.041 INCHES MINIMUM
SURFACE FINISH	16.0 MICROINCHES OUTSIDE DIAMETER

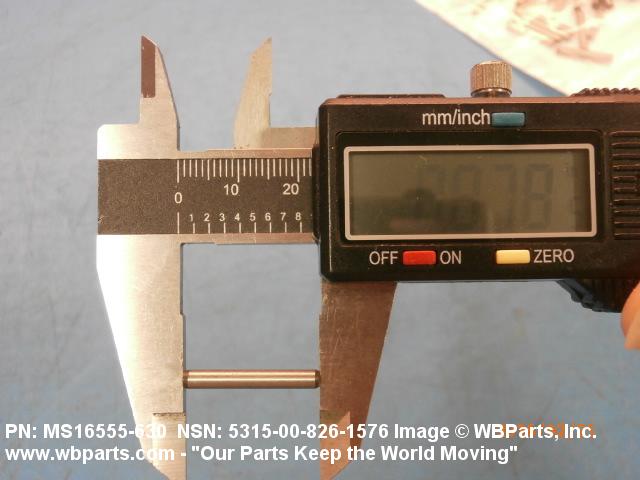

PIN OVERALL LENGTH	0.865 INCHES MINIMUM AND 0.885 INCHES MAXIMUM

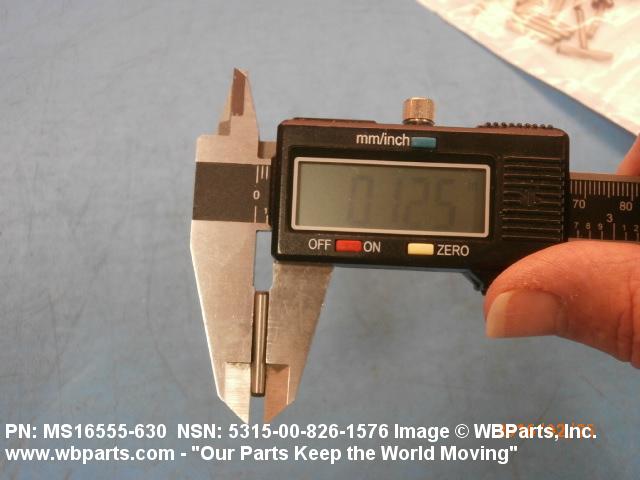

PIN OVERALL DIAMETER	0.1251 INCHES MINIMUM AND 0.1253 INCHES MAXIMUM
SPECIAL FEATURES	RADIUS END MAY BE CHAMFERED 25 DEG
