NSN 5315-00-828-8190 MS2466567, MS24665-67, MS2466569

Product Details | COTTER PIN

5315-00-828-8190 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.

Part Alternates: MS2466567, MS24665-67, MS2466569, MS24665-69, FFP386, 13207E3410FN106, 3382010000, 338-2010-000, 47132, 901201K1, 5315-00-828-8190, 00-828-8190, 5315008288190, 008288190

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-828-8190	02381 ( PIN, COTTER )

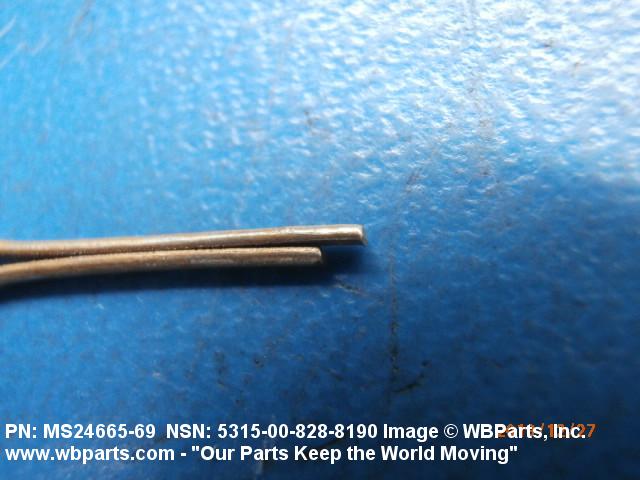

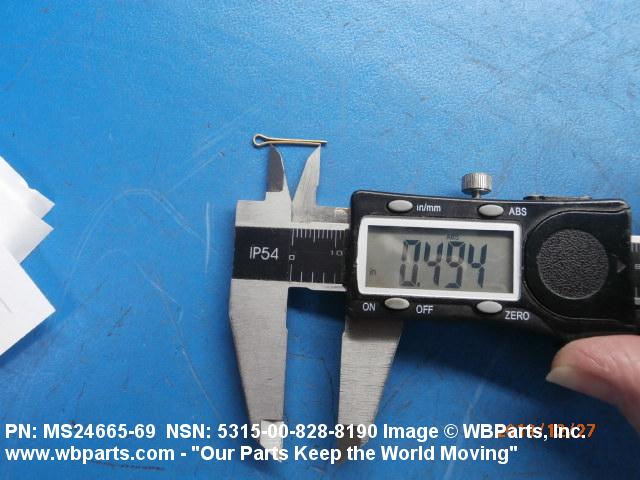

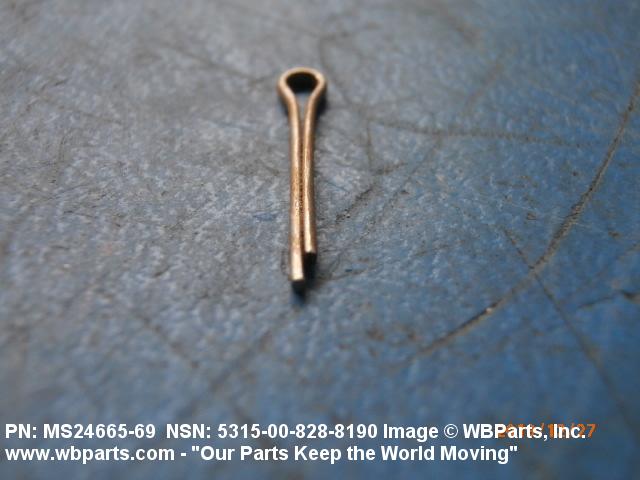

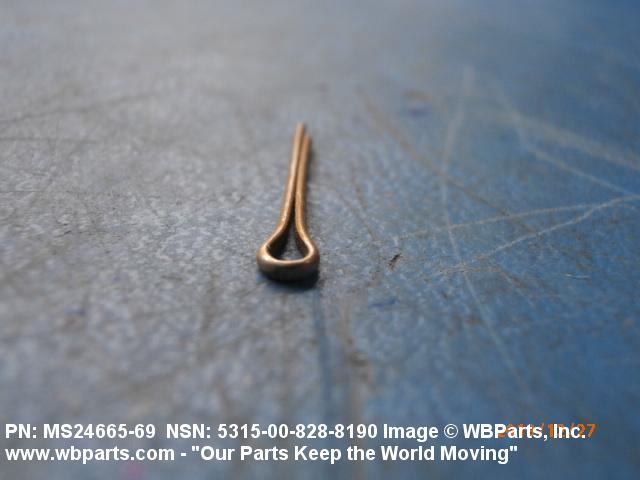

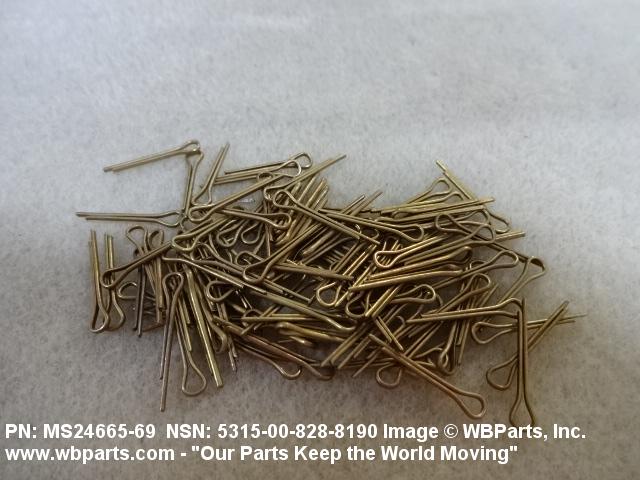

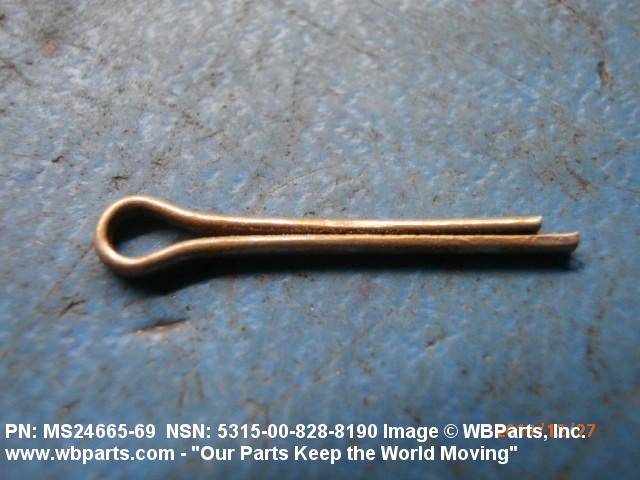

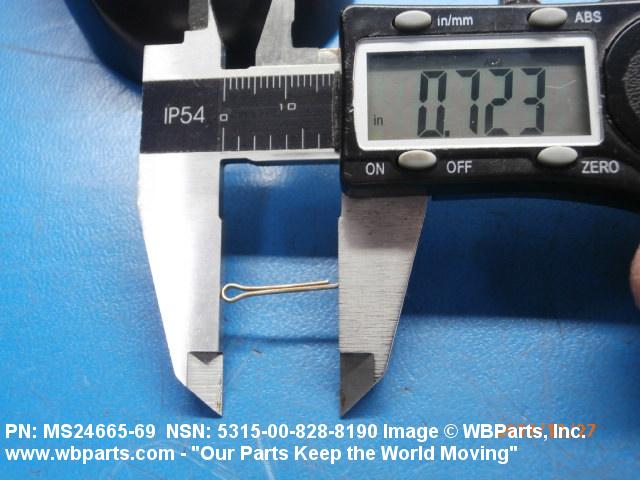

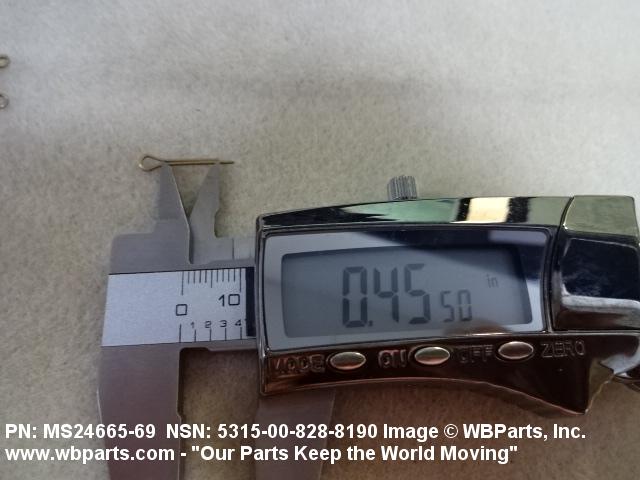

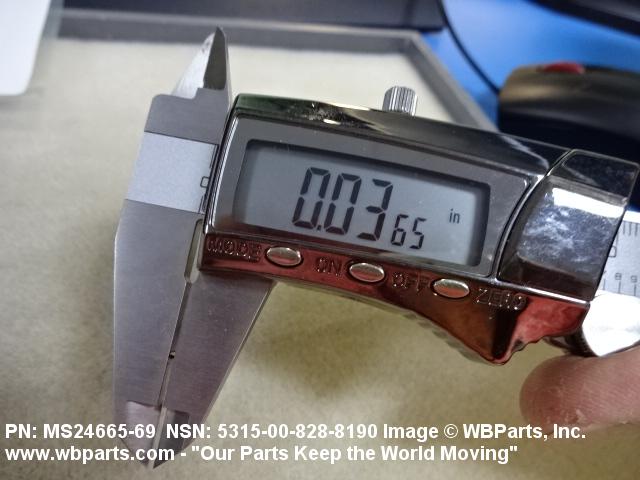

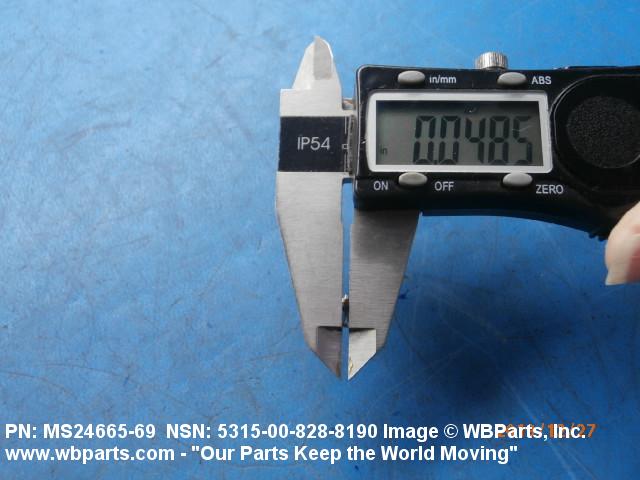

Drawings & Photos | NSN 5315-00-828-8190

Part Number	Request Date	QTY	Origin
MS2466569	2024-09-270	100	US
5315-00-828-8190	2024-03-80	25	us
5315-00-828-8190	2024-03-79	25	US
5315-00-828-8190	2022-09-261	87	DIBBS
MS2466569	2022-04-98	8	SG
FFP386	2022-04-96	230	US
MS24665-69	2022-01-06	250	IN
5315-00-828-8190	2020-09-252	50	SA
MS2466569	2020-08-230	100	MY
5315-00-828-8190	2020-07-188	2	SA
5315-00-828-8190	2020-07-188	4	SA
MS2466569	2020-02-51	20	US
5315-00-828-8190	2018-11-331	50	Russian Federation
MS2466569	2016-12-362	50	United Arab Emirates
5315-00-828-8190	2016-08-235	100	United States
5315-00-828-8190	2016-08-235	100	United States
MS2466569	2016-04-96	500	Thailand
MS2466569	2014-03-83	1	Philippines
MS2466569	2014-01-27	25	United States
MS2466569	2013-05-141	100	Greece
MS24665-69	2012-11-310	50
5315-00-828-8190	2011-08-231	2123	DIBBS
MS2466569	2011-05-133	30	Spain
5315-00-828-8190	2011-01-24	5464	DIBBS
5315-00-828-8190	2010-09-273	2944	DIBBS
MS2466569	2010-08-239	28	United States
5315-00-828-8190	2010-07-210	1109	DIBBS
5315-00-828-8190	2009-11-313	1100	US
5315-00-828-8190	2009-09-244	1472	Brazil
MS2466569	2009-04-106	50	United States
MS2466569	2009-02-51	80	United States

Cross Reference | NSN 5315-00-828-8190

Part Number	Cage Code	Manufacturer
13207E3410FN106	97403	CECOM LR CENTER
338-2010-000	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
47132	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
901201K1	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
901201K1	2A659	AIRMOTIVE CARBURETOR
FFP386	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS24665-67	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24665-69	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24665-69	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-828-8190

Compare

Related Products | NSN 5315-00-828-8190

5315-00-828-8517, 5315-00-828-8520, 5315-00-828-8661, 5315-00-828-9028, 5315-00-828-9745

Technical Data | NSN 5315-00-828-8190

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM E30 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	A1 STANDARD
DIAMETER	0.044 INCHES MINIMUM AND 0.048 INCHES MAXIMUM
UNDERLOOP LENGTH	0.438 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
POINT TYPE	EXTENDED PRONG SQUARE CUT
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFP386

Restrictions/Controls & Freight Information | NSN 5315-00-828-8190

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
No Freight Information

Management | NSN 5315-00-828-8190

Army
Air Force

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
