NSN 5315-00-833-4181 MS179841018, MS17984-1018, MS17984C1018

Product Details | QUICK RELEASE PIN

5315-00-833-4181 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS179841018, MS17984-1018, MS17984C1018, SLS10AB18, BLS10B18S, LG10SB1800, LG10SB18M, 5024418B, 50244-18B, 5315-00-833-4181, 00-833-4181, 5315008334181, 008334181

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-833-4181	08323 ( PIN, QUICK RELEASE )

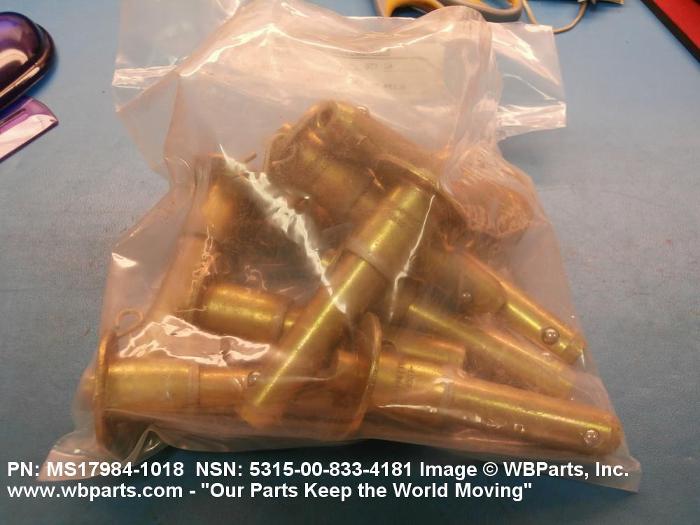

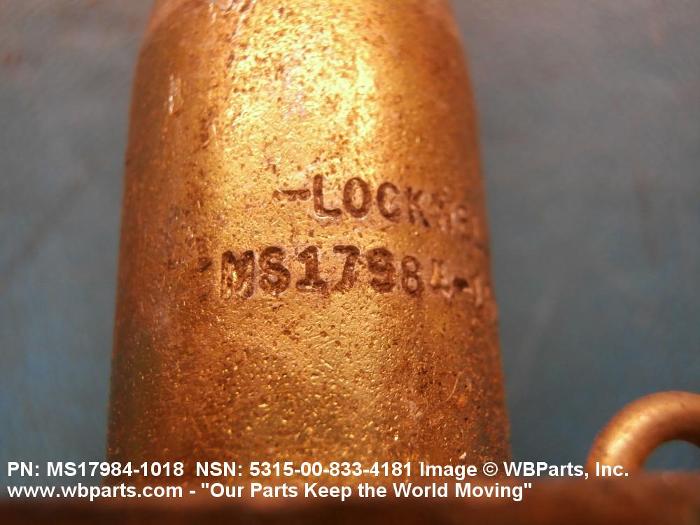

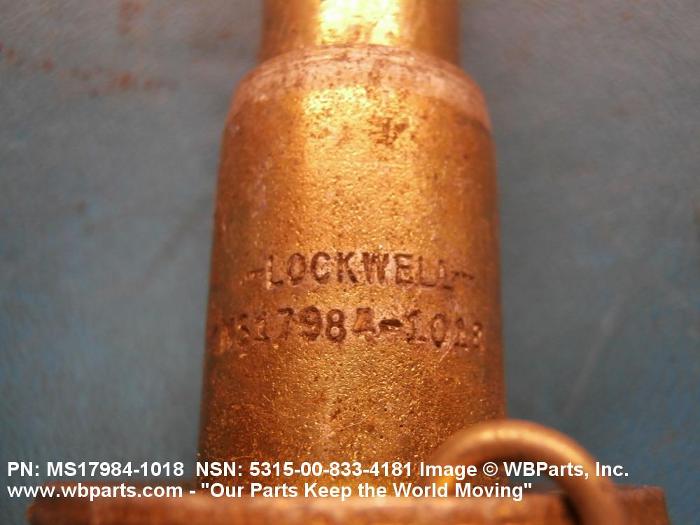

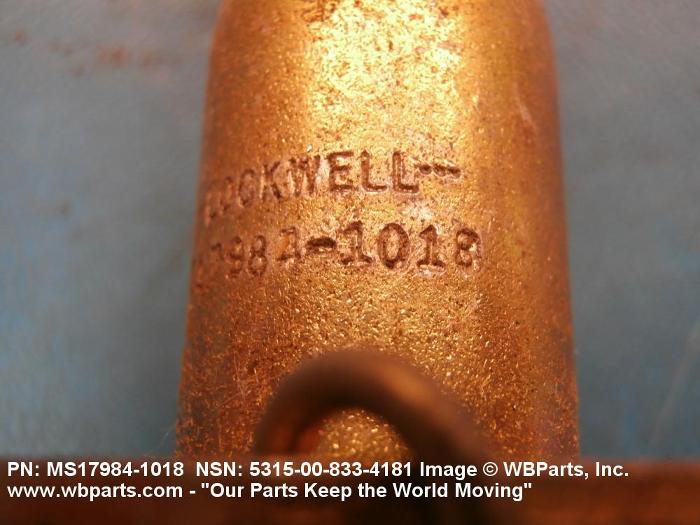

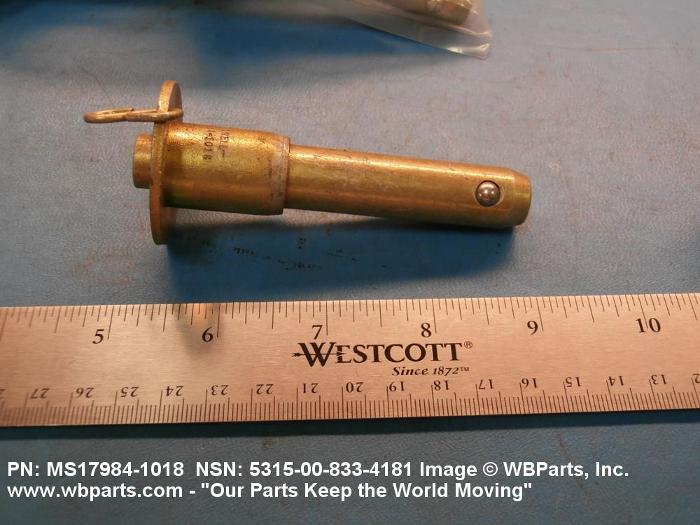

Drawings & Photos | NSN 5315-00-833-4181

Part Number	Request Date	QTY	Origin
5315-00-833-4181	2023-04-114	8	US
MS17984C1018	2020-09-246	1	US
MS17984C1018	2018-02-33	2	United States
MS17984C1018	2013-02-37	1	United States
5315-00-833-4181	2013-02-32	1	US
BLS10B18S	2009-02-42	8	US

Cross Reference | NSN 5315-00-833-4181

Part Number	Cage Code	Manufacturer
50244-18B	84256	AVIBANK MFG., INC.
BLS10B18S	84256	AVIBANK MFG., INC.
LG10SB1800	62060	SOUTHCO INC.
LG10SB1800	83014	HARTWELL CORPORATION
LG10SB18M	62060	SOUTHCO INC.
LG10SB18M	83014	HARTWELL CORPORATION
MS17984-1018	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17984C1018	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17984C1018	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SLS10AB18	16258	SPACELOK INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-833-4181

Compare

Related Products | NSN 5315-00-833-4181

5315-00-833-4231, 5315-00-833-4250, 5315-00-833-4251, 5315-00-833-4839, 5315-00-833-4866

Technical Data | NSN 5315-00-833-4181

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
STYLE DESIGNATOR	Q243 BUTTON
SHANK DIAMETER	0.624 INCHES NOMINAL
BUTTON HANDLE DIAMETER	1.620 INCHES NOMINAL
GRIP LENGTH	1.800 INCHES MINIMUM AND 1.820 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE	1.400 INCHES NOMINAL
DETENT TO TAPERED END DISTANCE	0.550 INCHES NOMINAL
ACTUATION TYPE	PULL
ACTUATION METHOD	PUSH BUTTON
DETENT QUANTITY	2
PIN ATTACHMENT TYPE	LINK OR RING

Restrictions/Controls & Freight Information | NSN 5315-00-833-4181

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-833-4181

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
