Product Details | HEADLESS STRAIGHT PIN

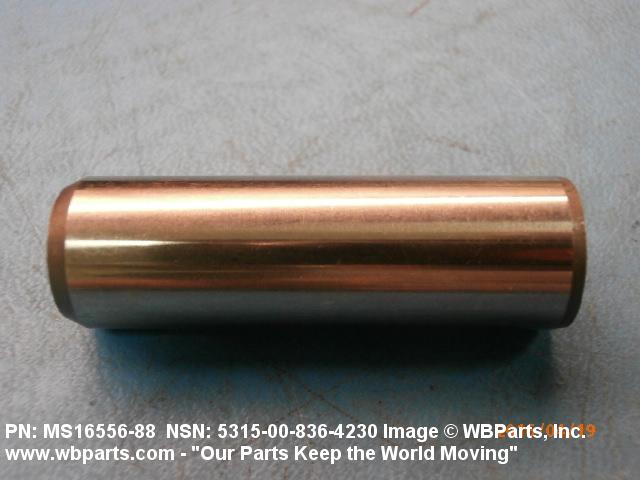

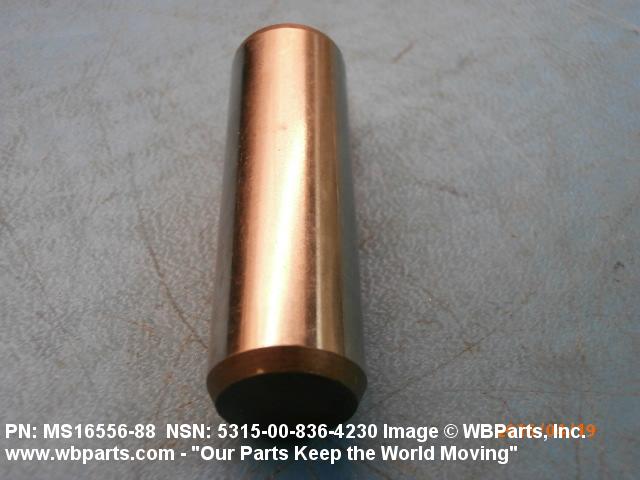

5315-00-836-4230 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS1655688, MS16556-88, 5315-00-836-4230, 00-836-4230, 5315008364230, 008364230
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-836-4230 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

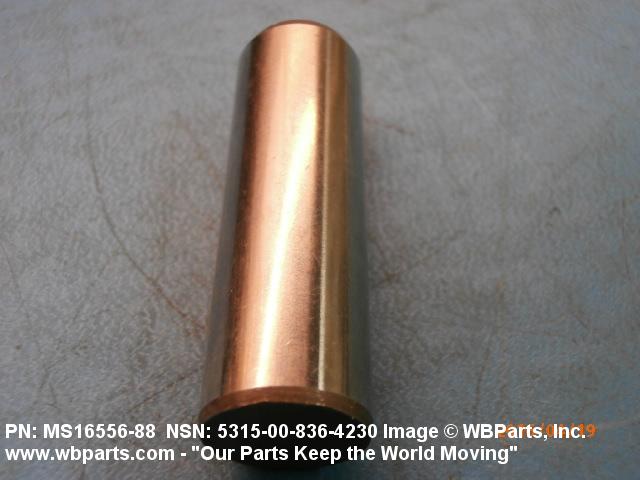

Drawings & Photos | NSN 5315-00-836-4230
Demand History | NSN 5315-00-836-4230
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-836-4230 | 2022-04-94 | 32 | United States |
| MS1655688 | 2016-04-106 | 24 | United States |
| 5315-00-836-4230 | 2016-04-103 | 24 | United States |
| 5315-00-836-4230 | 2016-01-04 | 192 | us |
| MS1655688 | 2013-02-45 | 25 | US |
| MS1655688 | 2012-11-312 | 32 | United States |
| MS1655688 | 2012-11-311 | 8 | United States |
Cross Reference | NSN 5315-00-836-4230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16556-88 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-836-4230
Technical Data | NSN 5315-00-836-4230
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 65000 DOUBLE POUNDS PER SQUARE INCH |

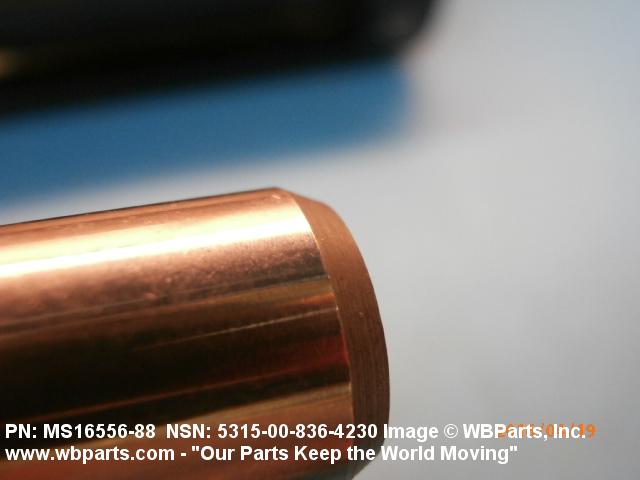

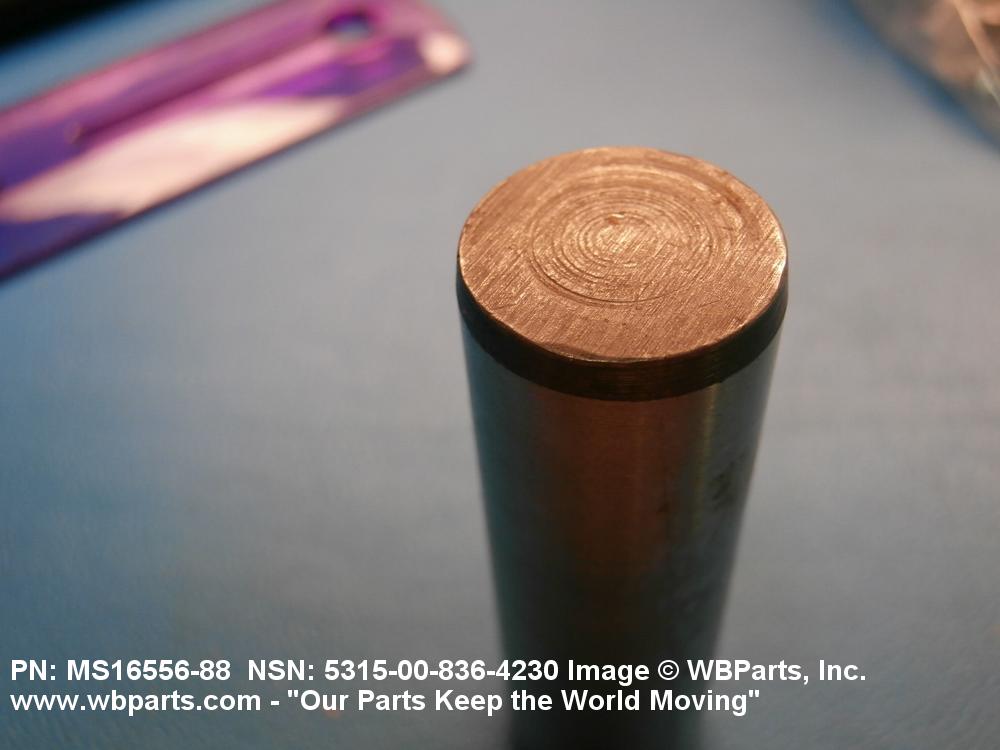

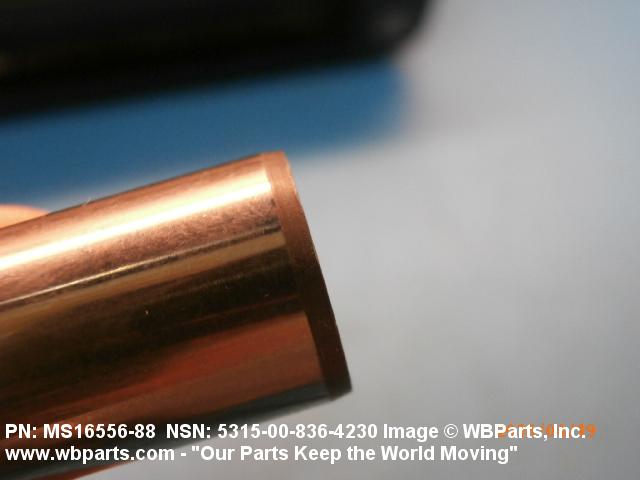

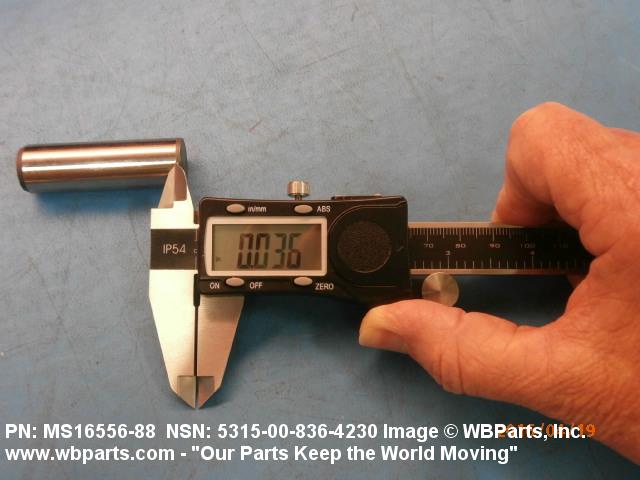

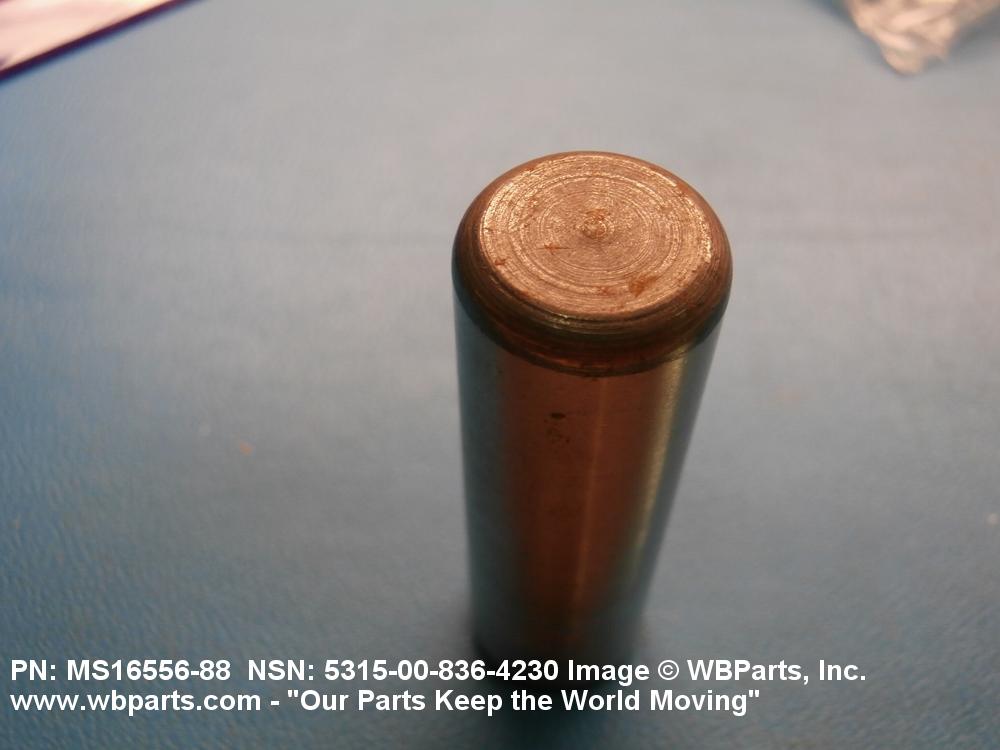

| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.365 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 12.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 4 RADIUS |
| SECOND END CORNER RADIUS | 0.062 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| SURFACE FINISH | 125.0 MICROINCHES BOTH ENDS 16.0 MICROINCHES SHANK END |

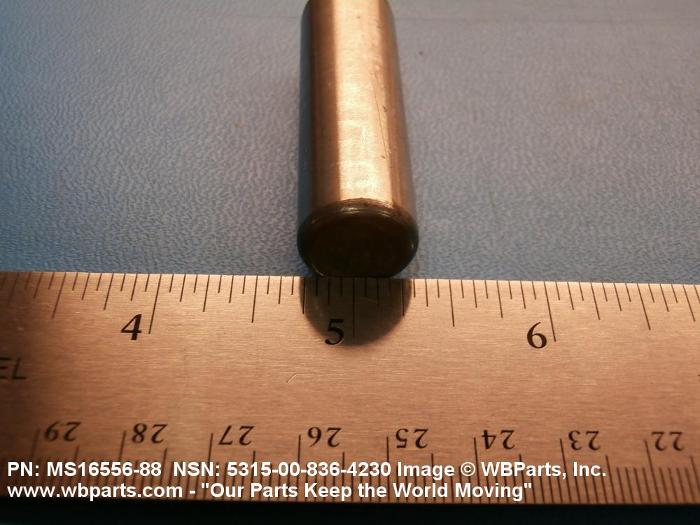

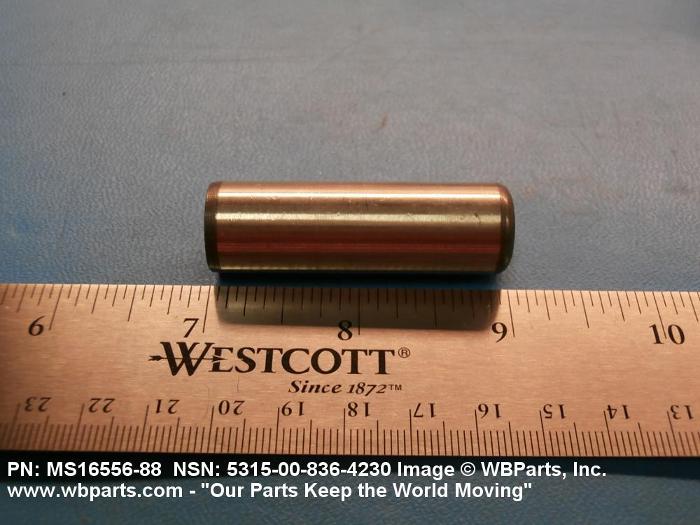

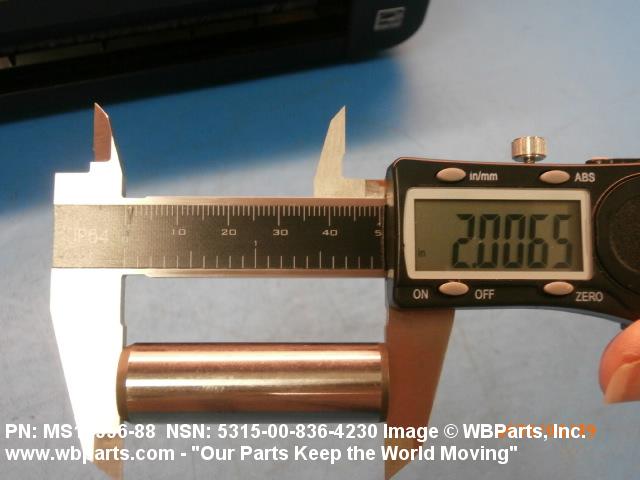

| PIN OVERALL LENGTH | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |

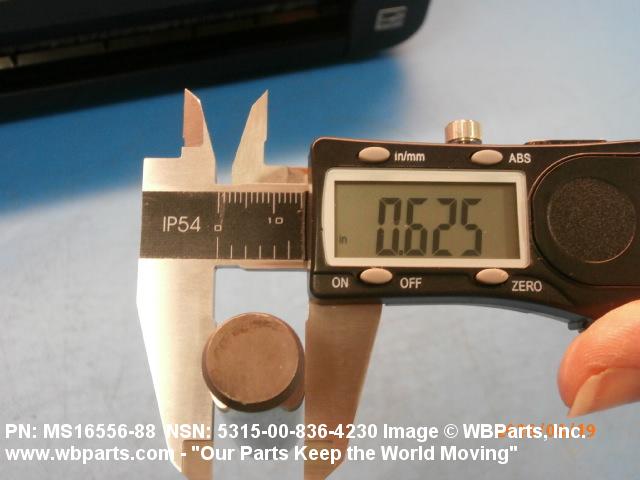

| PIN OVERALL DIAMETER | 0.6259 INCHES MINIMUM AND 0.6261 INCHES MAXIMUM |
