Product Details | HEADLESS STRAIGHT PIN

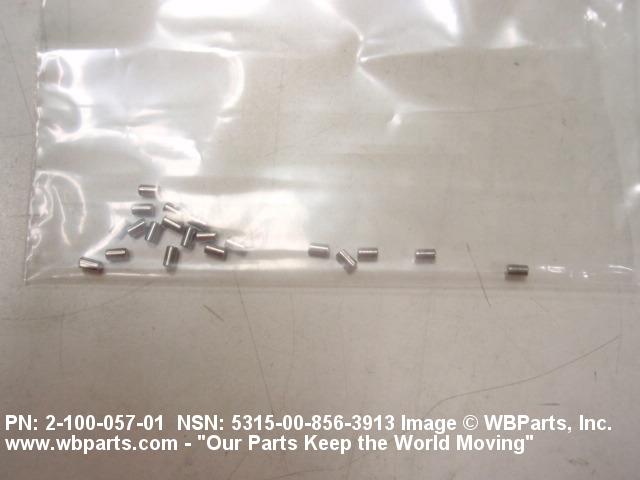

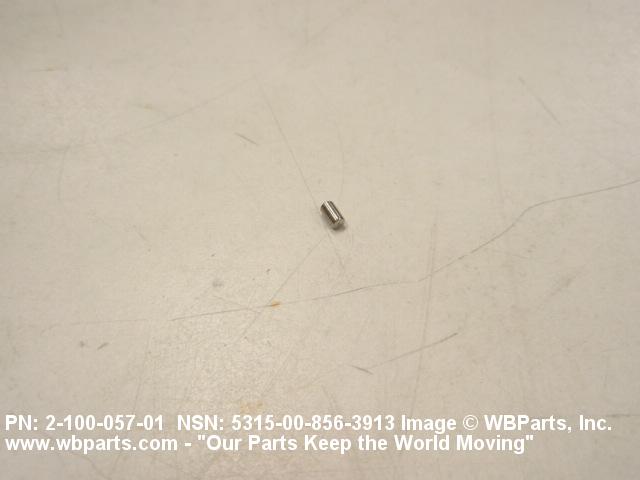

5315-00-856-3913 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: V210005701, V2-100-057-01 , 2-100-057-01, 5315-00-856-3913, 00-856-3913, 5315008563913, 210005701, 008563913
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-856-3913 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-00-856-3913
Demand History | NSN 5315-00-856-3913
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-856-3913 | 2025-07-209 | 2932 | United States |
| 5315-00-856-3913 | 2022-11-325 | 17807 | DIBBS |
| 5315-00-856-3913 | 2022-11-312 | 17807 | DIBBS |
| 5315-00-856-3913 | 2020-11-310 | 26239 | DIBBS |
| 5315-00-856-3913 | 2020-10-302 | 26239 | DIBBS |
| 5315-00-856-3913 | 2020-10-302 | 26239 | DIBBS |
| 5315-00-856-3913 | 2020-09-258 | 12000 | DIBBS |
| 5315-00-856-3913 | 2020-09-252 | 2150 | DIBBS |
| 5315-00-856-3913 | 2020-08-243 | 2150 | DIBBS |
| 5315-00-856-3913 | 2019-11-326 | 26070 | DIBBS |
| 5315-00-856-3913 | 2019-11-318 | 26070 | DIBBS |
| 5315-00-856-3913 | 2019-05-123 | 32153 | DIBBS |
| 5315-00-856-3913 | 2019-04-115 | 32153 | DIBBS |
| 5315-00-856-3913 | 2019-01-14 | 26865 | DIBBS |
| 5315-00-856-3913 | 2019-01-06 | 26865 | DIBBS |
| 5315-00-856-3913 | 2017-02-38 | 17063 | DIBBS |
| 5315-00-856-3913 | 2017-01-30 | 17063 | DIBBS |
| 5315-00-856-3913 | 2010-04-119 | 20 | Sweden |
| 5315-00-856-3913 | 2010-04-119 | 20 | Sweden |
| 210005701 | 2009-05-126 | 100 | US |
Cross Reference | NSN 5315-00-856-3913
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-100-057-01 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-856-3913
Related Products | NSN 5315-00-856-3913
Technical Data | NSN 5315-00-856-3913
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5697,COMP 30304 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 85.0 ROCKWELL C MINIMUM AND 90.0 ROCKWELL C MAXIMUM OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.015 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SURFACE FINISH | 63.0 MICROINCHES OVERALL |
| PIN OVERALL LENGTH | 0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.0750 INCHES MINIMUM AND 0.0770 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 2-100-057-01 |
