NSN 5315-00-860-0532 10885443, 14461, 00-860-0532
Product Details | MACHINE KEY
5315-00-860-0532 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 10885443, 14461, 5315-00-860-0532, 00-860-0532, 5315008600532, 008600532
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-860-0532 | 02378 ( KEY, MACHINE ) |
Drawings & Photos | NSN 5315-00-860-0532
Demand History | NSN 5315-00-860-0532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-860-0532 | 2016-10-293 | 6 | DIBBS |
| 5315-00-860-0532 | 2016-05-122 | 6 | DIBBS |
| 5315-00-860-0532 | 2015-07-208 | 5 | DIBBS |
| 5315-00-860-0532 | 2015-07-189 | 5 | DIBBS |
| 5315-00-860-0532 | 2014-10-282 | 5 | DIBBS |
| 5315-00-860-0532 | 2014-09-271 | 5 | DIBBS |
| 5315-00-860-0532 | 2014-03-66 | 8 | DIBBS |
| 5315-00-860-0532 | 2014-03-66 | 15 | DIBBS |
| 5315-00-860-0532 | 2014-02-51 | 8 | DIBBS |
| 5315-00-860-0532 | 2014-02-51 | 15 | DIBBS |
| 5315-00-860-0532 | 2013-01-20 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-860-0532
Related Products | NSN 5315-00-860-0532
Technical Data | NSN 5315-00-860-0532
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1015 OR STEEL COMP 1025 OVERALL |

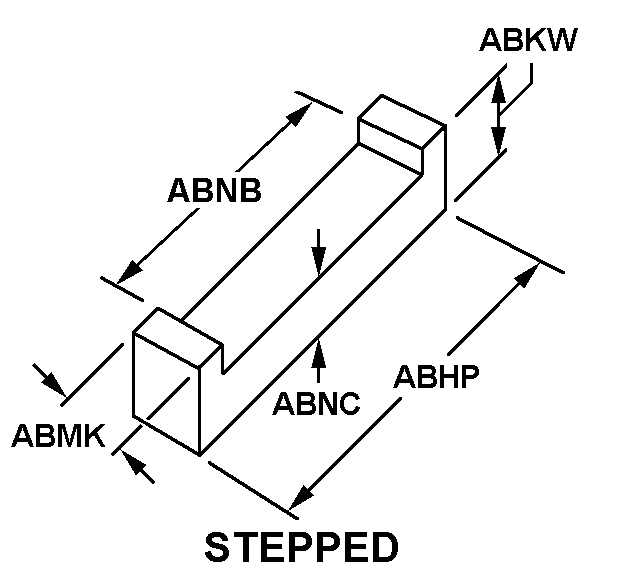

| STYLE DESIGNATOR | B27 STEPPED |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| FIRST FLAT LENGTH | 0.187 INCHES NOMINAL |
| FLAT HEIGHT | 0.187 INCHES NOMINAL |
| STARTING EDGE SHAPE | CHAMFERED |
| KEY CHAMFER LENGTH | 0.563 INCHES NOMINAL |
| KEY CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-860-0532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-860-0532
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
