NSN 5315-00-874-2511 MS3908679, MS39086-79, NASM39086
Product Details | SPRING PIN
5315-00-874-2511 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS3908679, MS39086-79, NASM39086, 5315-00-874-2511, 00-874-2511, 5315008742511 , 008742511
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 NOV 1967 | 00-874-2511 | 02389 ( PIN, SPRING ) |

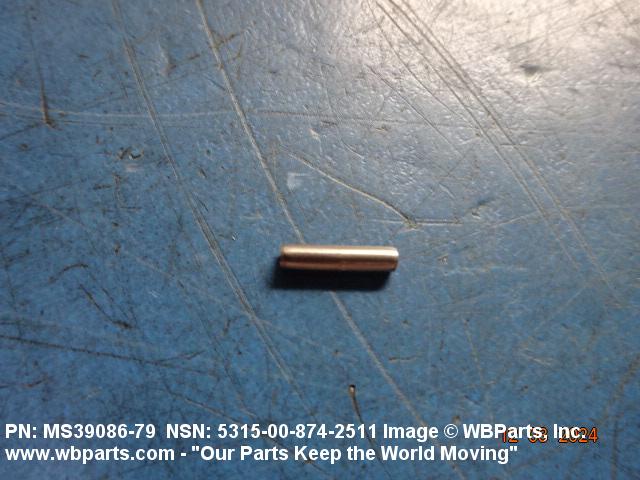

Drawings & Photos | NSN 5315-00-874-2511
Demand History | NSN 5315-00-874-2511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-874-2511 | 2024-11-331 | 384 | United States |
| 5315-00-874-2511 | 2024-11-311 | 384 | United States |
| 5315-00-874-2511 | 2024-09-256 | 248 | United States |
| 5315-00-874-2511 | 2024-09-250 | 248 | United States |
| 5315-00-874-2511 | 2024-08-243 | 248 | United States |
| 5315-00-874-2511 | 2024-04-101 | 5702 | DIBBS |
| 5315-00-874-2511 | 2024-04-93 | 5702 | DIBBS |
| 5315-00-874-2511 | 2023-06-178 | 400 | DIBBS |
| 5315-00-874-2511 | 2023-06-170 | 400 | DIBBS |
| 5315-00-874-2511 | 2023-05-129 | 5015 | DIBBS |
| 5315-00-874-2511 | 2023-02-53 | 442 | DIBBS |
| 5315-00-874-2511 | 2022-12-347 | 758 | DIBBS |
| MS3908679 | 2022-07-188 | 1000 | US |
| 5315-00-874-2511 | 2016-01-10 | 1667 | DIBBS |
| MS3908679 | 2015-12-351 | 2000 | United States |
| 5315-00-874-2511 | 2015-08-223 | 938 | DIBBS |
| 5315-00-874-2511 | 2015-07-210 | 938 | DIBBS |
| 5315-00-874-2511 | 2015-05-131 | 61 | DIBBS |
| 5315-00-874-2511 | 2015-05-124 | 600 | DIBBS |
| 5315-00-874-2511 | 2015-04-118 | 61 | DIBBS |
| 5315-00-874-2511 | 2015-03-61 | 3 | DIBBS |
| 5315-00-874-2511 | 2014-09-273 | 190 | DIBBS |
| 5315-00-874-2511 | 2014-07-202 | 1 | DIBBS |
| 5315-00-874-2511 | 2014-07-190 | 1 | DIBBS |
| 5315-00-874-2511 | 2014-05-149 | 10 | DIBBS |
| 5315-00-874-2511 | 2014-05-138 | 10 | DIBBS |
| 5315-00-874-2511 | 2014-05-134 | 10 | DIBBS |
| 5315-00-874-2511 | 2014-04-96 | 44 | DIBBS |
| 5315-00-874-2511 | 2013-08-215 | 6 | DIBBS |
| 5315-00-874-2511 | 2013-07-210 | 10 | DIBBS |
| 5315-00-874-2511 | 2012-12-363 | 25 | DIBBS |
| 5315-00-874-2511 | 2012-10-275 | 6 | DIBBS |
| 5315-00-874-2511 | 2012-05-131 | 3334 | DIBBS |
| 5315-00-874-2511 | 2011-06-179 | 15 | DIBBS |
| 5315-00-874-2511 | 2010-12-351 | 1 | DIBBS |
| MS3908679 | 2010-08-237 | 100000 | US |
| 5315-00-874-2511 | 2010-08-220 | 2 | DIBBS |
| 5315-00-874-2511 | 2010-07-211 | 1 | DIBBS |
| 5315-00-874-2511 | 2010-06-179 | 2 | DIBBS |
| 5315-00-874-2511 | 2010-06-168 | 8 | DIBBS |
| 5315-00-874-2511 | 2010-03-65 | 8 | DIBBS |
| NASM39086 | 2009-06-176 | 1100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-874-2511
Related Products | NSN 5315-00-874-2511
Technical Data | NSN 5315-00-874-2511
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1070 OR STEEL COMP 1071 OR STEEL COMP 1072 OR STEEL COMP 1074 OR STEEL COMP 1075 OR STEEL COMP 1078 OR STEEL COMP 1080 OR STEEL COMP 1084 OR STEEL COMP 1085 OR STEEL COMP 1086 OR STEEL COMP 1090 OR STEEL COMP 1095 OVERALL |
| SURFACE TREATMENT | PHOSPHATE ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-16232,TY Z,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | K177 COILED |

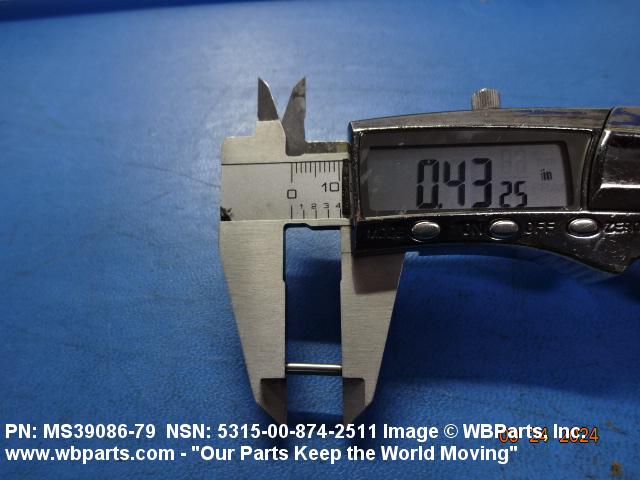

| OVERALL LENGTH | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| DIAMETER | 0.094 INCHES NOMINAL |
| EXPANDED DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39086-79 |
Restrictions/Controls & Freight Information | NSN 5315-00-874-2511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093360 | BLANKS KEY METAL IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-874-2511
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
