NSN 5315-00-889-2767 MS16555677, MS16555-677, W1658
Product Details | HEADLESS STRAIGHT PIN
5315-00-889-2767 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS16555677, MS16555-677, W1658 , 6774PC21, 6774PC2-1 , 820438346617, 820-4383466-17 , 8204384268, 820-4384268 , 8428PC21 , 5315-00-889-2767, 00-889-2767, 5315008892767, 008892767
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-889-2767 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

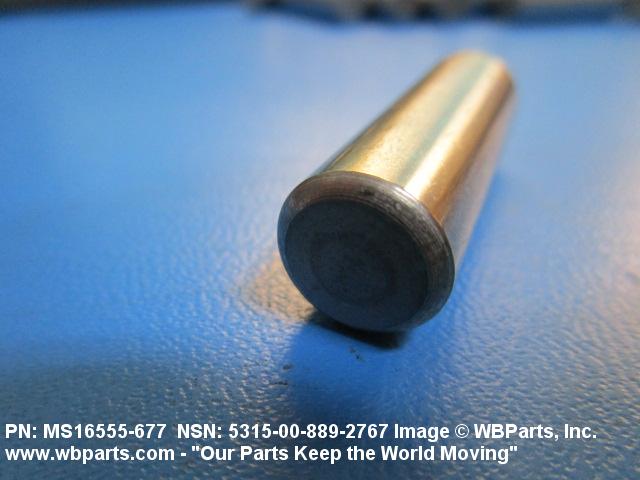

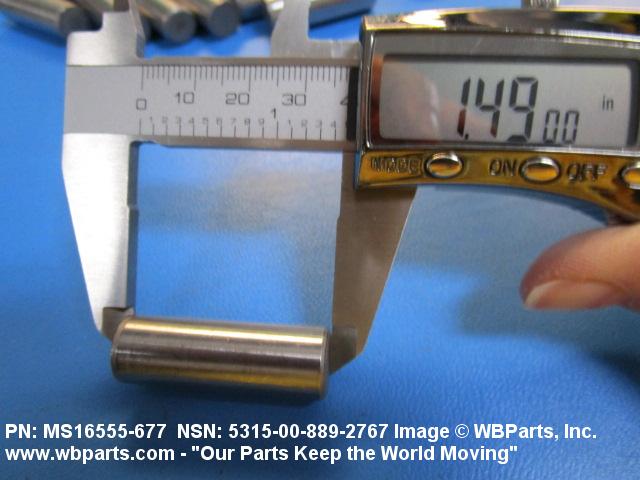

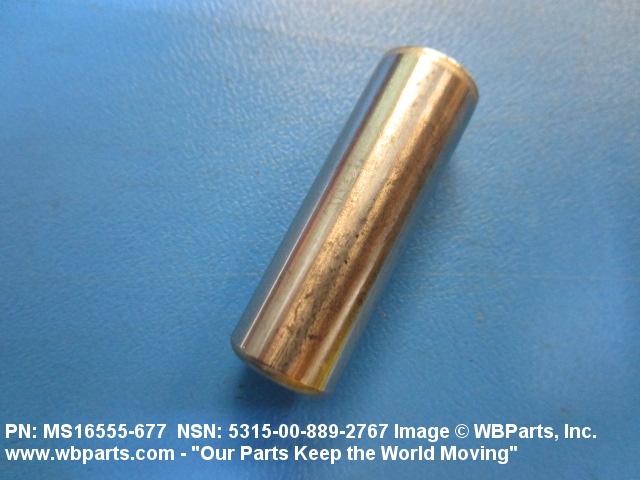

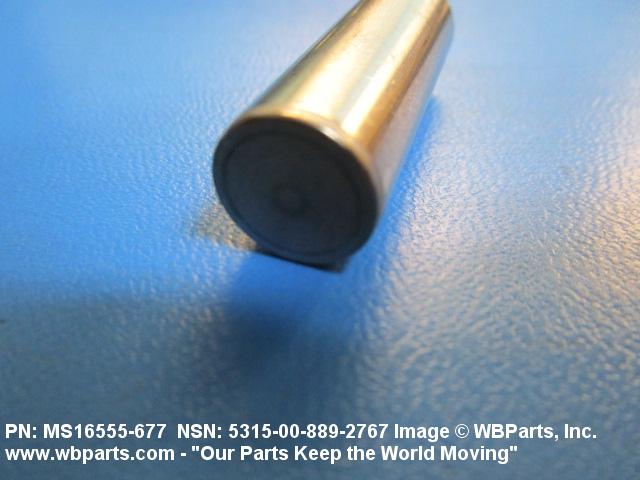

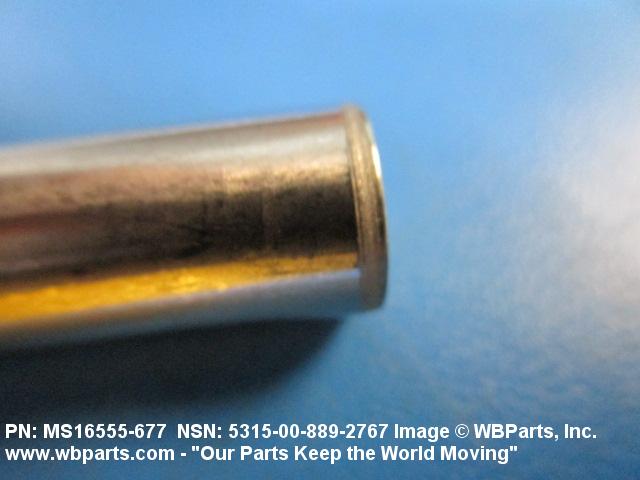

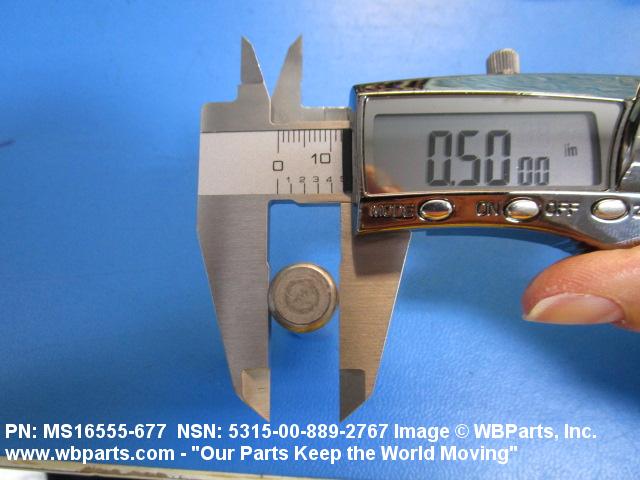

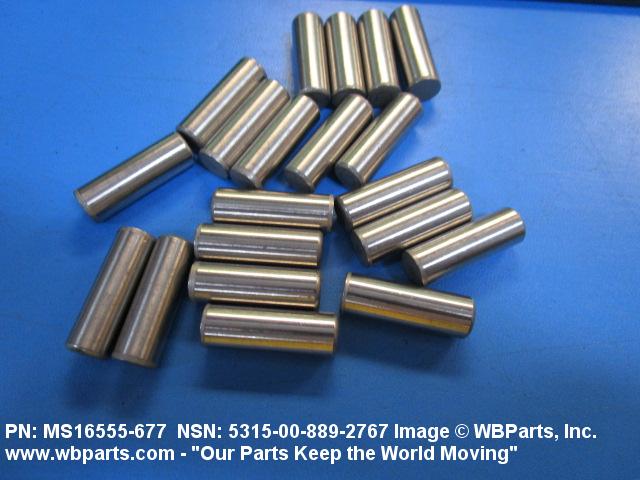

Drawings & Photos | NSN 5315-00-889-2767
Demand History | NSN 5315-00-889-2767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-889-2767 | 2025-08-217 | 508 | DIBBS |
| 5315-00-889-2767 | 2024-08-219 | 368 | DIBBS |
| MS16555677 | 2021-08-222 | 4 | United States |
| MS16555677 | 2012-06-159 | 100 | United States |
| 5315-00-889-2767 | 2011-11-327 | 10 | US |
| 5315-00-889-2767 | 2011-08-228 | 112 | US |
| MS16555677 | 2010-08-223 | 400 | US |
| 5315-00-889-2767 | 2010-06-168 | 745 | DIBBS |
| MS16555677 | 2009-09-245 | 4 | Netherlands |
| 5315-00-889-2767 | 2009-07-197 | 500 | US |
| 5315-00-889-2767 | 2009-05-150 | 857 | DIBBS |
| 5315-00-889-2767 | 2009-05-125 | 860 | DIBBS |
| 5315-00-889-2767 | 2009-02-49 | 715 | DIBBS |
Cross Reference | NSN 5315-00-889-2767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16555-677 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-889-2767
Technical Data | NSN 5315-00-889-2767
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 29000 DOUBLE POUND |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.135 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 4 RADIUS |
| SECOND END CORNER RADIUS | 0.063 INCHES MINIMUM AND 0.167 INCHES MAXIMUM |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.5001 INCHES MINIMUM AND 0.5003 INCHES MAXIMUM |
| SPECIAL FEATURES | RADIUS END MAY BE CHAMFERED OPTIONAL |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY SMALL CHAMFERED END,CHAMFERED ONLY |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16555-677 |
Restrictions/Controls & Freight Information | NSN 5315-00-889-2767
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-00-889-2767
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X6 | |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
