NSN 5315-00-904-5238 MS17984307, MS17984-307, SLS3B07
Product Details | QUICK RELEASE PIN

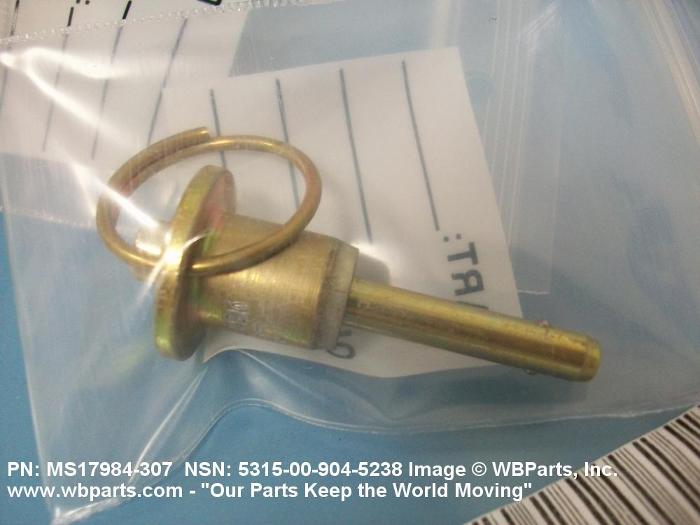

5315-00-904-5238 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984307, MS17984-307, SLS3B07, BLS3B07S, LG3SB0700, LG3SB07M, 5315-00-904-5238, 00-904-5238, 5315009045238, 009045238
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-904-5238 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-00-904-5238
Demand History | NSN 5315-00-904-5238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17984307 | 2011-09-244 | 5 | United States |
Cross Reference | NSN 5315-00-904-5238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC38075 | K0378 | ROLLS-ROYCE MILITARY AERO ENGINES LTD |
| BLC3B07S | 84256 | AVIBANK MFG., INC. |
| BLC3B07S | R1120 | SATAIR A/S |
| LG3CB0700 | 62060 | SOUTHCO INC. |
| LG3CB07M | 62060 | SOUTHCO INC. |
| LG3SB0700 | 62060 | SOUTHCO INC. |
| LG3SB0700 | 83014 | HARTWELL CORPORATION |
| LG3SB0700 | SV287 | PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V. |
| LG3SB07M | 62060 | SOUTHCO INC. |
| LG3SB07M | 83014 | HARTWELL CORPORATION |
| LG3SB07M | SV287 | PRODUCTOS FERROSOS PENINSULARES S.A. DE C.V. |
| MS17984-307 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C307 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C307 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17984C307 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| SLC3AB07 | 16258 | SPACELOK INC. |
| SLS3B07 | 16258 | SPACELOK INC. |
| Z00.N7090240595 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-904-5238
Technical Data | NSN 5315-00-904-5238
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 SHANK STEEL COMP 4130 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SHANK CADMIUM AND CHROMATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SPINDLE |
| STYLE DESIGNATOR | Q243 BUTTON |
| SHANK DIAMETER | 0.1870 INCHES MINIMUM AND 0.1885 INCHES MAXIMUM |
| BUTTON HANDLE DIAMETER | 0.720 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| GRIP LENGTH | 0.700 INCHES MINIMUM AND 0.720 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 0.830 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.230 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK OR RING |
