NSN 5315-00-904-8248 MS17986628, MS17986-628, SLS6AL28
Product Details | QUICK RELEASE PIN
5315-00-904-8248 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17986628, MS17986-628, SLS6AL28, BLS6LA28SM, LG6SL2800, 5315-00-904-8248, 00-904-8248, 5315009048248, 009048248
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-904-8248 | 08323 ( PIN, QUICK RELEASE ) |

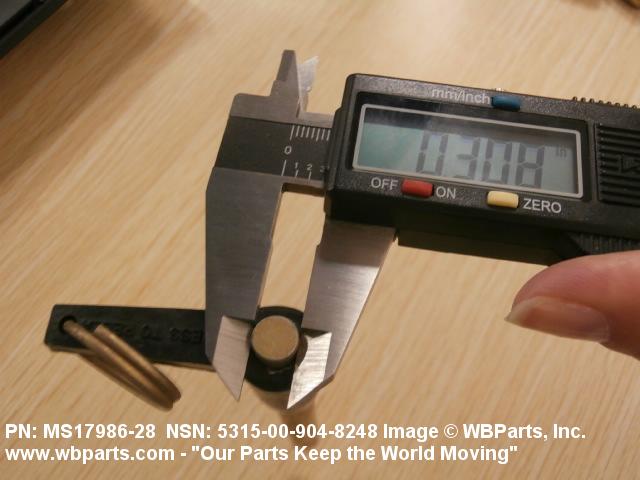

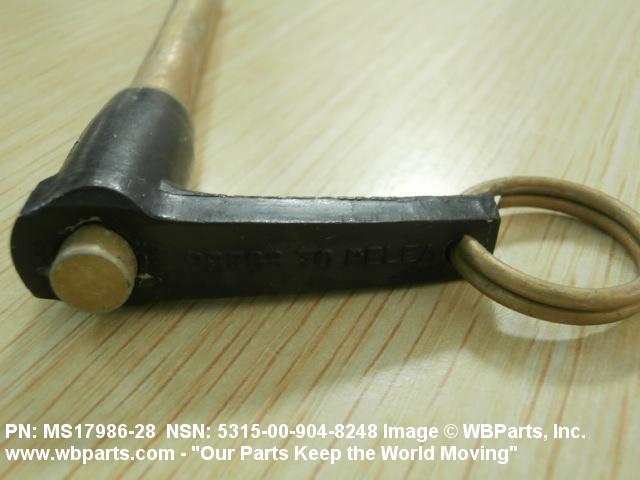

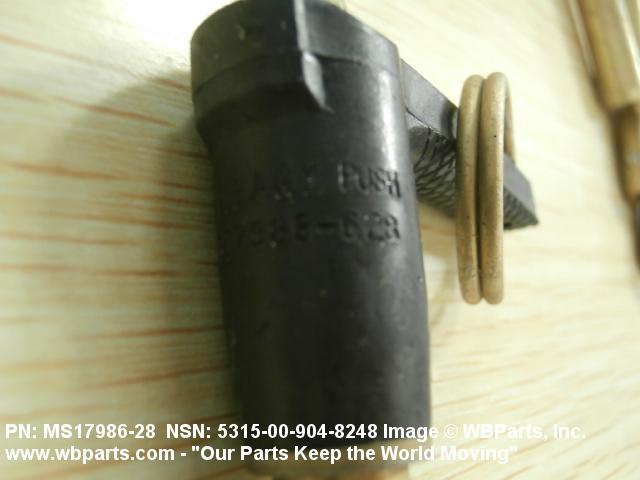

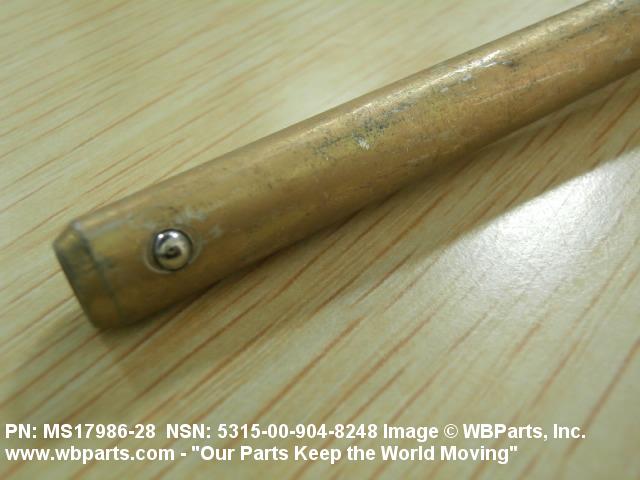

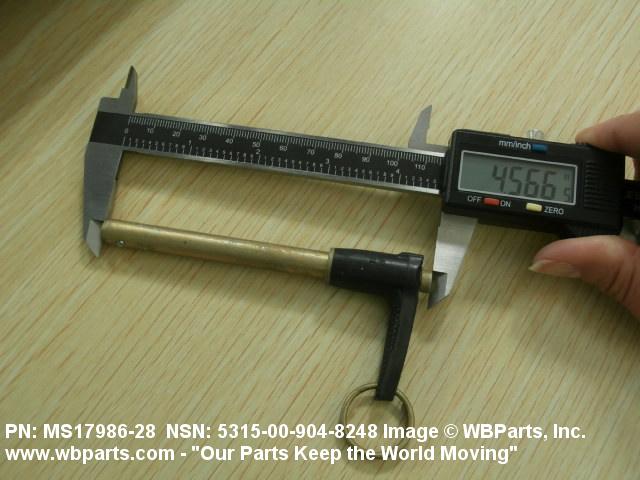

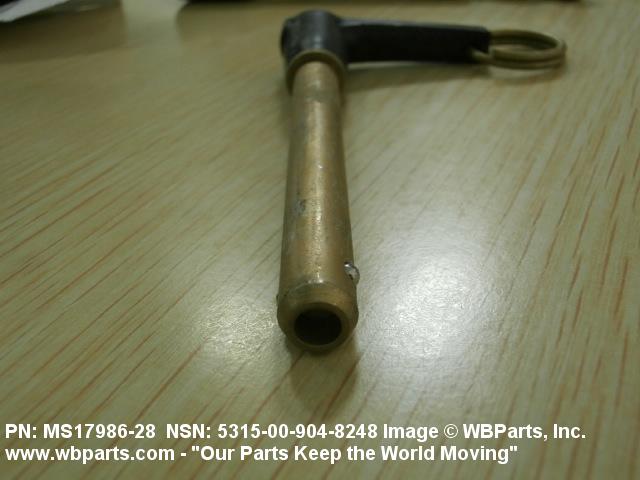

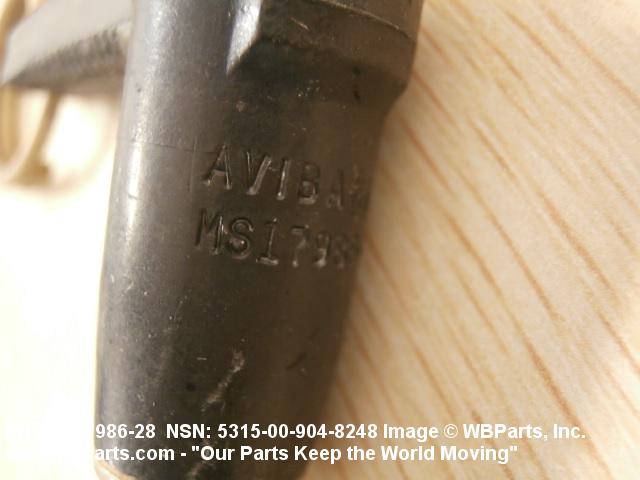

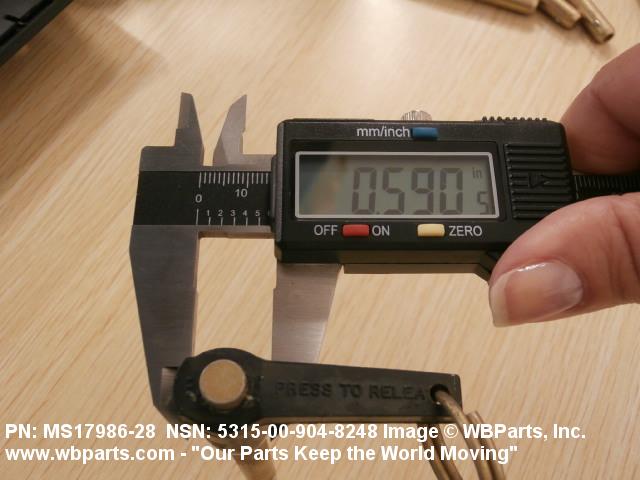

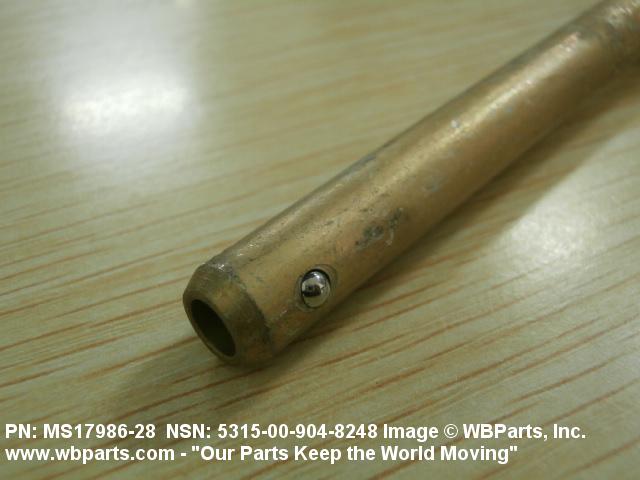

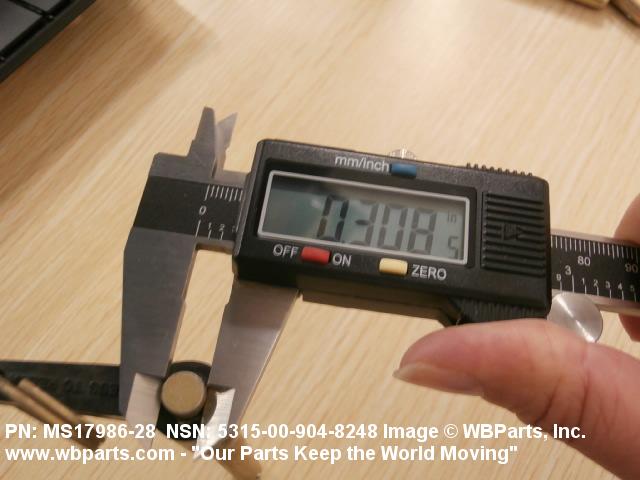

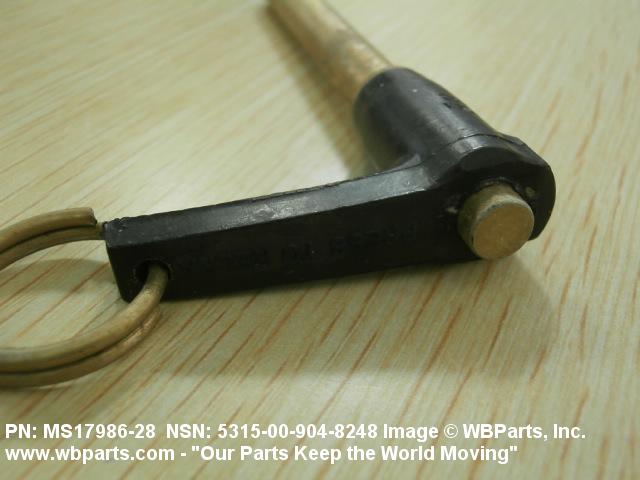

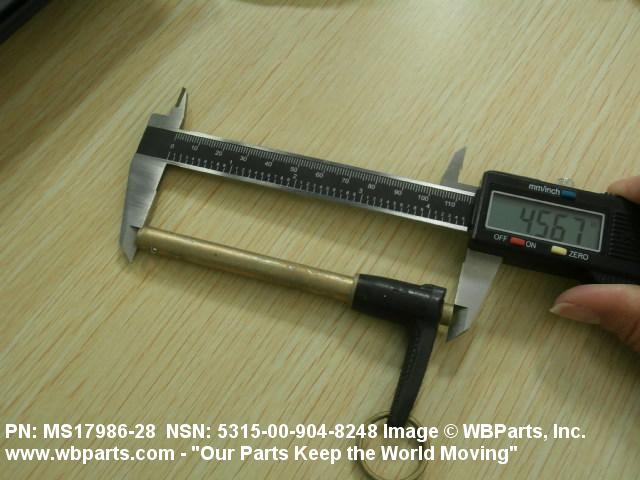

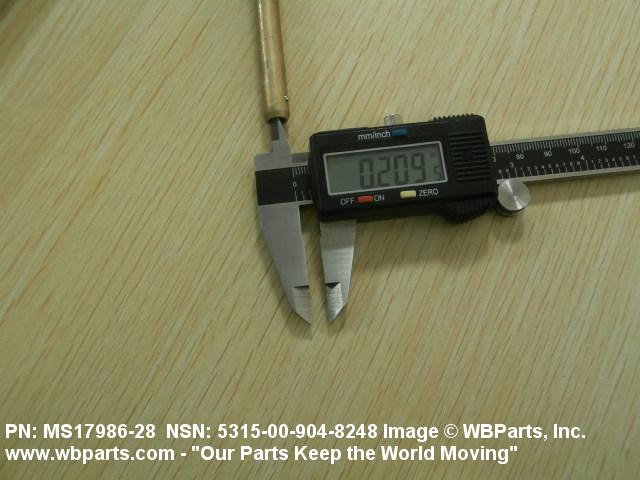

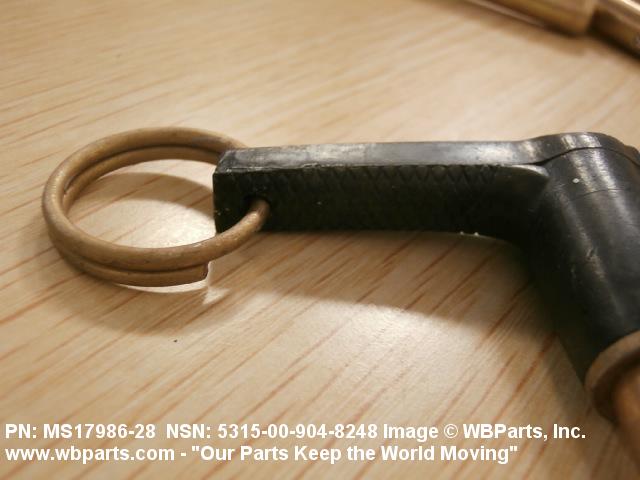

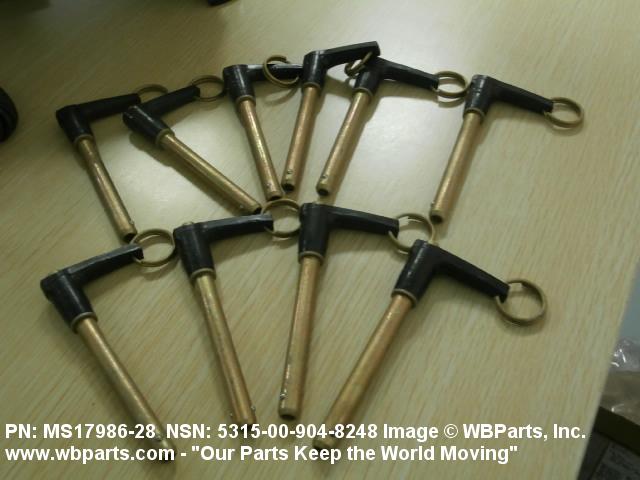

Drawings & Photos | NSN 5315-00-904-8248
Demand History | NSN 5315-00-904-8248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17986-628 | 2014-12-357 | 11 | Australia |
| MS17986628 | 2014-10-300 | 1 | Australia |
| MS17986-628 | 2014-08-232 | 21 | Australia |
| MS17986-628 | 2014-08-232 | 21 | United States |
| MS17986-628 | 2014-08-232 | 21 | United States |
| MS17986-628 | 2014-08-227 | 21 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-904-8248
Related Products | NSN 5315-00-904-8248
Technical Data | NSN 5315-00-904-8248
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 SHANK STEEL COMP 4130 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SHANK CADMIUM AND CHROMATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SPINDLE |
| SHEAR STRENGTH | 18400 DOUBLE POUND |
| STYLE DESIGNATOR | Q244 L HANDLE |

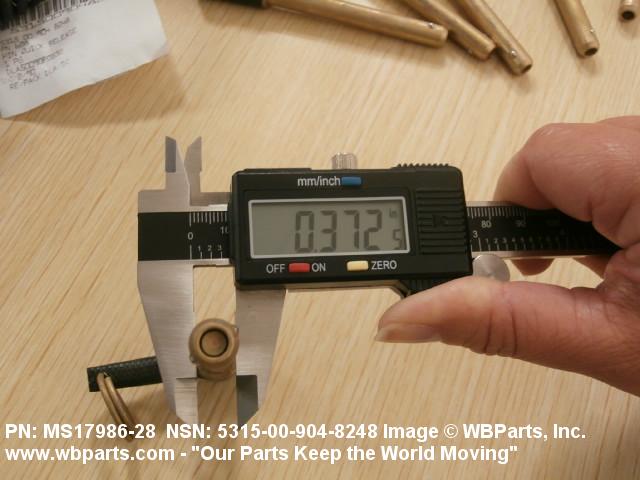

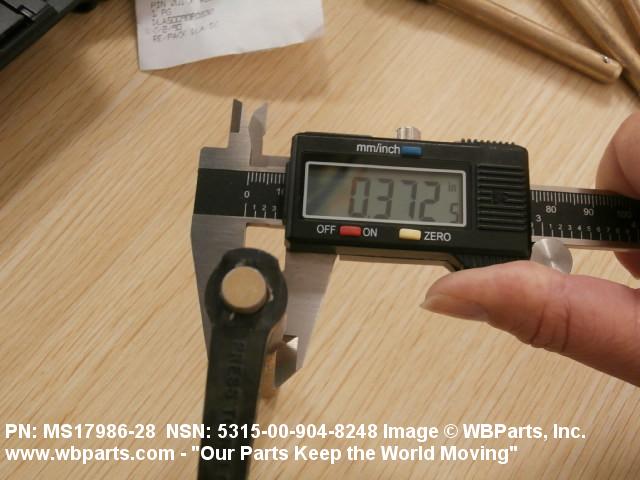

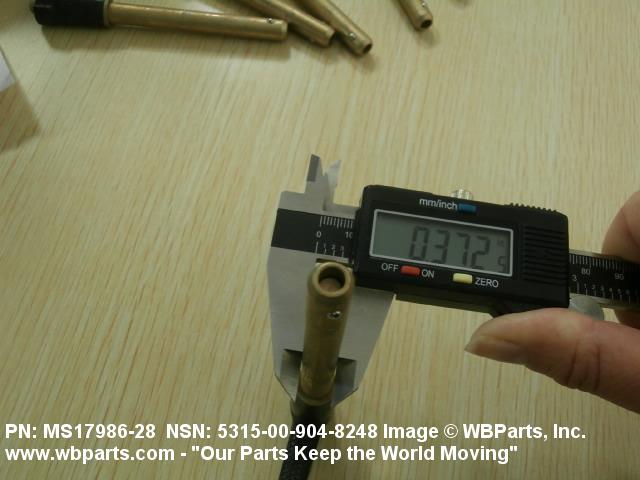

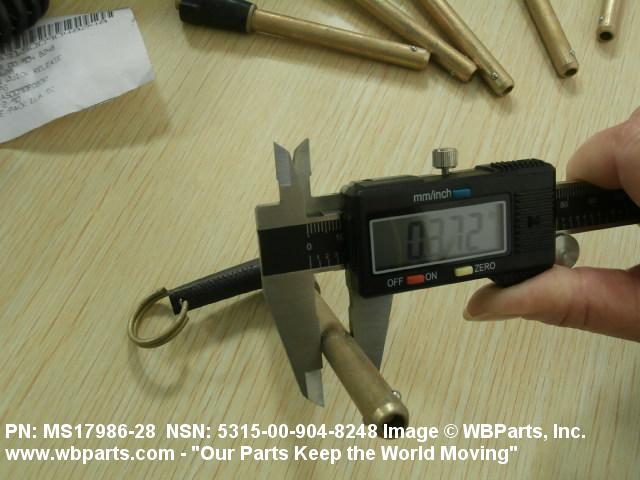

| SHANK DIAMETER | 0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM |
| GRIP LENGTH | 2.800 INCHES MINIMUM AND 2.820 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.450 INCHES MAXIMUM |
| PIN CENTER TO HANDLE END DISTANCE | 1.640 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.335 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK OR RING |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17986-628 |
Restrictions/Controls & Freight Information | NSN 5315-00-904-8248
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-904-8248
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
