NSN 5315-00-926-5864 MS16555643, MS16555-643, NASM16555643

Product Details | HEADLESS STRAIGHT PIN

5315-00-926-5864 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS16555643, MS16555-643, NASM16555643, NASM16555-643, D191000, D19-1000, 02013503, 0740663, 2650-3375GP1 ITEM 8, 26503375GP1ITEM8, 5315-00-926-5864, 00-926-5864, 5315009265864, 009265864

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	16 DEC 1966	00-926-5864	02390 ( PIN, STRAIGHT, HEADLESS )

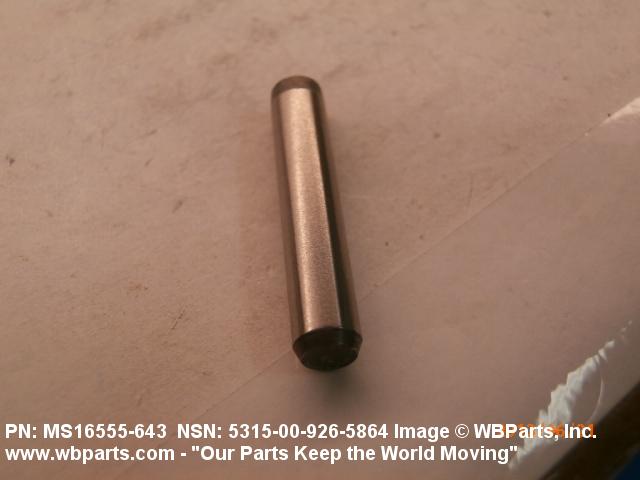

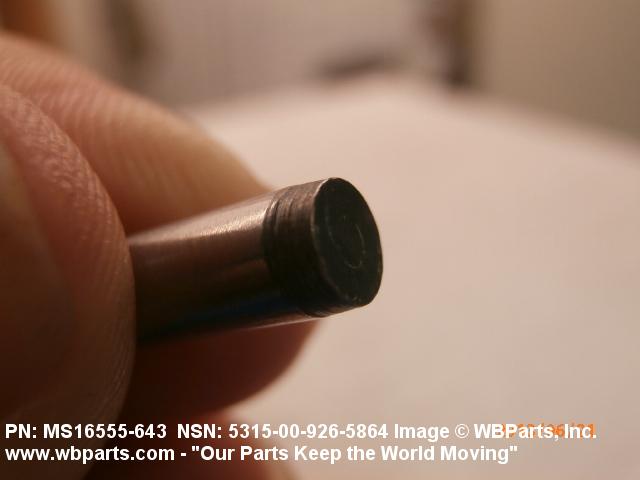

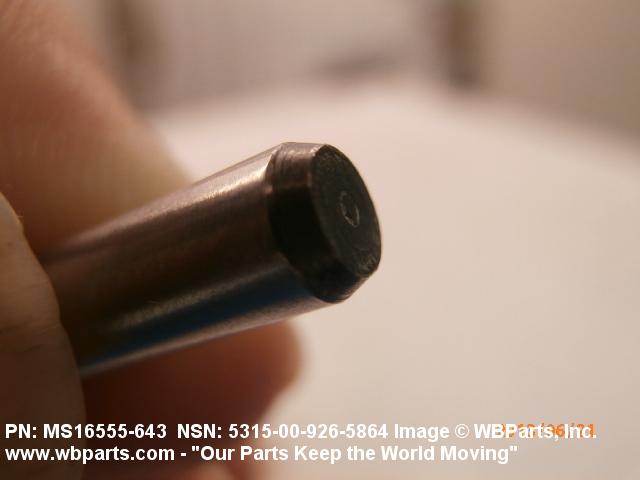

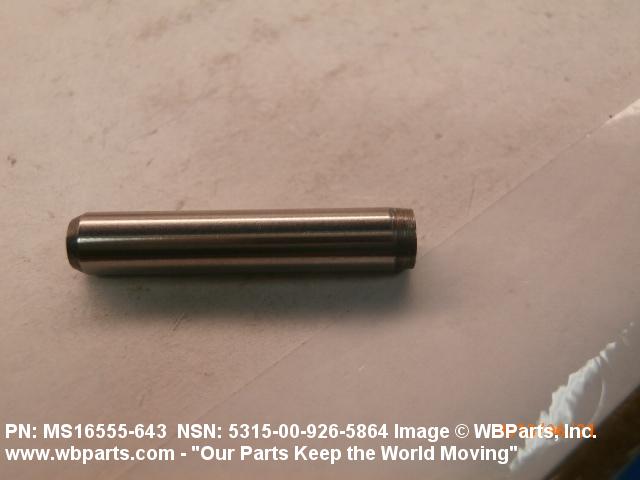

Drawings & Photos | NSN 5315-00-926-5864

Part Number	Request Date	QTY	Origin
5315-00-926-5864	2024-10-305	556	DIBBS
MS16555643	2023-10-303	180	Korea
MS16555643	2023-03-79	170	Korea
MS16555643	2023-03-79	220	Korea
MS16555643	2022-06-180	85	United States
MS16555643	2021-01-29	400	South Korea
MS16555643	2020-04-105	120	South Korea
MS16555-643	2019-08-232	1300	South Korea
MS16555643	2016-08-225	25	us
MS16555643	2016-06-160	550	South Korea
MS16555643	2016-05-148	1	IN
MS16555643	2014-07-190	8	US
MS16555643	2013-06-165	1	United States
5315-00-926-5864	2013-01-16	6	US
5315-00-926-5864	2012-07-201	6	US
5315-00-926-5864	2011-09-256	20	US
MS16555643	2011-02-42	1	United States
5315-00-926-5864	2010-05-134	667	DIBBS
5315-00-926-5864	2010-05-125	667	DIBBS

Cross Reference | NSN 5315-00-926-5864

Part Number	Cage Code	Manufacturer
02013503	ZD484	J BLACKWOOD & SON LTD
0740663	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
2650-3375GP1 ITEM 8	51802	HANSOME ENERGY SYSTEMS INC
2650-3375GP1 ITEM 8	95402	ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC
5315009265864	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
D19-1000	00141	ROLLER BEARING COMPANY OF AMERICA, INC.
MS16555-643	36126	RAYTHEON CANADA LIMITED DBA ELCAN OPTICAL TECHNOLOGIES, DIV
MS16555-643	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM16555-643	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-926-5864

Compare

Related Products | NSN 5315-00-926-5864

5315-00-926-5866, 5315-00-926-5878, 5315-00-926-6096, 5315-00-926-6384, 5315-00-926-6990

Technical Data | NSN 5315-00-926-5864

Characteristic	Specifications
MATERIAL	STEEL COMP 410 OR STEEL COMP 416 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL
SHEAR STRENGTH	4000 DOUBLE POUND
FIRST END STYLE	1 CHAMFERED
FIRST END TAPER LENGTH	0.208 INCHES NOMINAL
FIRST END TAPER ANGLE	4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	4 RADIUS
SECOND END CORNER RADIUS	0.062 INCHES MAXIMUM
SURFACE FINISH	16.0 MICROINCHES OUTSIDE DIAMETER

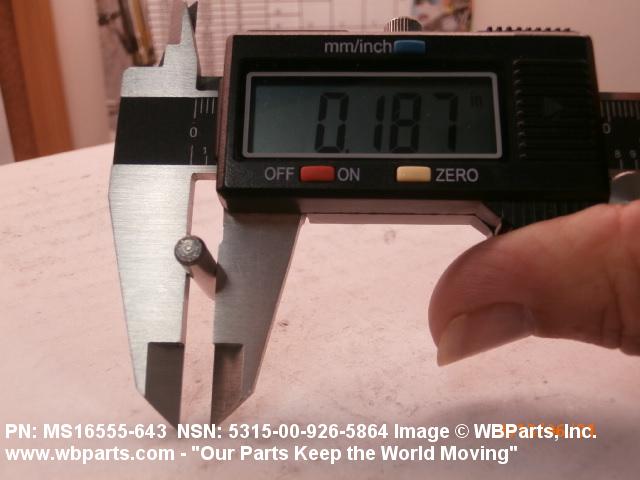

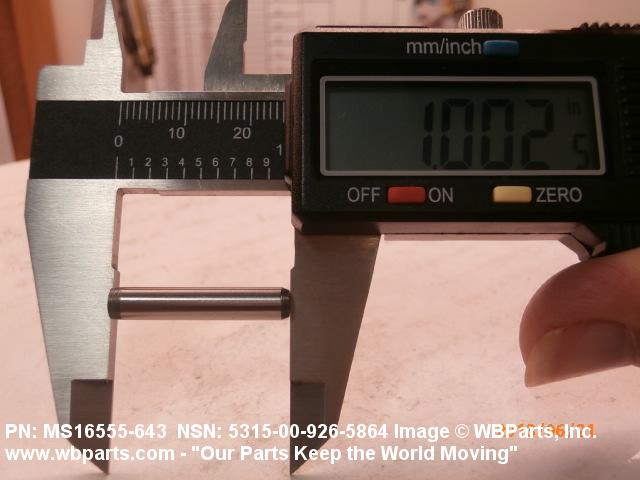

PIN OVERALL LENGTH	0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM
