Product Details | HEADED STRAIGHT PIN

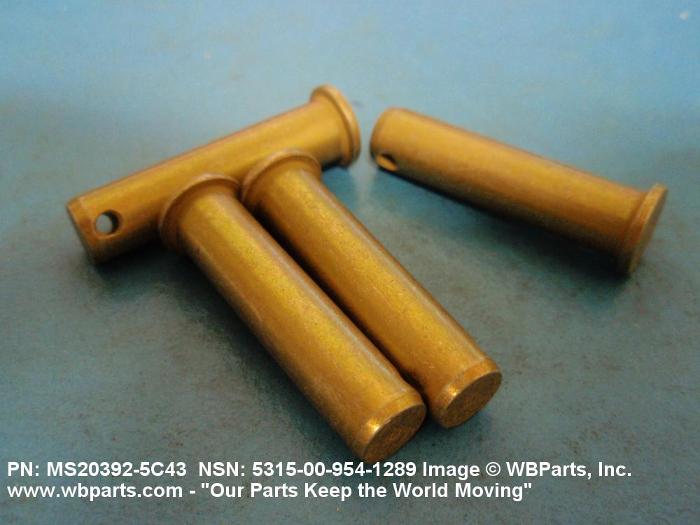

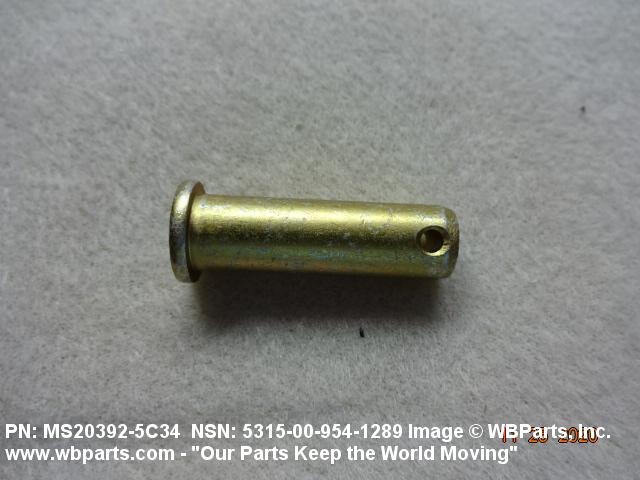

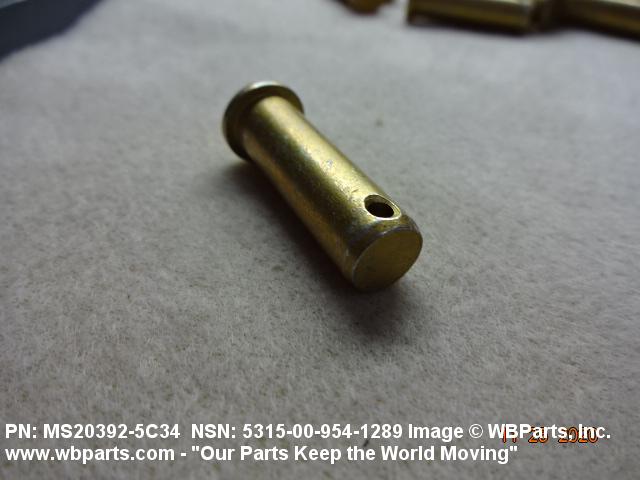

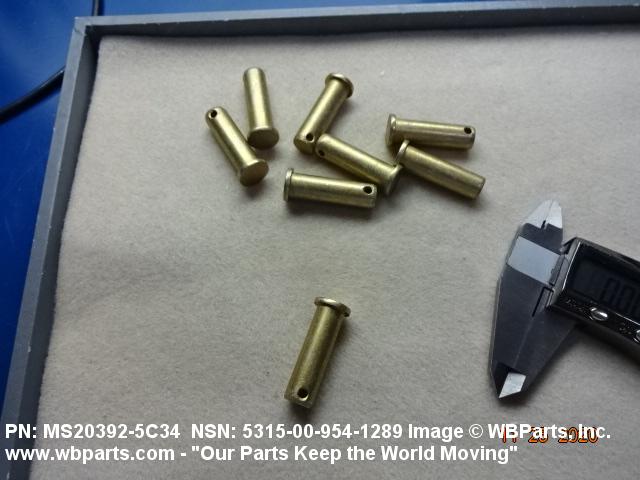

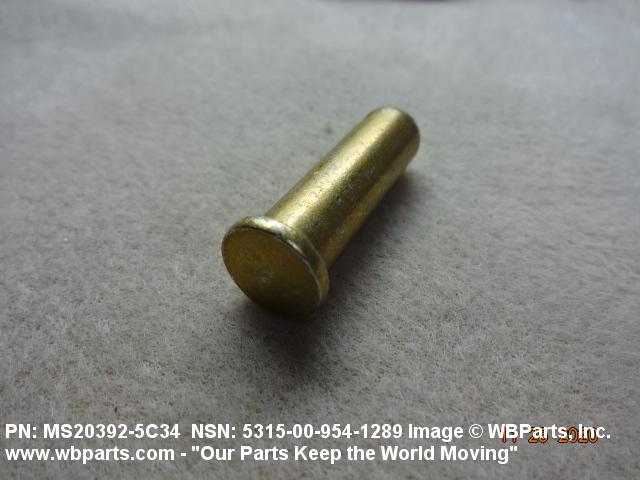

5315-00-954-1289 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203925C34, MS20392-5C34, MS203925C43, MS20392-5C43, 1107263053, 110-726305-3, 11072630539, 110-726305-39, 1112587017, 111-2587-017, 11153, 11-153, 5315-00-954-1289, 00-954-1289, 5315009541289, 009541289
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-954-1289 | 02384 ( PIN, STRAIGHT, HEADED ) |

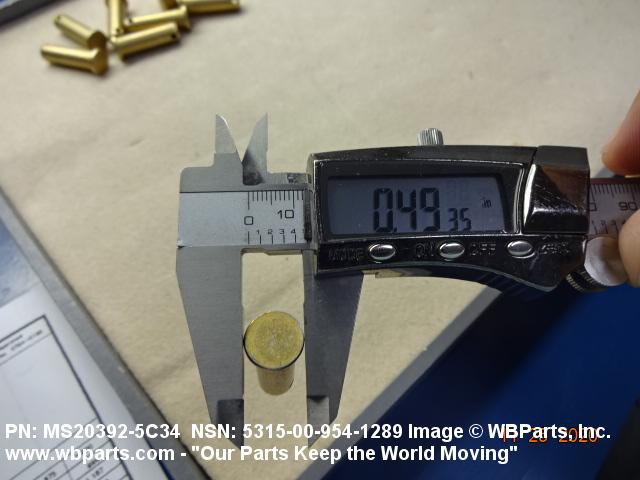

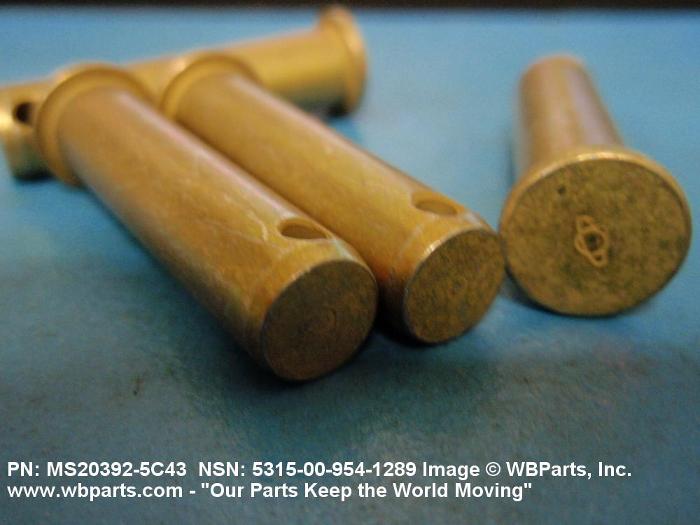

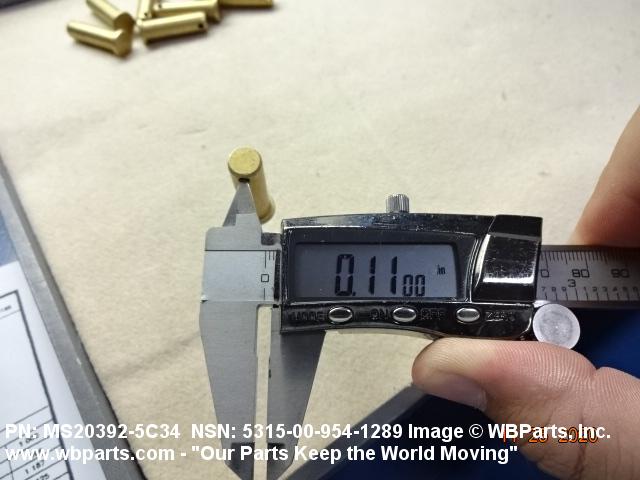

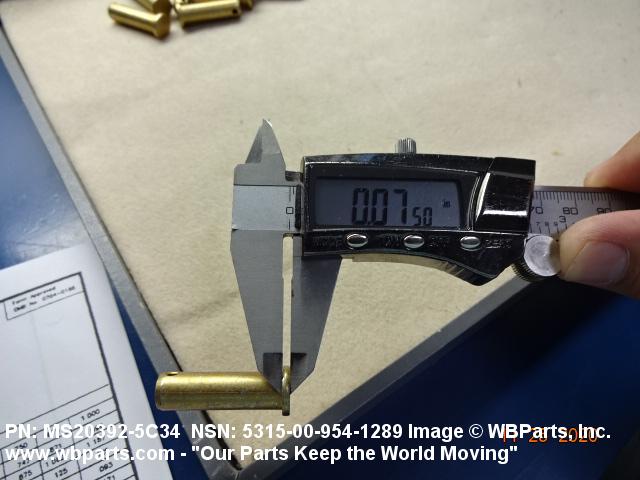

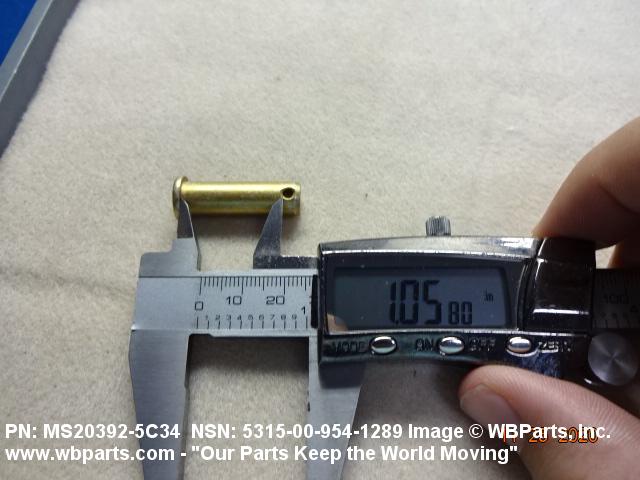

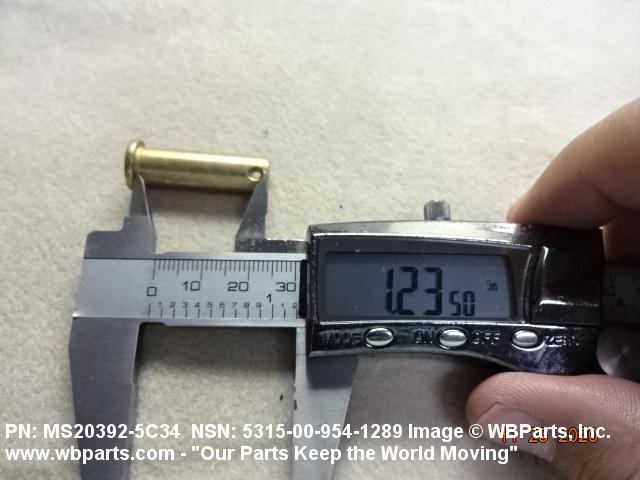

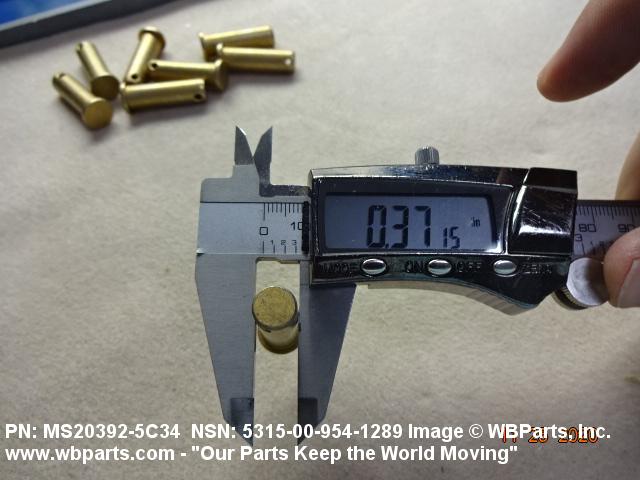

Drawings & Photos | NSN 5315-00-954-1289
Demand History | NSN 5315-00-954-1289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-954-1289 | 2025-08-234 | 18 | US |
| 5315-00-954-1289 | 2023-04-93 | 2515 | DIBBS |
| 5315-00-954-1289 | 2023-03-85 | 2515 | DIBBS |
| 5315-00-954-1289 | 2021-01-25 | 4000 | DIBBS |
| MS203925C43 | 2020-10-290 | 8 | United States |
| MS203925C43 | 2020-08-217 | 8 | United States |
| 5315-00-954-1289 | 2018-06-162 | 1510 | DIBBS |
| 5315-00-954-1289 | 2018-01-23 | 3724 | DIBBS |
| 5315-00-954-1289 | 2017-10-291 | 1510 | DIBBS |
| 5315-00-954-1289 | 2016-02-39 | 1901 | DIBBS |
| MS203925C43 | 2012-03-62 | 21 | US |
| 5315-00-954-1289 | 2010-05-126 | 2594 | DIBBS |
| MS203925C43 | 2010-03-88 | 13 | IL |
| MS203925C43 | 2010-03-88 | 13 | IL |
| MS203925C43 | 2010-03-88 | 13 | IL |
| MS203925C43 | 2010-03-88 | 13 | IL |
| MS203925C43 | 2010-03-60 | 58 | United States |
Cross Reference | NSN 5315-00-954-1289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-153 | 96652 | MEDALIST INDUSTRIES INC LEITZKE DIV |
| 110-726305-3 | 89446 | HILLER AIRCRAFT CORPORATION |
| 110-726305-39 | 89446 | HILLER AIRCRAFT CORPORATION |
| 111-2587-017 | 93408 | JOHN BEAN TECHNOLOGIES CORPORATION DBA JBT AEROTECH-MILITARY PROGRAMS |
| 5315009541289 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| MS20392-5C34 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS20392-5C43 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20392-5C43 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20392-5C43 | 96909 | DE MARZI VICTOR |
