Product Details | HEADED STRAIGHT PIN

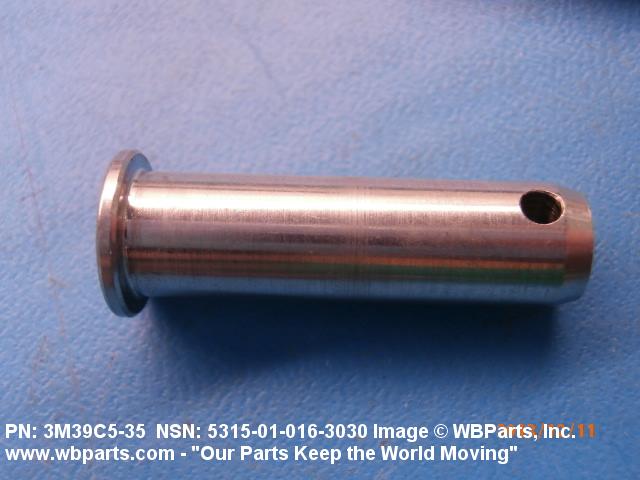

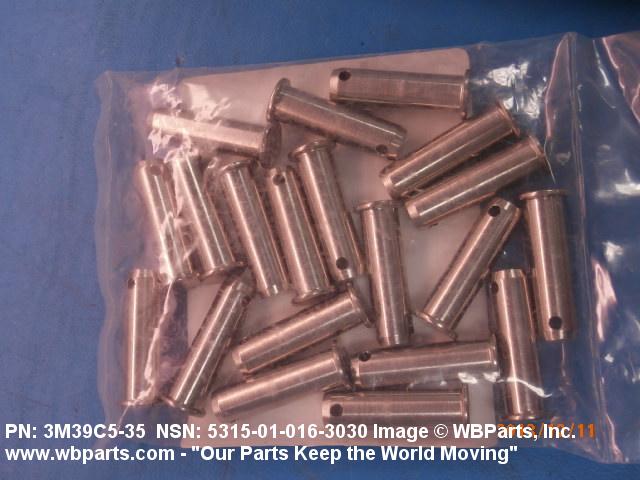

5315-01-016-3030 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: P053535, P053-5-35, 10122849 , 3M39C535, 3M39C5-35, 5315-01-016-3030, 01-016-3030, 5315010163030, 010163030
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 FEB 1976 | 01-016-3030 | 02384 ( PIN, STRAIGHT, HEADED ) |

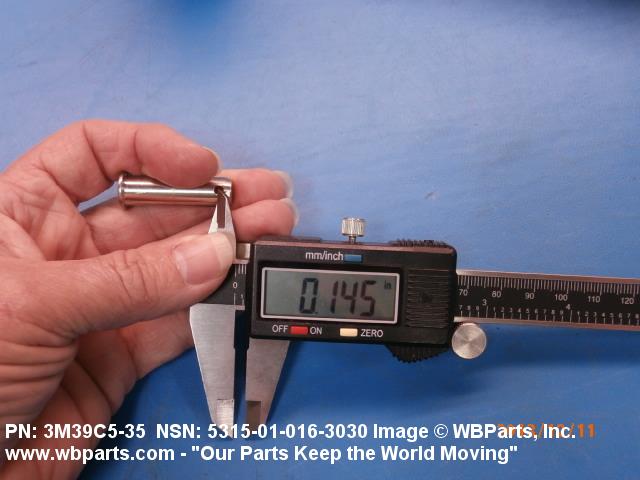

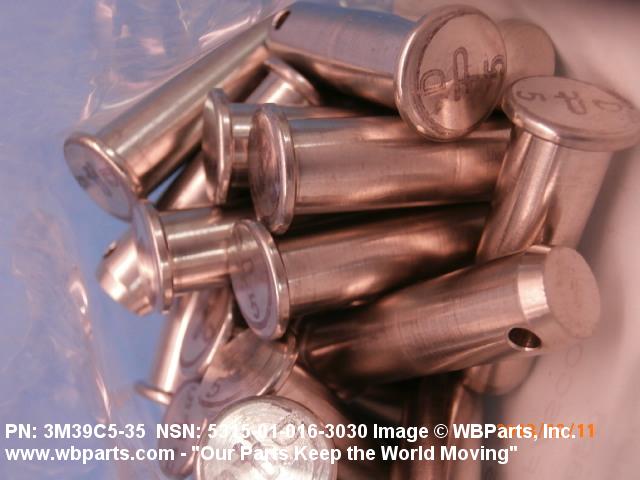

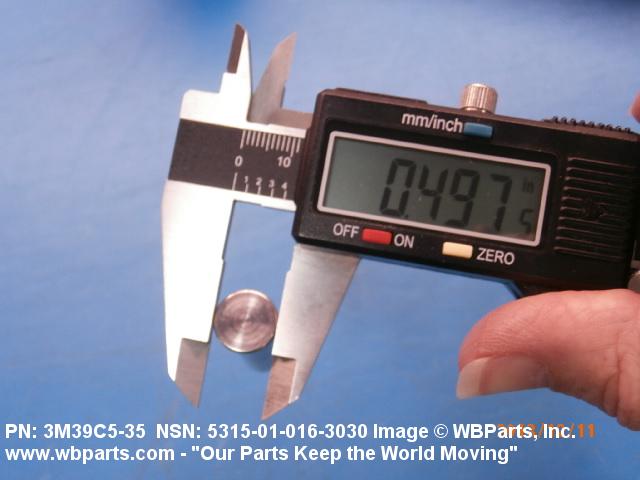

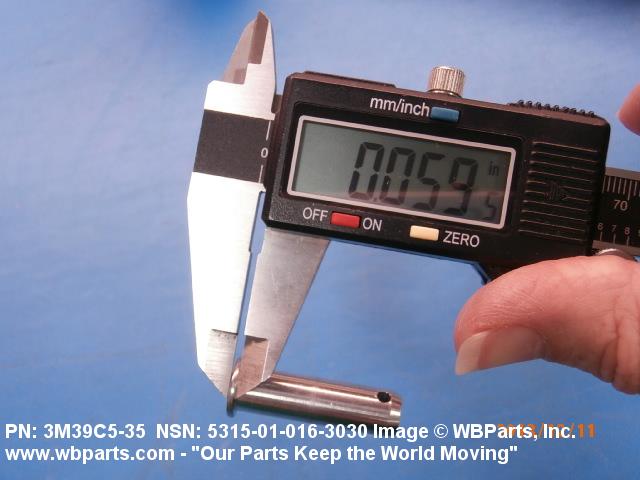

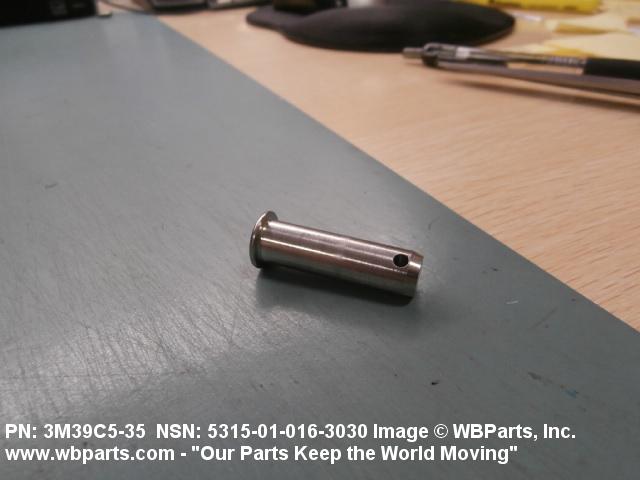

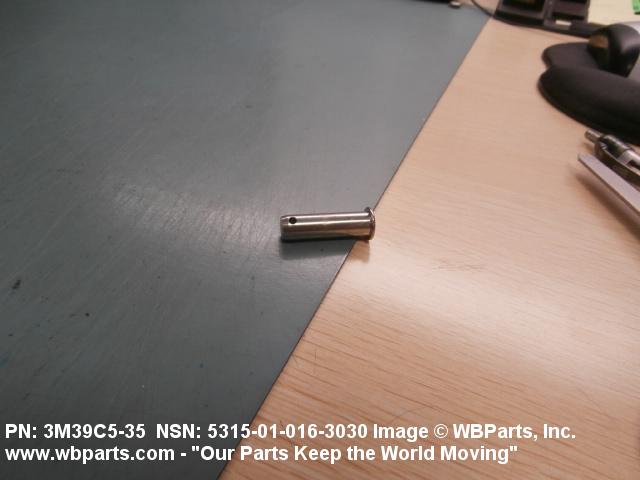

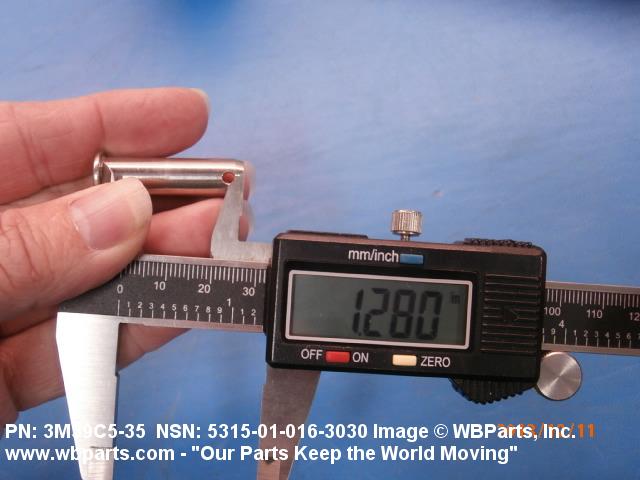

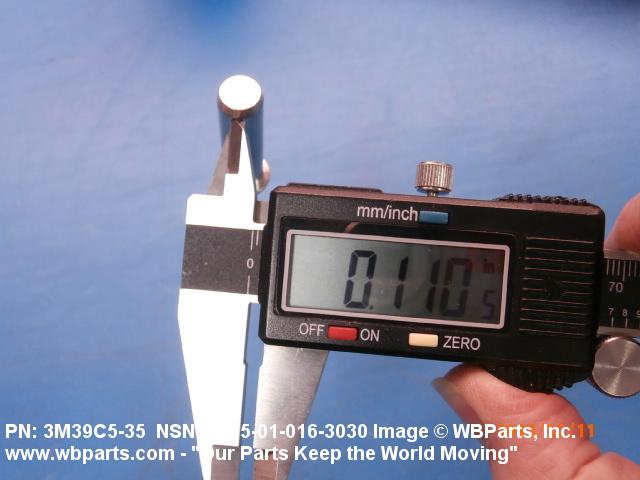

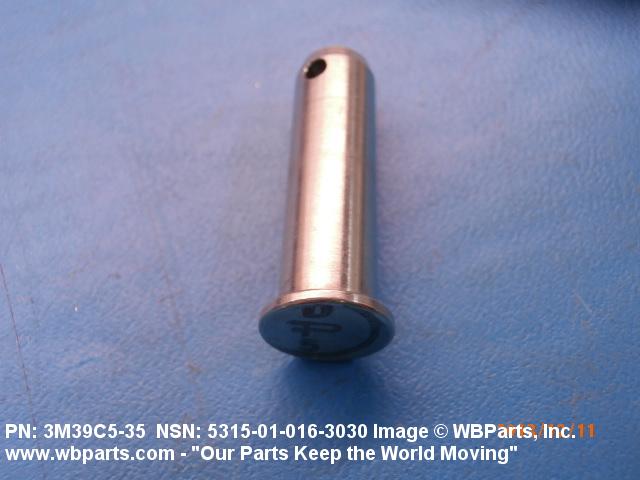

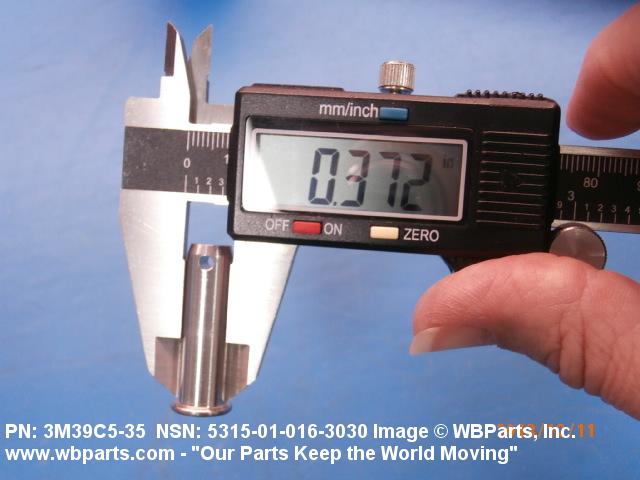

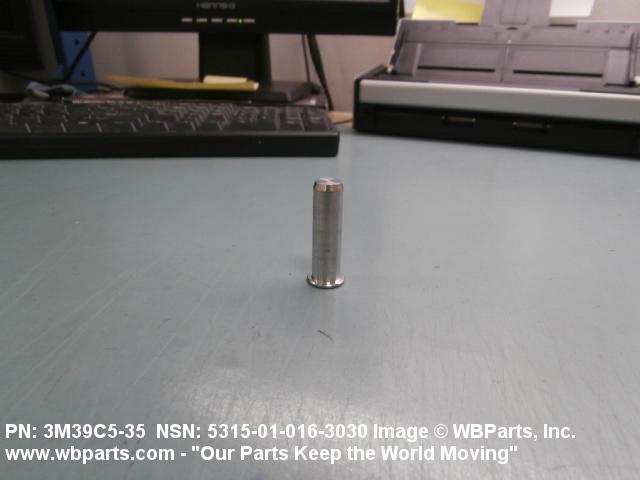

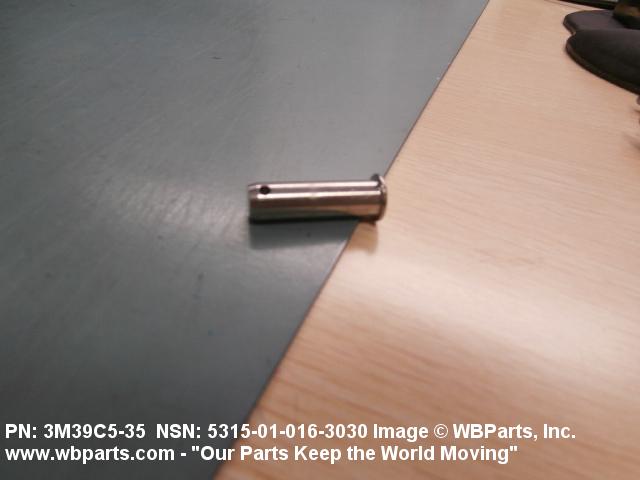

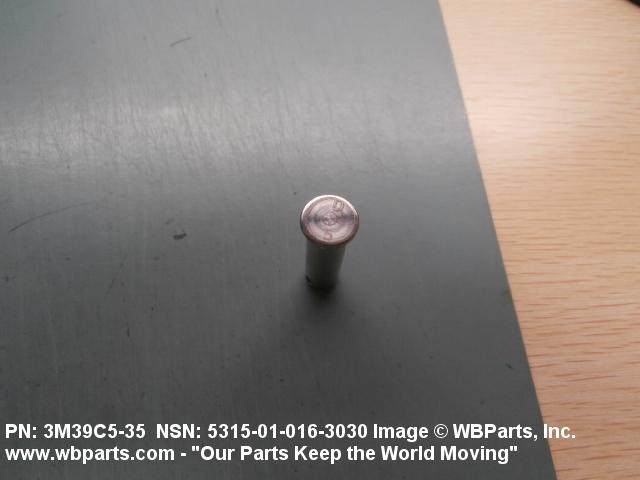

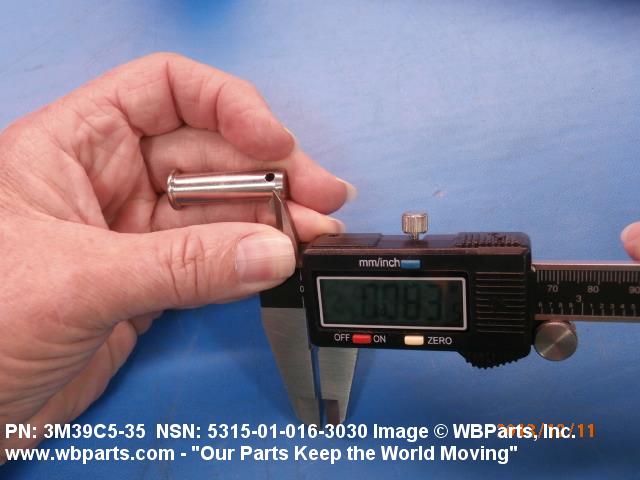

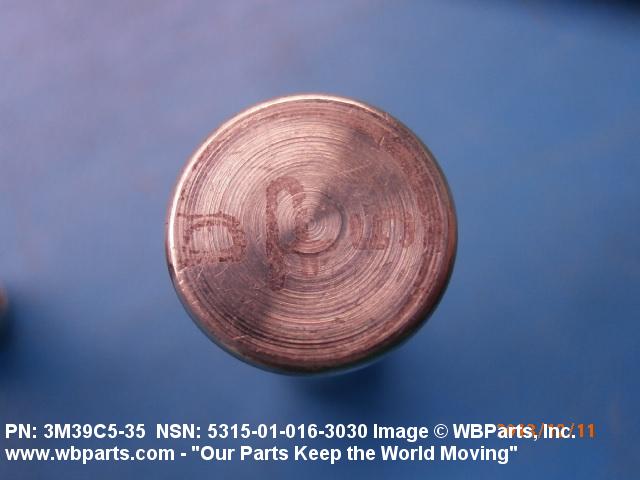

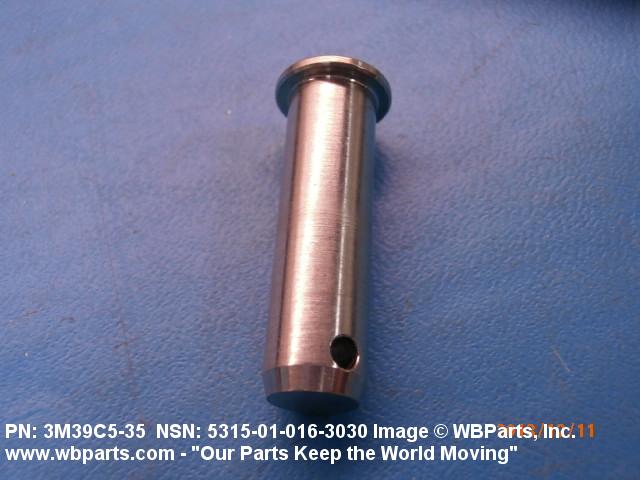

Drawings & Photos | NSN 5315-01-016-3030
Demand History | NSN 5315-01-016-3030
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M39C535 | 2023-06-178 | 4 | United States |
| 5315-01-016-3030 | 2021-10-304 | 40 | Malaysia |
| 5315-01-016-3030 | 2021-08-221 | 5 | MY |
| 3M39C5-35 | 2014-12-357 | 24 | Australia |
| 3M39C5-35 | 2014-08-232 | 24 | Australia |
| 3M39C5-35 | 2014-08-232 | 24 | United States |
| 3M39C5-35 | 2014-08-232 | 24 | United States |
| 3M39C5-35 | 2014-08-227 | 24 | Australia |
| 3M39C535 | 2014-07-190 | 8 | Australia |
| 3M39C5-35 | 2013-11-309 | 20 | Australia |
