NSN 5315-01-025-4512 MILP10971, MIL-P-10971, 990220940562
Product Details | SPRING PIN
5315-01-025-4512 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MILP10971, MIL-P-10971, 990220940562, 99-022-094-0562, 5315-01-025-4512, 01-025-4512, 5315010254512, 010254512
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 AUG 1976 | 01-025-4512 | 02389 ( PIN, SPRING ) |

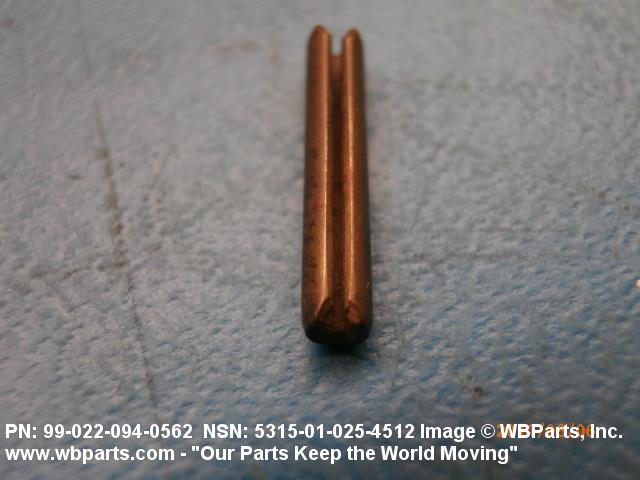

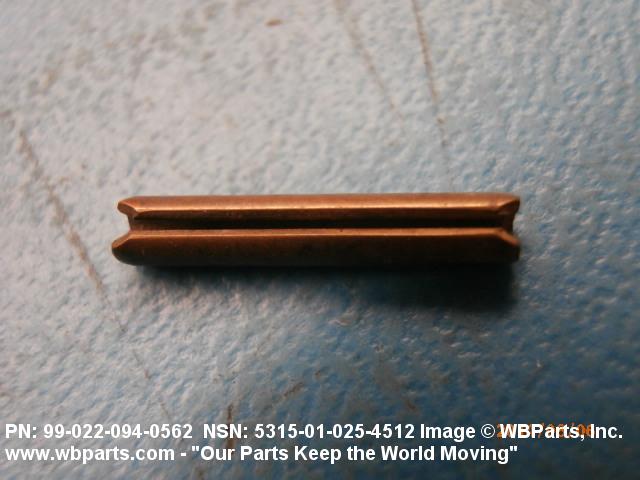

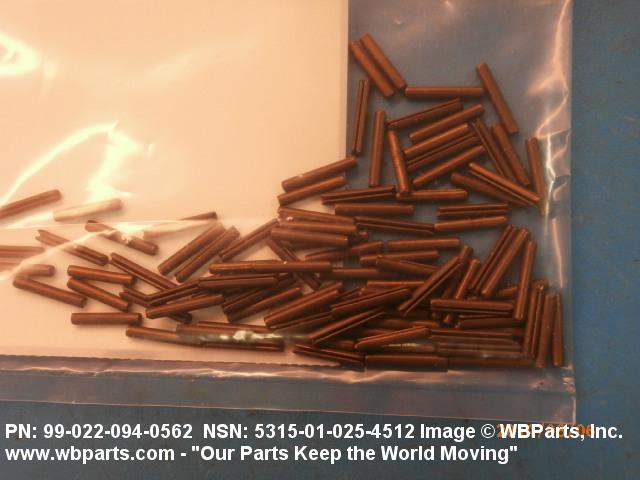

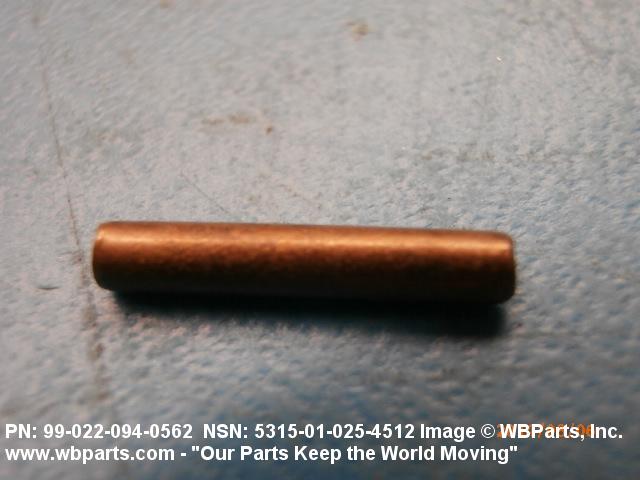

Drawings & Photos | NSN 5315-01-025-4512
Demand History | NSN 5315-01-025-4512
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 990220940562 | 2014-07-204 | 500 | United States |
| MILP10971 | 2011-03-73 | 10 | United States |
| MILP10971 | 2009-09-259 | 200 | US |
| MILP10971 | 2009-07-187 | 2 | MX |
Cross Reference | NSN 5315-01-025-4512
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-025-4512
Technical Data | NSN 5315-01-025-4512
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 170 AND COPPER ALLOY 172 OVERALL |
| HARDNESS RATING | 78.3 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 81.5 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |

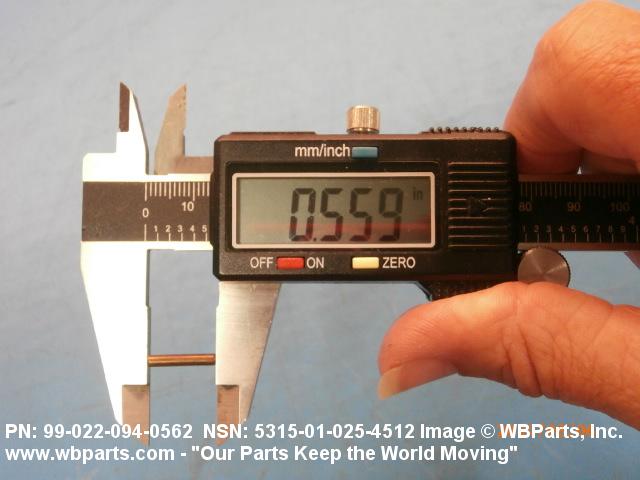

| OVERALL LENGTH | 0.547 INCHES MINIMUM AND 0.577 INCHES MAXIMUM |

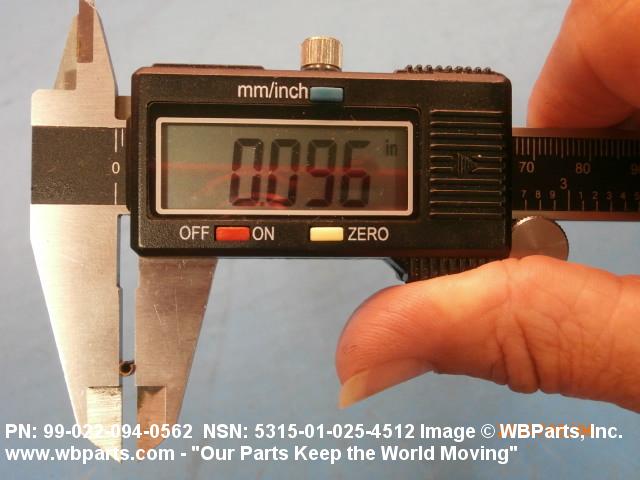

| DIAMETER | 0.094 INCHES NOMINAL |

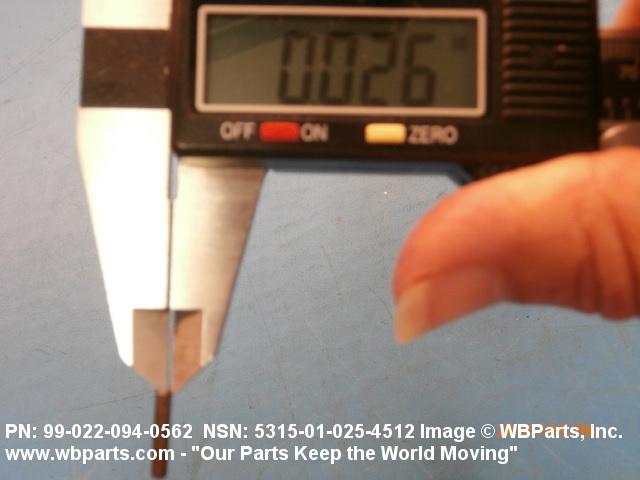

| MATERIAL THICKNESS | 0.022 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND C COMPOSITION |
Restrictions/Controls & Freight Information | NSN 5315-01-025-4512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
