Product Details | HEADLESS STRAIGHT PIN

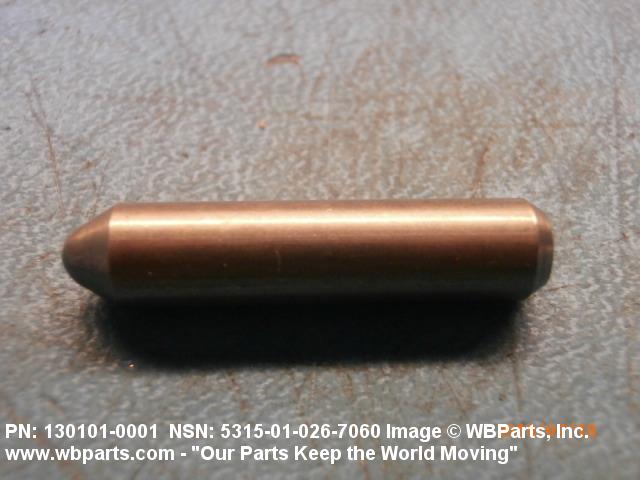

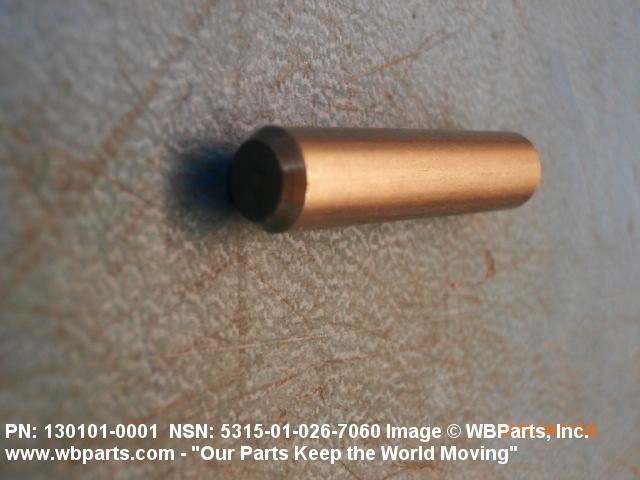

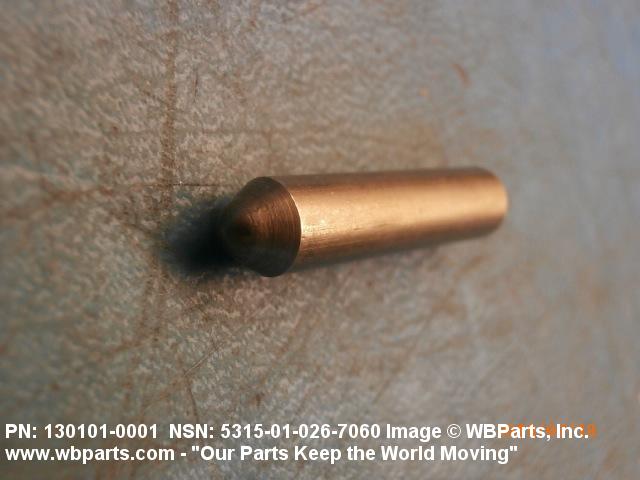

5315-01-026-7060 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 1301010001, 130101-0001, 5315-01-026-7060, 01-026-7060, 5315010267060, 010267060
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 AUG 1976 | 01-026-7060 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-026-7060
Demand History | NSN 5315-01-026-7060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-026-7060 | 2024-05-150 | 496 | DIBBS |
| 5315-01-026-7060 | 2024-05-142 | 496 | DIBBS |
| 5315-01-026-7060 | 2024-04-108 | 303 | DIBBS |
| 5315-01-026-7060 | 2024-02-37 | 18 | DIBBS |
| 5315-01-026-7060 | 2023-10-290 | 7 | DIBBS |
| 5315-01-026-7060 | 2023-10-278 | 2 | DIBBS |
| 5315-01-026-7060 | 2018-07-190 | 10 | Thailand |
| 5315-01-026-7060 | 2018-05-150 | 10 | Thailand |
| 5315-01-026-7060 | 2012-01-25 | 10 | DIBBS |
| 5315-01-026-7060 | 2011-09-263 | 1 | DIBBS |
| 5315-01-026-7060 | 2011-07-196 | 1 | DIBBS |
| 5315-01-026-7060 | 2011-06-168 | 1 | DIBBS |
| 5315-01-026-7060 | 2010-08-227 | 30 | DIBBS |
Cross Reference | NSN 5315-01-026-7060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 130101-0001 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-026-7060
Related Products | NSN 5315-01-026-7060
Technical Data | NSN 5315-01-026-7060
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66,COMP 303 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 30.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 5 ROUND |
| SECOND END OUTER RADIUS | 0.090 INCHES NOMINAL |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |

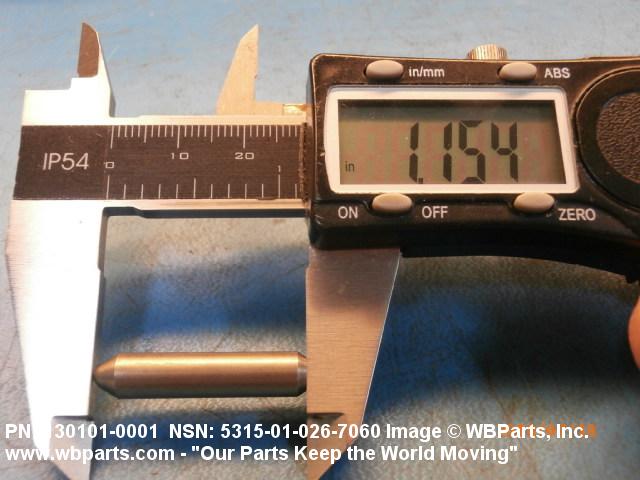

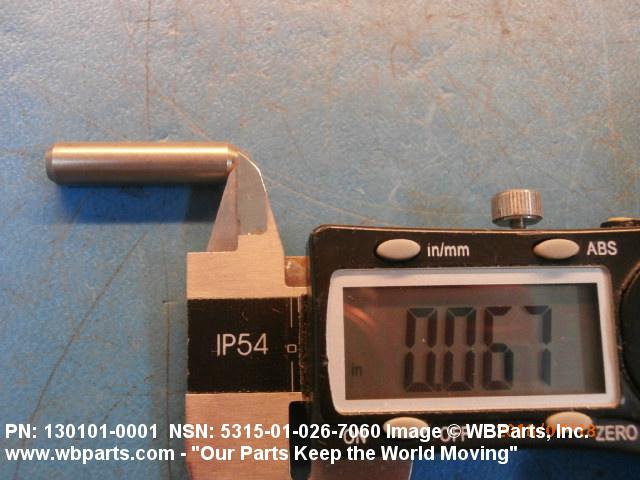

| PIN OVERALL LENGTH | 1.150 INCHES NOMINAL |

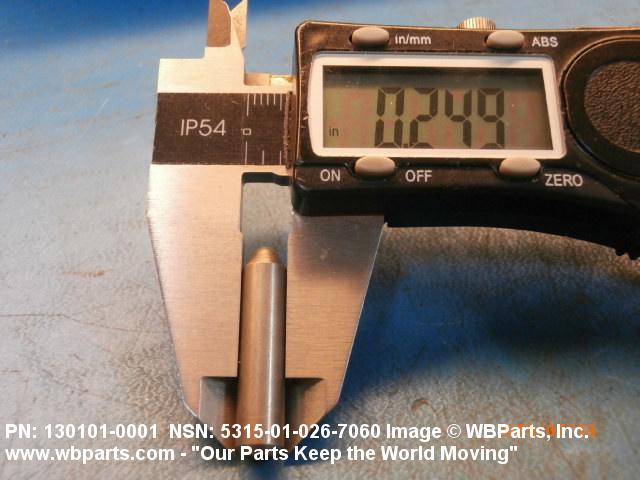

| PIN OVERALL DIAMETER | 0.2500 INCHES NOMINAL |
