NSN 5315-01-029-9980 01-029-9980, 010299980, 115635008
Product Details | HEADLESS STRAIGHT PIN
5315-01-029-9980 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 5315-01-029-9980, 01-029-9980, 5315010299980, 010299980, 115635008
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 OCT 1976 | 01-029-9980 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

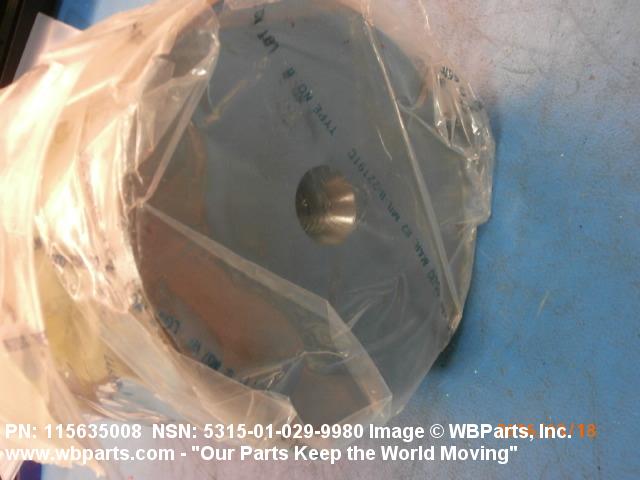

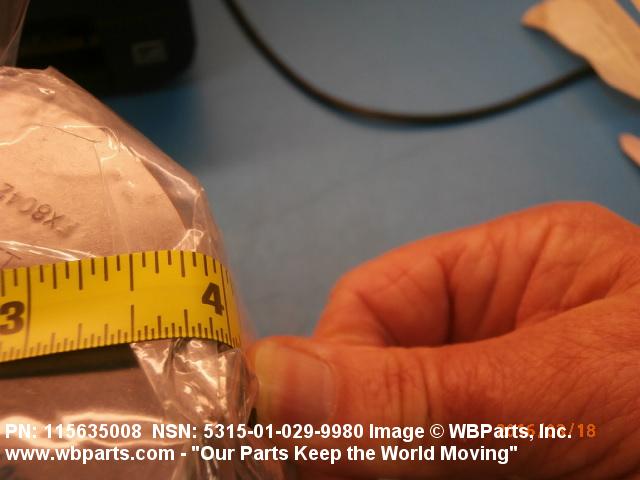

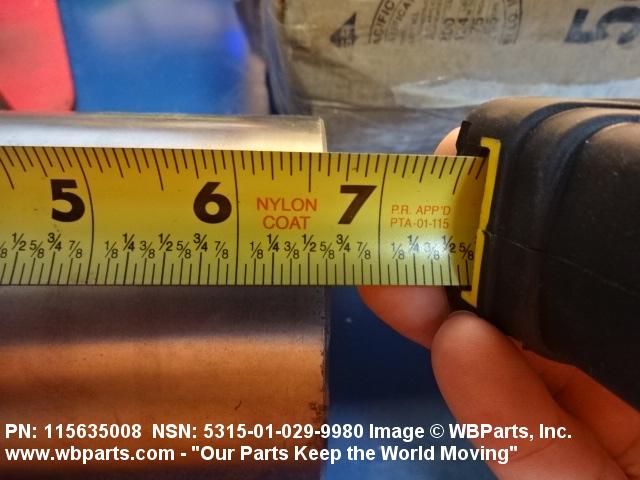

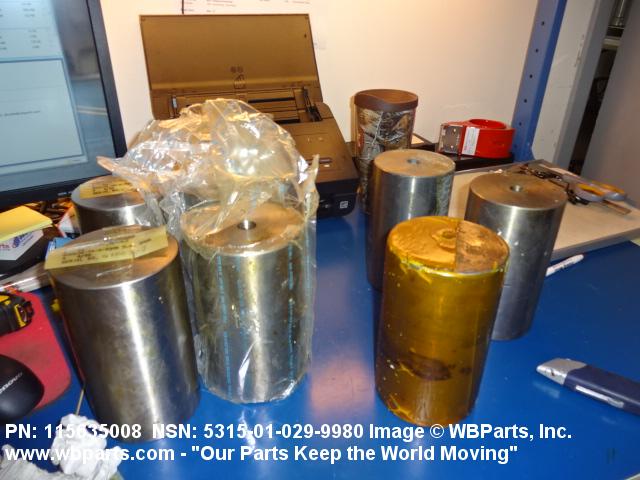

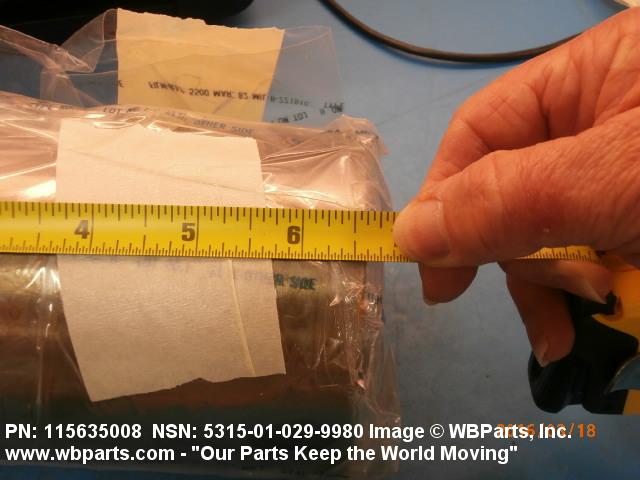

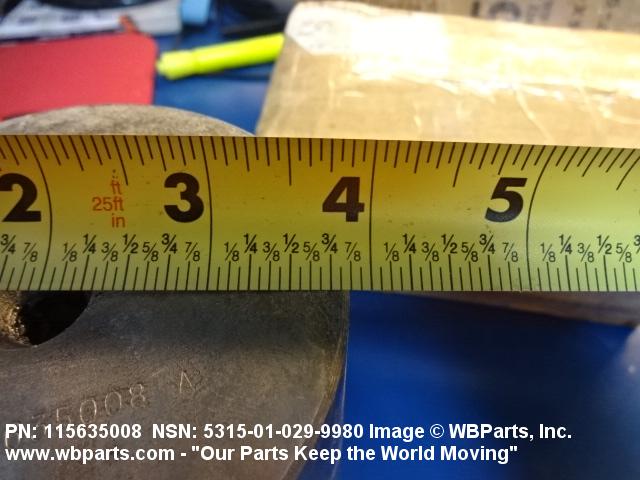

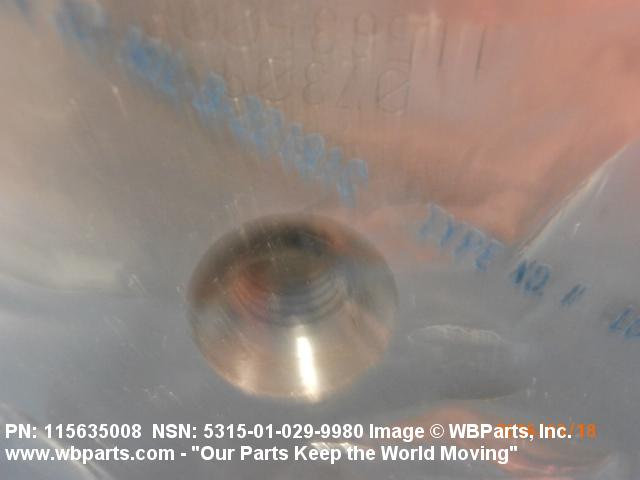

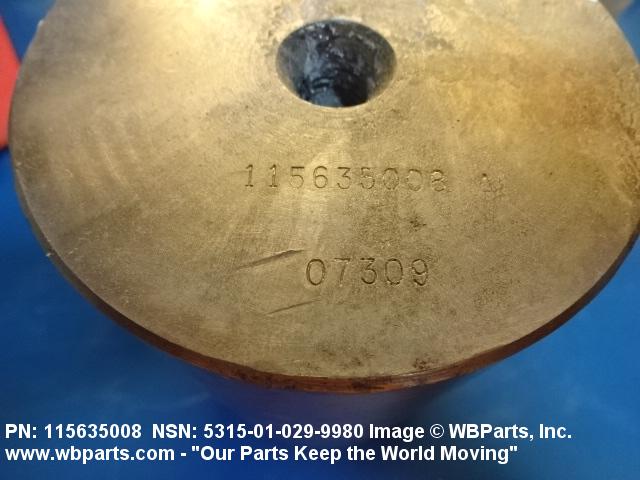

Drawings & Photos | NSN 5315-01-029-9980
Demand History | NSN 5315-01-029-9980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 115635008 | 2020-10-296 | 12 | DIBBS |
| 115635008 | 2020-10-288 | 12 | DIBBS |
| 115635008 | 2020-07-211 | 5 | DIBBS |
| 115635008 | 2019-04-94 | 4 | DIBBS |
| 5315-01-029-9980 | 2019-04-93 | 7 | United States |
| 5315-01-029-9980 | 2016-04-95 | 3 | DIBBS |
| 5315-01-029-9980 | 2016-03-71 | 5 | United States |
Cross Reference | NSN 5315-01-029-9980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115635008 | 07309 | ROLLS-ROYCE MARINE NORTH AMERICA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-029-9980
Technical Data | NSN 5315-01-029-9980
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1042 OVERALL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| PIN OVERALL LENGTH | 6.625 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 3.8731 INCHES MINIMUM AND 3.8745 INCHES MAXIMUM |
| SPECIAL FEATURES | CTR HOLE EACH END BORED AND TAPPED 5/8-13 UNC-2B BY 1.000 IN. DP COUNTERSUNK 0.250 IN. DP BY 60.0 DEG,ONE FLAT GROUND TO 3.844 IN. OD FULL LG OF PIN |
| MANUFACTURERS CODE | 07309 |
| DESIGN CONTROL REFERENCE | 115635008 |
Restrictions/Controls & Freight Information | NSN 5315-01-029-9980
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-029-9980
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
