NSN 5315-01-058-7245 MS51923391, MS51923-391, 01-058-7245
Product Details | SPRING PIN
5315-01-058-7245 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS51923391, MS51923-391, 5315-01-058-7245, 01-058-7245, 5315010587245, 010587245
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1978 | 01-058-7245 | 02389 ( PIN, SPRING ) |

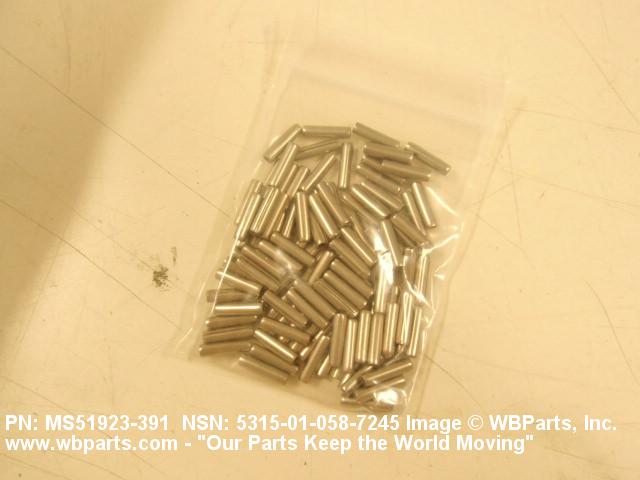

Drawings & Photos | NSN 5315-01-058-7245
Demand History | NSN 5315-01-058-7245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-058-7245 | 2015-05-139 | 60 | US |
| 5315-01-058-7245 | 2009-01-28 | 100 | United States |
| MS51923391 | 2009-01-28 | 100 | US |
| 5315-01-058-7245 | 2009-01-21 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-058-7245
Technical Data | NSN 5315-01-058-7245
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 1550 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | K177 COILED |
| OVERALL LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| DIAMETER | 0.152 INCHES MAXIMUM |
| EXPANDED DIAMETER | 0.163 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-058-7245
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
