NSN 5315-01-082-1897 S9008AB3, S9008AB-3, 01-082-1897
Product Details | HEADLESS STRAIGHT PIN
5315-01-082-1897 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: S9008AB3, S9008AB-3, 5315-01-082-1897, 01-082-1897, 5315010821897, 010821897
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 AUG 1979 | 01-082-1897 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

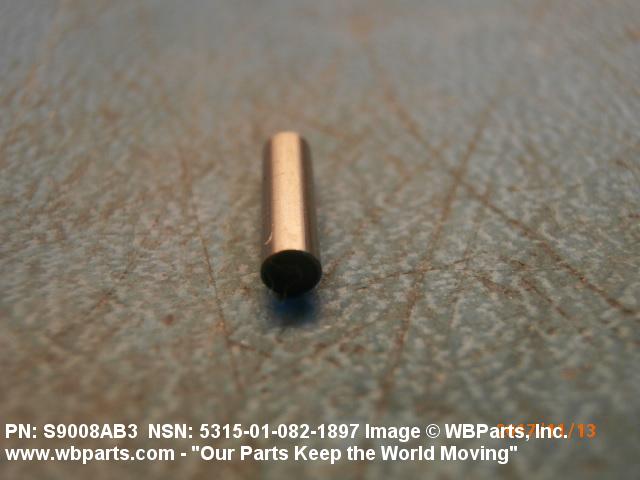

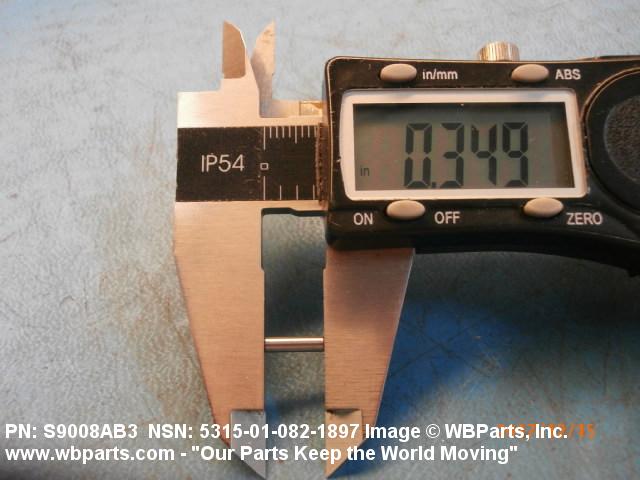

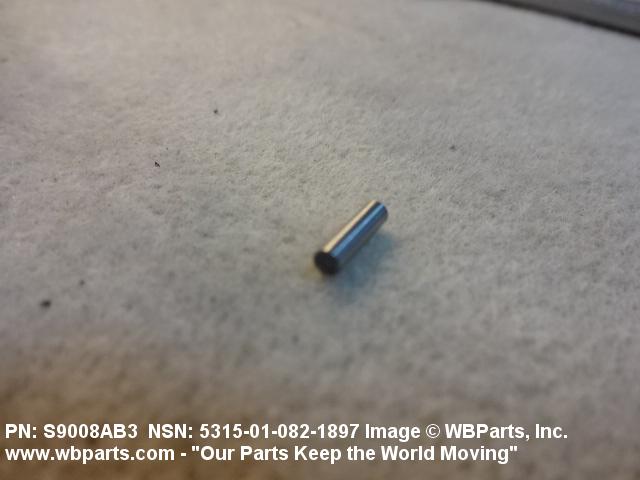

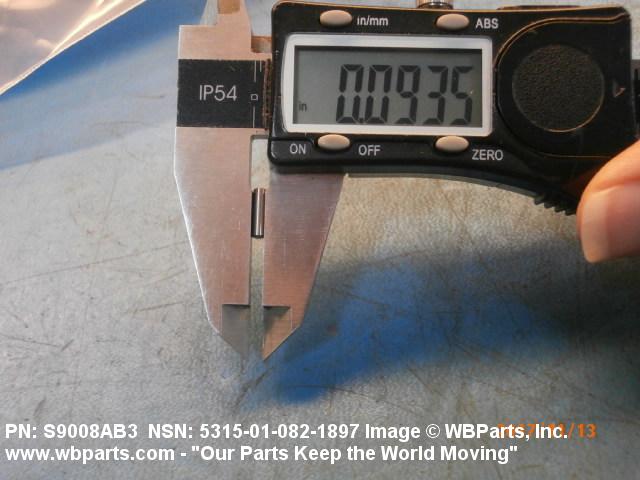

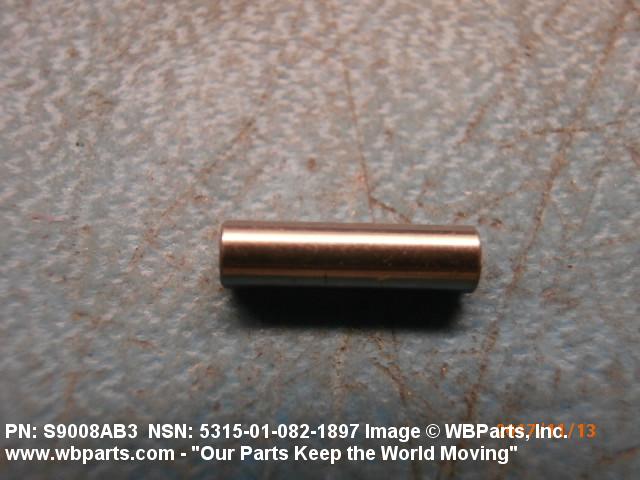

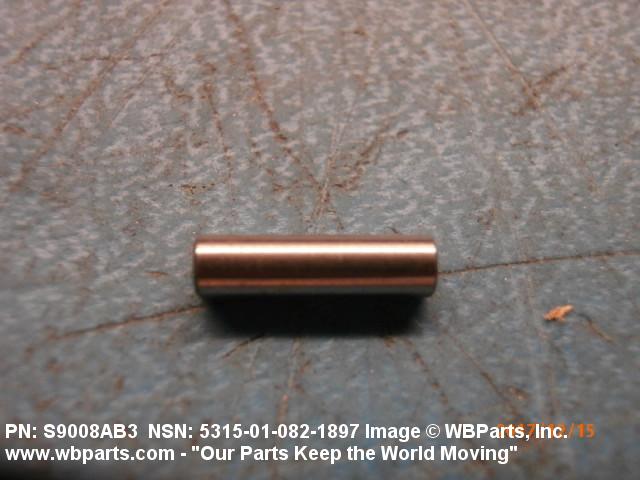

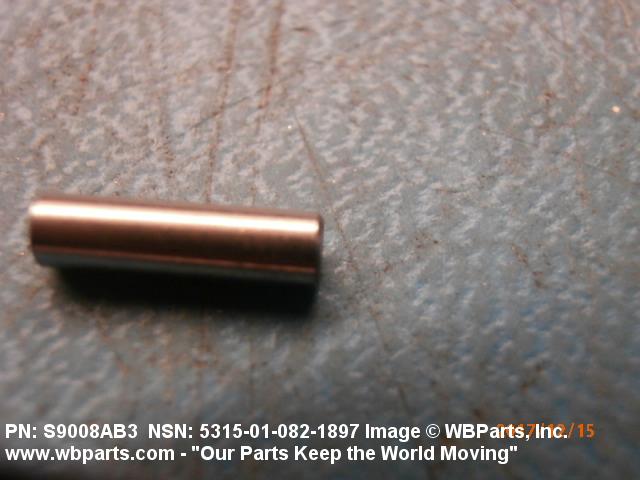

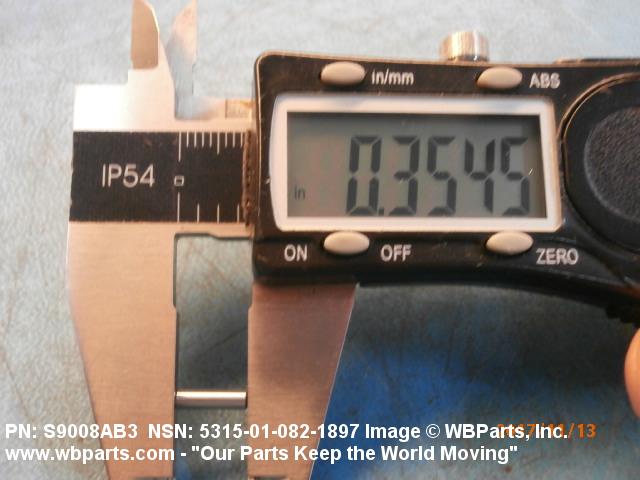

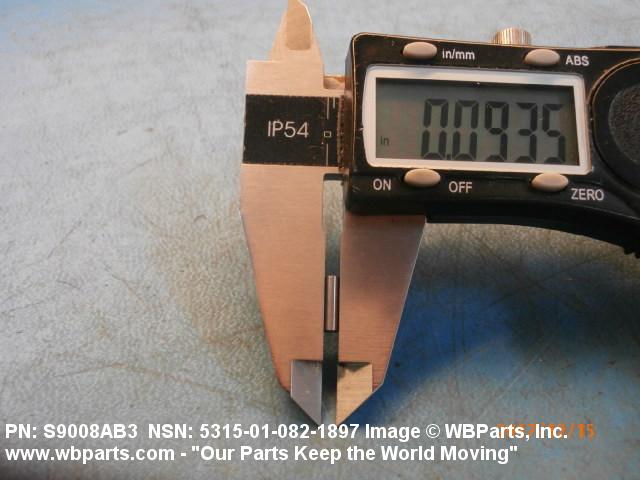

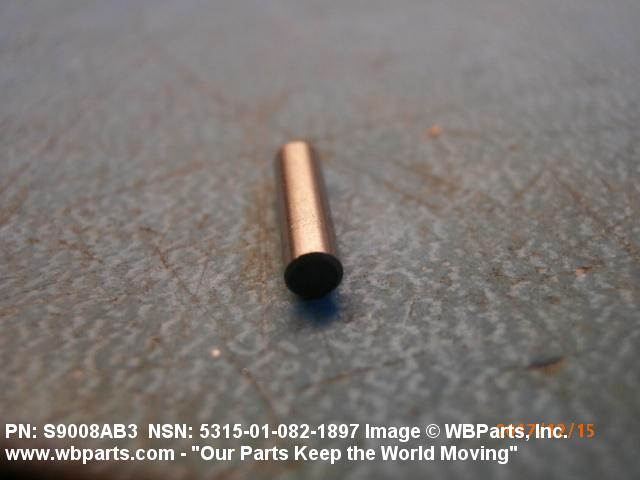

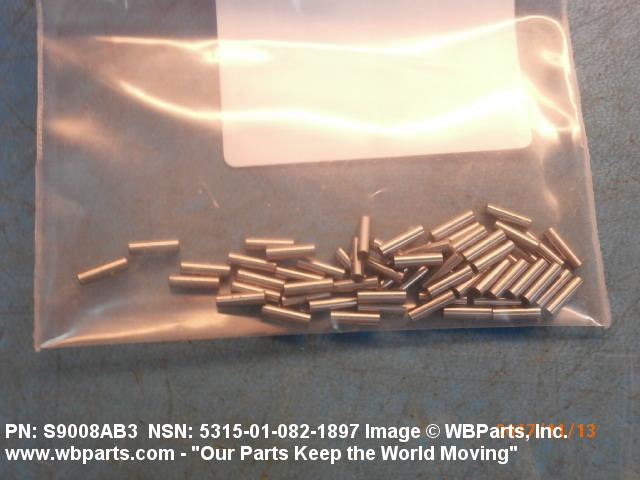

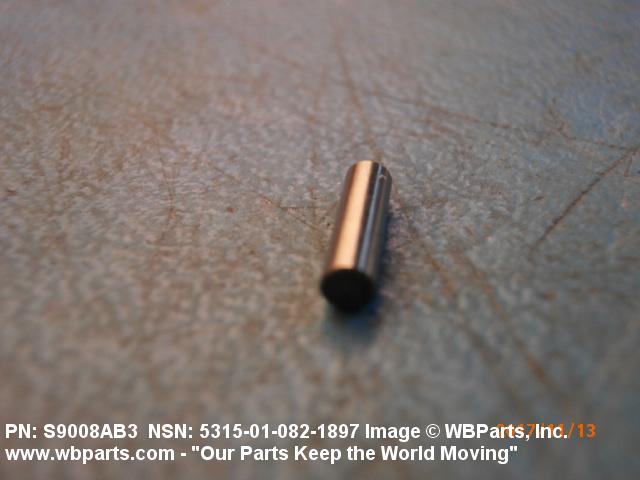

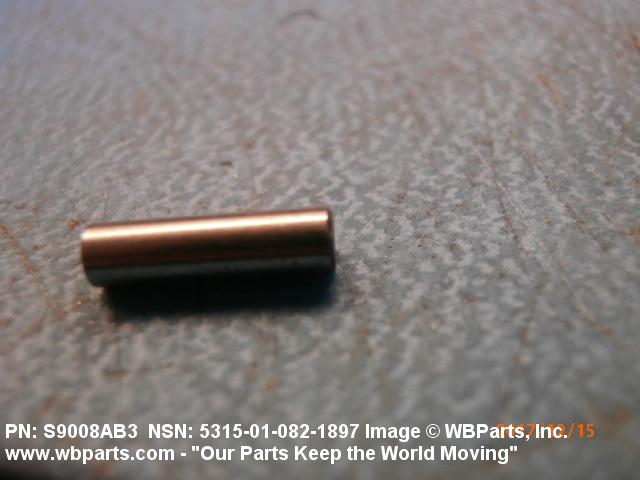

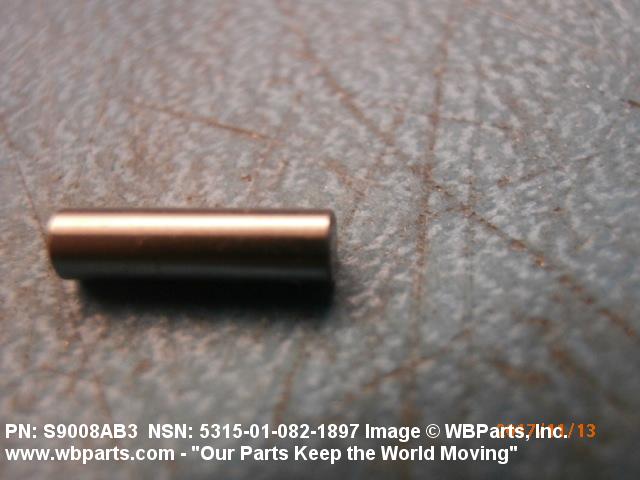

Drawings & Photos | NSN 5315-01-082-1897
Demand History | NSN 5315-01-082-1897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S9008AB3 | 2025-07-192 | 240 | US |
| S9008AB3 | 2025-01-23 | 10 | United States |
| S9008AB3 | 2019-07-182 | 60 | United States |
| S9008AB3 | 2018-11-323 | 60 | United States |
| S9008AB3 | 2017-12-347 | 96 | United States |
| S9008AB3 | 2017-10-304 | 250 | United States |
| S9008AB3 | 2015-04-111 | 38 | United States |
| 5315-01-082-1897 | 2013-04-91 | 500 | US |
| 5315-01-082-1897 | 2013-02-52 | 1978 | DIBBS |
| 5315-01-082-1897 | 2012-01-05 | 467 | DIBBS |
| 5315-01-082-1897 | 2012-01-05 | 590 | DIBBS |
| 5315-01-082-1897 | 2012-01-05 | 769 | DIBBS |
| 5315-01-082-1897 | 2011-12-335 | 467 | DIBBS |
| 5315-01-082-1897 | 2011-12-335 | 590 | DIBBS |
| 5315-01-082-1897 | 2011-12-335 | 746 | DIBBS |
| 5315-01-082-1897 | 2011-08-228 | 746 | DIBBS |
| 5315-01-082-1897 | 2011-05-130 | 590 | DIBBS |
| 5315-01-082-1897 | 2011-03-69 | 750 | DIBBS |
| 5315-01-082-1897 | 2011-01-06 | 724 | DIBBS |
| S9008AB3 | 2008-03-91 | 750 | US |
| 5315-01-082-1897 | 2006-10-291 | 400 | United States |
| S9008AB3 | 2006-07-192 | 70 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-082-1897
Related Products | NSN 5315-01-082-1897
Technical Data | NSN 5315-01-082-1897
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE OR EMS 56627 FSCM 99193 MFR REF 3RD MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.340 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.0941 INCHES MINIMUM AND 0.0944 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-082-1897
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-082-1897
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
