NSN 5315-01-088-6284 NAS561S310, NAS561S3-10, 01-088-6284
Product Details | SPRING PIN
5315-01-088-6284 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: NAS561S310, NAS561S3-10, 5315-01-088-6284, 01-088-6284, 5315010886284, 010886284
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1980 | 01-088-6284 | 02389 ( PIN, SPRING ) |

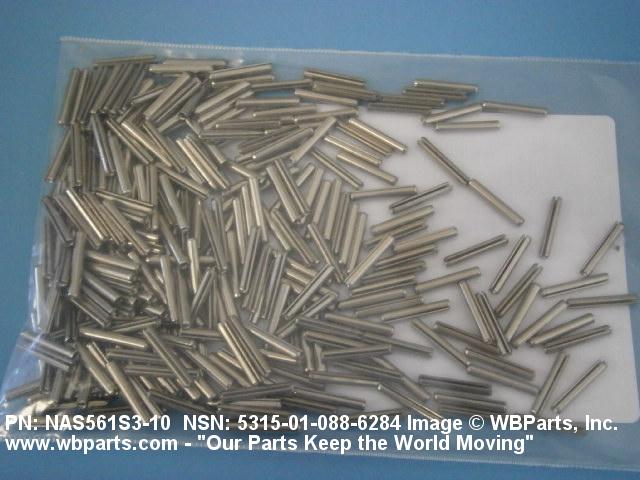

Drawings & Photos | NSN 5315-01-088-6284
Demand History | NSN 5315-01-088-6284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-088-6284 | 2024-08-239 | 23755 | DIBBS |
| 5315-01-088-6284 | 2024-08-231 | 23755 | DIBBS |
| 5315-01-088-6284 | 2021-03-84 | 136 | Taiwan |
| 5315-01-088-6284 | 2021-01-24 | 20000 | DIBBS |
| 5315-01-088-6284 | 2020-08-217 | 60 | US |
| 5315-01-088-6284 | 2020-06-166 | 70 | PL |
| 5315-01-088-6284 | 2020-03-85 | 15229 | DIBBS |
| 5315-01-088-6284 | 2018-11-318 | 14809 | DIBBS |
| 5315-01-088-6284 | 2018-11-310 | 14809 | DIBBS |
| 5315-01-088-6284 | 2014-12-342 | 28125 | DIBBS |
| 5315-01-088-6284 | 2014-03-75 | 14126 | DIBBS |
| 5315-01-088-6284 | 2012-01-18 | 15071 | DIBBS |
| NAS561S310 | 2012-01-06 | 300 | United States |
| NAS561S310 | 2011-04-110 | 300 | United States |
| 5315-01-088-6284 | 2010-05-144 | 11454 | DIBBS |
Cross Reference | NSN 5315-01-088-6284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS561S3-10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-088-6284
Related Products | NSN 5315-01-088-6284
Technical Data | NSN 5315-01-088-6284
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 1000 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.022 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS561 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-088-6284
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-088-6284
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
