NSN 5315-01-091-4689 0941000MCP, 094-1000MCP, 170505
Product Details | SPRING PIN
5315-01-091-4689 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: 0941000MCP, 094-1000MCP, 170505, 3/32X1MCP, 332X1MCP, 5315-01-091-4689, 01-091-4689, 5315010914689, 010914689
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAR 1980 | 01-091-4689 | 02389 ( PIN, SPRING ) |
Drawings & Photos | NSN 5315-01-091-4689
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-091-4689
Technical Data | NSN 5315-01-091-4689
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM OVERALL |

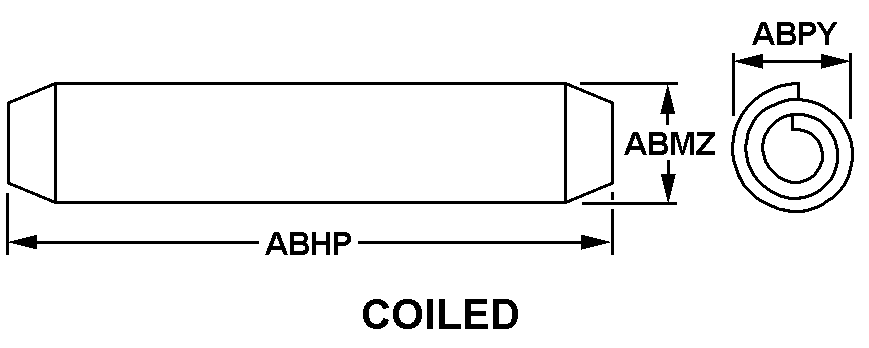

| STYLE DESIGNATOR | K177 COILED |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| DIAMETER | 0.094 INCHES NOMINAL |
| EXPANDED DIAMETER | 0.099 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-091-4689
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
