NSN 5315-01-099-0067 980C236 GROUP 2, 980C236GROUP2, 01-099-0067
Product Details | HEADED TOGGLE PIN
5315-01-099-0067 A headed cylindrically shaped item, having a solid unthreaded shank with a toggle action retainer, which holds the item in position when perpendicular to the shank. It is used for fastening and/or aligning purposes. The head may include gripping features such as a pull ring, integral hand grip or the like. See also PIN, TOGGLE, EYE COLLAR.
Part Alternates: 980C236 GROUP 2, 980C236GROUP2, 5315-01-099-0067, 01-099-0067, 5315010990067, 010990067
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1980 | 01-099-0067 | 22810 ( PIN, TOGGLE, HEADED ) |

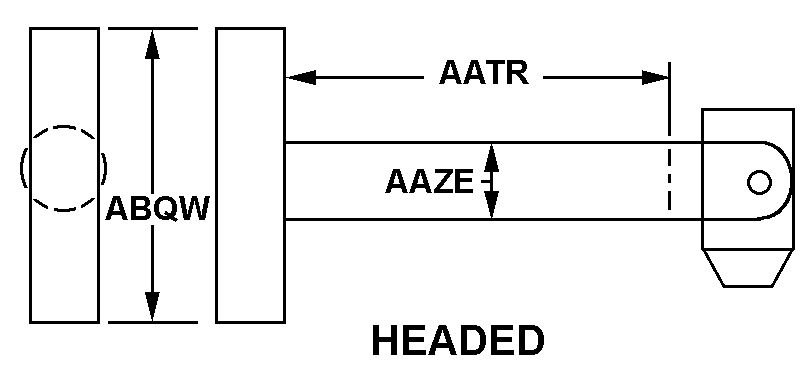

Drawings & Photos | NSN 5315-01-099-0067
Cross Reference | NSN 5315-01-099-0067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 980C236 GROUP 2 | 94259 | WESTINGHOUSE ELECTRIC CORP BETTIS ATOMIC POWER LABORATORY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-099-0067
Related Products | NSN 5315-01-099-0067
Technical Data | NSN 5315-01-099-0067
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A276 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | N217 HEADED |
| SHANK LENGTH | 4.370 INCHES NOMINAL |
| SHANK DIAMETER | 0.310 INCHES NOMINAL |
| HEAD LENGTH | 1.380 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-P-23199 SPECIFICATION |
| SPECIAL TEST FEATURES | SPECIAL QUALITY CONTROL TESTING |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| CRITICALITY CODE JUSTIFICATION | SPCL |
| MANUFACTURERS CODE | 94259 |
| DESIGN CONTROL REFERENCE | 980C236 GROUP 2 |
Restrictions/Controls & Freight Information | NSN 5315-01-099-0067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
