NSN 5315-01-103-1894 AS312402, AS3124-02, J108P50B
Product Details | PLAIN TAPERED PIN
5315-01-103-1894 A cone-shaped, unthreaded, metallic or nonmetallic item, tapered through its entire length, primarily used to position and hold two or more mating parts in alignment.
Part Alternates: AS312402, AS3124-02, J108P50B, PLGA1254010, PLGA1254010A, 125401, 5315-01-103-1894, 01-103-1894, 5315011031894, 011031894
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1980 | 01-103-1894 | 02391 ( PIN, TAPERED, PLAIN ) |

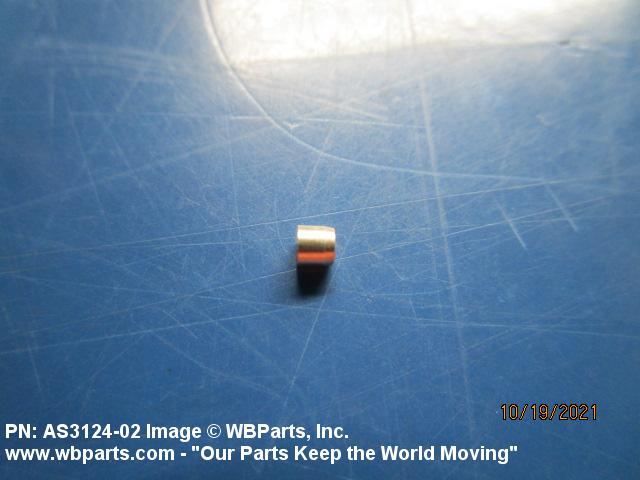

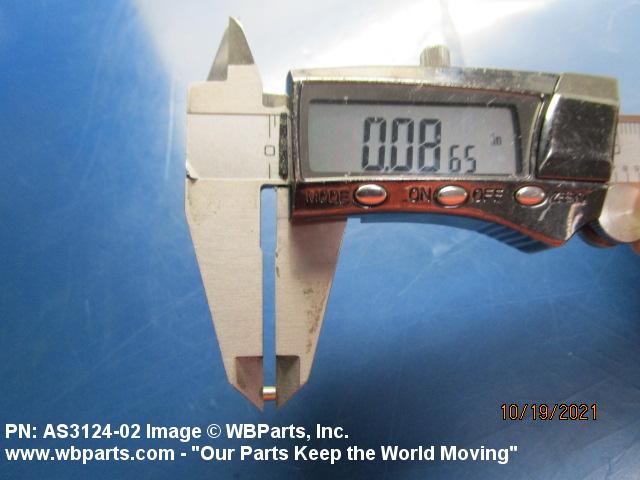

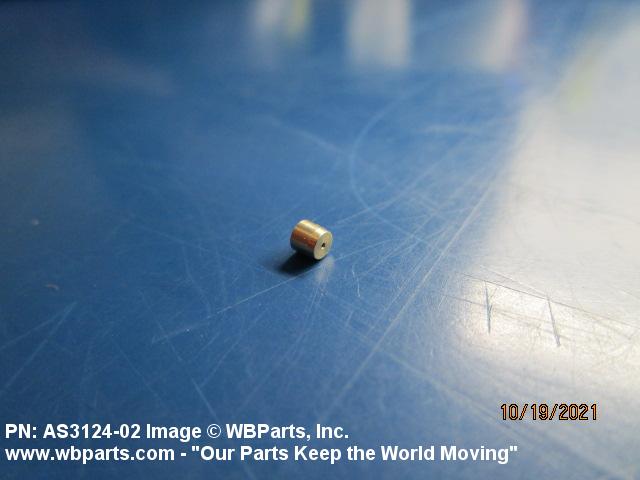

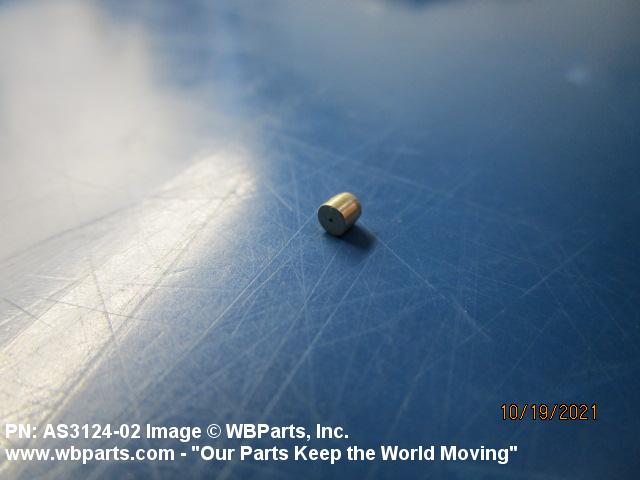

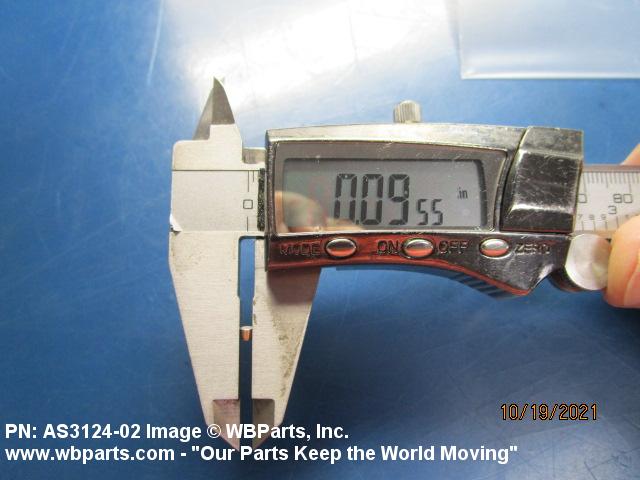

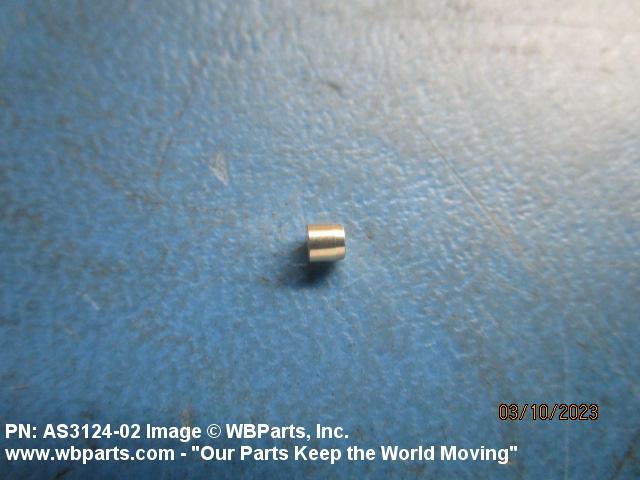

Drawings & Photos | NSN 5315-01-103-1894
Demand History | NSN 5315-01-103-1894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS312402 | 2023-03-62 | 70 | Saudi Arabia |
| AS3124-02 | 2023-02-52 | 70 | Saudi Arabia |
| AS312402 | 2023-02-51 | 70 | Saudi Arabia |
| AS312402 | 2021-09-271 | 20 | Saudi Arabia |
| AS312402 | 2021-09-259 | 1 | Saudi Arabia |
| AS312402 | 2021-08-216 | 1 | SA |
| 5315-01-103-1894 | 2021-08-214 | 4 | SA |
| 5315-01-103-1894 | 2016-02-56 | 28 | DIBBS |
| 5315-01-103-1894 | 2015-12-344 | 139 | DIBBS |
| 5315-01-103-1894 | 2014-11-307 | 139 | DIBBS |
| 5315-01-103-1894 | 2009-09-250 | 16 | Singapore |
| AS312402 | 2009-08-232 | 20 | US |
Cross Reference | NSN 5315-01-103-1894
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-103-1894
Related Products | NSN 5315-01-103-1894
Technical Data | NSN 5315-01-103-1894
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| FIRST END STYLE | 11 SQUARE W/THRU HOLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 11 SQUARE W/THRU HOLE |
| FIRST END LOCATION | TAPERED END |
| SURFACE FINISH | 63.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.080 INCHES MINIMUM AND 0.092 INCHES MAXIMUM |
| LARGE END DIAMETER | 0.0953 INCHES MINIMUM AND 0.0961 INCHES MAXIMUM |
| PIN TAPER | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5315-01-103-1894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-103-1894
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
