NSN 5315-01-111-6812 MS16555625, MS16555-625, 064-6260-99
Product Details | HEADLESS STRAIGHT PIN
5315-01-111-6812 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS16555625, MS16555-625, 064-6260-99, 5315-01-111-6812, 01-111-6812, 5315011116812, 064626099, 011116812
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 APR 1981 | 01-111-6812 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

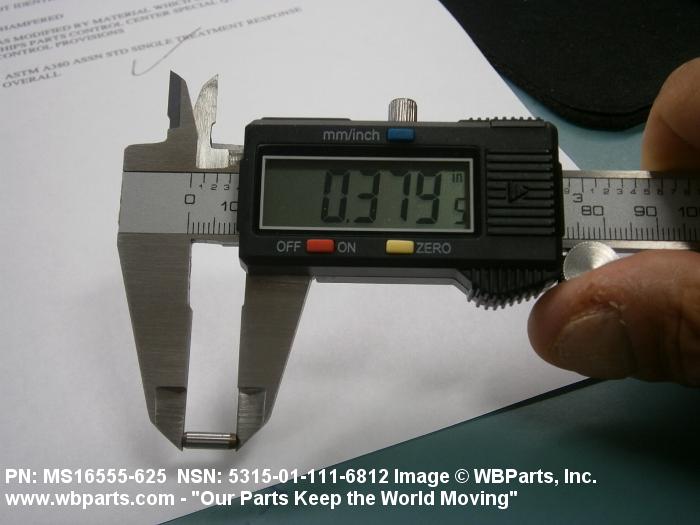

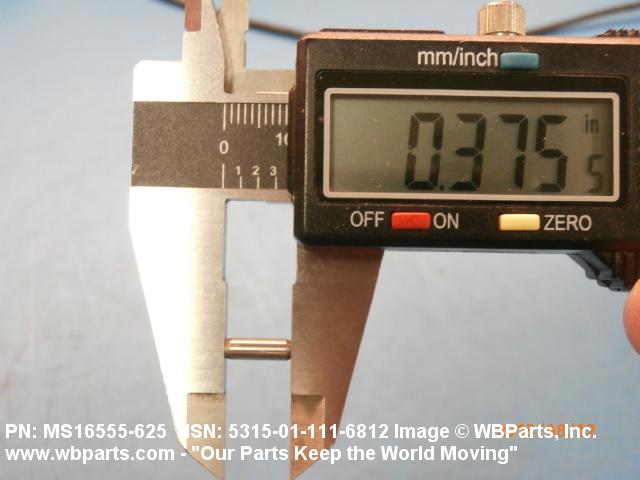

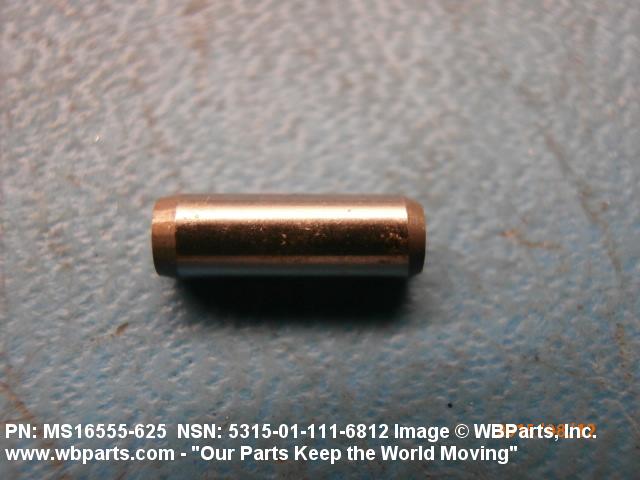

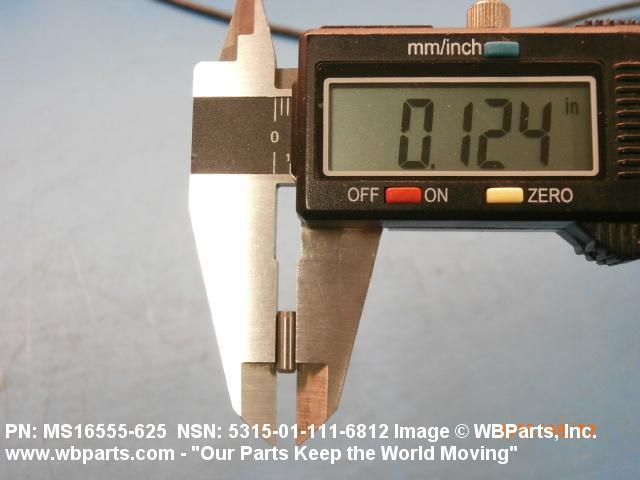

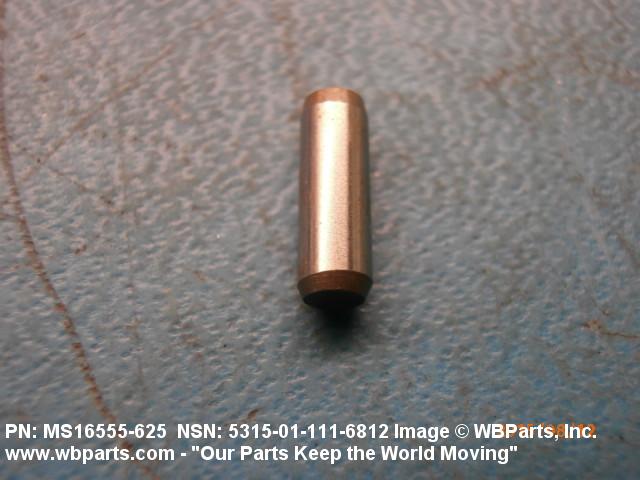

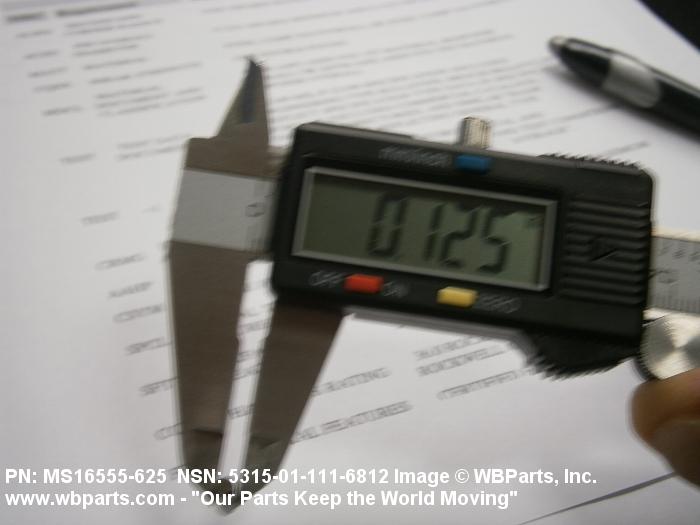

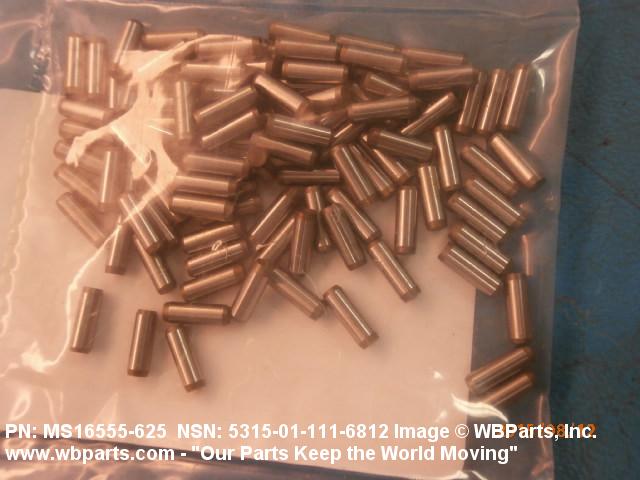

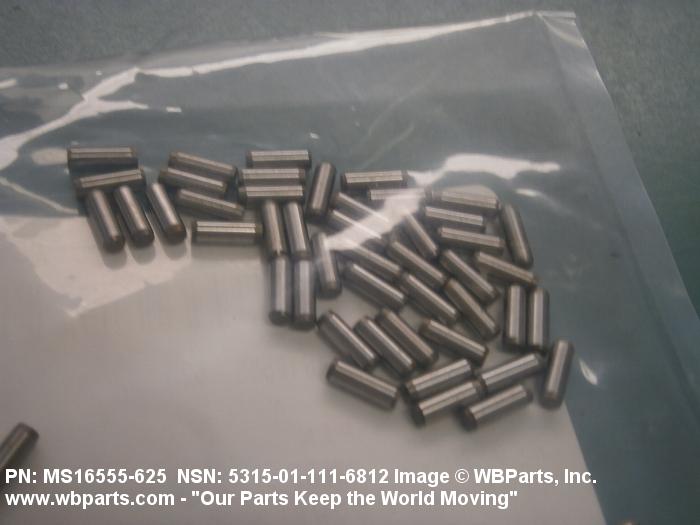

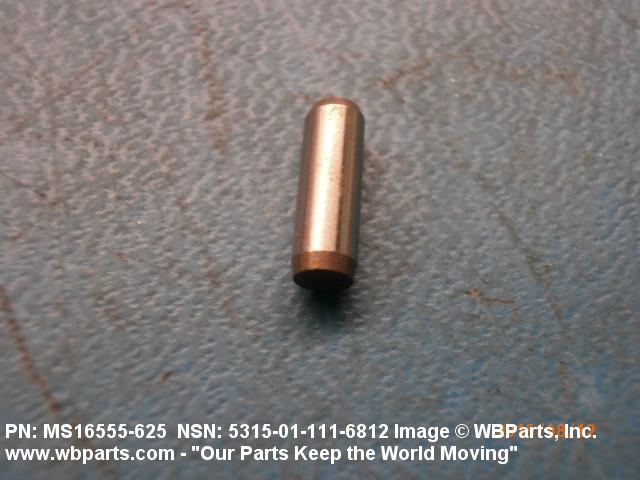

Drawings & Photos | NSN 5315-01-111-6812
Demand History | NSN 5315-01-111-6812
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS16555625 | 2025-07-199 | 1000 | Hong Kong |
| MS16555625 | 2025-06-169 | 1000 | Hong Kong |
| MS16555625 | 2023-10-303 | 360 | Korea |
| MS16555625 | 2023-03-79 | 340 | Korea |
| MS16555-625 | 2019-08-232 | 2600 | South Korea |
| MS16555625 | 2019-07-200 | 500 | South Korea |
| MS16555625 | 2019-01-11 | 1 | FR |
| MS16555625 | 2018-08-240 | 6 | United States |
| MS16555625 | 2017-09-270 | 20 | United States |
| MS16555625 | 2017-09-270 | 40 | United States |
| MS16555625 | 2017-09-270 | 60 | United States |
| MS16555625 | 2017-07-205 | 500 | United States |
| MS16555625 | 2017-02-32 | 110 | Australia |
| MS16555625 | 2017-01-16 | 88 | Australia |
| MS16555625 | 2016-08-228 | 160 | United States |
| MS16555625 | 2015-07-201 | 30 | United States |
| MS16555625 | 2015-03-86 | 50 | United States |
| MS16555625 | 2014-12-342 | 200 | Australia |
| MS16555625 | 2014-12-339 | 100 | US |
| MS16555625 | 2014-06-168 | 86 | UM |
| MS16555625 | 2013-10-281 | 120 | United States |
| MS16555625 | 2013-06-156 | 50 | Australia |
| MS16555-625 | 2013-06-154 | 100 | Singapore |
| MS16555625 | 2012-11-328 | 531 | China |
| MS16555625 | 2012-09-257 | 24 | US |
| MS16555625 | 2012-05-142 | 10 | United States |
| 5315-01-111-6812 | 2012-05-123 | 40 | US |
| MS16555625 | 2012-03-80 | 2 | United States |
| MS16555625 | 2012-02-52 | 1000 | CN |
| MS16555625 | 2011-09-249 | 100 | United States |
| MS16555625 | 2011-08-214 | 240 | US |
| MS16555625 | 2011-04-111 | 150 | United States |
| 5315-01-111-6812 | 2011-02-45 | 2000 | US |
| MS16555625 | 2011-01-31 | 1 | Australia |
| MS16555625 | 2011-01-17 | 4 | United States |
| 5315-01-111-6812 | 2010-08-239 | 400 | Australia |
| MS16555625 | 2010-06-174 | 20 | Netherlands |
| 5315-01-111-6812 | 2010-05-131 | 500 | US |
| 5315-01-111-6812 | 2010-04-101 | 100 | United States |
| MS16555625 | 2009-04-93 | 50 | US |
| MS16555625 | 2008-01-24 | 500 | US |
| 5315-01-111-6812 | 2007-11-311 | 60 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-111-6812
Related Products | NSN 5315-01-111-6812
Technical Data | NSN 5315-01-111-6812
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 1800 DOUBLE POUND |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.065 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 4 RADIUS |
| SECOND END CORNER RADIUS | 0.041 INCHES MAXIMUM |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.1251 INCHES MINIMUM AND 0.1253 INCHES MAXIMUM |
| SPECIAL FEATURES | CERTIFIED FREE FROM MERCURY CONTAMINATION,SMALL CHAMFER END MAY BE 0.016 IN. MIN 0.041 IN. MAX RADIUS IN LIEU OF CHAMFER |
| TEST DATA DOCUMENT | 81349-MIL-P-23199 SPECIFICATION |
| SPECIAL TEST FEATURES | SPECIAL QUALITY CONTROL TESTING |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW AND FEAT |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16555-625 |
Restrictions/Controls & Freight Information | NSN 5315-01-111-6812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-111-6812
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
