NSN 5315-01-120-9824 ASC1540294, REB1021418, RE-B102141-8
Product Details | SPRING PIN
5315-01-120-9824 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: ASC1540294, REB1021418, RE-B102141-8, 99-048-0250-1250, 990482501250, 99-048-250-1250, 5315-01-120-9824, 01-120-9824, 5315011209824, 9904802501250, 011209824
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1981 | 01-120-9824 | 02389 ( PIN, SPRING ) |

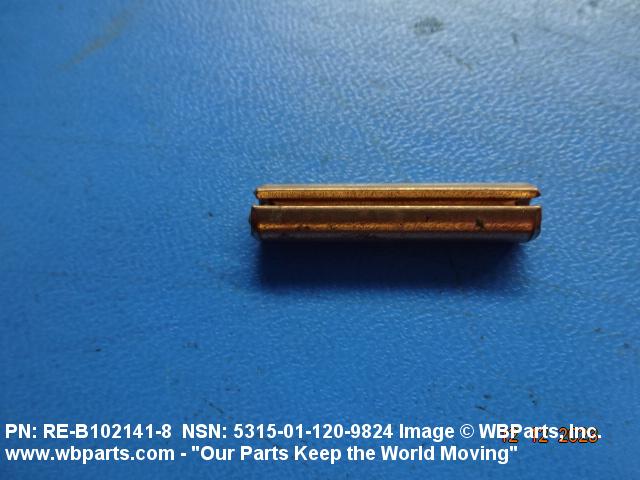

Drawings & Photos | NSN 5315-01-120-9824
Demand History | NSN 5315-01-120-9824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-120-9824 | 2023-11-334 | 10 | us |
| 5315-01-120-9824 | 2011-07-182 | 1 | US |
Cross Reference | NSN 5315-01-120-9824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 99-048-0250-1250 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 99-048-0250-1250 | 72962 | HARVARD INDUSTRIES INC |
| 99-048-250-1250 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 99-048-250-1250 | 72962 | HARVARD INDUSTRIES INC |
| ASC1540294 | Z4779 | ASC PTY LTD |
| RE-B102141-8 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-120-9824
Related Products | NSN 5315-01-120-9824
Technical Data | NSN 5315-01-120-9824
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 170 OR COPPER ALLOY 172 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B194 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 4500 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |

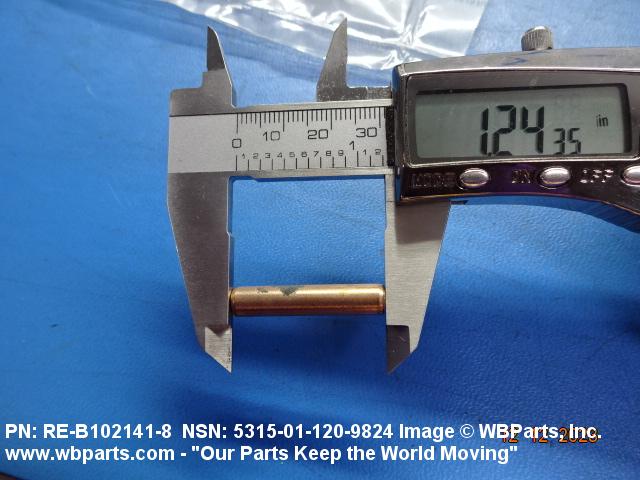

| OVERALL LENGTH | 1.250 INCHES NOMINAL |

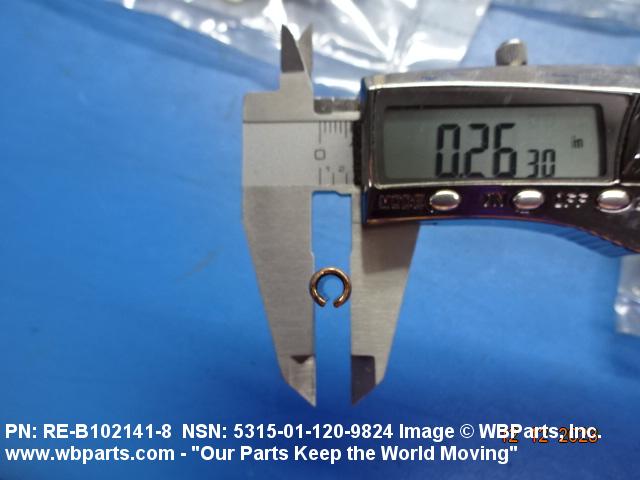

| DIAMETER | 0.250 INCHES NOMINAL |

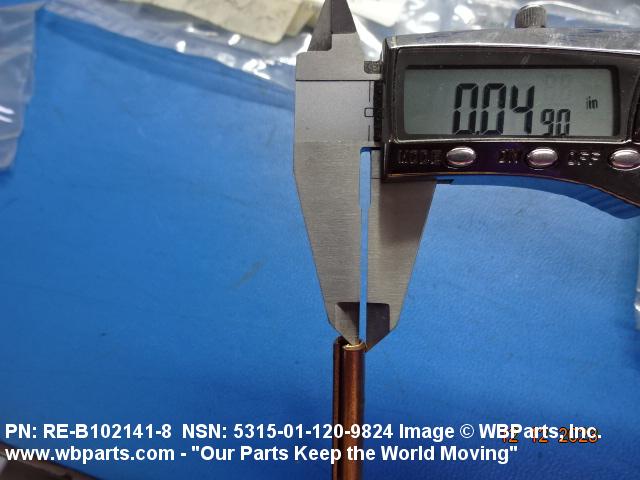

| MATERIAL THICKNESS | 0.048 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-120-9824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-120-9824
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
