NSN 5315-01-159-6684 CA44146, CA4414-6, 5338951
Product Details | ECCENTRIC PIN

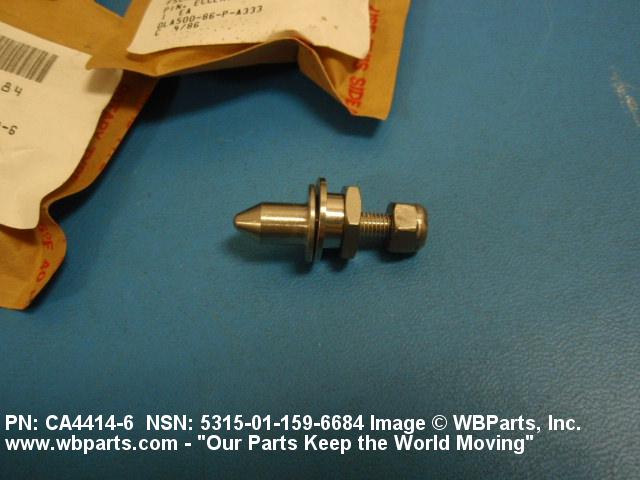

5315-01-159-6684 A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head.
Part Alternates: CA44146, CA4414-6, 5338951, 5315-01-159-6684, 01-159-6684, 5315011596684, 011596684
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 AUG 1983 | 01-159-6684 | 21967 ( PIN, ECCENTRIC ) |
Drawings & Photos | NSN 5315-01-159-6684
Demand History | NSN 5315-01-159-6684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-159-6684 | 2009-11-314 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-159-6684
Related Products | NSN 5315-01-159-6684
Technical Data | NSN 5315-01-159-6684
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SHEAR STRENGTH | 1695 SINGLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | D74 ECCENTRIC |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| OFFSET DISTANCE BETWEEN GEOMETRIC CENTER OF HEAD AND CENTERLINE OF SHANK/SHOULDER | 0.250 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.750 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.049 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.375 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.641 INCHES NOMINAL |
| HEAD STYLE | 20 FLAT FILLISTER |
| PIN HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEIGHT | 0.872 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 5 SOCKET |
| WIDTH BETWEEN FLATS | 0.125 INCHES NOMINAL |
| NUMERIC DESIGNATION OF STEP ECCENTRIC TO HEAD | 2 |
| SPECIAL FEATURES | HEAD THREADED 0.570 IN. MIN 0.250 IN.-28 UNF CL 3A |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | CA4414-6 |
