NSN 5315-01-184-8513 NAS561C214, NAS561C2-14, 01-184-8513
Product Details | SPRING PIN
5315-01-184-8513 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: NAS561C214, NAS561C2-14, 5315-01-184-8513, 01-184-8513, 5315011848513, 011848513
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUL 1984 | 01-184-8513 | 02389 ( PIN, SPRING ) |

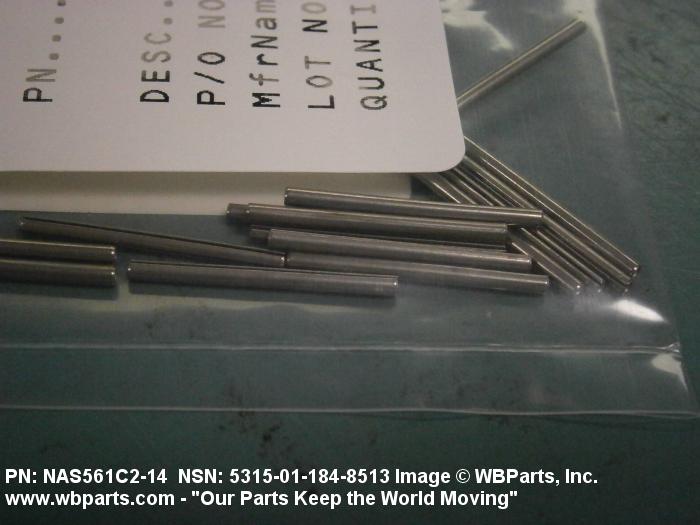

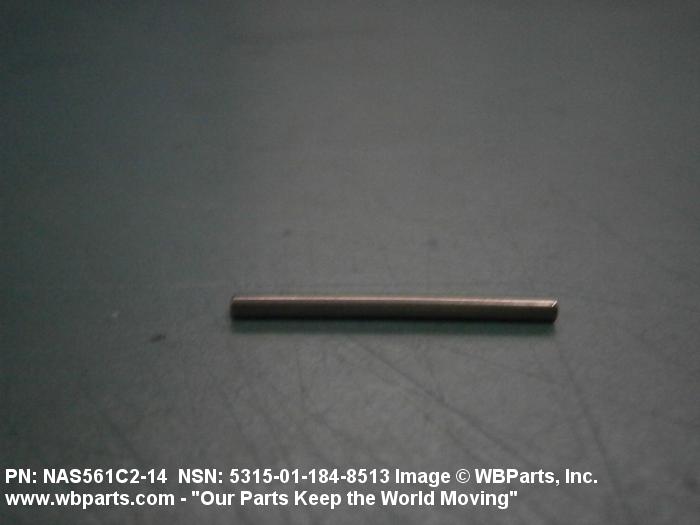

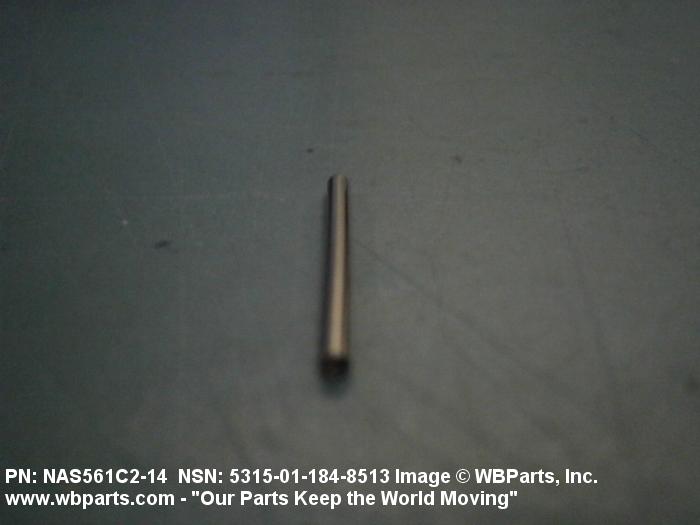

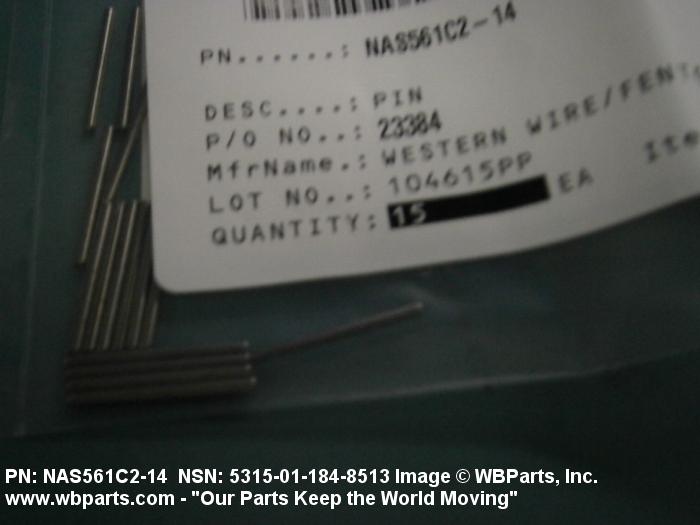

Drawings & Photos | NSN 5315-01-184-8513
Demand History | NSN 5315-01-184-8513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS561C2-14 | 2016-03-90 | 5 | KR |
Cross Reference | NSN 5315-01-184-8513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS561C2-14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-184-8513
Technical Data | NSN 5315-01-184-8513
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SHEAR STRENGTH | 460 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.860 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| DIAMETER | 0.062 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.007 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS561 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-184-8513
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
