NSN 5315-01-185-7419 01-185-7419, 011857419
Product Details | COTTER PIN
5315-01-185-7419 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: 5315-01-185-7419, 01-185-7419, 5315011857419, 011857419
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-185-7419 | 02381 ( PIN, COTTER ) |

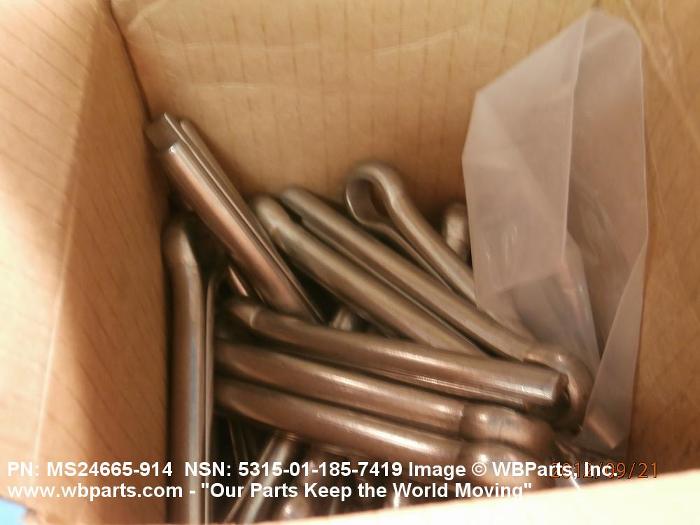

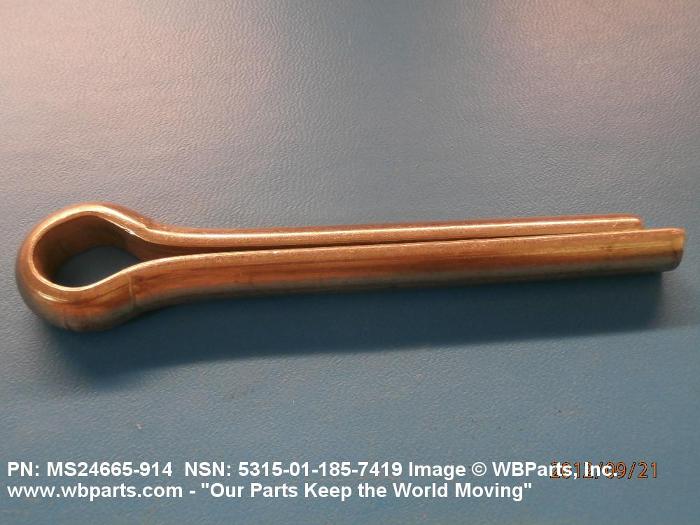

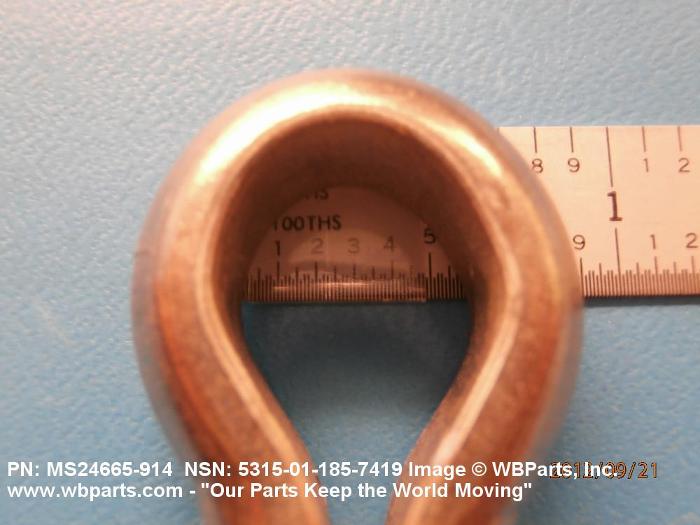

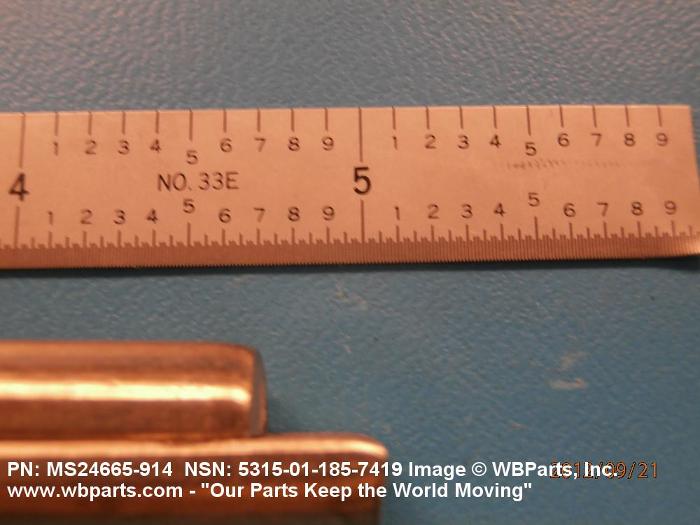

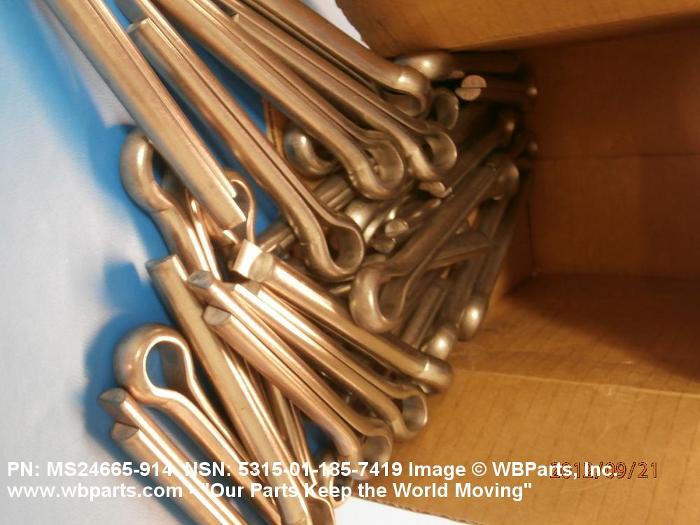

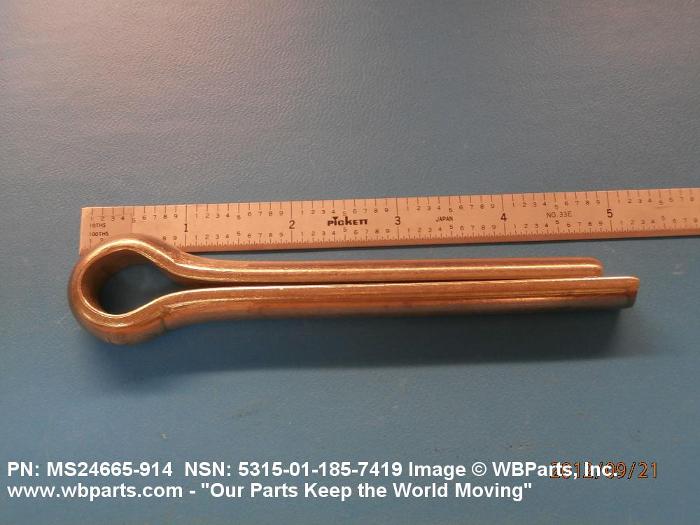

Drawings & Photos | NSN 5315-01-185-7419
Demand History | NSN 5315-01-185-7419
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-185-7419 | 2021-08-242 | 80 | US |
| 5315-01-185-7419 | 2020-10-281 | 4 | United States |
| 5315-01-185-7419 | 2018-10-274 | 18 | United States |
| 5315-01-185-7419 | 2012-08-241 | 2 | United States |
Cross Reference | NSN 5315-01-185-7419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF-P-386 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24665-914 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-914 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24665-915 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-915 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-185-7419
Technical Data | NSN 5315-01-185-7419
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 55.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 67.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | A1 STANDARD |
| DIAMETER | 0.467 INCHES MINIMUM AND 0.473 INCHES MAXIMUM |
| UNDERLOOP LENGTH | 3.500 INCHES NOMINAL |
| POINT TYPE | EXTENDED PRONG SQUARE CUT OR HAMMER LOCK |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-P-386 |
Restrictions/Controls & Freight Information | NSN 5315-01-185-7419
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
