NSN 5315-01-197-9736 R1240P011, 01-197-9736, 011979736
Product Details | SPRING PIN
5315-01-197-9736 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: R1240P011, 5315-01-197-9736, 01-197-9736, 5315011979736, 011979736
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 DEC 1984 | 01-197-9736 | 02389 ( PIN, SPRING ) |

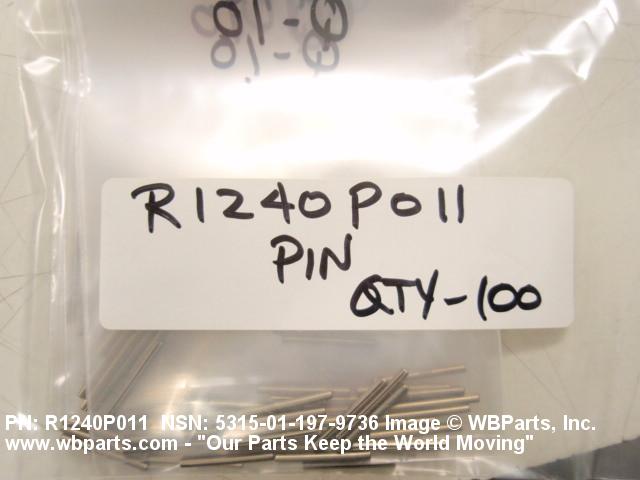

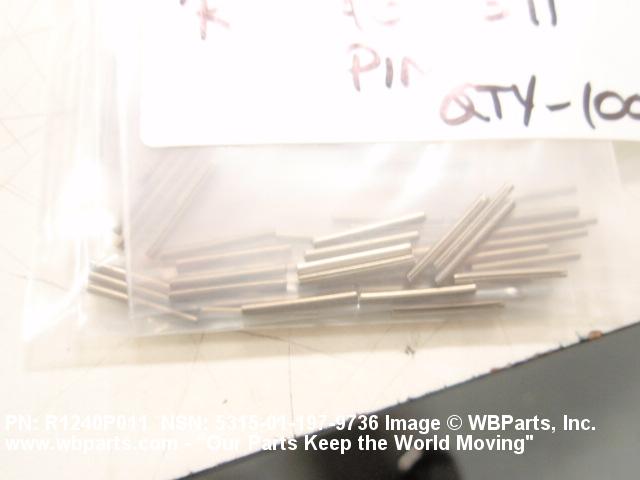

Drawings & Photos | NSN 5315-01-197-9736
Demand History | NSN 5315-01-197-9736
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-197-9736 | 2015-10-277 | 10000 | DIBBS |
| 5315-01-197-9736 | 2015-08-239 | 10000 | DIBBS |
| 5315-01-197-9736 | 2015-08-228 | 10000 | DIBBS |
| 5315-01-197-9736 | 2015-07-205 | 10000 | DIBBS |
| 5315-01-197-9736 | 2015-07-194 | 10000 | DIBBS |
| R1240P011 | 2010-12-335 | 100 | United States |
| R1240P011 | 2010-11-319 | 100 | |
| R1240P011 | 2009-06-174 | 8 | Brazil |
| 5315-01-197-9736 | 2008-03-73 | 100 | United States |
| R1240P011 | 2008-03-67 | 50 | United States |
Cross Reference | NSN 5315-01-197-9736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R1240P011 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-197-9736
Related Products | NSN 5315-01-197-9736
Technical Data | NSN 5315-01-197-9736
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5506 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.673 INCHES MINIMUM AND 0.703 INCHES MAXIMUM |
| DIAMETER | 0.066 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| SURFACE FINISH | 80.0 MICROINCHES OUTSIDE DIAMETER |
| SPECIFICATION/STANDARD DATA | 99207-R1240 MANUFACTURERS STANDARD |
| III SUPPLEMENTARY FEATURES | MAY BE SELECTED FROM P/N MS171439 PROVIDED 0.008 IN. MIN 0.011 IN. MAX OPENING WIDTH IS MAINTAINED |
| MANUFACTURERS CODE | 99207 |
| DESIGN CONTROL REFERENCE | R1240P011 |
Restrictions/Controls & Freight Information | NSN 5315-01-197-9736
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-197-9736
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | OK | SX:GENERAL ELECTRIC JET ENGINES & COMPONENTS, J-85 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
