NSN 5315-01-214-9101 10123219 , 74A6705032007, 74A670503-2007
Product Details | HEADLESS STRAIGHT PIN
5315-01-214-9101 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 10123219 , 74A6705032007, 74A670503-2007, 5315-01-214-9101, 01-214-9101, 5315012149101, 012149101
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 1985 | 01-214-9101 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-214-9101
Demand History | NSN 5315-01-214-9101
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74A6705032007 | 2024-10-303 | 2 | us |
| 74A6705032007 | 2024-08-242 | 2 | us |
| 5315-01-214-9101 | 2018-01-04 | 1 | DIBBS-RFPs |
| 5315-01-214-9101 | 2016-01-11 | 154 | DIBBS |
| 5315-01-214-9101 | 2015-06-153 | 154 | DIBBS |
| 5315-01-214-9101 | 2014-06-168 | 111 | DIBBS |
| 5315-01-214-9101 | 2011-10-278 | 388 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-214-9101
Technical Data | NSN 5315-01-214-9101
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6514 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PS13112,FSCM 76301 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.080 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 1 CHAMFERED |
| SECOND END TAPER LENGTH | 0.030 INCHES NOMINAL |
| SECOND END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| HOLE ARRANGEMENT STYLE | 4 DRILLED THRU CENTER |
| FIRST HOLE DIAMETER | 0.128 INCHES NOMINAL |

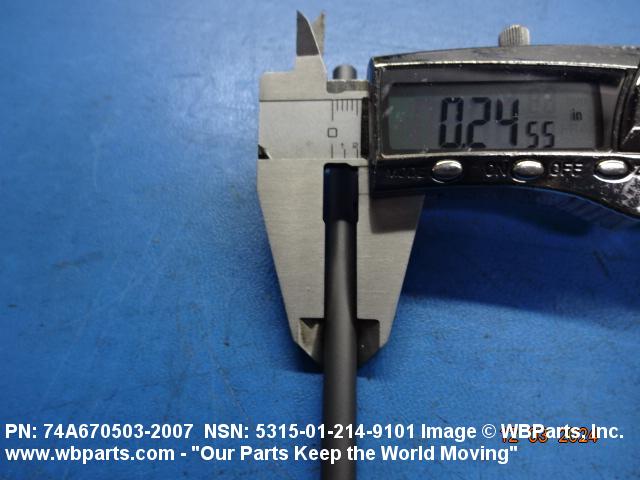

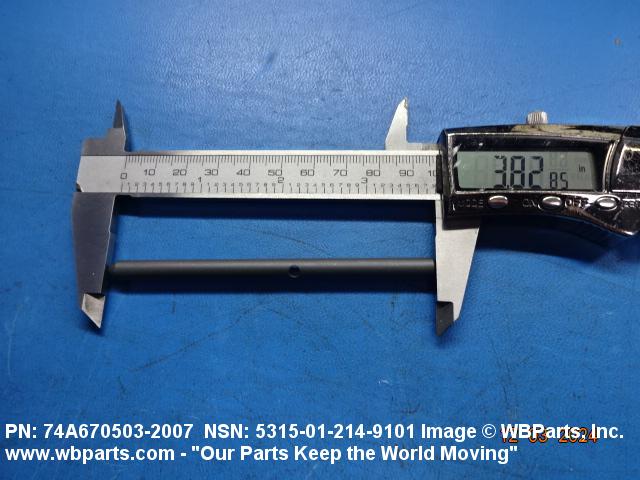

| PIN OVERALL LENGTH | 3.820 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.2479 INCHES NOMINAL |
| MANUFACTURERS CODE | 12829 |
| DESIGN CONTROL REFERENCE | 74A670503-2007 |
