NSN 5315-01-215-7511 9421003, 01-215-7511, 012157511
Product Details | SPRING PIN
5315-01-215-7511 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: 9421003, 5315-01-215-7511, 01-215-7511, 5315012157511, 012157511
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 AUG 1985 | 01-215-7511 | 02389 ( PIN, SPRING ) |

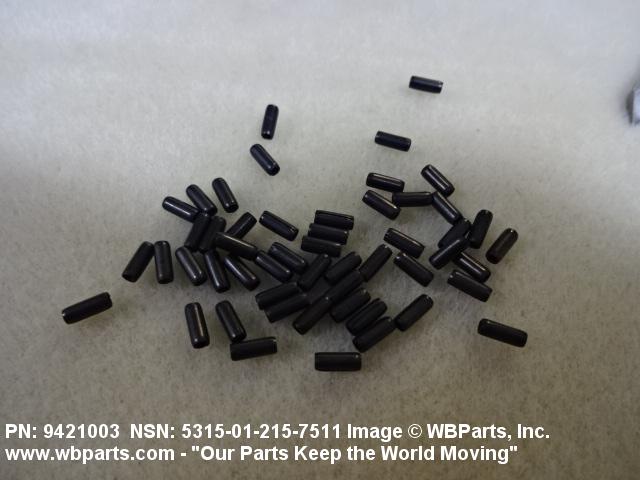

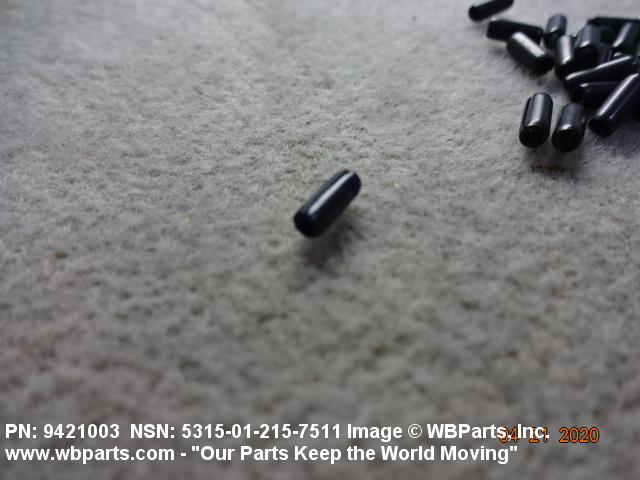

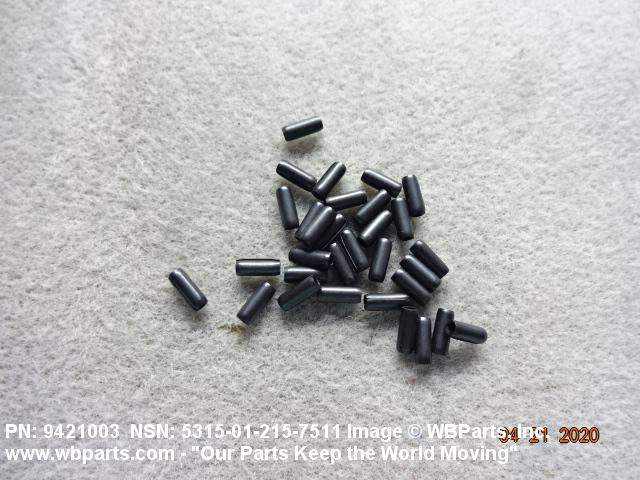

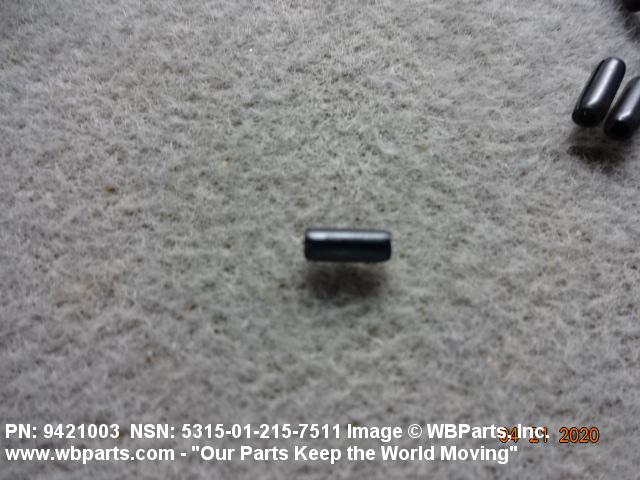

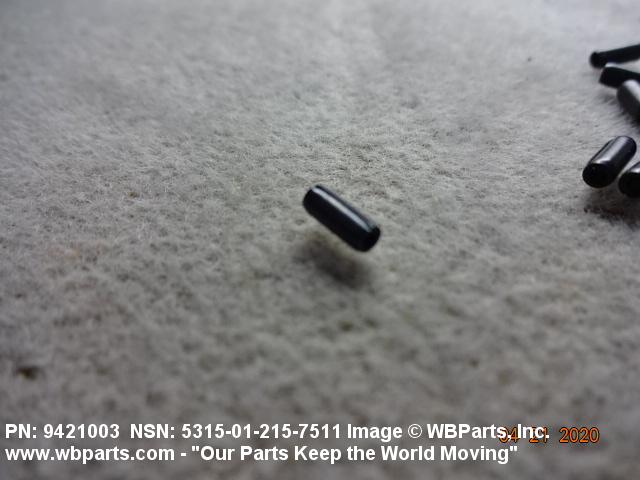

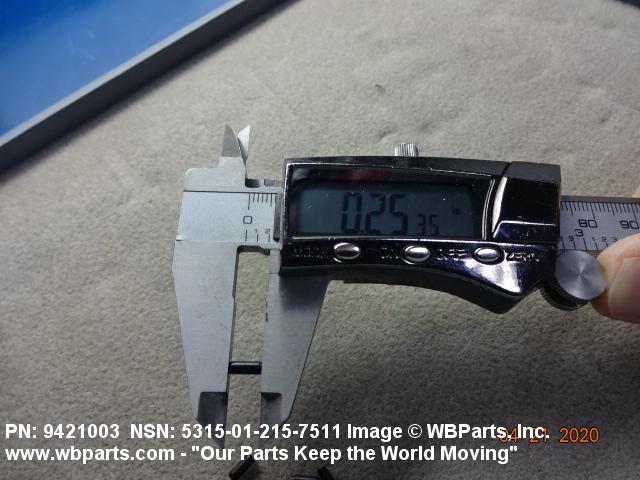

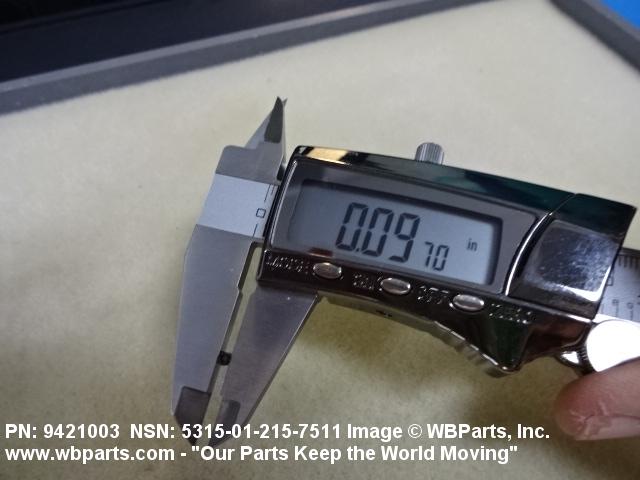

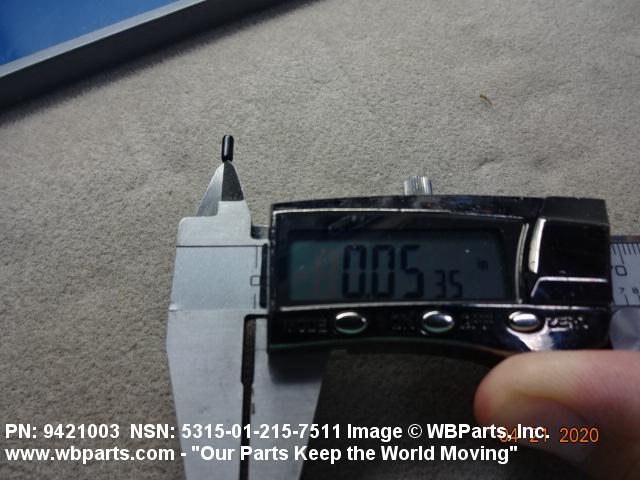

Drawings & Photos | NSN 5315-01-215-7511
Demand History | NSN 5315-01-215-7511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9421003 | 2021-12-335 | 1 | United States |
| 9421003 | 2020-10-296 | 3 | DIBBS |
| 9421003 | 2020-04-104 | 30 | United States |
| 5315-01-215-7511 | 2018-04-102 | 1 | United States |
| 5315-01-215-7511 | 2018-04-93 | 1 | United States |
| 5315-01-215-7511 | 2012-08-215 | 225 | DIBBS |
| 5315-01-215-7511 | 2011-12-352 | 29 | DIBBS |
Cross Reference | NSN 5315-01-215-7511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9421003 | 24617 | GENERAL MOTORS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-215-7511
Related Products | NSN 5315-01-215-7511
Technical Data | NSN 5315-01-215-7511
| Characteristic | Specifications |
|---|---|

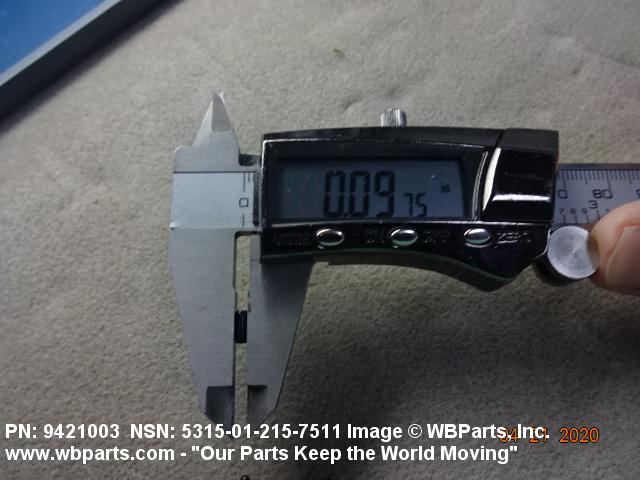

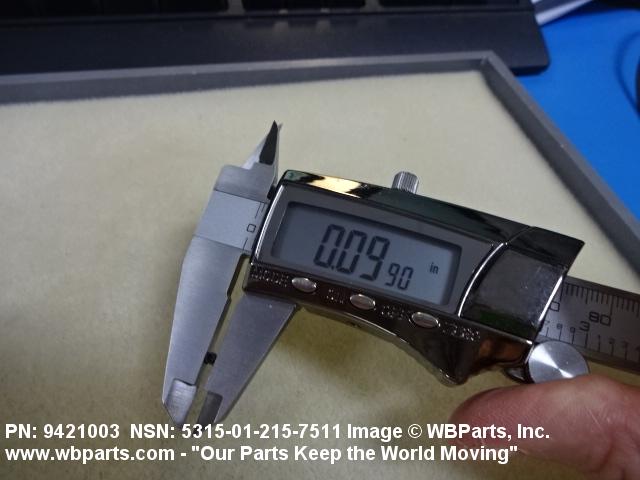

| EXPANDED DIAMETER | 0.099 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES OVERALL |
| MATERIAL | STEEL COMP 1070 OR STEEL COMP 1071 OR STEEL COMP 1072 OR STEEL COMP 1074 OR STEEL COMP 1075 OR STEEL COMP 1078 OR STEEL COMP 1080 OR STEEL COMP 1084 OR STEEL COMP 1085 OR STEEL COMP 1086 OR STEEL COMP 1090 OR STEEL COMP 1095 OVERALL |
| DIAMETER | 0.091 INCHES MAXIMUM |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | COILED |

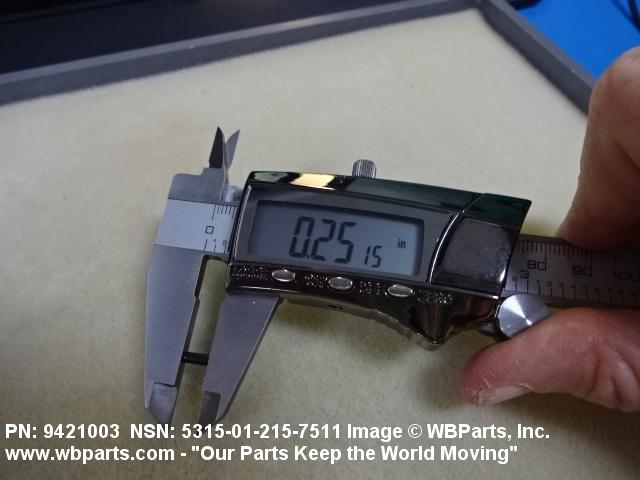

| OVERALL LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-215-7511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-215-7511
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
