NSN 5315-01-232-0564 NAS1334A5C10D, NAS1334A5S10D, NAS1334C5C10D
Product Details | QUICK RELEASE PIN

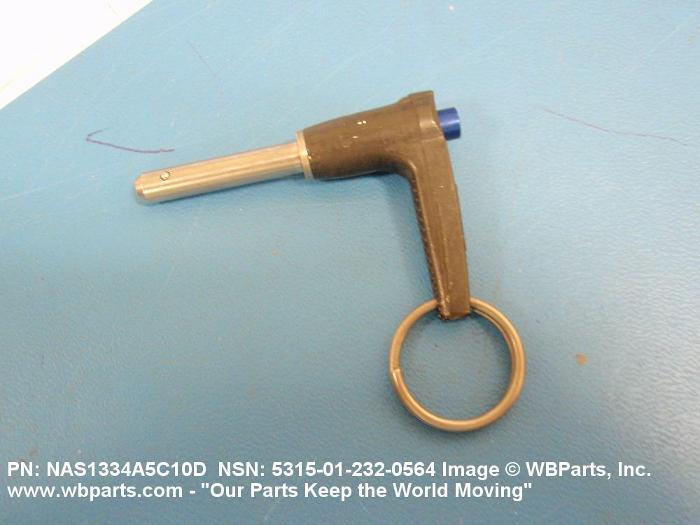

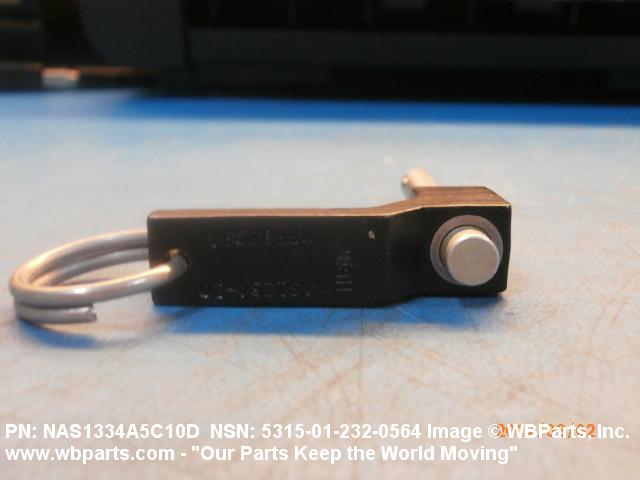

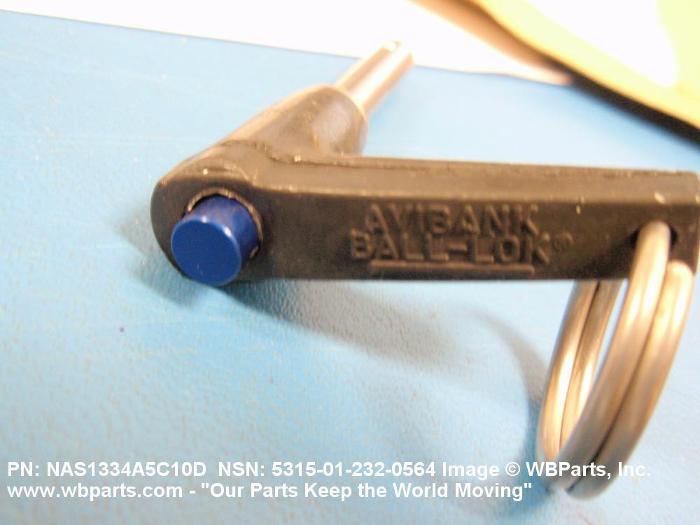

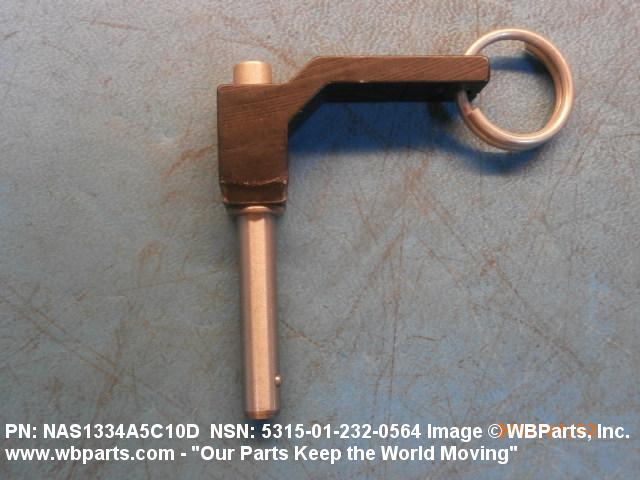

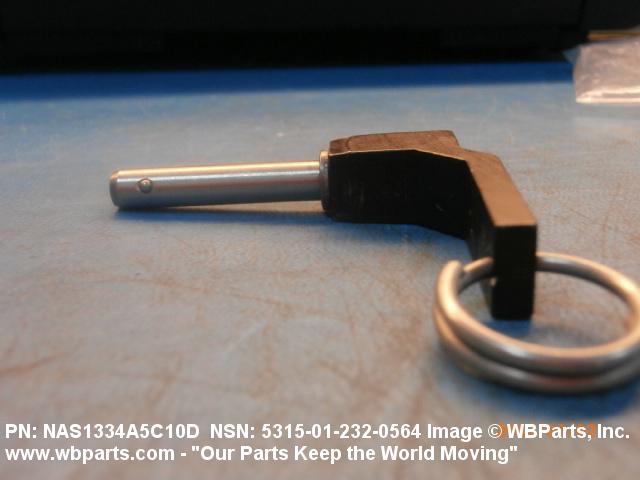

5315-01-232-0564 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1334A5C10D, NAS1334A5S10D, NAS1334C5C10D, 5315-01-232-0564, 01-232-0564, 5315012320564, 012320564
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAY 1986 | 01-232-0564 | 08323 ( PIN, QUICK RELEASE ) |

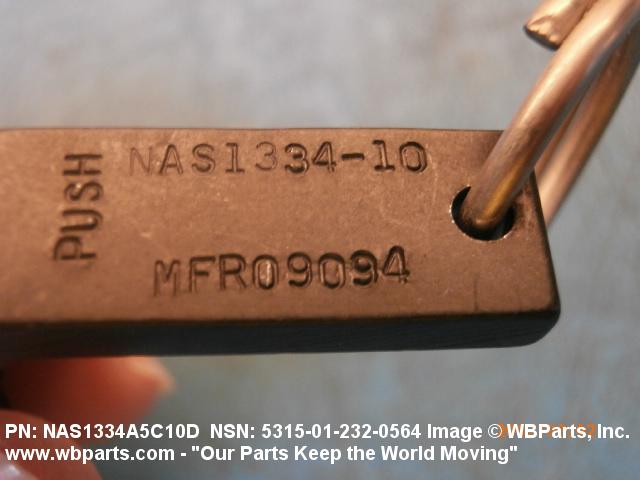

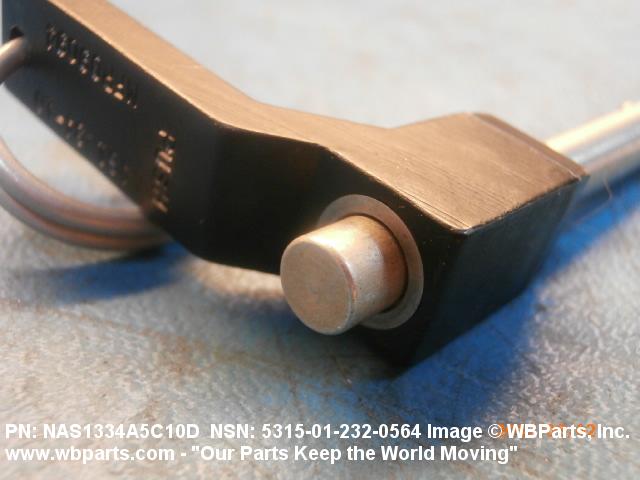

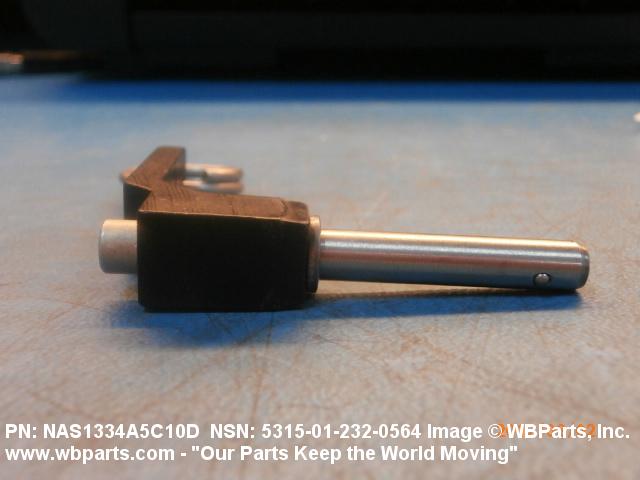

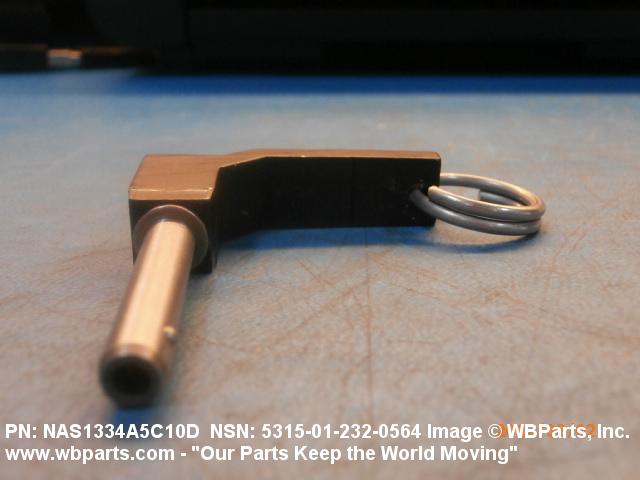

Drawings & Photos | NSN 5315-01-232-0564
Demand History | NSN 5315-01-232-0564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-232-0564 | 2025-12-337 | 10 | United States |
| NAS1334C5C10D | 2025-11-316 | 1 | United States |
| NAS1334C5C10D | 2025-10-301 | 1 | United States |
| 5315-01-232-0564 | 2025-02-48 | 14 | United States |
| 5315-01-232-0564 | 2021-07-208 | 100 | US |
| NAS1334A5C10D | 2018-08-235 | 100 | Canada |
| NAS1334A5C10D | 2017-07-192 | 2 | Canada |
| NAS1334A5C10D | 2016-10-293 | 34 | Australia |
| NAS1334A5C10D | 2016-01-25 | 50 | Australia |
| NAS1334A5C10D | 2015-10-296 | 24 | Australia |
| 5315-01-232-0564 | 2015-10-277 | 107 | DIBBS |
| 5315-01-232-0564 | 2014-11-307 | 50 | DIBBS |
| 5315-01-232-0564 | 2013-11-319 | 1 | DIBBS-RFPs |
| NAS1334A5C10D | 2010-06-152 | 30 | US |
| NAS1334A5C10D | 2010-05-148 | 25 | us |
| NAS1334A5C10D | 2009-08-220 | 4 | United States |
Cross Reference | NSN 5315-01-232-0564
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-232-0564
Related Products | NSN 5315-01-232-0564
Technical Data | NSN 5315-01-232-0564
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK |

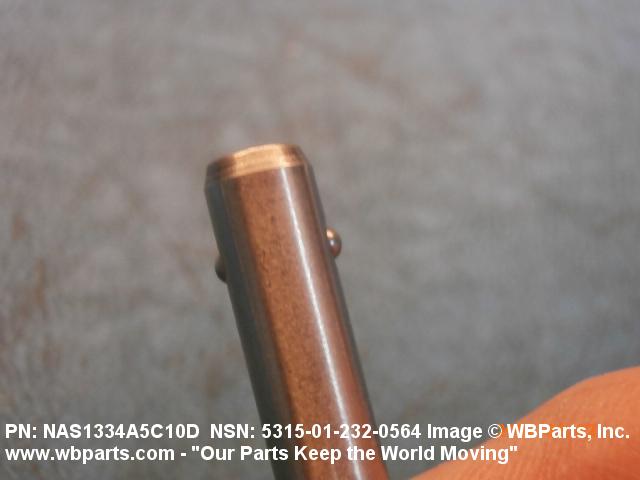

| DETENT QUANTITY | 2 |
| SPECIFICATION/STANDARD DATA | 80205-NAS1334 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| ACTUATION TYPE | PUSH |

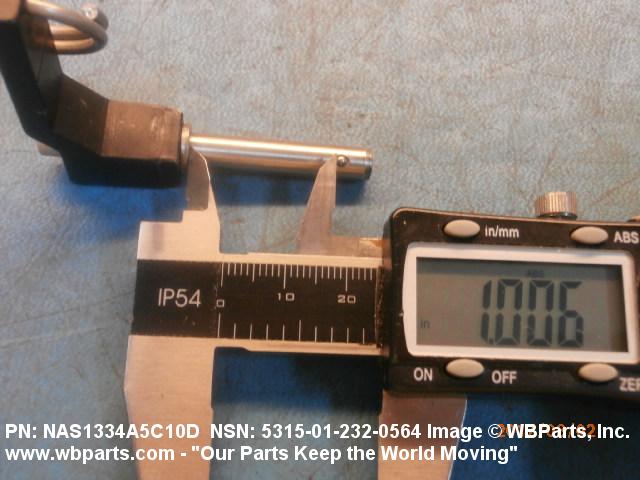

| GRIP LENGTH | 1.000 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| SHEAR STRENGTH | 9200 DOUBLE POUNDS PER SQUARE INCH |
| DETENT TO TAPERED END DISTANCE | 0.380 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |

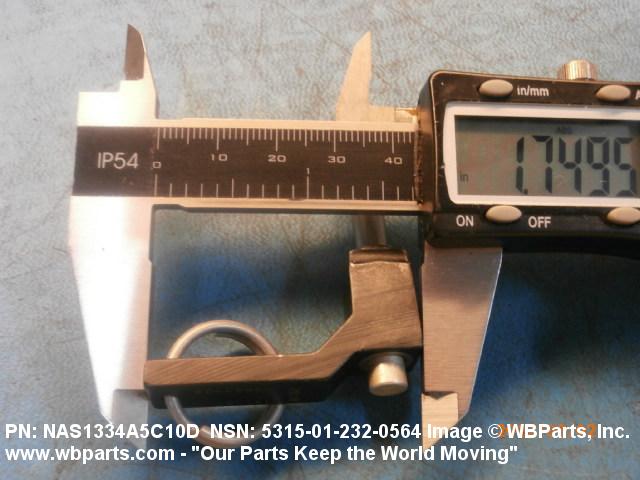

| PIN CENTER TO HANDLE END DISTANCE | 1.780 INCHES NOMINAL |
| SURFACE TREATMENT | PASSIVATE SHANK |
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK |
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SPINDLE |

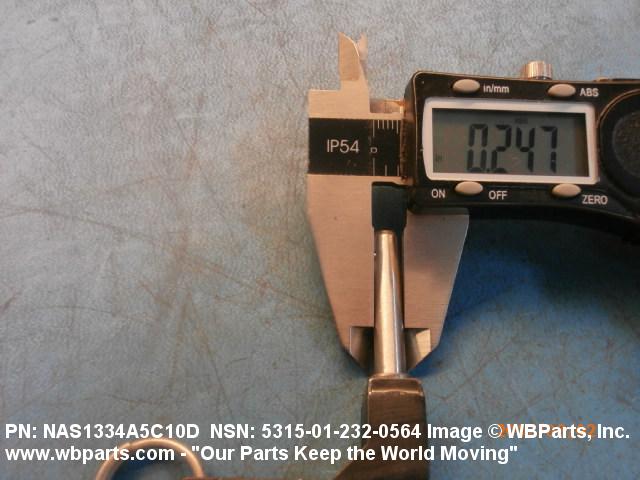

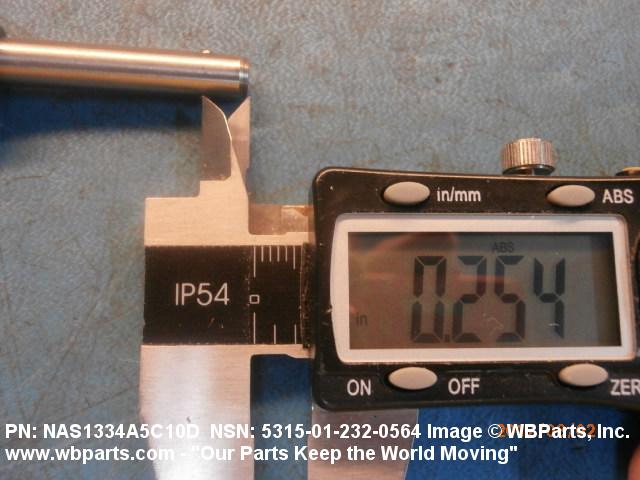

| SHANK DIAMETER | 0.2470 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| ACTUATION METHOD | PUSH BUTTON |
| STYLE DESIGNATOR | L HANDLE |

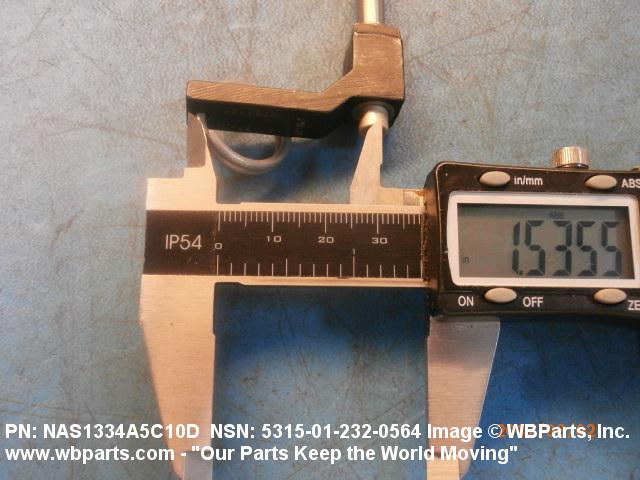

| SHOULDER TO HEAD END DISTANCE | 1.550 INCHES NOMINAL |

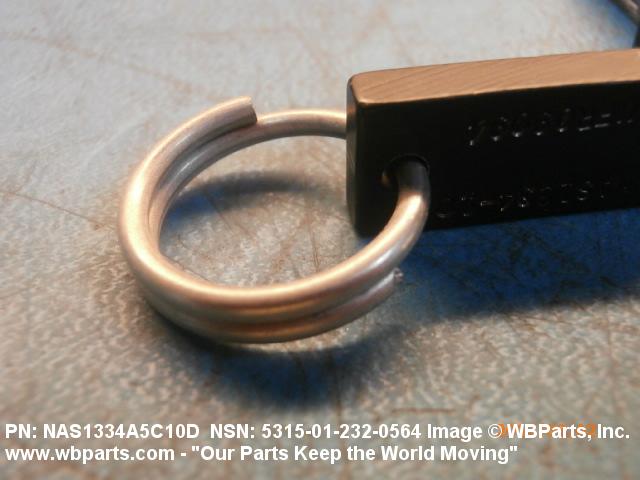

| PIN ATTACHMENT TYPE | HOOK OR RING |
| SURFACE TREATMENT | PASSIVATE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK |
