NSN 5315-01-241-0984 M45952/1-C4-21, M459521C421, MIL-P-45952/1
Product Details | QUICK RELEASE PIN

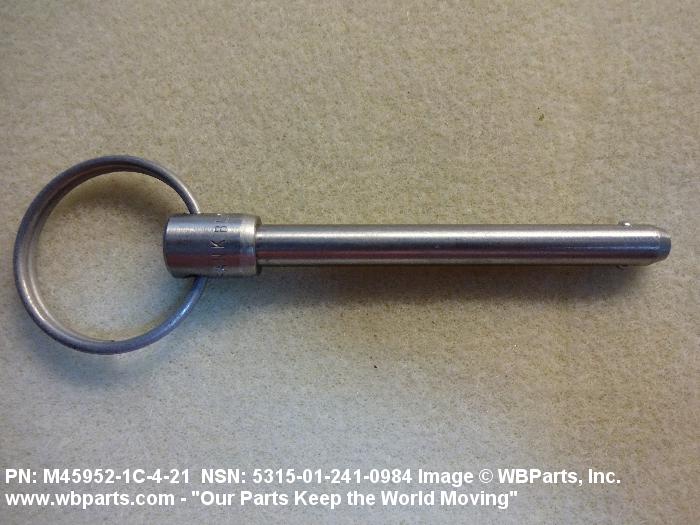

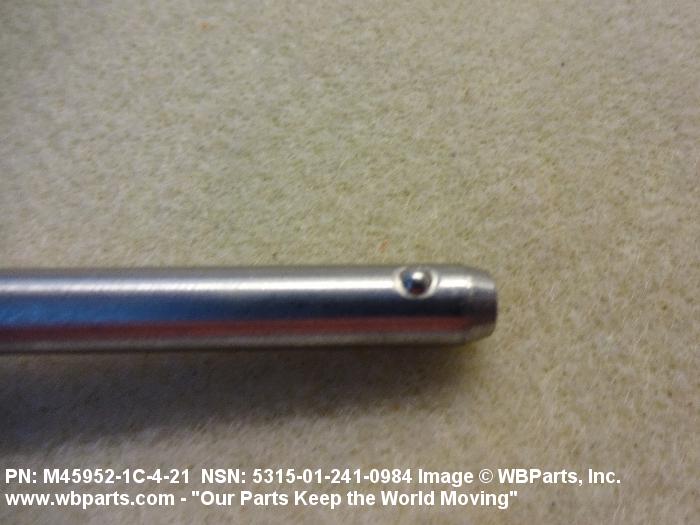

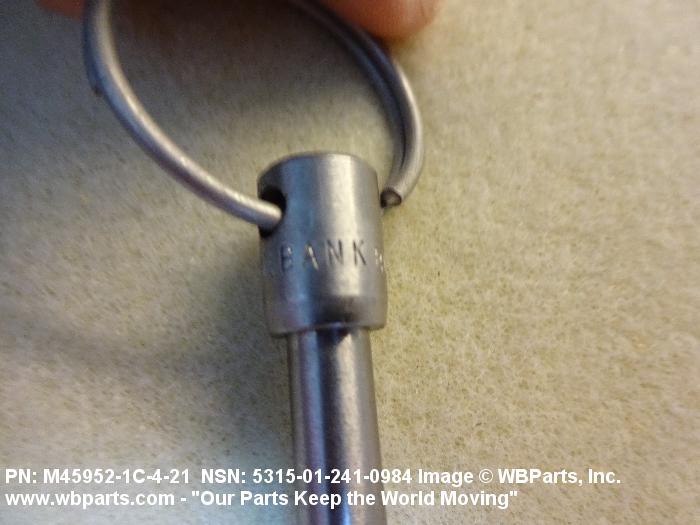

5315-01-241-0984 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: M45952/1-C4-21, M459521C421, MIL-P-45952/1, MILP459521, 5315-01-241-0984, 01-241-0984, 5315012410984, 012410984
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 SEP 1986 | 01-241-0984 | 08323 ( PIN, QUICK RELEASE ) |

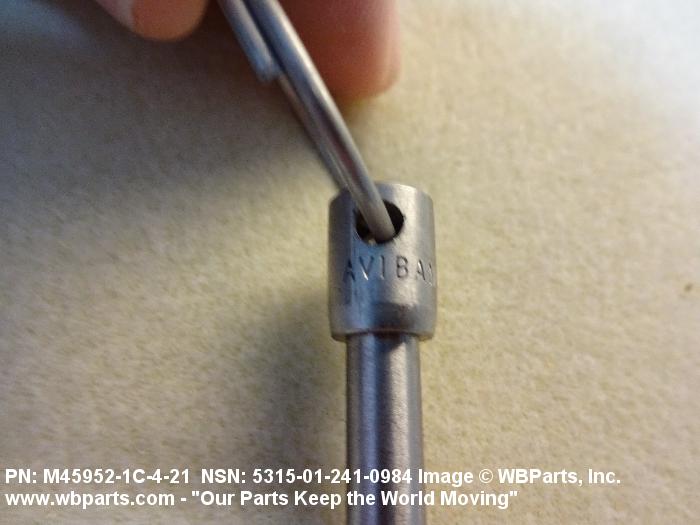

Drawings & Photos | NSN 5315-01-241-0984
Demand History | NSN 5315-01-241-0984
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-241-0984 | 2025-03-60 | 280 | IN |
| 5315-01-241-0984 | 2022-04-112 | 2 | US |
| M459521C421 | 2019-04-92 | 1 | US |
| 5315-01-241-0984 | 2019-02-59 | 1 | DIBBS-RFPs |
| 5315-01-241-0984 | 2018-11-311 | 1 | US |
| 5315-01-241-0984 | 2017-06-160 | 9 | United States |
| 5315-01-241-0984 | 2017-03-82 | 8 | US |
| 5315-01-241-0984 | 2017-02-33 | 100 | US |
| 5315-01-241-0984 | 2013-11-319 | 1 | DIBBS-RFPs |
| 5315-01-241-0984 | 2012-11-311 | 1000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-241-0984
Related Products | NSN 5315-01-241-0984
Technical Data | NSN 5315-01-241-0984
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 309 OR STEEL COMP 310 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 322 OR STEEL COMP 324 OR STEEL COMP 347 OR STEEL COMP 303 PLUS X OR STEEL COMP 303CU OR STEEL COMP 303MA OR STEEL COMP 303PB OR STEEL COMP 303SE SHANK STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 309 OR STEEL COMP 310 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 322 OR STEEL COMP 324 OR STEEL COMP 347 OR STEEL COMP 303 PLUS X OR STEEL COMP 303CU OR STEEL COMP 303MA OR STEEL COMP 303PB OR STEEL COMP 303SE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| SHEAR STRENGTH | 4500 DOUBLE POUND |
| STYLE DESIGNATOR | Q250 RING HANDLE |

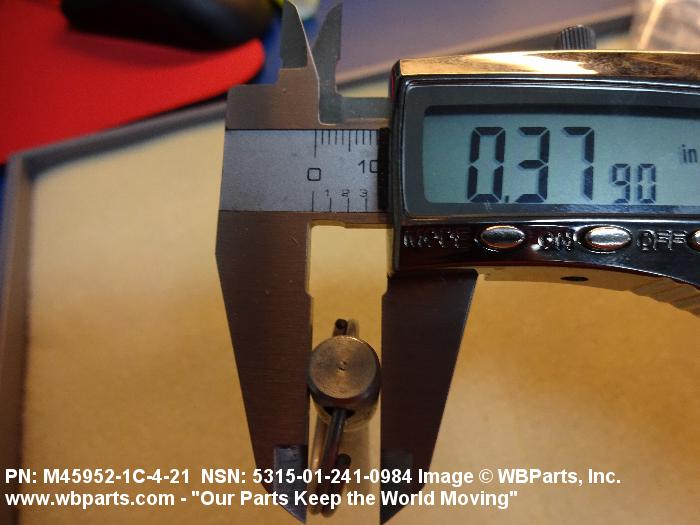

| HEAD DIAMETER | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |

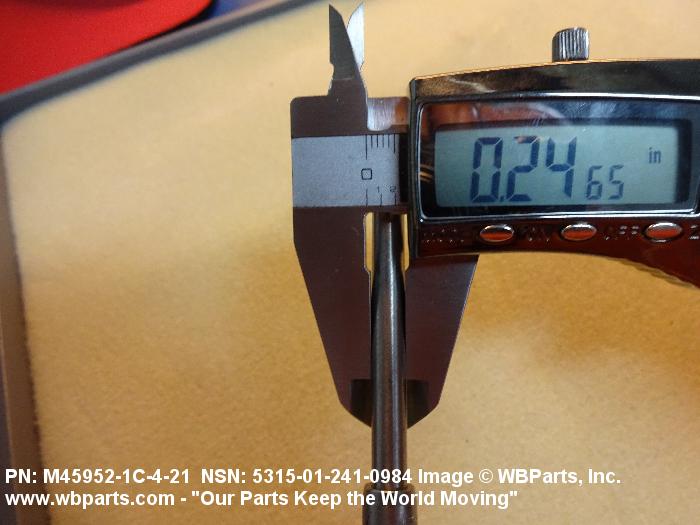

| SHANK DIAMETER | 0.245 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |

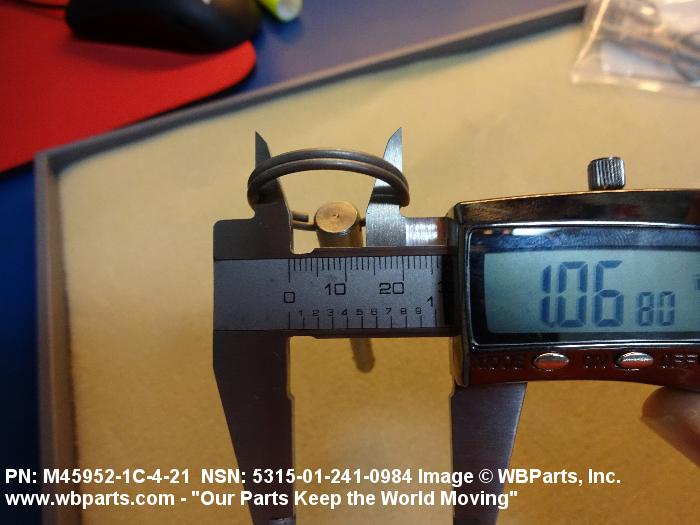

| RING HANDLE DIAMETER | 1.000 INCHES MINIMUM AND 1.187 INCHES MAXIMUM |

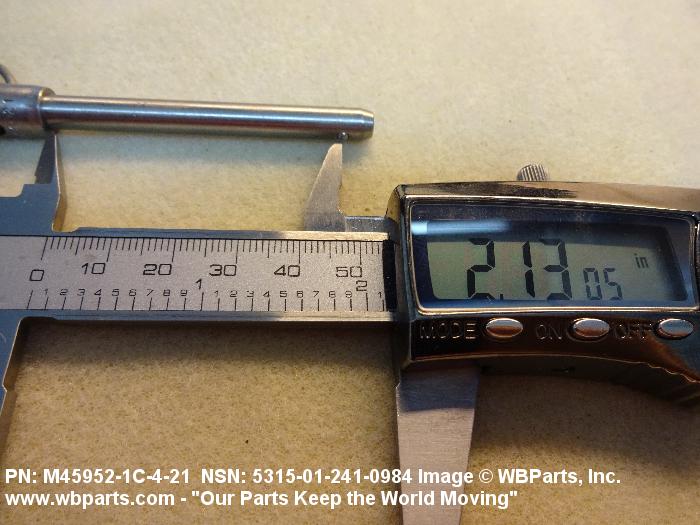

| GRIP LENGTH | 2.100 INCHES MINIMUM AND 2.120 INCHES MAXIMUM |

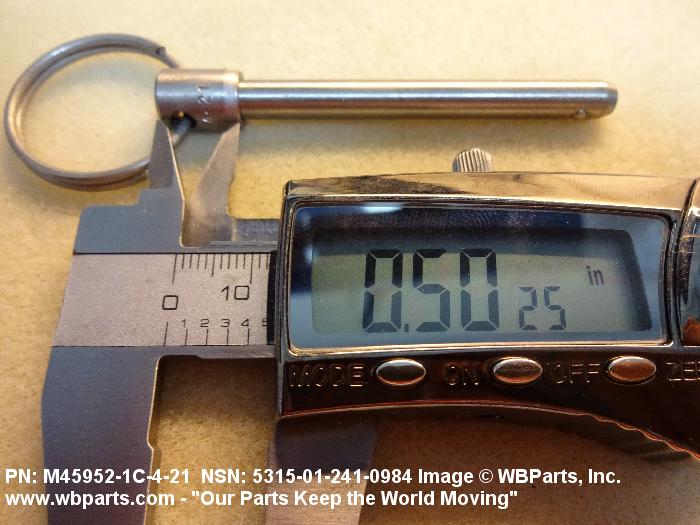

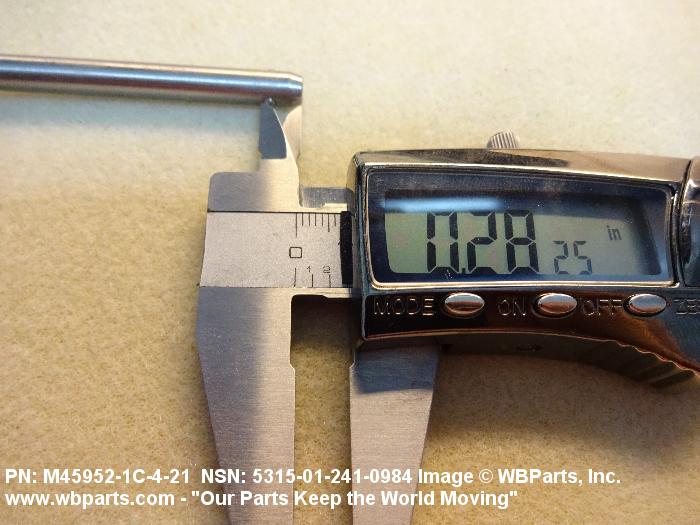

| SHOULDER TO HEAD END DISTANCE | 0.380 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.284 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | RING |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT | MIL-P-45952/1 |
