NSN 5315-01-268-8442 4G53606103A, 4G53606-103A, 01-268-8442
Product Details | MACHINE KEY
5315-01-268-8442 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 4G53606103A, 4G53606-103A, 5315-01-268-8442, 01-268-8442, 5315012688442, 012688442
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 DEC 1987 | 01-268-8442 | 02378 ( KEY, MACHINE ) |
Drawings & Photos | NSN 5315-01-268-8442
Demand History | NSN 5315-01-268-8442
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-268-8442 | 2024-09-248 | 14 | DIBBS |
| 5315-01-268-8442 | 2024-07-191 | 36 | DIBBS |
| 5315-01-268-8442 | 2024-05-136 | 13 | DIBBS |
| 5315-01-268-8442 | 2019-09-267 | 53 | DIBBS |
| 5315-01-268-8442 | 2019-04-101 | 19 | DIBBS |
| 5315-01-268-8442 | 2018-12-355 | 40 | DIBBS |
| 5315-01-268-8442 | 2010-02-49 | 258 | DIBBS |
| 5315-01-268-8442 | 2010-01-07 | 301 | DIBBS |
| 5315-01-268-8442 | 2009-12-343 | 101 | DIBBS |
| 5315-01-268-8442 | 2009-07-203 | 72 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-268-8442
Related Products | NSN 5315-01-268-8442
Technical Data | NSN 5315-01-268-8442
| Characteristic | Specifications |
|---|---|

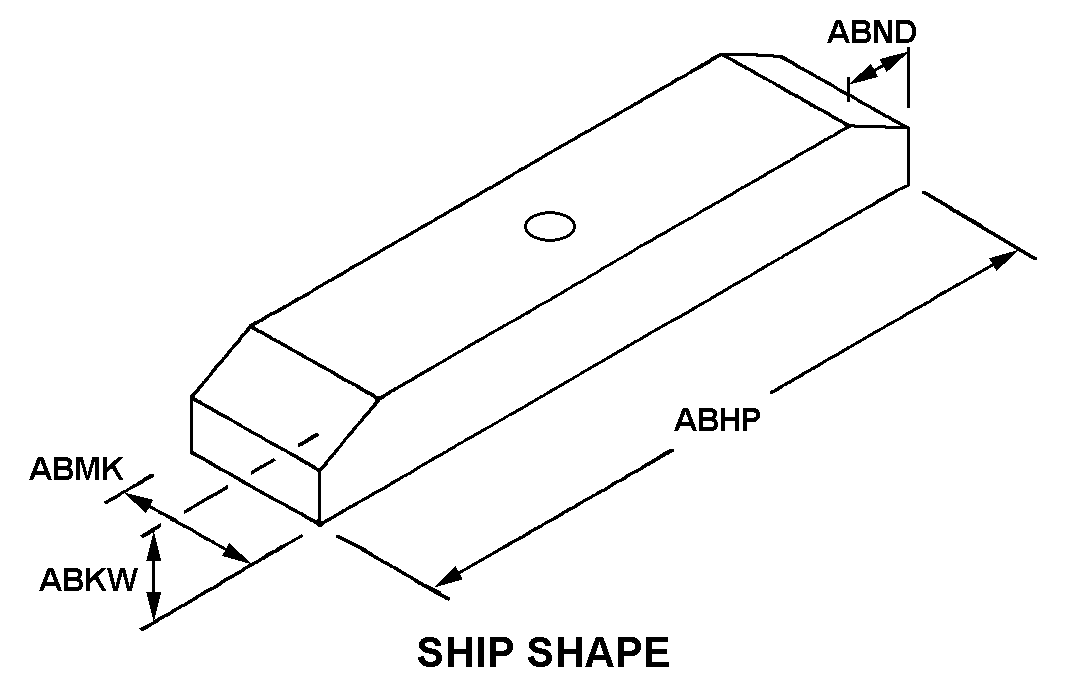

| STYLE DESIGNATOR | B127 SHIP SHAPE |
| OVERALL LENGTH | 1.885 INCHES NOMINAL |
| OVERALL HEIGHT | 0.252 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| OVERALL WIDTH | 0.494 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| TAPER LENGTH | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | .200 DIA. X 100 DEGREES COUNTER- SUNK ON CENTERLINE WITHIN .001; USED ON SHOCKSTRUT,C5A/B AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5315-01-268-8442
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-268-8442
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
