NSN 5315-01-290-0474 MS16562219, MS16562-219, MS16562219CP
Product Details | SPRING PIN
5315-01-290-0474 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS16562219, MS16562-219, MS16562219CP, MS16562-219CP, M516562219CP, M516562-219CP, V3D10108 ITEM 25, V3D10108ITEM25, 5315-01-290-0474, 01-290-0474, 5315012900474, 012900474
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 DEC 1988 | 01-290-0474 | 02389 ( PIN, SPRING ) |

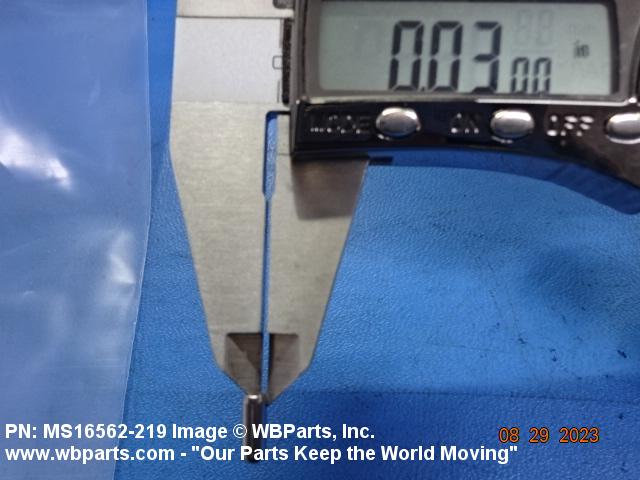

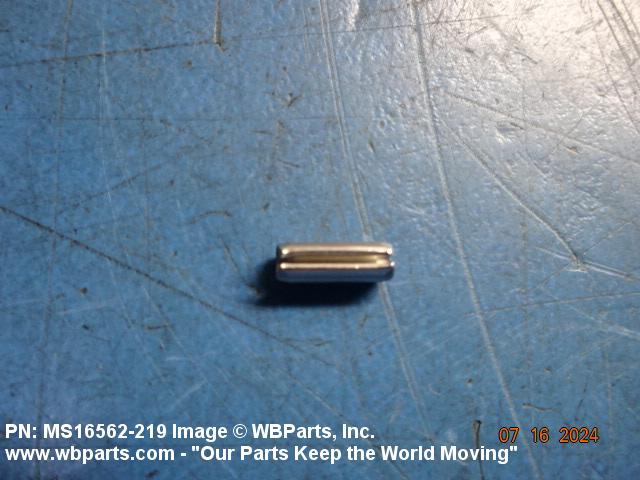

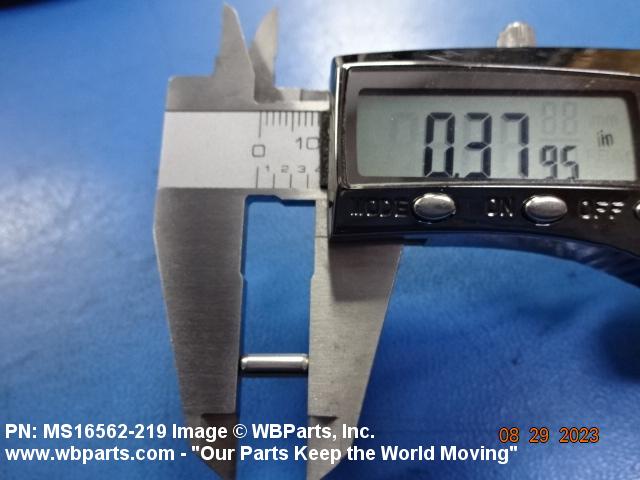

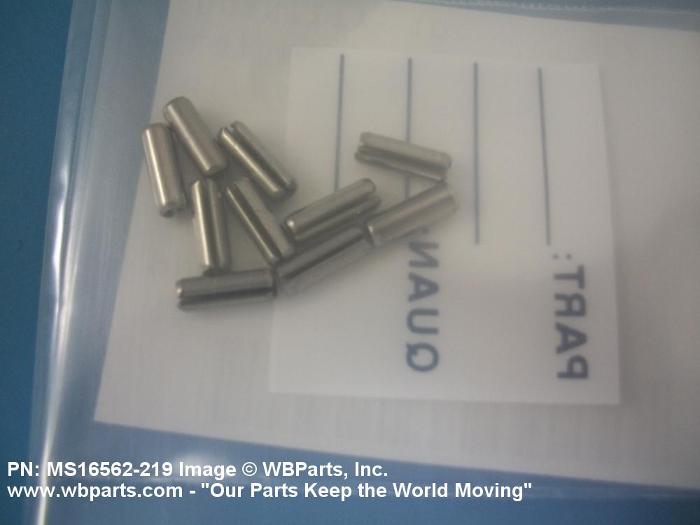

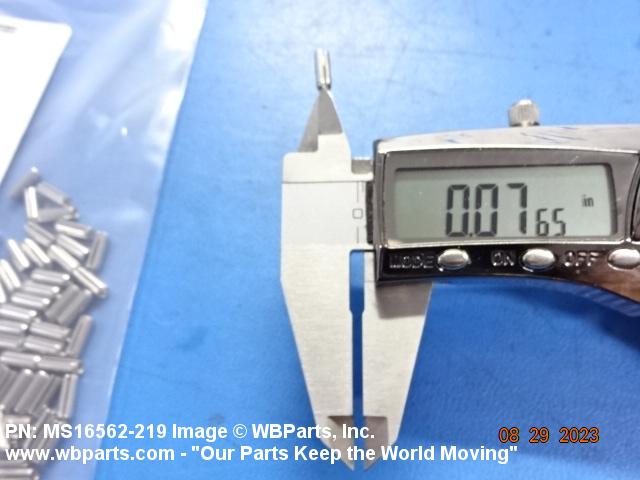

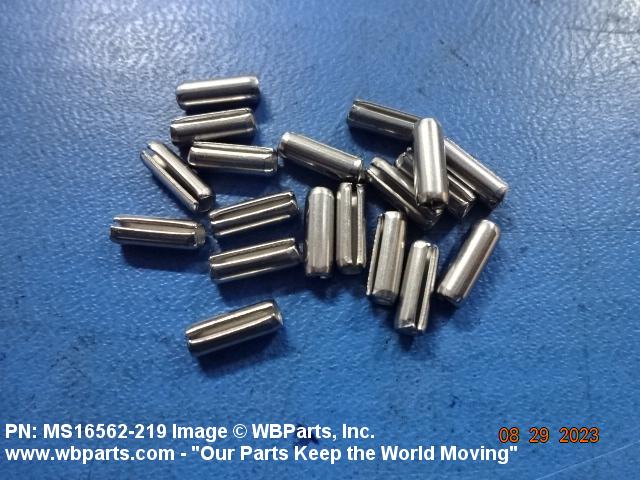

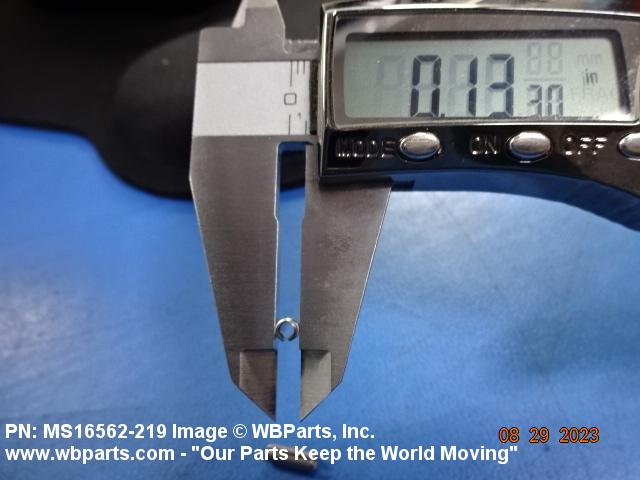

Drawings & Photos | NSN 5315-01-290-0474
Demand History | NSN 5315-01-290-0474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS16562219 | 2024-07-193 | 1 | United States |
| MS16562219 | 2023-08-237 | 100 | United States |
| 5315-01-290-0474 | 2022-10-291 | 527 | DIBBS |
| 5315-01-290-0474 | 2022-08-228 | 527 | DIBBS |
| 5315-01-290-0474 | 2022-03-75 | 667 | DIBBS |
| 5315-01-290-0474 | 2022-01-13 | 98 | DIBBS |
| MS16562219 | 2016-03-63 | 50 | us |
| MS16562219 | 2015-01-20 | 100 | US |
| MS16562219 | 2012-11-328 | 30 | China |
| MS16562219 | 2011-10-292 | 10 | US |
| MS16562219 | 2011-09-272 | 10 | United States |
| MS16562219 | 2011-03-69 | 6 | United States |
| MS16562219 | 2010-11-326 | 25 | US |
| MS16562219 | 2009-06-174 | 25 | US |
Cross Reference | NSN 5315-01-290-0474
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M516562-219CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MS16562-219 | 99517 | VACCO INDUSTRIES |
| MS16562-219 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16562-219CP | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| V3D10108 ITEM 25 | 99517 | VACCO INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-290-0474
Related Products | NSN 5315-01-290-0474
Technical Data | NSN 5315-01-290-0474
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SPECIAL FEATURES | MANIFOLD 5VL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | REQUIRES SPECIAL CLEANING AND PACKAGING FOR OXYGEN AND NITROGEN SERVICE |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 99517 |
| DESIGN CONTROL REFERENCE | MS16562-219 |
Restrictions/Controls & Freight Information | NSN 5315-01-290-0474
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-290-0474
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CP | An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
