NSN 5315-01-292-7577 NAS607810, NAS607-8-10, 01-292-7577
Product Details | HEADLESS STRAIGHT PIN

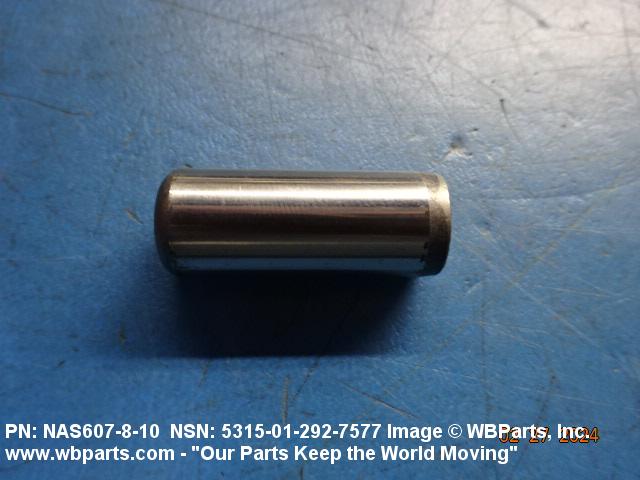

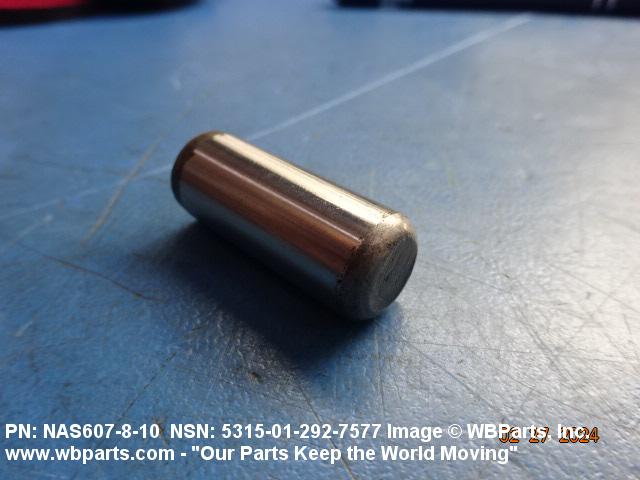

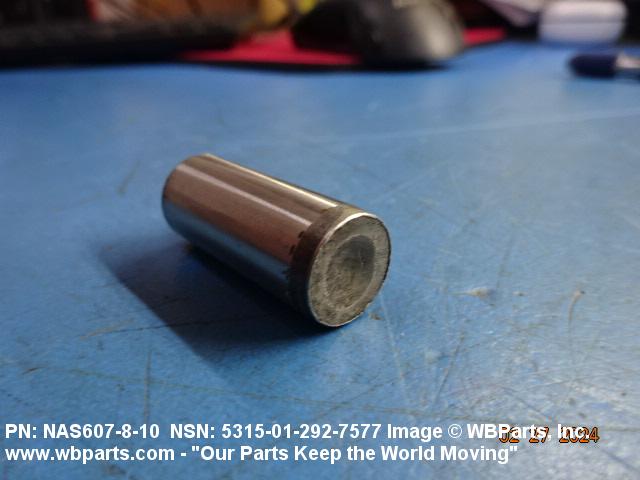

5315-01-292-7577 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: NAS607810, NAS607-8-10, 5315-01-292-7577, 01-292-7577, 5315012927577, 012927577
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JAN 1989 | 01-292-7577 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-292-7577
Demand History | NSN 5315-01-292-7577
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-292-7577 | 2024-02-47 | 6 | United States |
| 5315-01-292-7577 | 2024-02-32 | 10 | United States |
| 5315-01-292-7577 | 2016-07-213 | 67 | DIBBS |
| 5315-01-292-7577 | 2016-05-131 | 23 | DIBBS |
| 5315-01-292-7577 | 2014-04-98 | 42 | DIBBS |
| 5315-01-292-7577 | 2013-07-184 | 18 | DIBBS |
| 5315-01-292-7577 | 2012-11-306 | 5 | DIBBS |
| 5315-01-292-7577 | 2010-09-248 | 18 | DIBBS |
| 5315-01-292-7577 | 2009-06-163 | 23 | DIBBS |
Cross Reference | NSN 5315-01-292-7577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS607-8-10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-292-7577
Related Products | NSN 5315-01-292-7577
Technical Data | NSN 5315-01-292-7577
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 50.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | ANY ACCEPTABLE |
| FIRST END TAPER ANGLE | 5.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 4 RADIUS |
| SECOND END CORNER RADIUS | 0.114 INCHES NOMINAL |
| SURFACE FINISH | 8.0 MICROINCHES OUTSIDE DIAMETER |

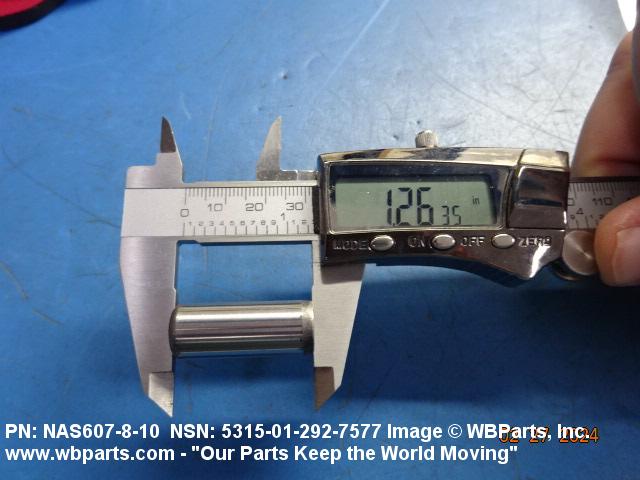

| PIN OVERALL LENGTH | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |

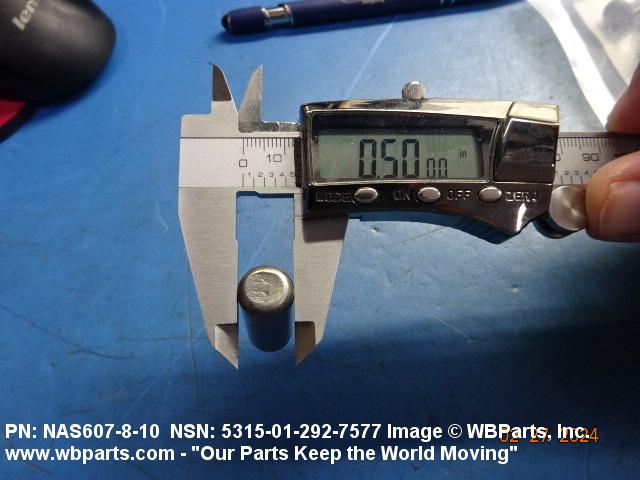

| PIN OVERALL DIAMETER | 0.5001 INCHES MINIMUM AND 0.5003 INCHES MAXIMUM |
