NSN 5315-01-293-1841 NAS561S25, NAS561S2-5, 01-293-1841
Product Details | SPRING PIN
5315-01-293-1841 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: NAS561S25, NAS561S2-5, 5315-01-293-1841, 01-293-1841, 5315012931841, 012931841
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JAN 1989 | 01-293-1841 | 02389 ( PIN, SPRING ) |

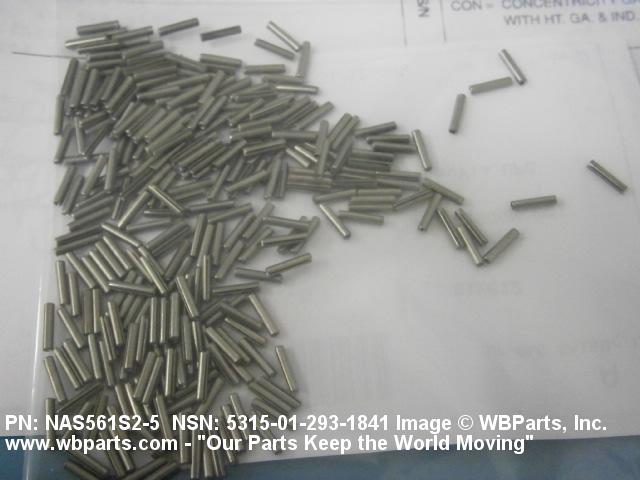

Drawings & Photos | NSN 5315-01-293-1841
Demand History | NSN 5315-01-293-1841
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-293-1841 | 2021-03-84 | 68 | Taiwan |
| 5315-01-293-1841 | 2020-08-217 | 30 | US |
| 5315-01-293-1841 | 2018-11-317 | 22280 | DIBBS |
| 5315-01-293-1841 | 2018-11-308 | 22280 | DIBBS |
| 5315-01-293-1841 | 2018-05-150 | 14199 | DIBBS |
| 5315-01-293-1841 | 2017-03-68 | 9901 | DIBBS |
| 5315-01-293-1841 | 2012-08-221 | 21415 | DIBBS |
| 5315-01-293-1841 | 2012-02-52 | 10000 | DIBBS |
| NAS561S25 | 2012-01-06 | 300 | United States |
| NAS561S25 | 2011-04-110 | 300 | United States |
| 5315-01-293-1841 | 2009-09-247 | 13962 | DIBBS |
Cross Reference | NSN 5315-01-293-1841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS561S2-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-293-1841
Technical Data | NSN 5315-01-293-1841
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 300 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.297 INCHES MINIMUM AND 0.327 INCHES MAXIMUM |
| DIAMETER | 0.066 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS561 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-293-1841
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
