Product Details | HEADED STRAIGHT PIN
5315-01-312-0313 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 315635, 5315-01-312-0313, 01-312-0313, 5315013120313, 013120313
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 DEC 1989 | 01-312-0313 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-312-0313
Demand History | NSN 5315-01-312-0313
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-01-312-0313
Related Products | NSN 5315-01-312-0313
5315-01-312-0314, 5315-01-312-0315, 5315-01-312-0316, 5315-01-312-0601, 5315-01-312-0602
Technical Data | NSN 5315-01-312-0313
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.233 INCHES MINIMUM AND 0.234 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.397 INCHES MINIMUM AND 1.417 INCHES MAXIMUM |

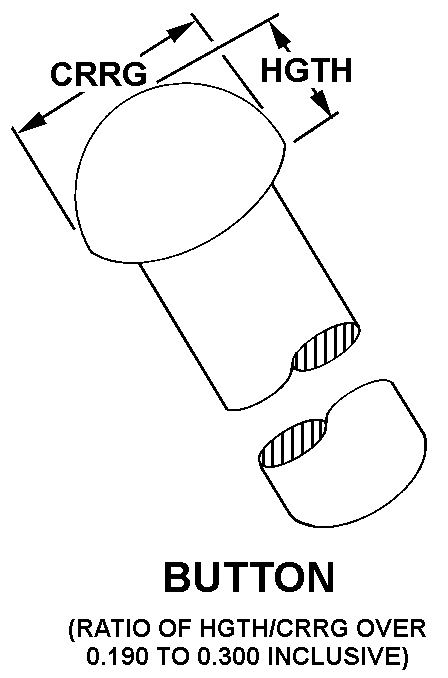

| HEAD STYLE | 4 BUTTON |
| HEIGHT | 0.084 INCHES MINIMUM AND 0.104 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.078 INCHES MINIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.114 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| SPECIAL FEATURES | OPTIONAL HEAD STYLE NUMBER 17 |
| MANUFACTURERS CODE | 04627 |
| DESIGN CONTROL REFERENCE | 315635 |
