Product Details | HEADED STRAIGHT PIN
5315-01-316-1807 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 5750648007, 5750648-007, 5315-01-316-1807, 01-316-1807, 5315013161807, 013161807
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAR 1990 | 01-316-1807 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-316-1807
Demand History | NSN 5315-01-316-1807
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-316-1807 | 2022-06-171 | 81 | DIBBS |
| 5315-01-316-1807 | 2021-12-341 | 81 | DIBBS |
| 5315-01-316-1807 | 2018-04-114 | 151 | DIBBS |
| 5315-01-316-1807 | 2018-02-47 | 48 | United States |
| 5315-01-316-1807 | 2018-01-21 | 10 | DIBBS |
| 5315-01-316-1807 | 2017-11-306 | 48 | DIBBS |
| 5315-01-316-1807 | 2017-10-299 | 57 | United States |
| 5315-01-316-1807 | 2017-08-219 | 57 | DIBBS |
| 5315-01-316-1807 | 2017-05-143 | 47 | DIBBS |
| 5315-01-316-1807 | 2017-03-89 | 47 | DIBBS |
| 5315-01-316-1807 | 2017-03-66 | 60 | DIBBS |
| 5315-01-316-1807 | 2017-01-08 | 15 | DIBBS |
| 5315-01-316-1807 | 2016-05-138 | 49 | DIBBS |
| 5315-01-316-1807 | 2013-01-03 | 8 | DIBBS |
| 5315-01-316-1807 | 2012-10-290 | 3 | DIBBS |
| 5315-01-316-1807 | 2012-09-261 | 30 | DIBBS |
| 5315-01-316-1807 | 2012-07-191 | 4 | DIBBS |
| 5315-01-316-1807 | 2012-03-75 | 9 | DIBBS |
| 5315-01-316-1807 | 2010-05-137 | 6 | DIBBS |
| 5315-01-316-1807 | 2010-02-36 | 18 | DIBBS |
| 5315-01-316-1807 | 2009-10-275 | 6 | DIBBS |
Cross Reference | NSN 5315-01-316-1807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5750648-007 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-316-1807
Related Products | NSN 5315-01-316-1807
Technical Data | NSN 5315-01-316-1807
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643,COND A ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | LUBRICANT OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |

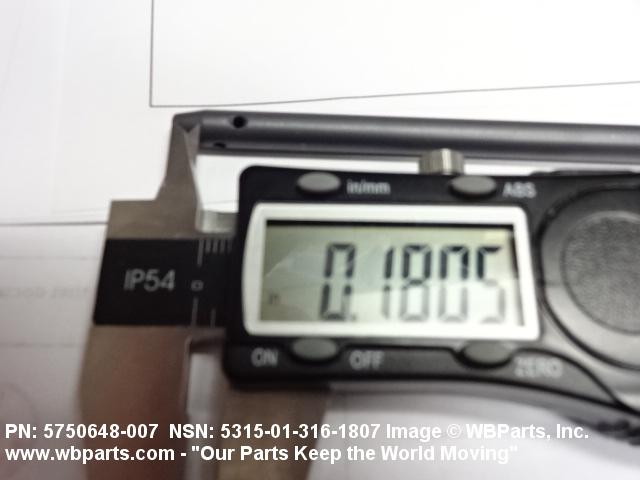

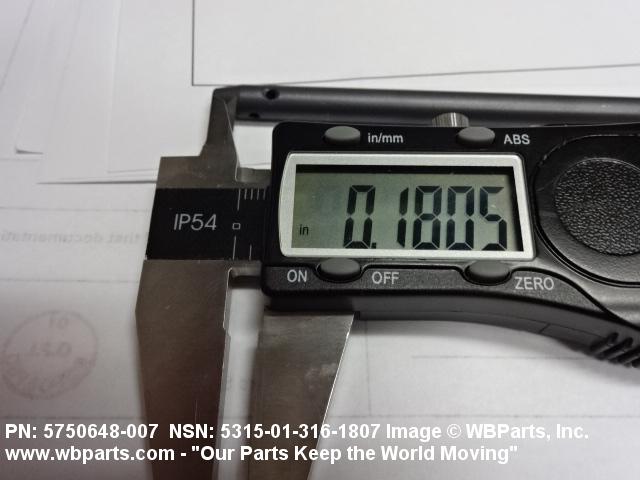

| CHAMFER LENGTH | 0.180 INCHES NOMINAL |

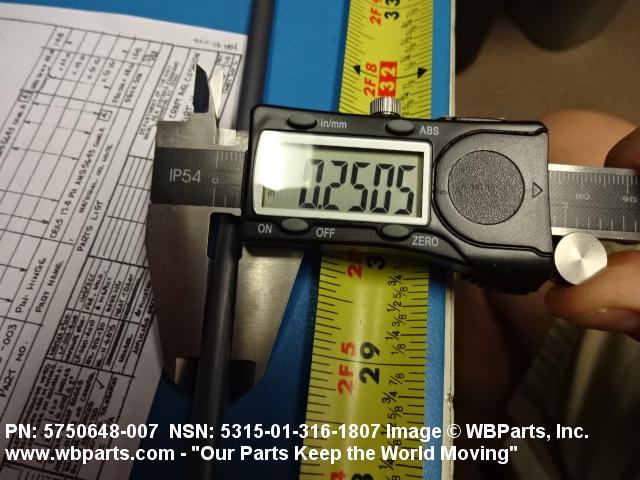

| DIAMETER | 0.250 INCHES NOMINAL |

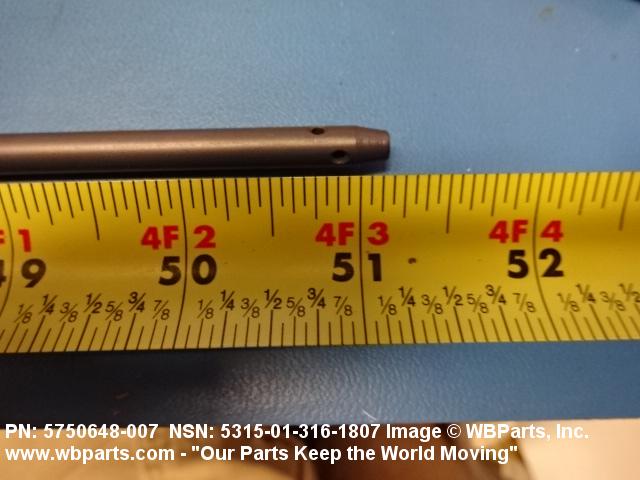

| UNDER HEAD LENGTH | 50.950 INCHES NOMINAL |
| PIN CHAMFER ANGLE | ANY ACCEPTABLE |

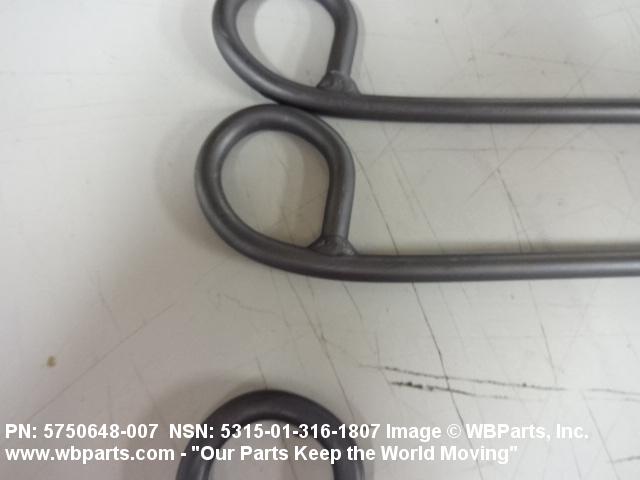

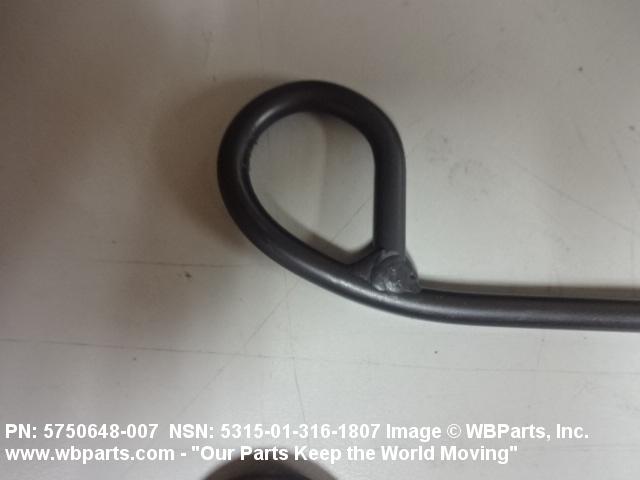

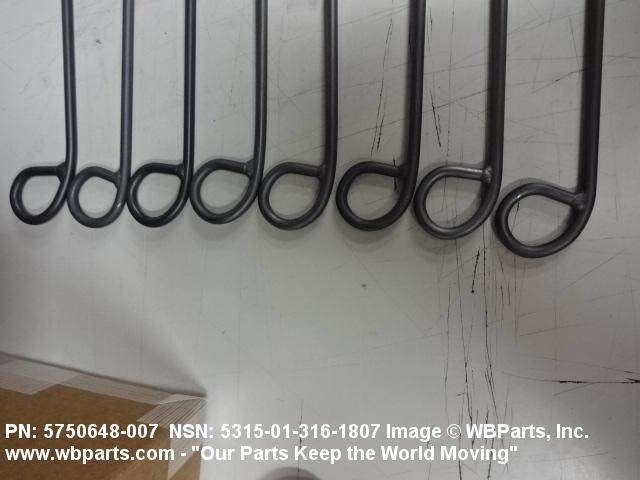

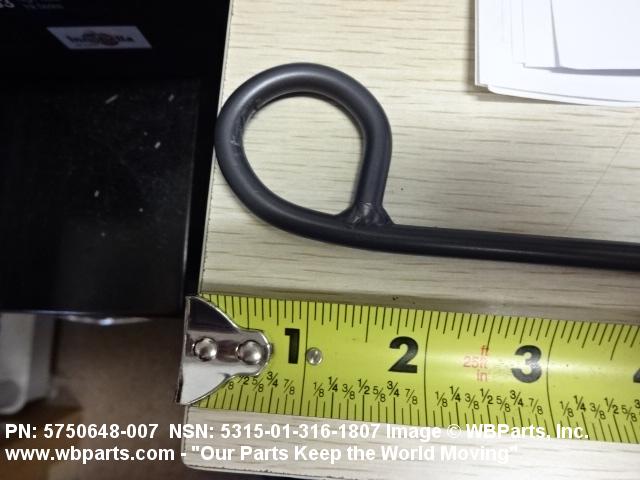

| HEAD STYLE | 71 EYE |
| EYE LENGTH | 1.500 INCHES NOMINAL |
| EYE STOCK DIAMETER | 0.250 INCHES NOMINAL |

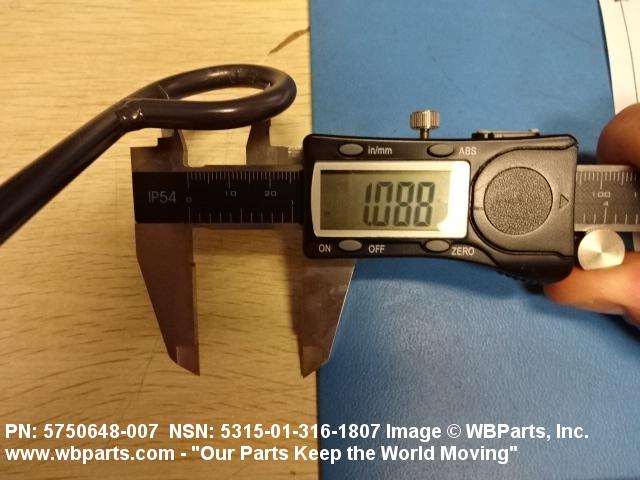

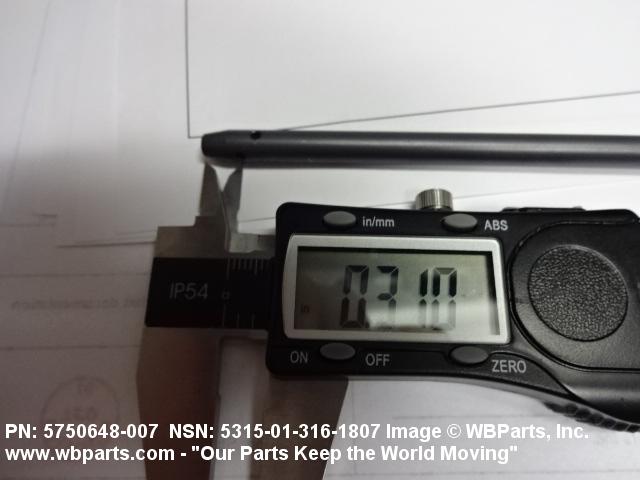

| LOOP INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.076 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.310 INCHES NOMINAL |

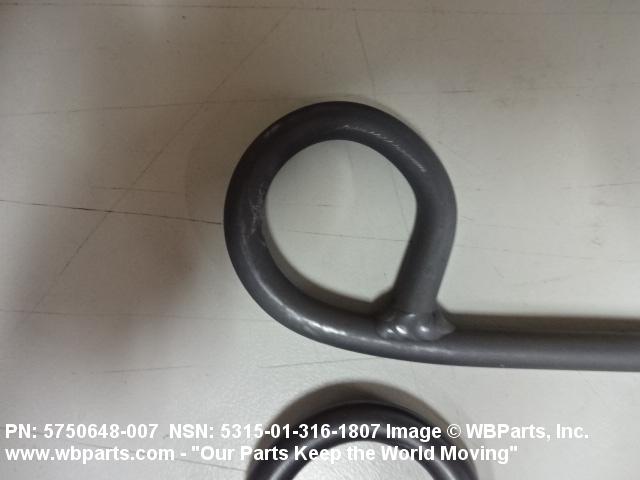

| WELDING PROJECTION LOCATION AND QUANTITY | 1 UNDER HEAD |
| SPECIAL FEATURES | DRILLED END HAS HOLES DIAMETRICALLY OPPOSSED |
