NSN 5315-01-323-8209 518-5947787 ITEM 2-5, 5185947787ITEM25, 59477870004
Product Details | HEADED SHOULDER PIN
5315-01-323-8209 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 518-5947787 ITEM 2-5, 5185947787ITEM25, 59477870004, 5947787-0004, 5315-01-323-8209, 01-323-8209, 5315013238209, 013238209
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1990 | 01-323-8209 | 16563 ( PIN, SHOULDER, HEADED ) |
Drawings & Photos | NSN 5315-01-323-8209
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-323-8209
Technical Data | NSN 5315-01-323-8209
| Characteristic | Specifications |
|---|---|
| UNDER HEAD LENGTH | 3.374 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.500 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.375 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.250 INCHES NOMINAL |
| SECOND STEP LENGTH | 1.115 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.997 INCHES MINIMUM AND 0.998 INCHES MAXIMUM |
| THIRD STEP LENGTH | 0.812 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.312 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 15.0 DEGREES NOMINAL |

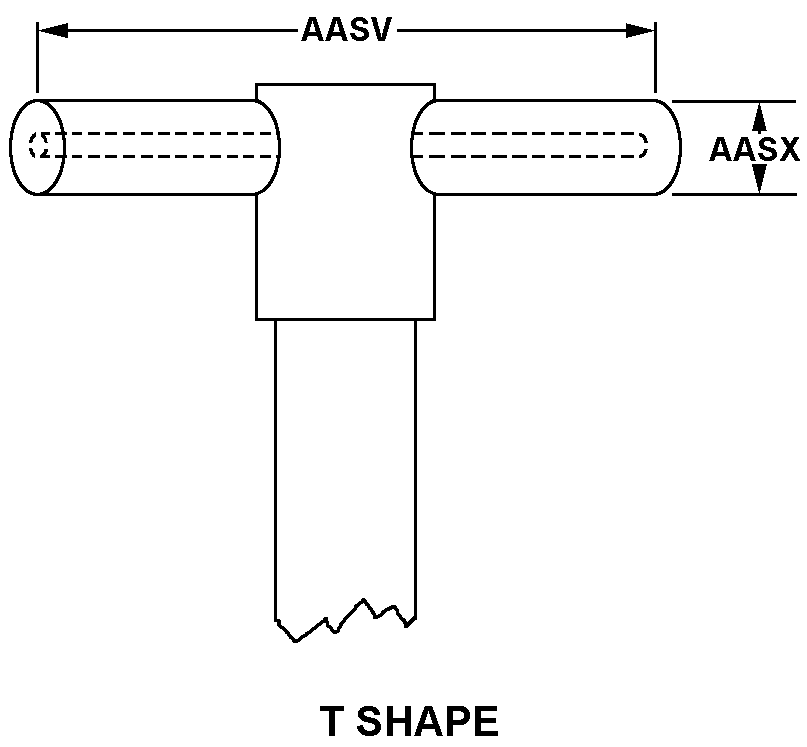

| HEAD STYLE | 75 T SHAPE |
| HEAD LENGTH | 4.000 INCHES NOMINAL |
| TEE BOLT CYLINDRICAL HEAD DIAMETER | 0.261 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| SPECIAL FEATURES | 1.062 IN. WIDE 0.750 IN. DIA. UNDERCUT BETWEEN FIRST AND SECOND STEP,1.250-7UNC-2A THREADED ON SECOND STEP |
| MANUFACTURERS CODE | 96169 |
| DESIGN CONTROL REFERENCE | 5947787-0004 |
Restrictions/Controls & Freight Information | NSN 5315-01-323-8209
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-323-8209
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
