NSN 5315-01-329-0457 MS17987C423, 01-329-0457, 013290457
Product Details | QUICK RELEASE PIN
5315-01-329-0457 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17987C423, 5315-01-329-0457, 01-329-0457, 5315013290457, 013290457
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 NOV 1990 | 01-329-0457 | 08323 ( PIN, QUICK RELEASE ) |

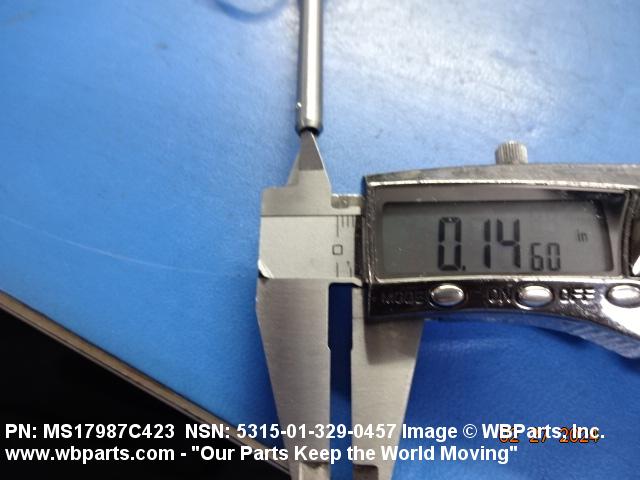

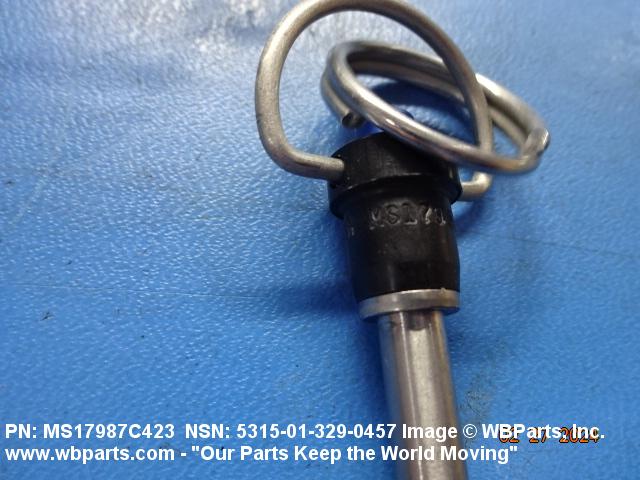

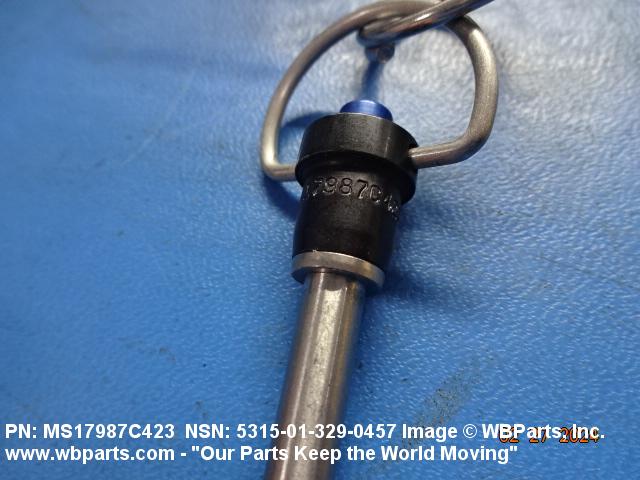

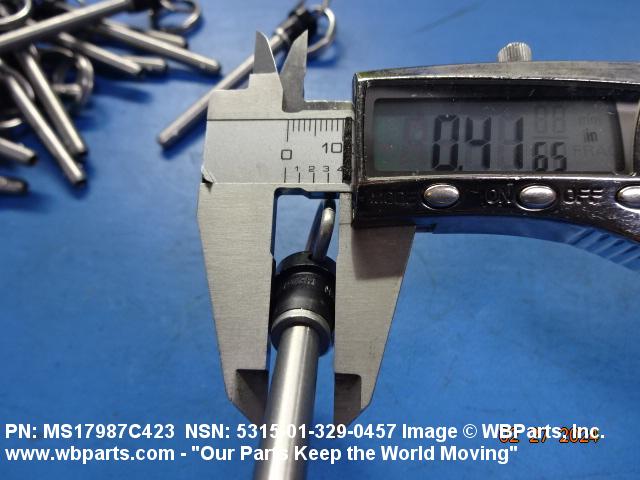

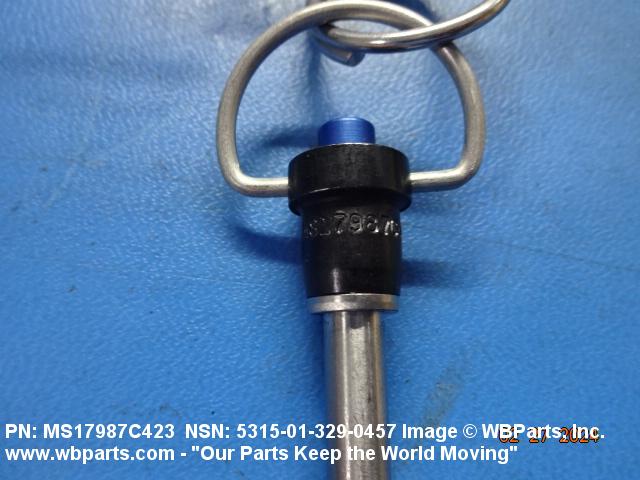

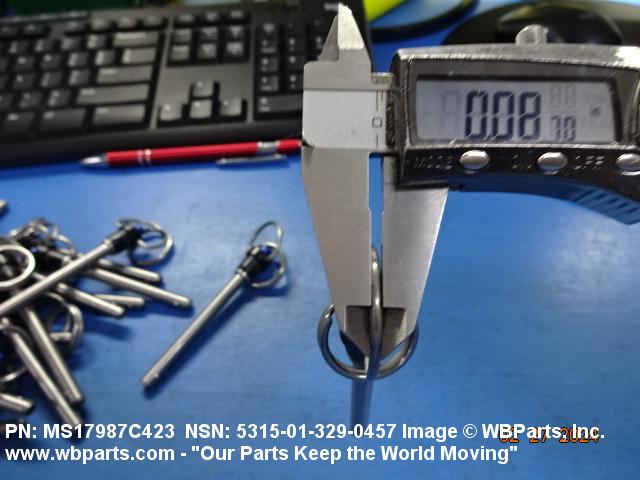

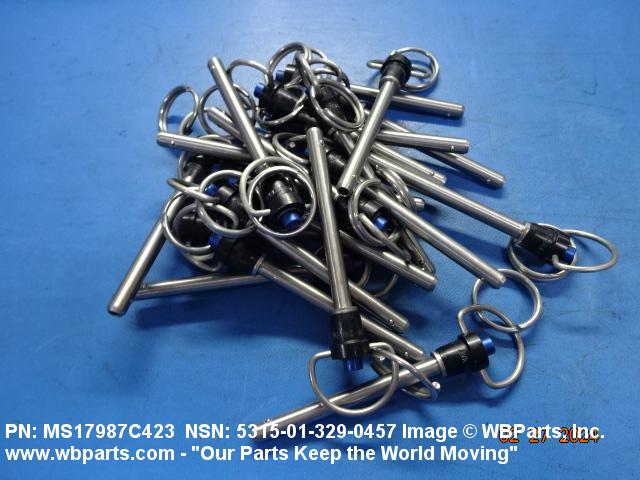

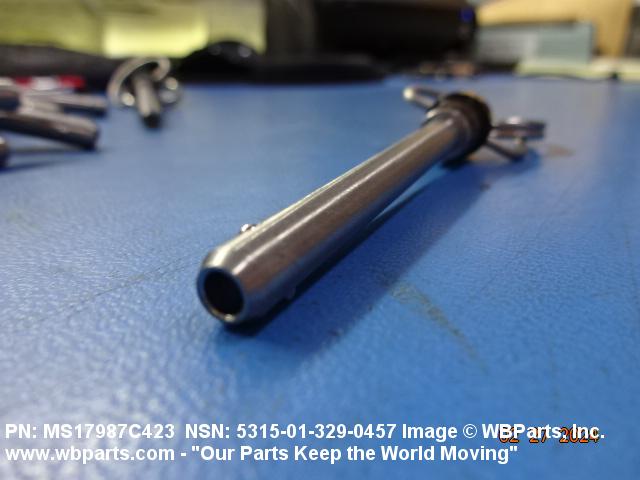

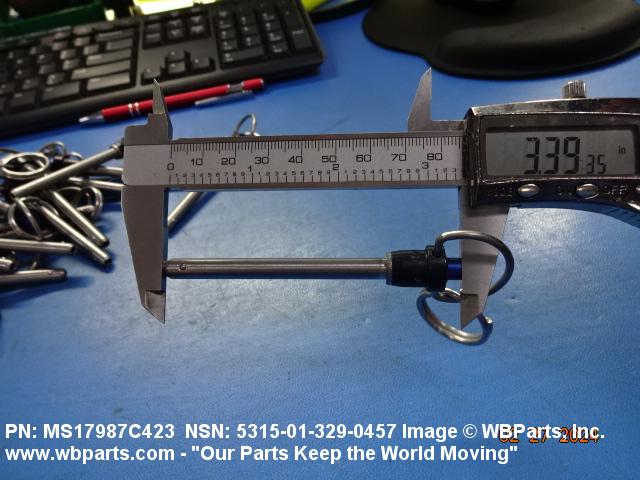

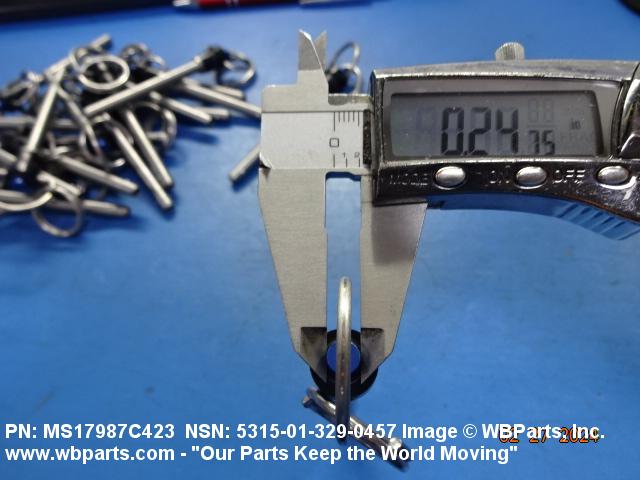

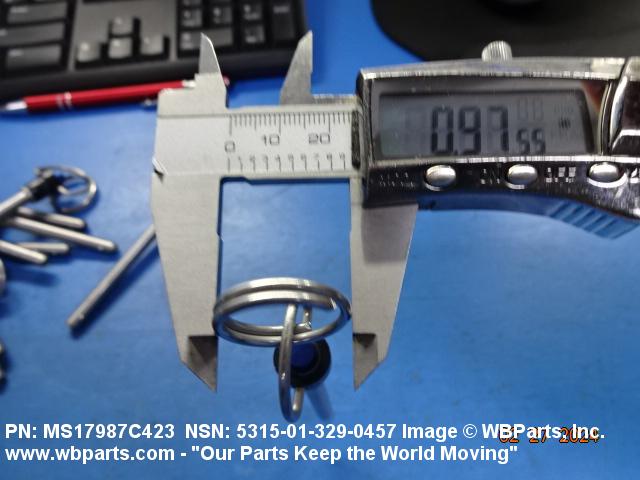

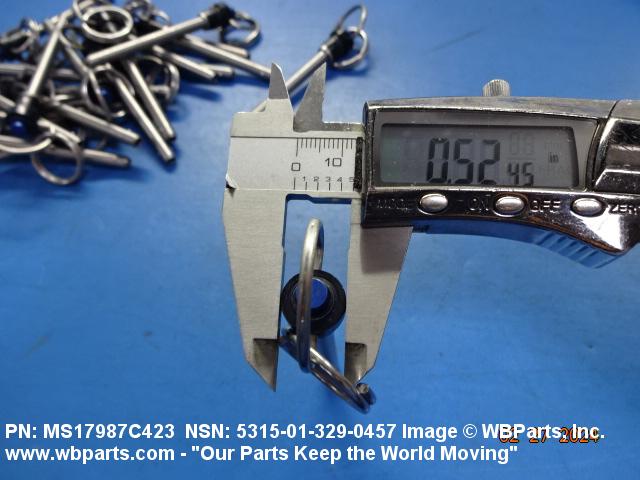

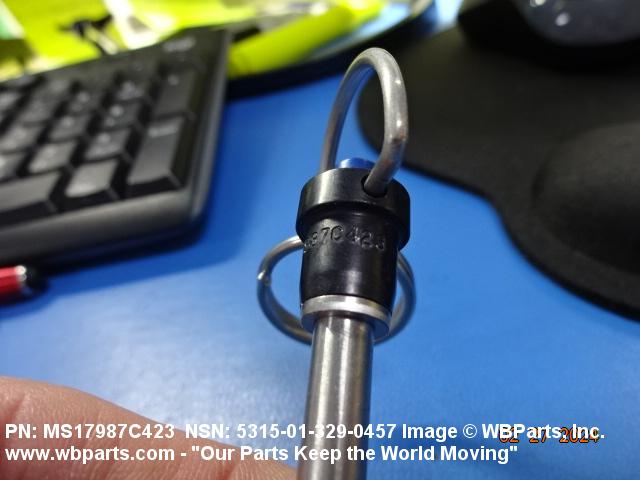

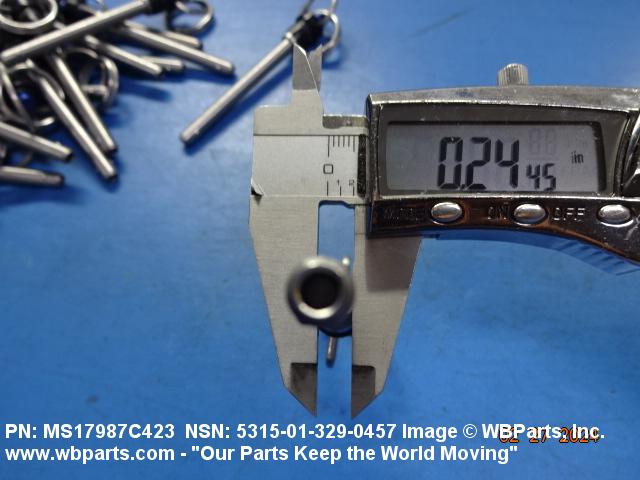

Drawings & Photos | NSN 5315-01-329-0457
Demand History | NSN 5315-01-329-0457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-329-0457 | 2024-04-113 | 3 | DIBBS |
| 5315-01-329-0457 | 2024-03-66 | 69 | DIBBS |
| 5315-01-329-0457 | 2024-02-53 | 20 | United States |
| 5315-01-329-0457 | 2024-02-53 | 35 | United States |
| 5315-01-329-0457 | 2024-02-53 | 50 | United States |
| MS17987C423 | 2023-08-221 | 31 | DIBBS |
| MS17987C423 | 2023-08-213 | 3 | DIBBS |
| 5315-01-329-0457 | 2023-02-53 | 20 | United States |
| 5315-01-329-0457 | 2020-10-304 | 12 | United States |
| MS17987C423 | 2020-05-134 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-329-0457
Technical Data | NSN 5315-01-329-0457
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING SHANK |
| STYLE DESIGNATOR | Q240 RING HANDLE |
| HEAD DIAMETER | 0.310 INCHES MINIMUM |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| RING HANDLE DIAMETER | 1.060 INCHES MINIMUM |
| GRIP LENGTH | 2.300 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 0.780 INCHES MINIMUM |
| DETENT TO TAPERED END DISTANCE | 0.260 INCHES MINIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK AND RING |
Restrictions/Controls & Freight Information | NSN 5315-01-329-0457
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
