NSN 5315-01-340-8765 MS9164, MS9164454, MS9164-454
Product Details | HEADLESS STRAIGHT PIN
5315-01-340-8765 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS9164, MS9164454, MS9164-454, 5315-01-340-8765, 01-340-8765, 5315013408765, 013408765
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUN 1991 | 01-340-8765 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

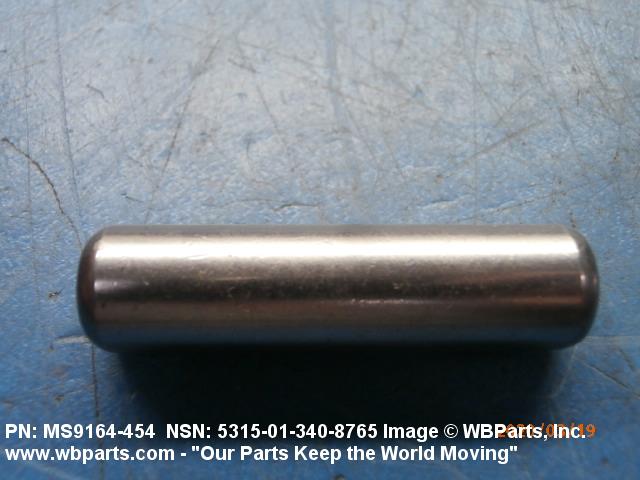

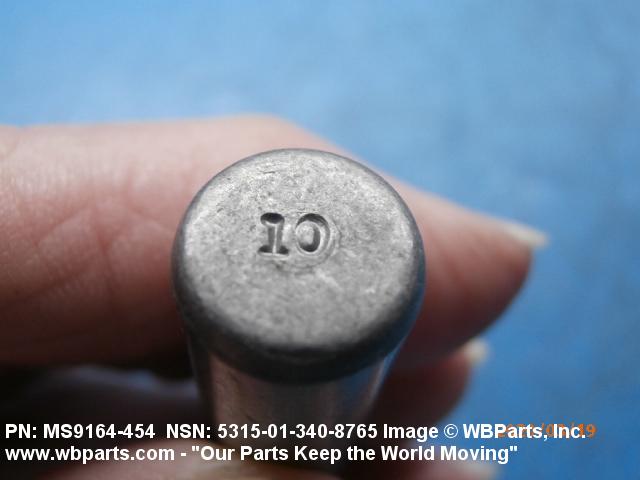

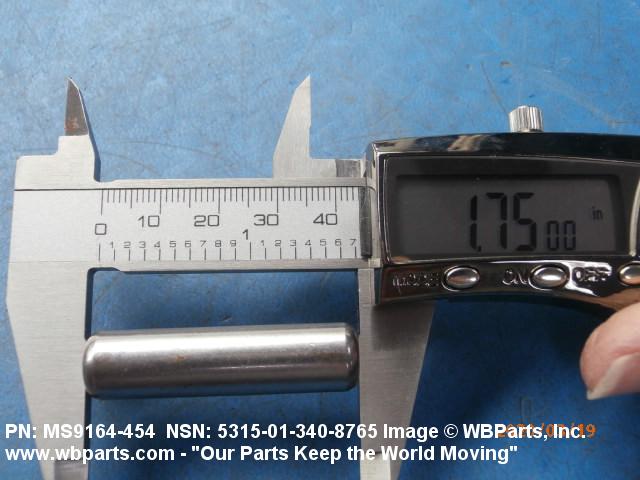

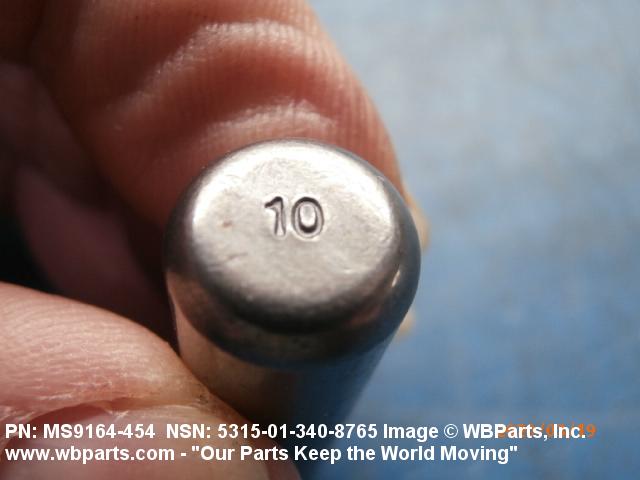

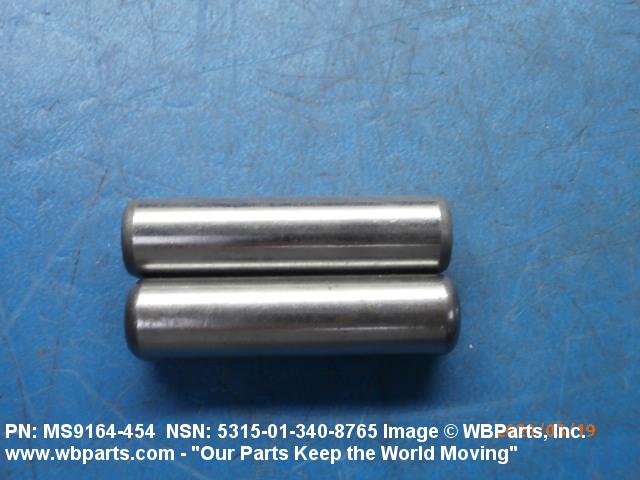

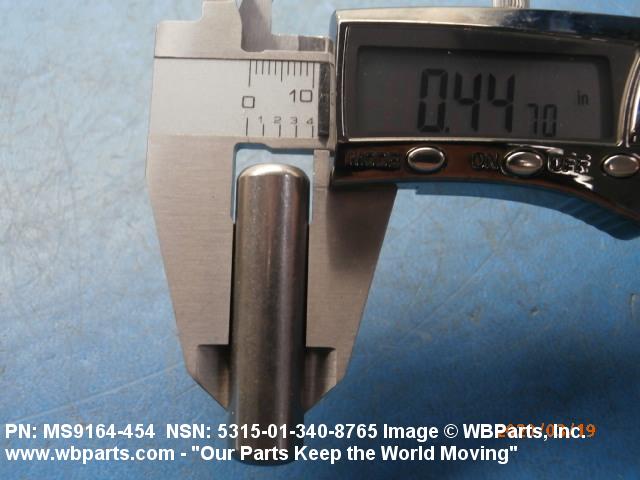

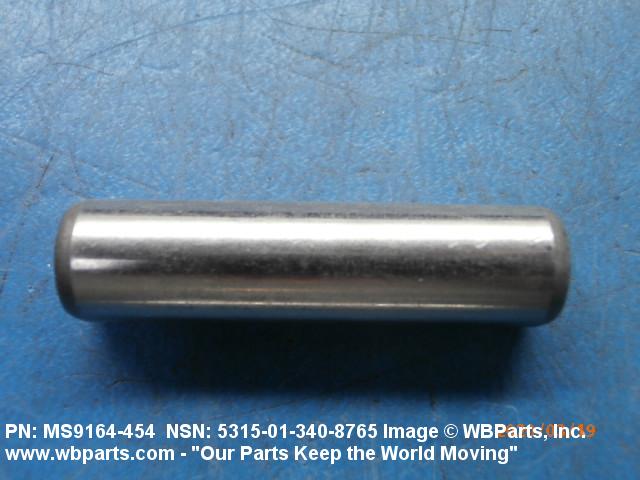

Drawings & Photos | NSN 5315-01-340-8765
Demand History | NSN 5315-01-340-8765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS9164454 | 2025-02-35 | 12 | us |
| MS9164454 | 2023-03-86 | 4 | us |
| MS9164454 | 2023-03-72 | 4 | us |
| MS9164454 | 2020-06-161 | 52 | United States |
| MS9164454 | 2020-02-58 | 100 | United States |
| 5315-01-340-8765 | 2013-11-324 | 2 | DIBBS |
| 5315-01-340-8765 | 2013-11-308 | 2 | DIBBS |
| MS9164454 | 2010-09-270 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-340-8765
Technical Data | NSN 5315-01-340-8765
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5132 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| FIRST END STYLE | 4 RADIUS |
| FIRST END CORNER RADIUS | 1.000 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 1.750 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.44725 INCHES MINIMUM AND 0.44775 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9164 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9164-454 |
Restrictions/Controls & Freight Information | NSN 5315-01-340-8765
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE NOI IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-340-8765
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
