NSN 5315-01-343-9399 MS51932113, MS51932-113, 01-343-9399
Product Details | HEADLESS STRAIGHT PIN

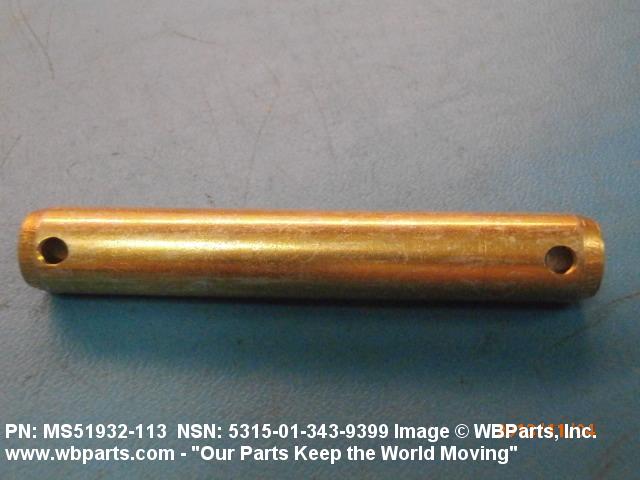

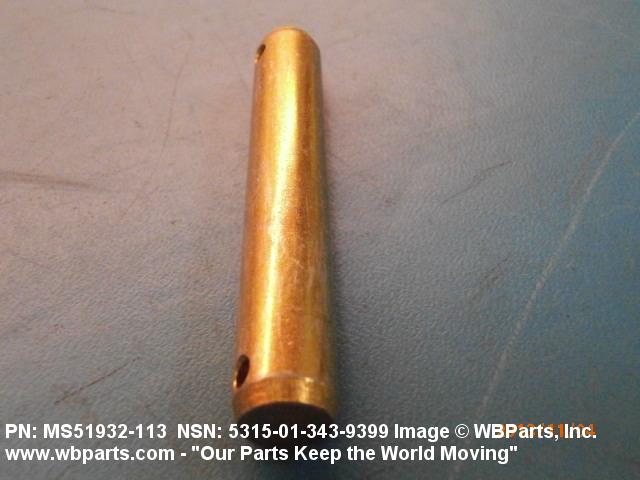

5315-01-343-9399 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS51932113, MS51932-113, 5315-01-343-9399, 01-343-9399, 5315013439399, 013439399
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 AUG 1991 | 01-343-9399 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

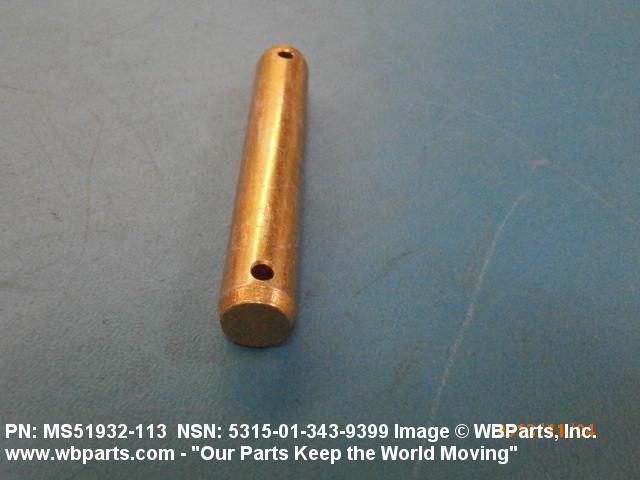

Drawings & Photos | NSN 5315-01-343-9399
Demand History | NSN 5315-01-343-9399
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-343-9399 | 2013-10-297 | 20 | United States |
| 5315-01-343-9399 | 2013-09-266 | 20 | United States |
Cross Reference | NSN 5315-01-343-9399
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51932-113 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-343-9399
Technical Data | NSN 5315-01-343-9399

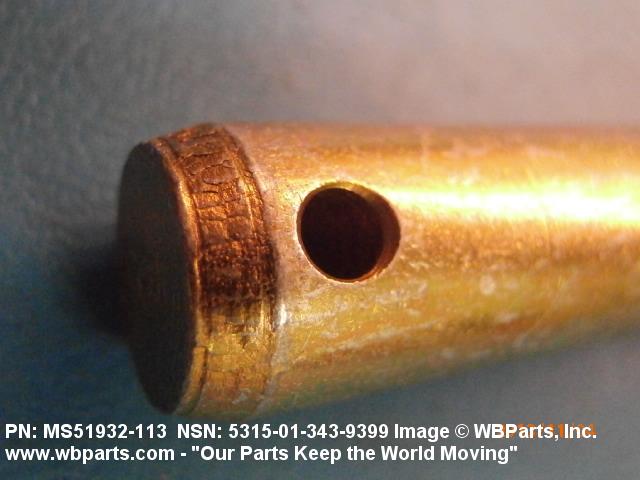

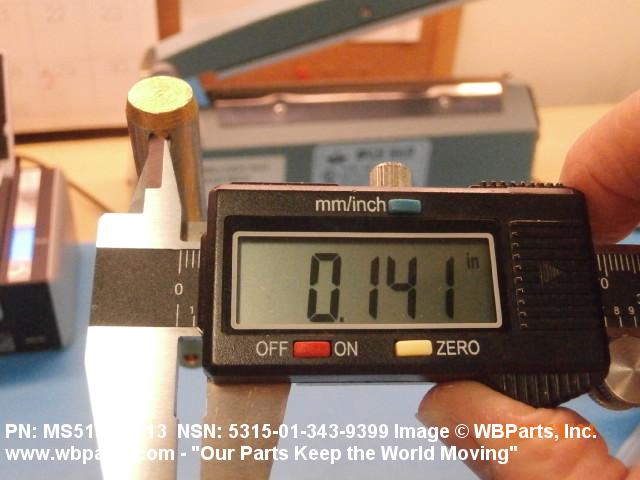

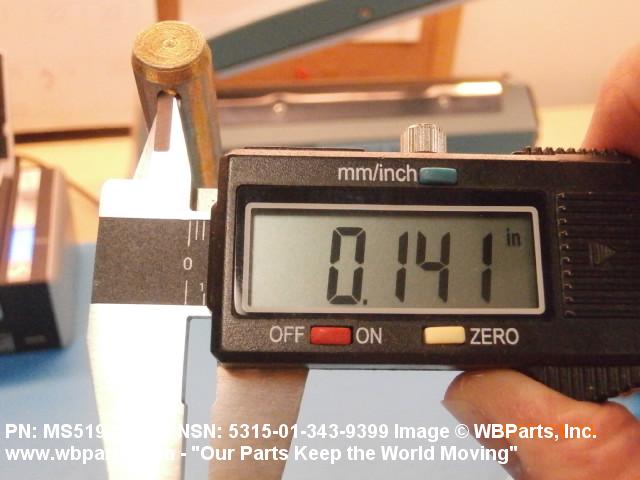

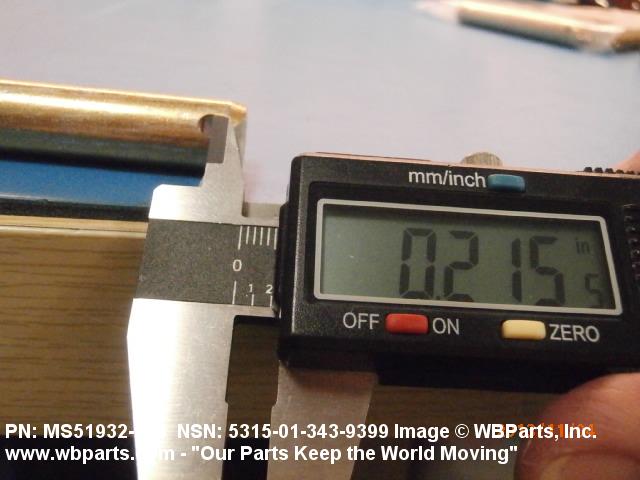

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1117 AND STEEL COMP 1118 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.109 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 15.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| HOLE ARRANGEMENT STYLE | 2 BOTH ENDS DRILLED |
| FIRST HOLE DIAMETER | 0.140 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.140 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.218 INCHES NOMINAL |

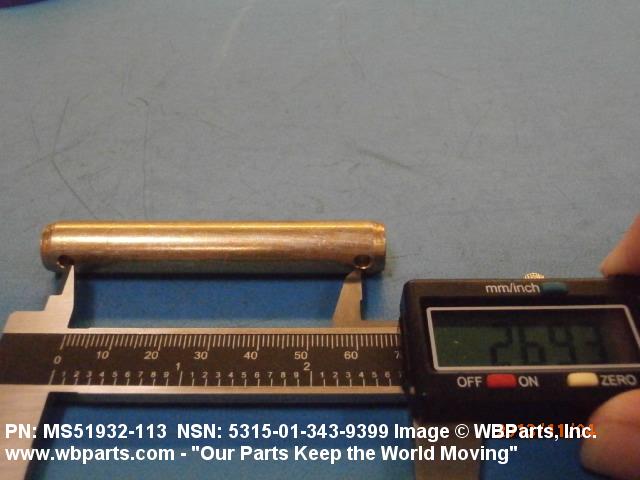

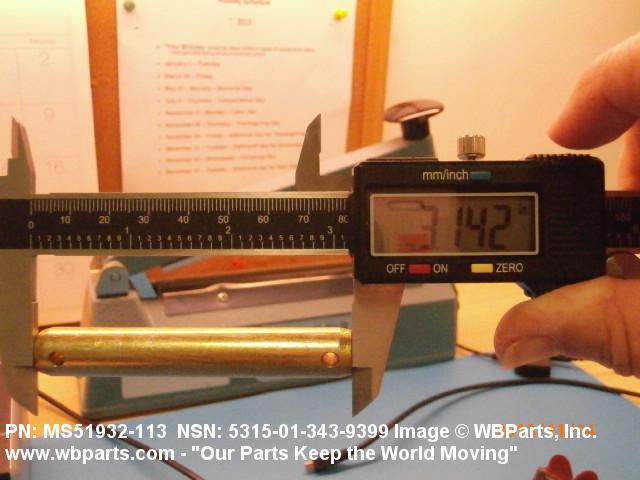

| CENTER TO CENTER DISTANCE BETWEEN HOLES | 2.690 INCHES NOMINAL |
| PIN OVERALL LENGTH | 3.125 INCHES NOMINAL |

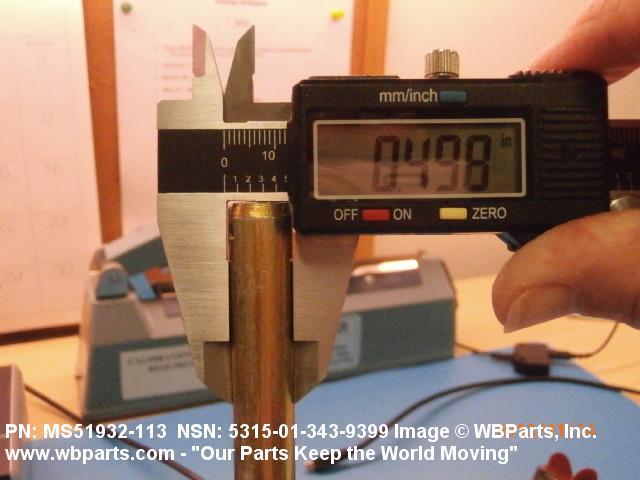

| PIN OVERALL DIAMETER | 0.4970 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51932-113 |
Restrictions/Controls & Freight Information | NSN 5315-01-343-9399
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
