NSN 5315-01-346-1337 HL10V7065, HL10V70-6-5, 01-346-1337
Product Details | HEADED SHOULDER PIN

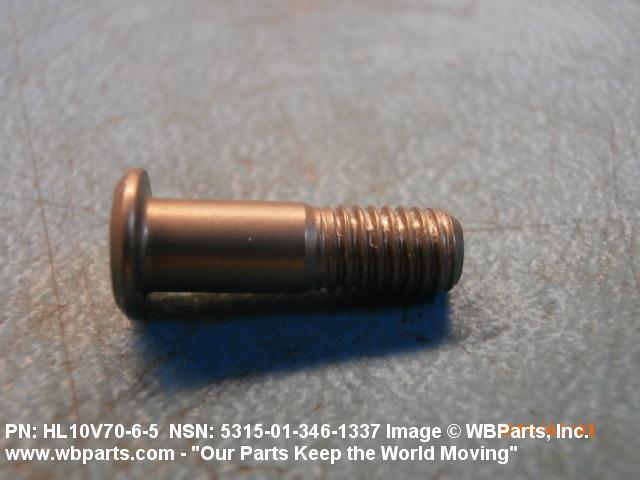

5315-01-346-1337 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: HL10V7065, HL10V70-6-5, 5315-01-346-1337, 01-346-1337, 5315013461337, 013461337
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 SEP 1991 | 01-346-1337 | 16563 ( PIN, SHOULDER, HEADED ) |

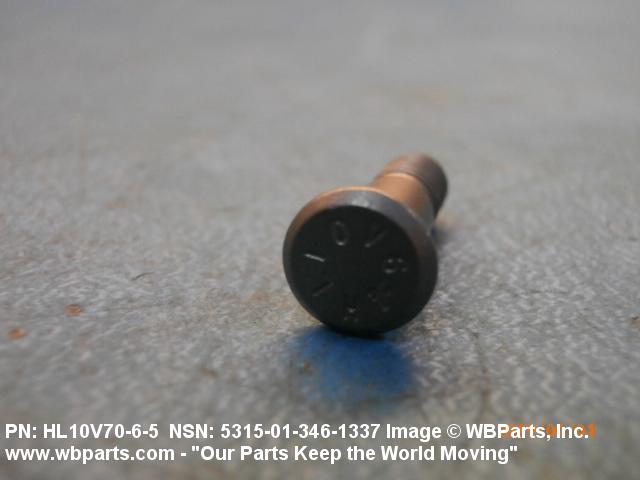

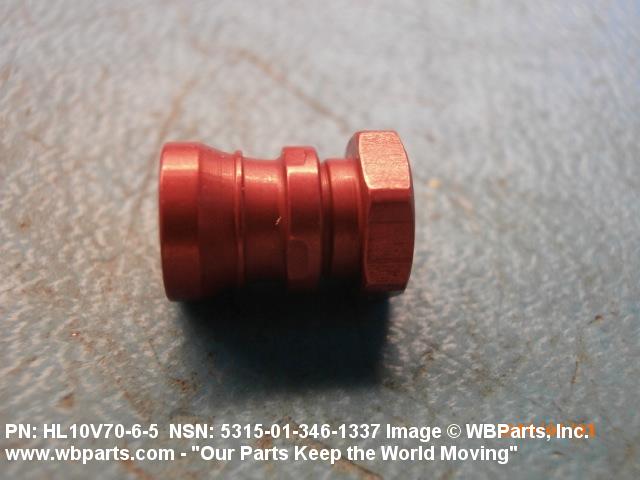

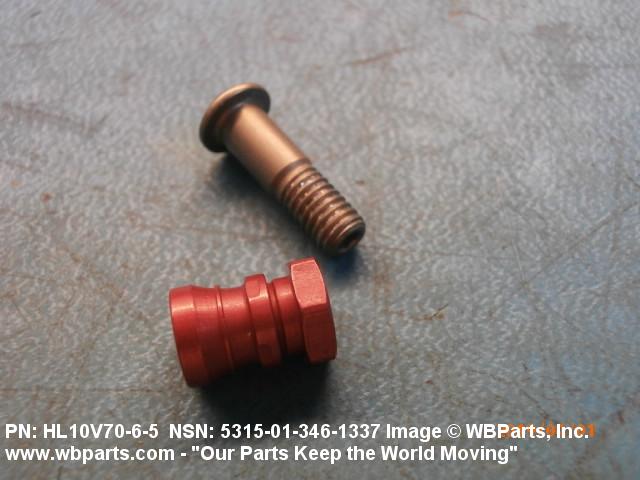

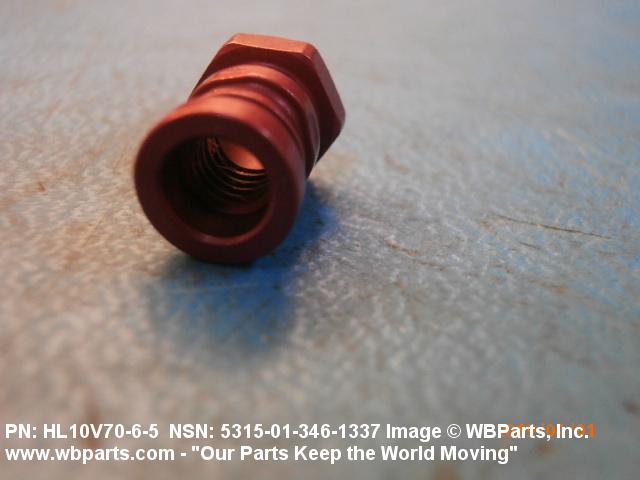

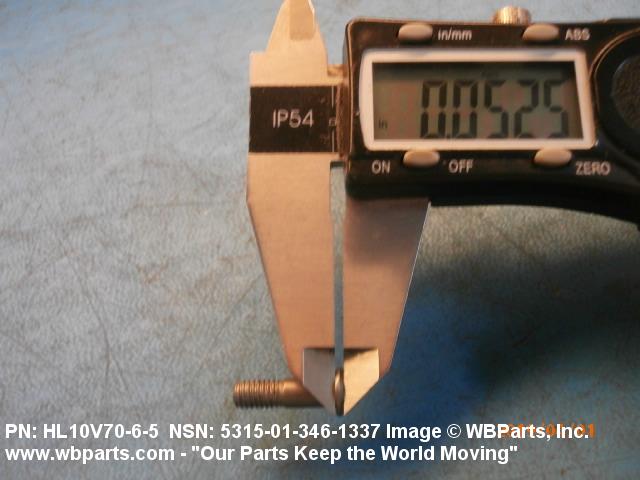

Drawings & Photos | NSN 5315-01-346-1337
Demand History | NSN 5315-01-346-1337
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL10V7065 | 2019-03-60 | 47 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-346-1337
Technical Data | NSN 5315-01-346-1337

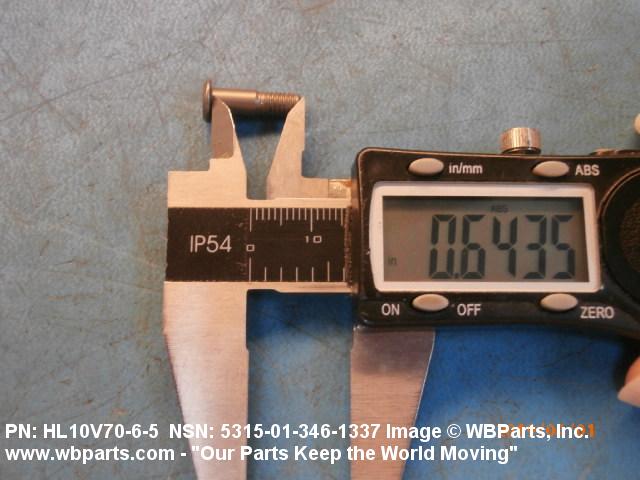

| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| STYLE DESIGNATOR | H149 SHOULDER |
| UNDER HEAD LENGTH | 0.627 INCHES MINIMUM AND 0.647 INCHES MAXIMUM |

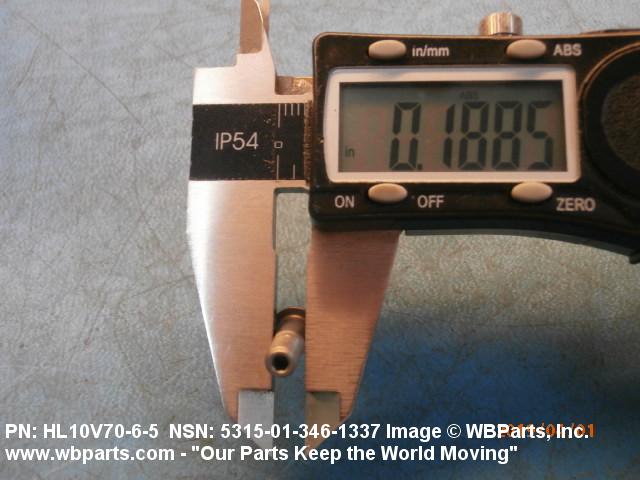

| FIRST STEP DIAMETER | 0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |

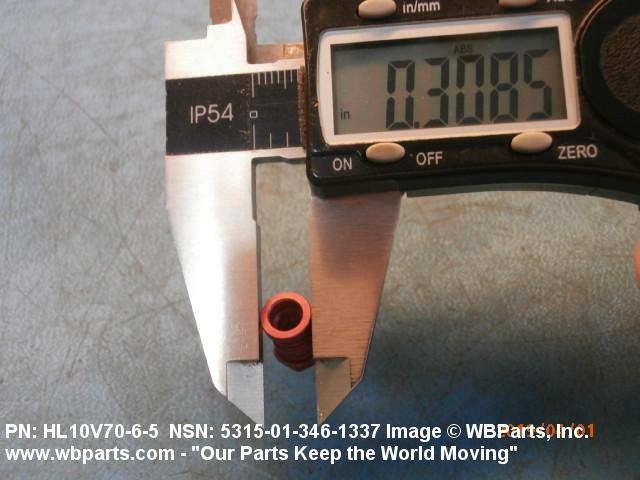

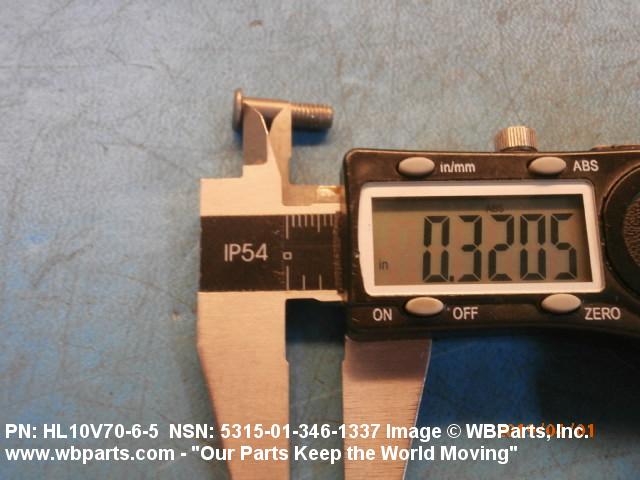

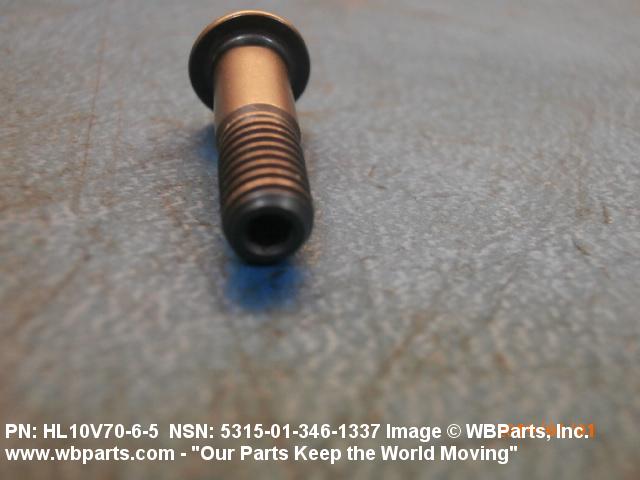

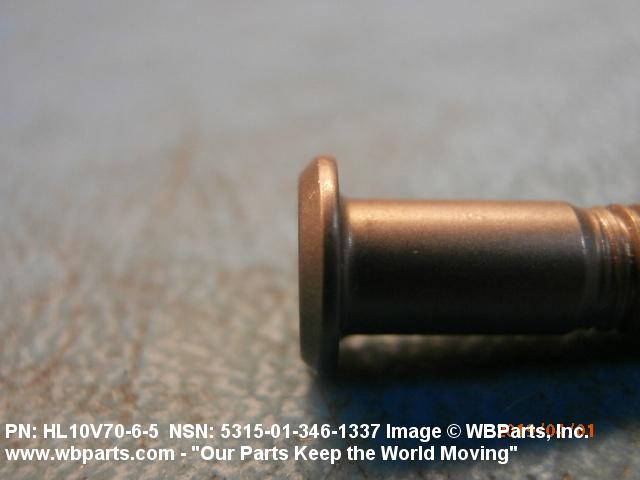

| FIRST STEP LENGTH | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| SECOND STEP DIAMETER | 0.325 INCHES NOMINAL |
| FIRST END STYLE | 18 THREADED AND COUNTERBORED |
| FIRST END COUNTERBORE DIAMETER | 0.104 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| FIRST END COUNTERBORE DEPTH | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| HEAD STYLE | 17 FLAT CHAMFER |
| PIN HEAD DIAMETER | 0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| HEIGHT | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-346-1337
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
