NSN 5315-01-354-3276 MS16555617, MS16555-617, 6277579
Product Details | HEADLESS STRAIGHT PIN
5315-01-354-3276 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS16555617, MS16555-617, 6277579, 5315-01-354-3276, 01-354-3276, 5315013543276, 013543276
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 FEB 1992 | 01-354-3276 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

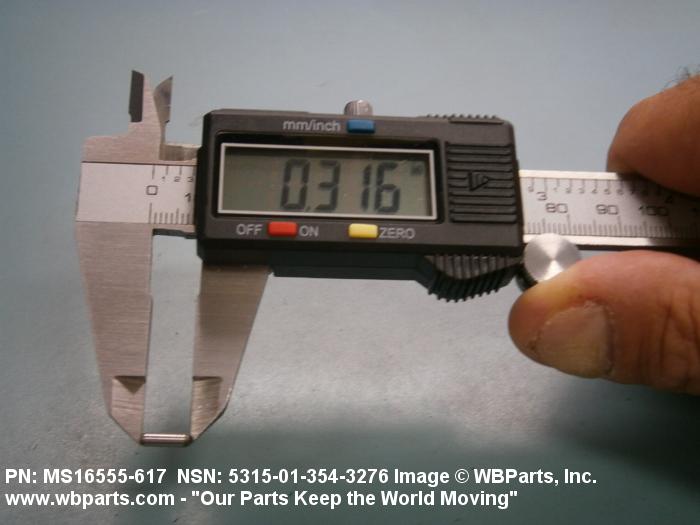

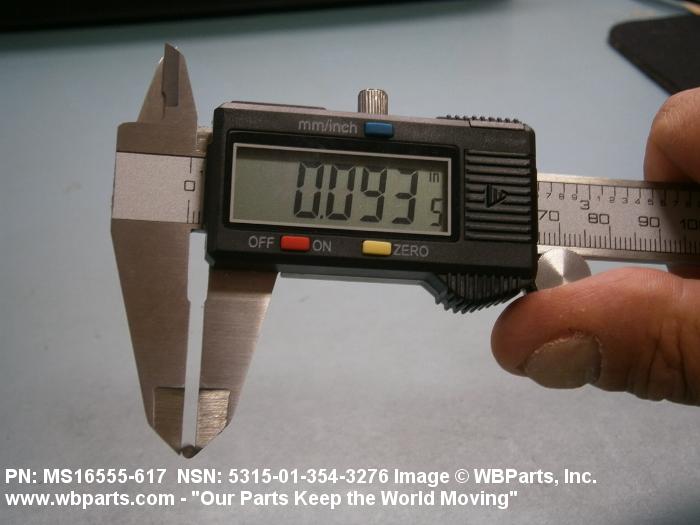

Drawings & Photos | NSN 5315-01-354-3276
Demand History | NSN 5315-01-354-3276
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS16555617 | 2021-06-161 | 1000 | United States |
| MS16555617 | 2021-06-161 | 5000 | United States |
| MS16555617 | 2020-09-247 | 54 | United States |
| MS16555-617 | 2017-07-192 | 160 | Australia |
| MS16555617 | 2017-03-73 | 4000 | United States |
| MS16555617 | 2017-02-32 | 100 | Australia |
| MS16555617 | 2017-01-16 | 88 | Australia |
| MS16555617 | 2016-06-182 | 150 | United States |
| MS16555617 | 2016-06-182 | 300 | United States |
| MS16555617 | 2016-06-182 | 500 | United States |
| MS16555617 | 2015-11-316 | 12 | United States |
| MS16555617 | 2014-12-342 | 200 | Australia |
| MS16555617 | 2014-09-254 | 32 | United States |
| MS16555617 | 2014-04-97 | 70 | US |
| MS16555-617 | 2014-04-97 | 70 | US |
| MS16555617 | 2014-04-94 | 70 | US |
| 5315-01-354-3276 | 2014-02-56 | 1 | United States |
| MS16555617 | 2013-10-290 | 1000 | India |
| MS16555617 | 2013-10-281 | 120 | United States |
| MS16555617 | 2013-10-281 | 30 | India |
| MS16555617 | 2013-10-276 | 30 | India |
| MS16555617 | 2013-07-191 | 50 | us |
| MS16555617 | 2013-06-156 | 20 | Australia |
| MS16555-617 | 2013-06-154 | 300 | Singapore |
| 5315-01-354-3276 | 2013-04-113 | 200 | United States |
| MS16555617 | 2013-03-84 | 100 | US |
| MS16555617 | 2012-11-332 | 100 | Singapore |
| MS16555617 | 2012-09-255 | 100 | US |
| 5315-01-354-3276 | 2012-08-241 | 36 | United States |
| 5315-01-354-3276 | 2012-01-26 | 1600 | HK |
| MS16555617 | 2012-01-03 | 500 | United States |
| 5315-01-354-3276 | 2011-12-348 | 200 | MY |
| MS16555617 | 2011-09-255 | 32 | United States |
| MS16555617 | 2010-08-236 | 2000 | US |
| 5315-01-354-3276 | 2010-08-217 | 150 | United States |
| 5315-01-354-3276 | 2010-04-117 | 50 | US |
| 5315-01-354-3276 | 2010-02-42 | 80 | US |
| 5315-01-354-3276 | 2008-06-171 | 500 | Canada |
| 5315-01-354-3276 | 2008-01-15 | 1000 | us |
| MS16555617 | 2007-10-302 | 30 | Spain |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-354-3276
Related Products | NSN 5315-01-354-3276
Technical Data | NSN 5315-01-354-3276
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | -QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 1000 DOUBLE POUND |
| FIRST END STYLE | 1 CHAMFERED |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.0939 INCHES MINIMUM AND 0.0941 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 1440-01-272-9956 |
| MANUFACTURERS CODE | 82577 |
| DESIGN CONTROL REFERENCE | 6277579 |
Restrictions/Controls & Freight Information | NSN 5315-01-354-3276
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-354-3276
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | L | Missiles, Missile Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | F | Other Missile Categories |
| Weapons Systems/End Item or Homogeneous Group | F4 | Tow Cobra |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B64 | US Army Aviation and Missile Command ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
