NSN 5315-01-355-6548 NAS1333A2C13, 01-355-6548, 013556548
Product Details | QUICK RELEASE PIN
5315-01-355-6548 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1333A2C13, 5315-01-355-6548, 01-355-6548, 5315013556548, 013556548
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAR 1992 | 01-355-6548 | 08323 ( PIN, QUICK RELEASE ) |

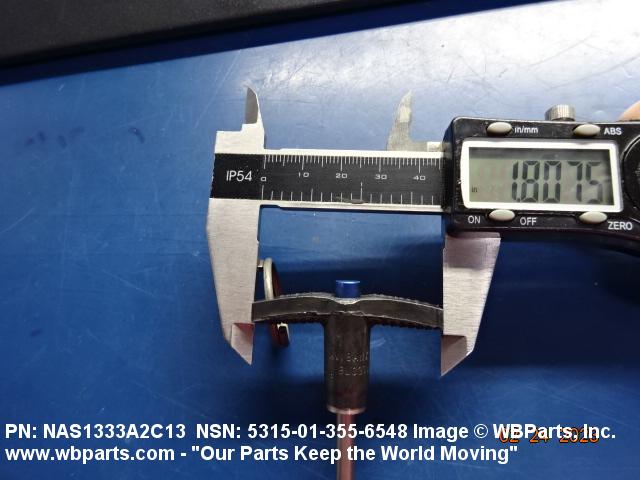

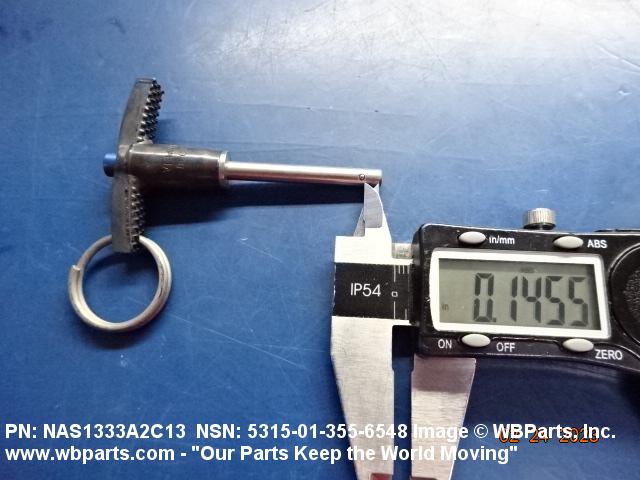

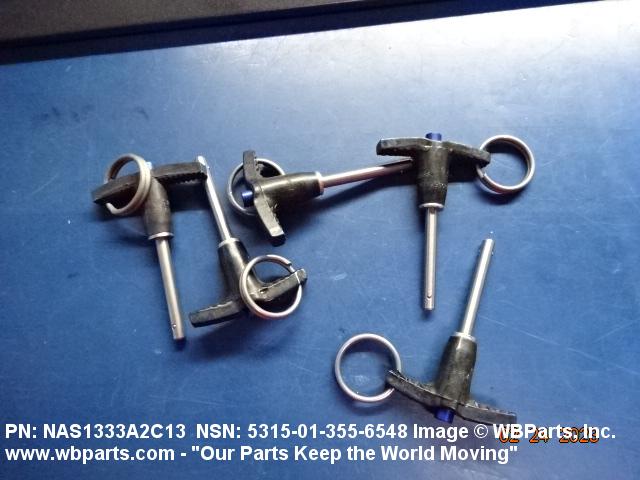

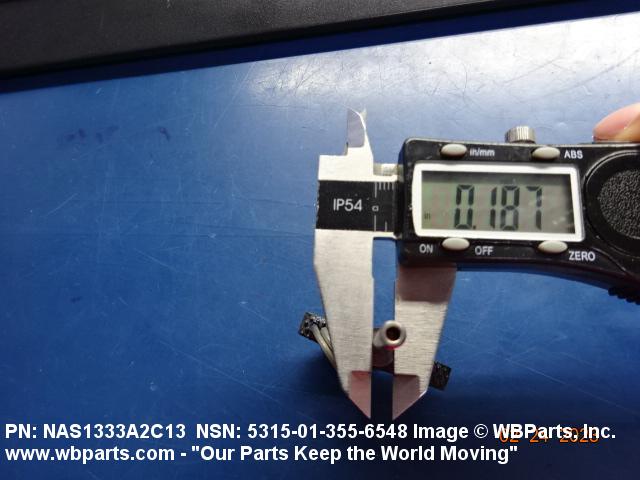

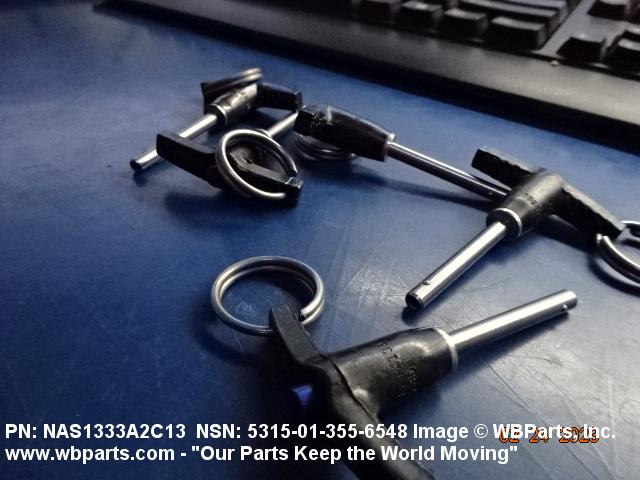

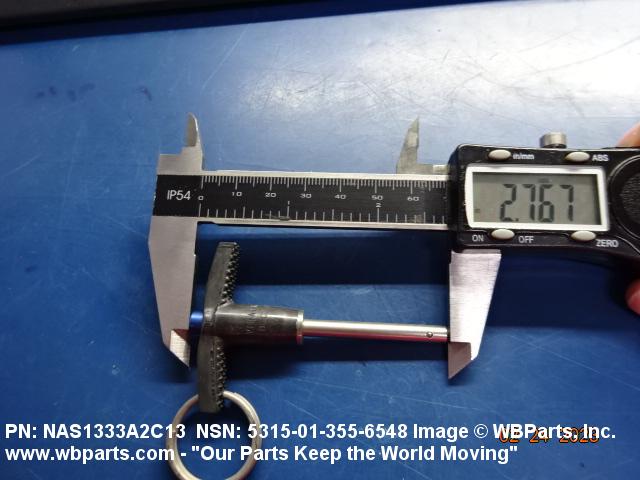

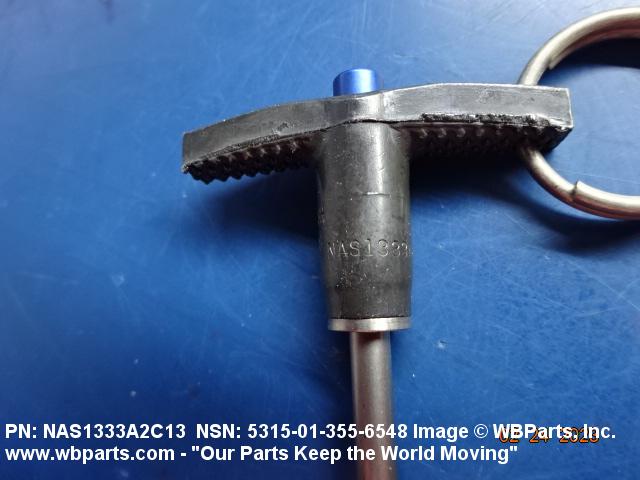

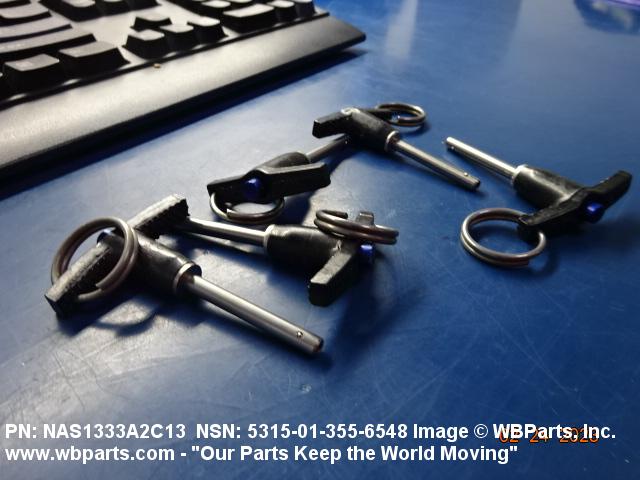

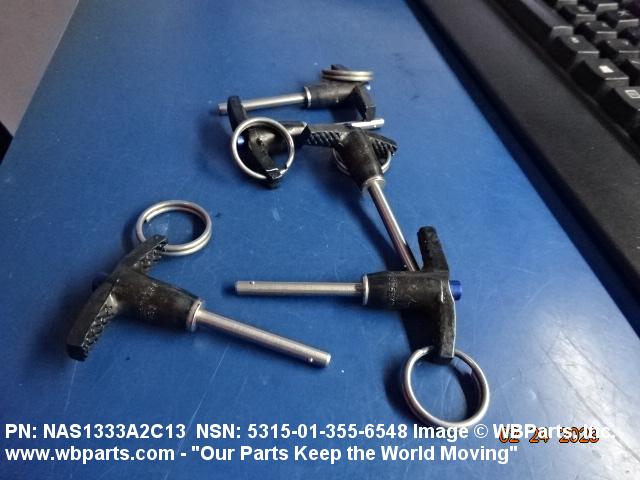

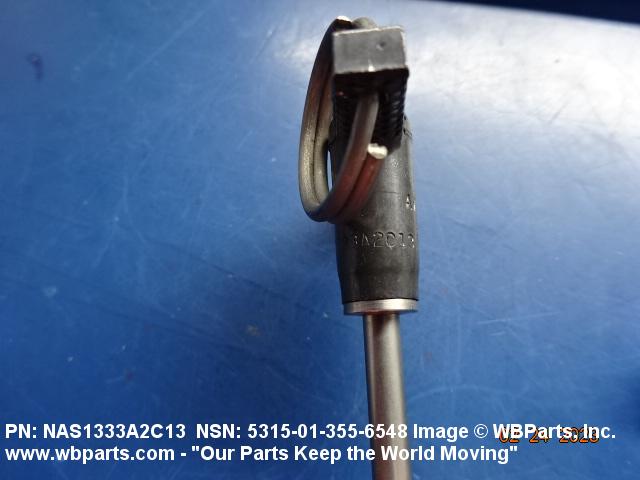

Drawings & Photos | NSN 5315-01-355-6548
Demand History | NSN 5315-01-355-6548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-355-6548 | 2023-08-219 | 5 | US |
| NAS1333A2C13 | 2023-01-17 | 3 | United States |
| 5315-01-355-6548 | 2021-11-322 | 70 | US |
| 5315-01-355-6548 | 2012-03-68 | 685 | United States |
Cross Reference | NSN 5315-01-355-6548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1333A2C13 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-355-6548
Technical Data | NSN 5315-01-355-6548
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY HEAD STEEL CORROSION RESISTING SHANK |
| STYLE DESIGNATOR | Q241 T HANDLE |
| HANDLE LENGTH | 1.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| SHANK DIAMETER | 0.1870 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| GRIP LENGTH | 13.000 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 1.550 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.380 INCHES NOMINAL |
| ACTUATION TYPE | PULL AND PUSH |
| DETENT QUANTITY | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5315-01-355-6548
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
