NSN 5315-01-355-9482 NAS1354S7S36, 01-355-9482, 013559482
Product Details | QUICK RELEASE PIN
5315-01-355-9482 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1354S7S36, 5315-01-355-9482, 01-355-9482, 5315013559482, 013559482
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1992 | 01-355-9482 | 08323 ( PIN, QUICK RELEASE ) |

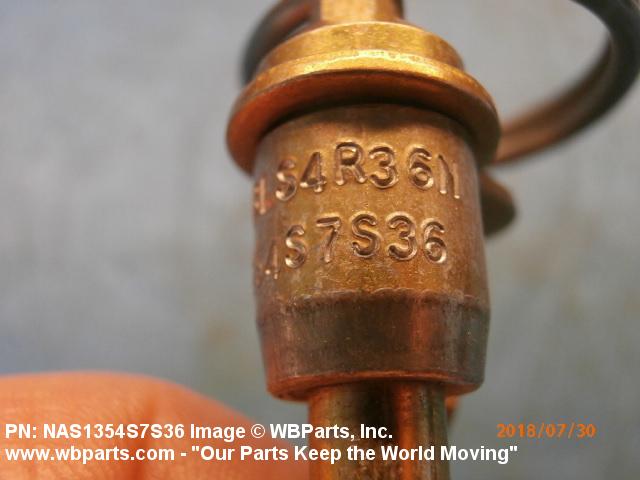

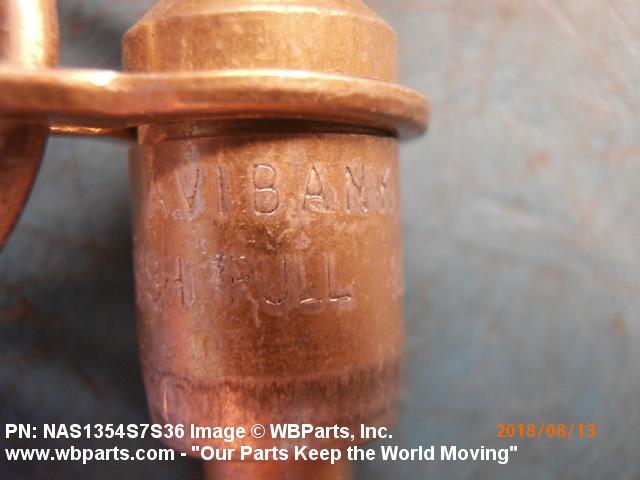

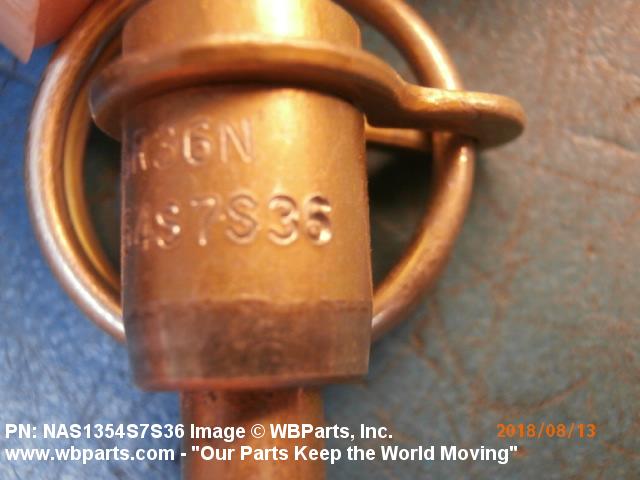

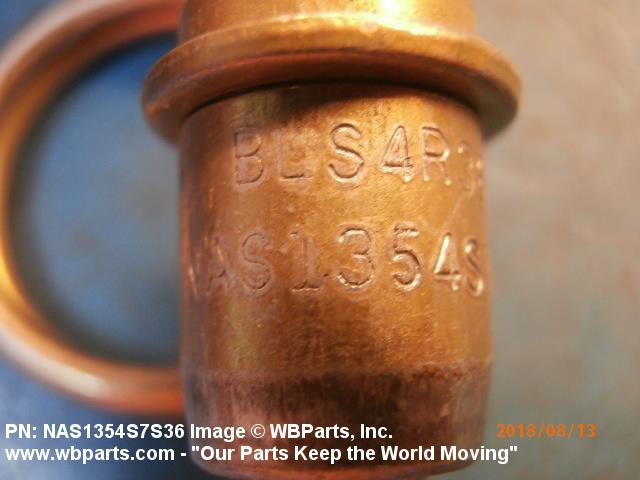

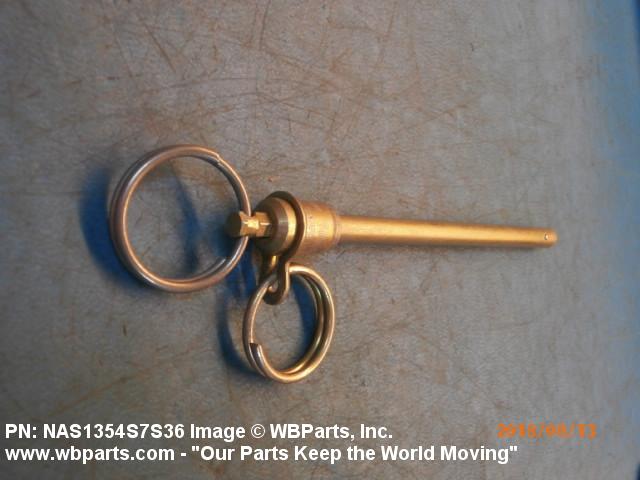

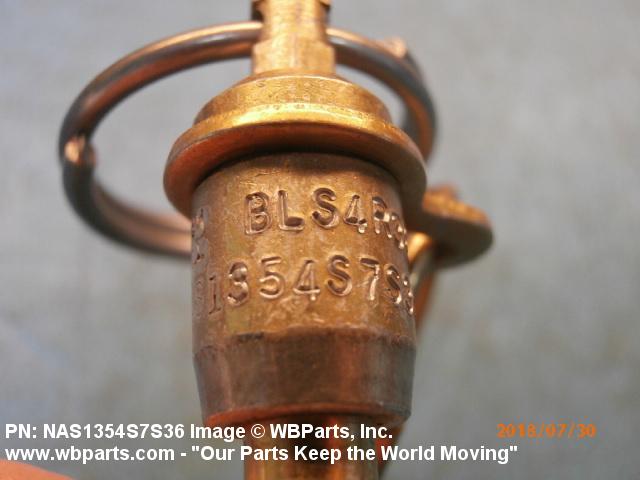

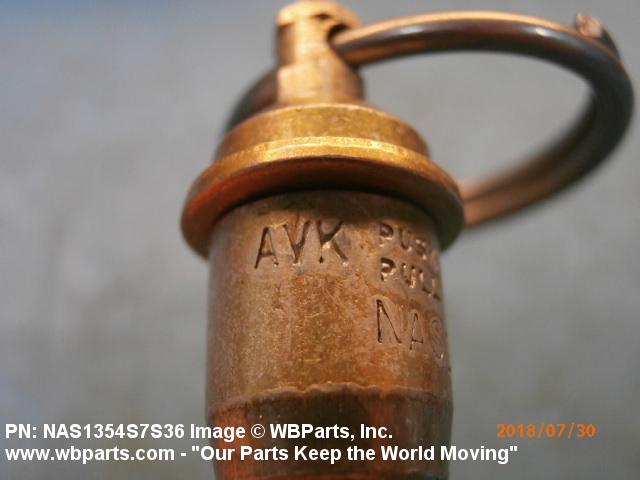

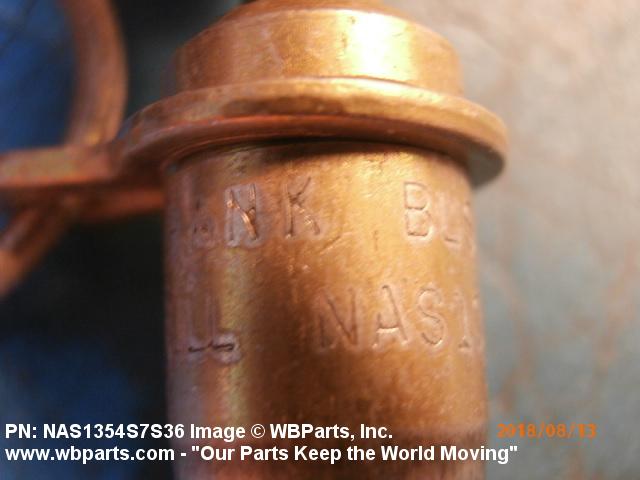

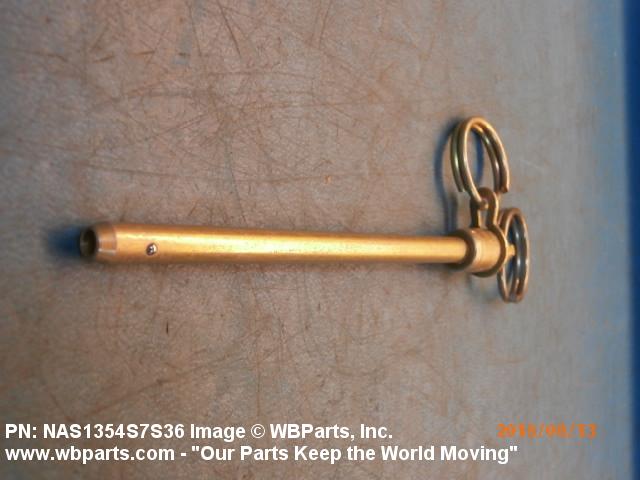

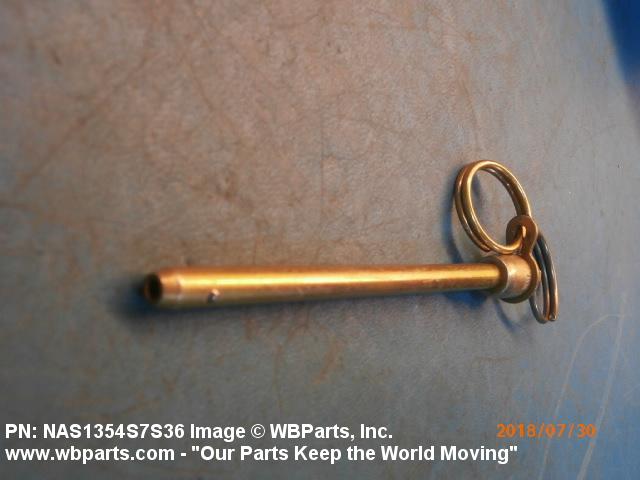

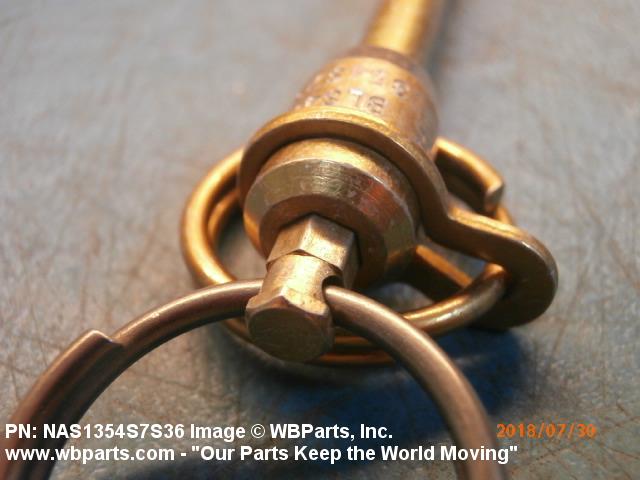

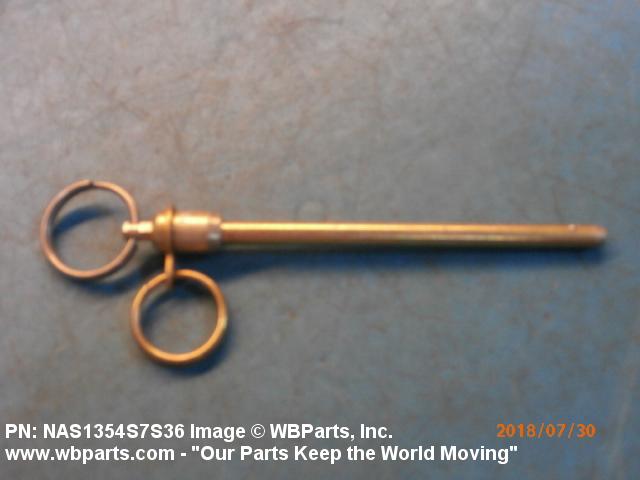

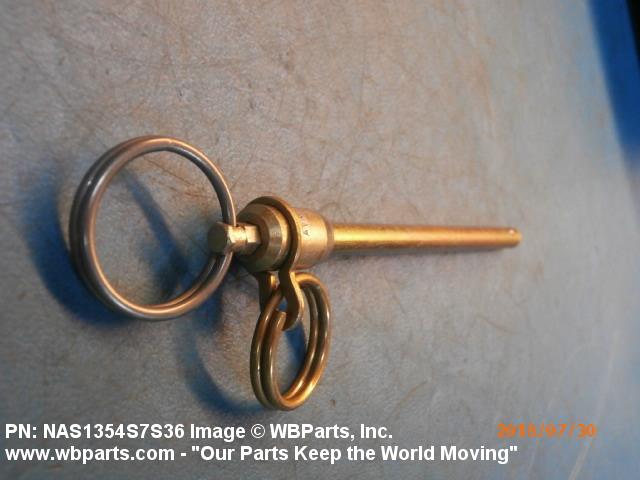

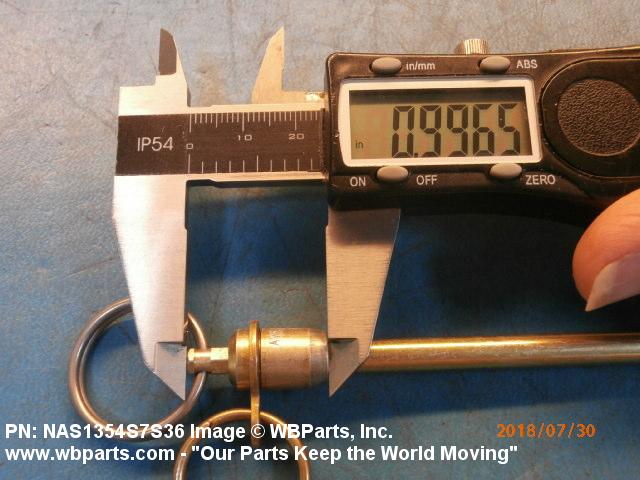

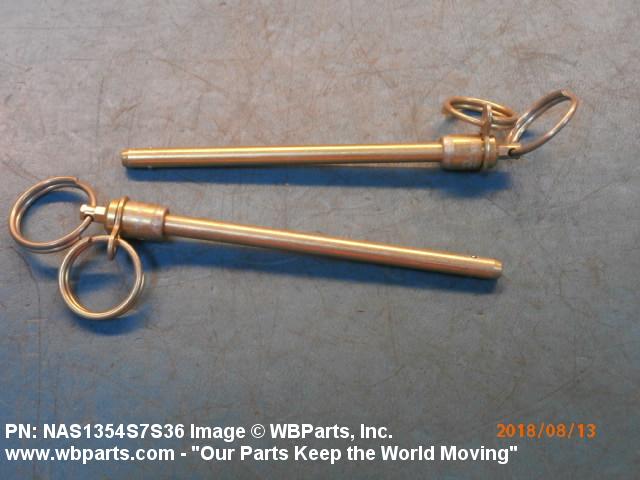

Drawings & Photos | NSN 5315-01-355-9482
Demand History | NSN 5315-01-355-9482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1354S7S36 | 2018-08-219 | 2 | United States |
| NAS1354S7S36 | 2018-07-207 | 40 | United States |
| NAS1354S7S36 | 2018-07-206 | 40 | United States |
| 5315-01-355-9482 | 2015-11-307 | 6 | United States |
| 5315-01-355-9482 | 2015-11-307 | 12 | United States |
| 5315-01-355-9482 | 2014-11-324 | 33 | DIBBS |
| 5315-01-355-9482 | 2014-11-313 | 33 | DIBBS |
Cross Reference | NSN 5315-01-355-9482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1354S7S36 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-355-9482
Related Products | NSN 5315-01-355-9482
Technical Data | NSN 5315-01-355-9482

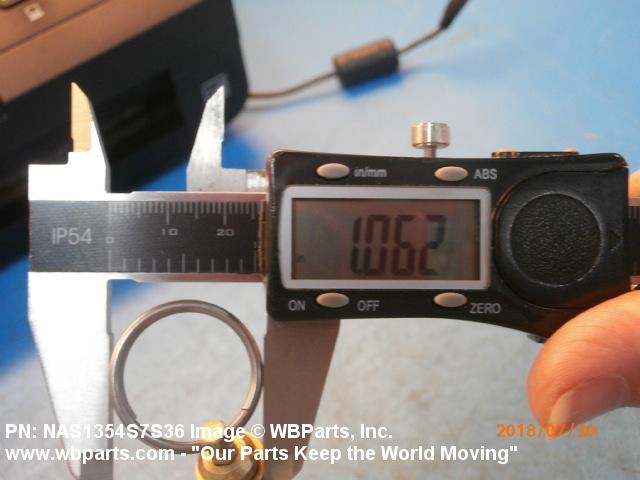

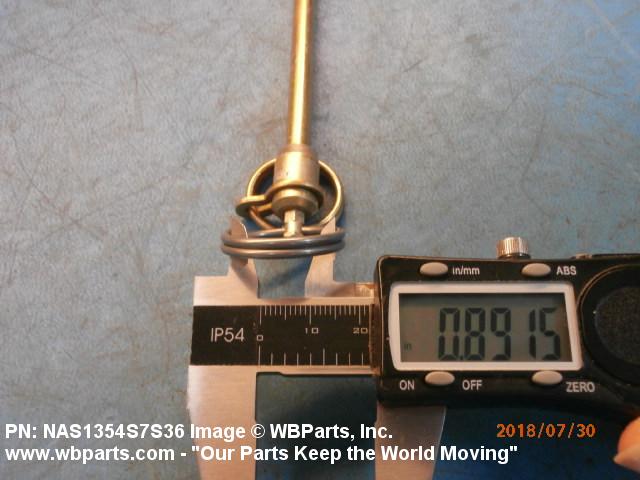

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 4130 HEAD STEEL COMP 4130 OR STEEL COMP 4135 SHANK STEEL COMP 4130 SPINDLE STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-6732 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 FED SPEC 2ND MATERIAL RESPONSE HEAD MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-6735 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-T-6736 MIL SPEC 2ND MATERIAL RESPONSE SHANK MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK |
| SHEAR STRENGTH | 8200 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | Q240 RING HANDLE |
| HEAD DIAMETER | 0.750 INCHES NOMINAL |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| RING HANDLE DIAMETER | 1.200 INCHES NOMINAL |

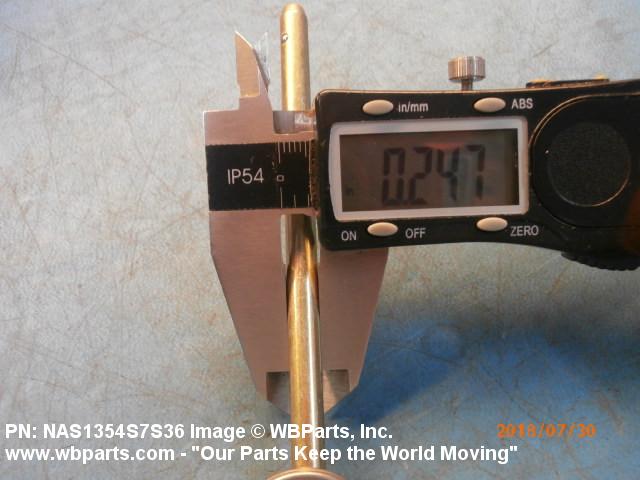

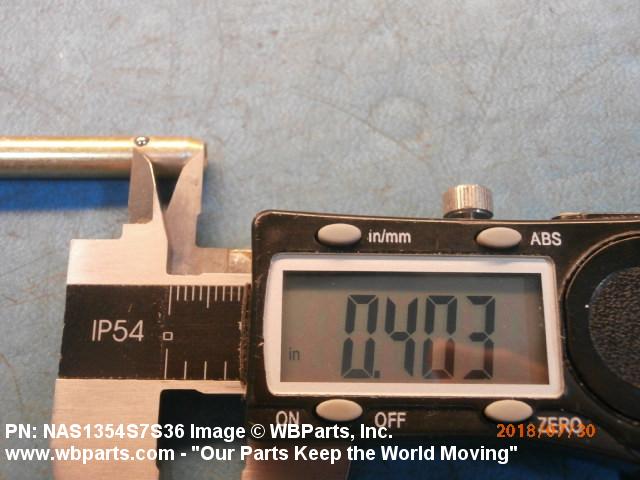

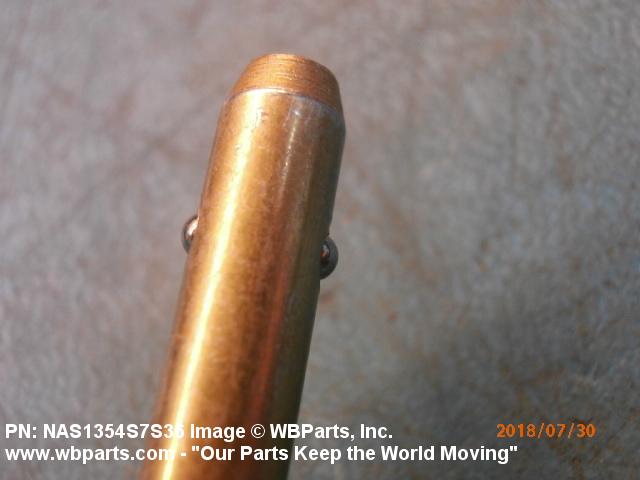

| GRIP LENGTH | 0.247 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.730 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.410 INCHES NOMINAL |
| ACTUATION TYPE | PULL AND PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | RING |
| SPECIFICATION/STANDARD DATA | 80205-NAS1354 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-355-9482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
