NSN 5315-01-356-5138 MS203922T15, MS20392-2T15, 01-356-5138

Product Details | HEADED STRAIGHT PIN

5315-01-356-5138 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.

Part Alternates: MS203922T15, MS20392-2T15, 5315-01-356-5138, 01-356-5138, 5315013565138, 013565138

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 APR 1992	01-356-5138	02384 ( PIN, STRAIGHT, HEADED )

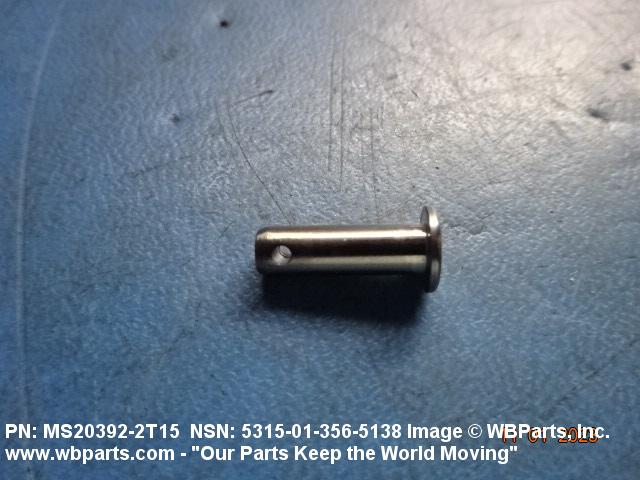

Drawings & Photos | NSN 5315-01-356-5138

Part Number	Request Date	QTY	Origin
5315-01-356-5138	2023-10-297	5	United States
5315-01-356-5138	2023-10-297	5	United States
MS203922T15	2017-05-151	10	United States
MS203922T15	2016-04-109	1	United States
MS203922T15	2016-04-109	3	United States
MS203922T15	2016-04-109	8	United States
MS203922T15	2016-04-109	15	United States
MS203922T15	2013-08-217	10	United States
MS203922T15	2013-07-211	10	United States

Cross Reference | NSN 5315-01-356-5138

Part Number	Cage Code	Manufacturer
MS20392-2T15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-356-5138

Compare

Related Products | NSN 5315-01-356-5138

5315-01-356-5139, 5315-01-356-5140, 5315-01-356-5141, 5315-01-356-5142, 5315-01-356-5143

Technical Data | NSN 5315-01-356-5138

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY OVERALL
STYLE DESIGNATOR	L193 STRAIGHT
CHAMFER LENGTH	0.046 INCHES NOMINAL

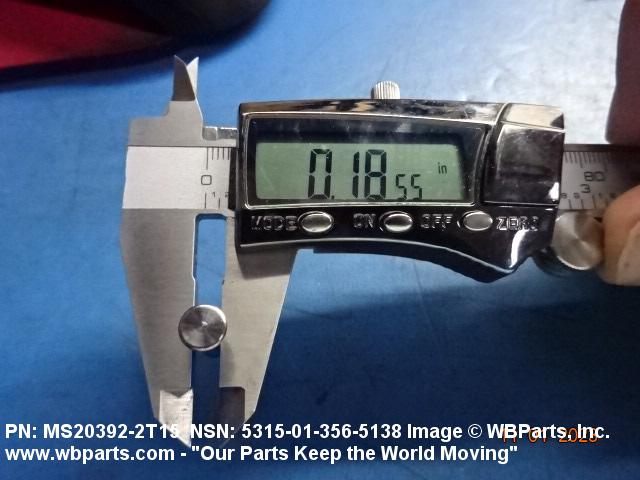

DIAMETER	0.184 INCHES MINIMUM AND 0.186 INCHES MAXIMUM

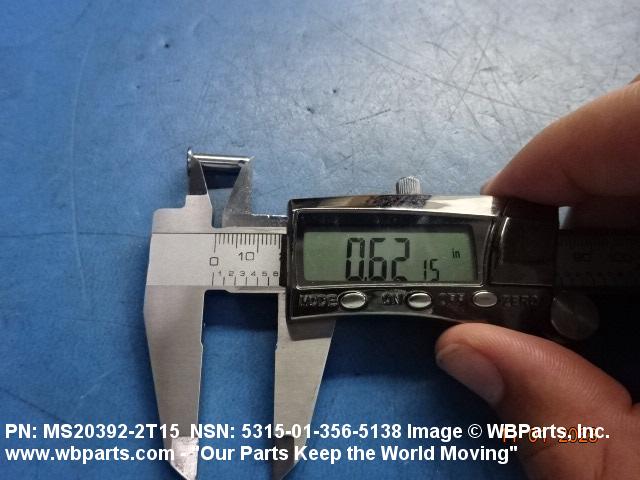

UNDER HEAD LENGTH	0.601 INCHES MINIMUM AND 0.621 INCHES MAXIMUM
PIN CHAMFER ANGLE	15.0 DEGREES NOMINAL
HEAD STYLE	16 FLAT
PIN HEAD DIAMETER	0.312 INCHES NOMINAL

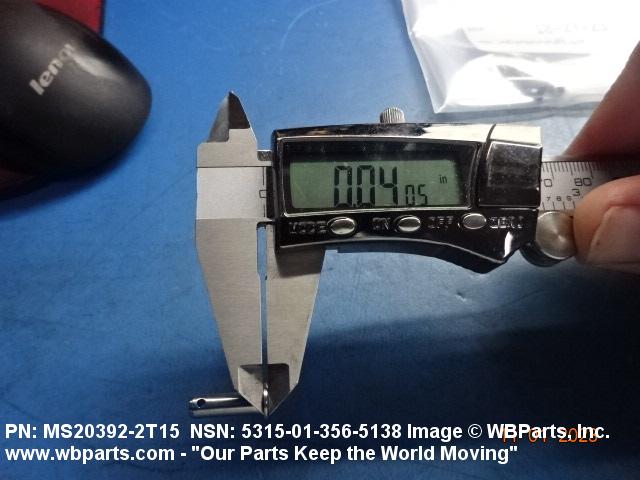

HEIGHT	0.046 INCHES NOMINAL
HOLE ARRANGEMENT STYLE	1 ONE END DRILLED

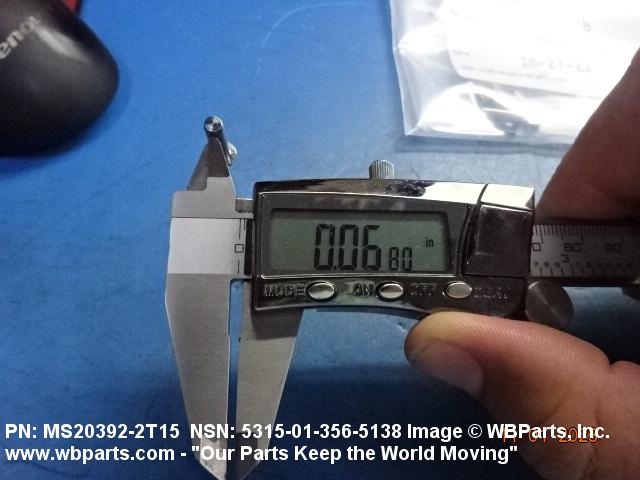

FIRST HOLE DIAMETER	0.066 INCHES MINIMUM AND 0.086 INCHES MAXIMUM
DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN	0.507 INCHES NOMINAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20392-2T15

Restrictions/Controls & Freight Information | NSN 5315-01-356-5138

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	N	The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Management | NSN 5315-01-356-5138

Air Force

Category	Code	Description
Materiel Management Aggregation Code	BA	TB:C-17 PROGRAM
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Budget Code	S	1557X3010:Aircraft Replenishment Spares
Source of Supply	F77	Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
