NSN 5315-01-379-4190 123873507C77, 12387350-7C77, 01-379-4190
Product Details | HEADED STRAIGHT PIN
5315-01-379-4190 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 123873507C77, 12387350-7C77, 5315-01-379-4190, 01-379-4190, 5315013794190, 013794190
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 AUG 1993 | 01-379-4190 | 02384 ( PIN, STRAIGHT, HEADED ) |

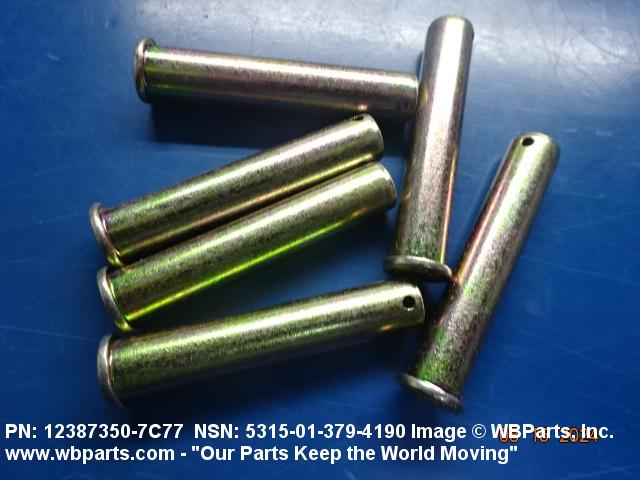

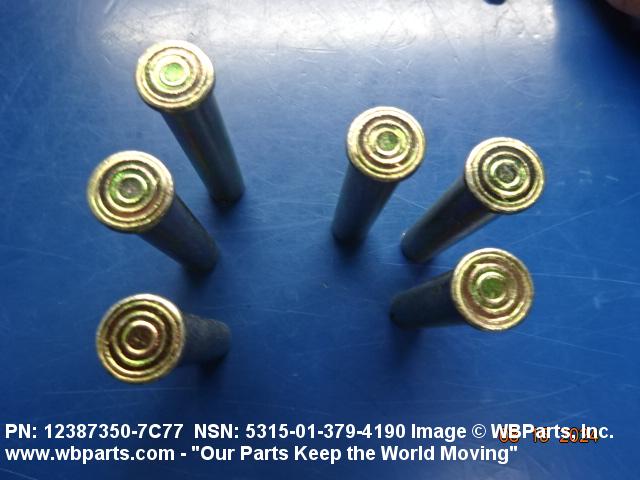

Drawings & Photos | NSN 5315-01-379-4190
Demand History | NSN 5315-01-379-4190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 013794190 | 2024-08-218 | 100 | United States |
| 5315-01-379-4190 | 2024-05-122 | 100 | us |
| 013794190 | 2024-03-77 | 125 | us |
| 5315-01-379-4190 | 2024-02-53 | 100 | us |
| 5315-01-379-4190 | 2023-06-176 | 401 | DIBBS |
| 5315-01-379-4190 | 2023-01-10 | 184 | DIBBS |
| 5315-01-379-4190 | 2022-05-123 | 144 | DIBBS |
| 5315-01-379-4190 | 2021-10-284 | 26 | DIBBS |
| 5315-01-379-4190 | 2021-08-231 | 32 | DIBBS |
| 5315-01-379-4190 | 2021-08-220 | 32 | DIBBS |
| 5315-01-379-4190 | 2021-02-46 | 26 | DIBBS |
| 5315-01-379-4190 | 2020-04-99 | 50 | DIBBS |
| 5315-01-379-4190 | 2019-05-128 | 105 | DIBBS |
| 5315-01-379-4190 | 2019-05-125 | 1 | DIBBS |
| 5315-01-379-4190 | 2019-03-81 | 1 | DIBBS |
| 5315-01-379-4190 | 2019-03-78 | 1 | DIBBS |
| 5315-01-379-4190 | 2019-03-73 | 1 | DIBBS |
| 5315-01-379-4190 | 2019-02-51 | 1 | DIBBS |
| 5315-01-379-4190 | 2018-03-66 | 1 | DIBBS |
| 5315-01-379-4190 | 2017-04-106 | 1 | DIBBS |
| 5315-01-379-4190 | 2017-04-101 | 1 | DIBBS |
| 5315-01-379-4190 | 2012-10-275 | 3 | DIBBS |
| 5315-01-379-4190 | 2012-05-134 | 2 | DIBBS |
| 5315-01-379-4190 | 2010-05-132 | 860 | DIBBS |
Cross Reference | NSN 5315-01-379-4190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12387350-7C77 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-379-4190
Related Products | NSN 5315-01-379-4190
Technical Data | NSN 5315-01-379-4190
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B633 TY 1, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 29440 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.078 INCHES NOMINAL |

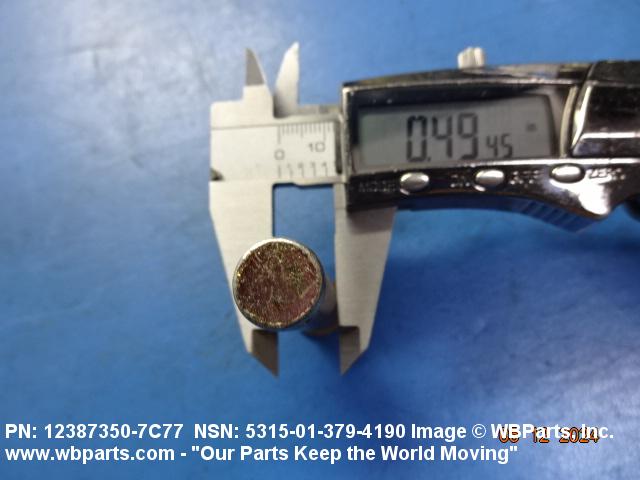

| DIAMETER | 0.495 INCHES MINIMUM AND 0.497 INCHES MAXIMUM |

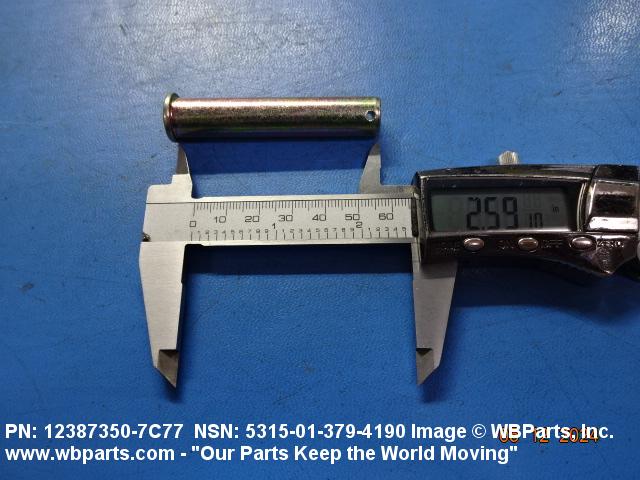

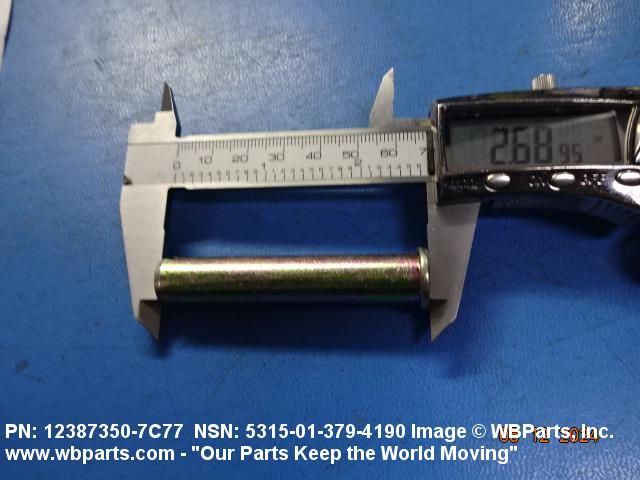

| UNDER HEAD LENGTH | 2.585 INCHES MINIMUM AND 2.605 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |

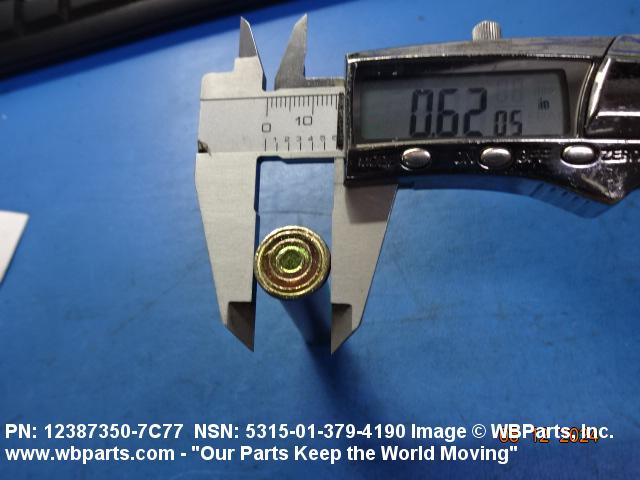

| PIN HEAD DIAMETER | 0.625 INCHES NOMINAL |

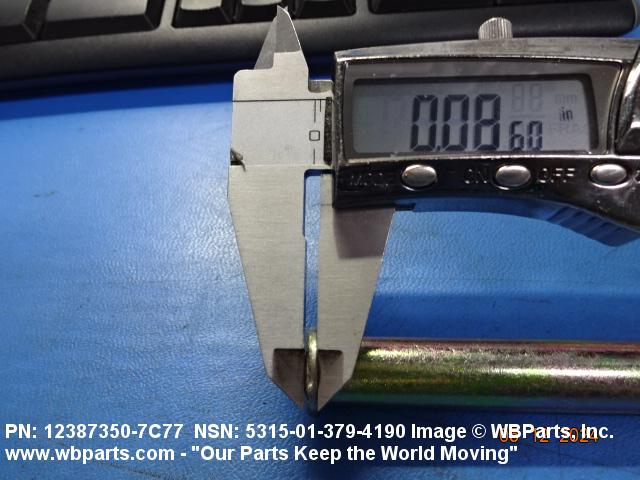

| HEIGHT | 0.093 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

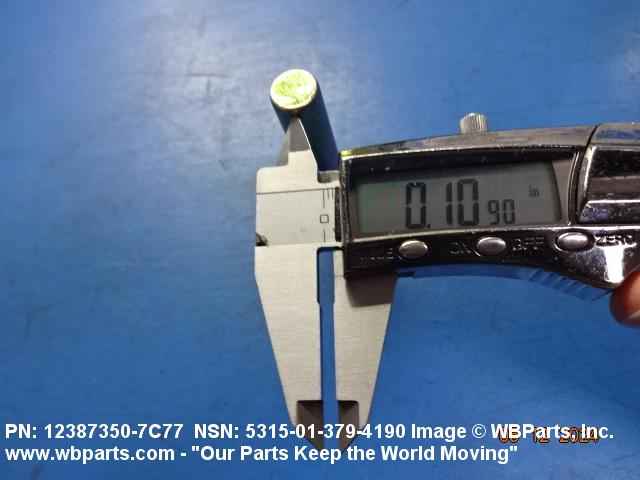

| FIRST HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.165 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-379-4190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-379-4190
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
