Product Details | HEADED SHOULDER PIN
5315-01-400-2855 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 716601024000, 716-601024-000, 5315-01-400-2855, 01-400-2855, 5315014002855, 014002855
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 DEC 1994 | 01-400-2855 | 16563 ( PIN, SHOULDER, HEADED ) |
Drawings & Photos | NSN 5315-01-400-2855
Cross Reference | NSN 5315-01-400-2855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 716-601024-000 | 90073 | CMC ELECTRONICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-400-2855
Related Products | NSN 5315-01-400-2855
Technical Data | NSN 5315-01-400-2855
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | H149 SHOULDER |
| UNDER HEAD LENGTH | 0.560 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.500 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.250 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.030 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 30.0 DEGREES NOMINAL |

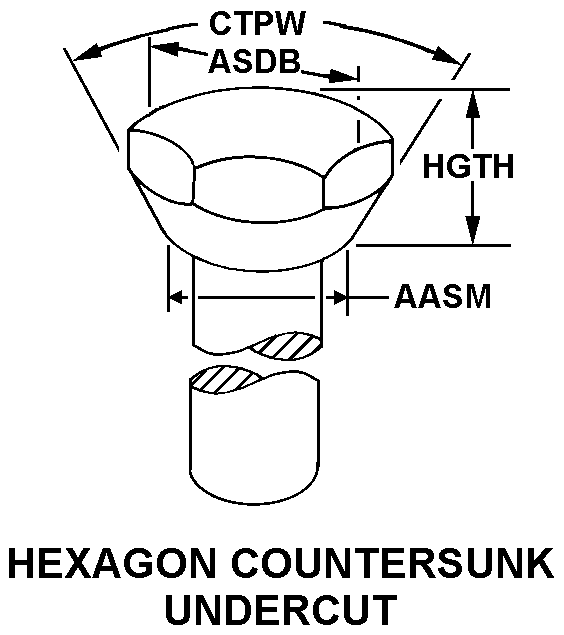

| HEAD STYLE | 24 HEXAGON COUNTERSUNK UNDERCUT |
| BOTTOM COUNTERSINK DIAMETER | 0.060 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| HEIGHT | 0.2500 INCHES NOMINAL |
