NSN 5315-01-412-4987 34212913, 342129-13, 01-412-4987
Product Details | HEADED STRAIGHT PIN
5315-01-412-4987 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 34212913, 342129-13, 5315-01-412-4987, 01-412-4987, 5315014124987, 014124987
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 1995 | 01-412-4987 | 02384 ( PIN, STRAIGHT, HEADED ) |

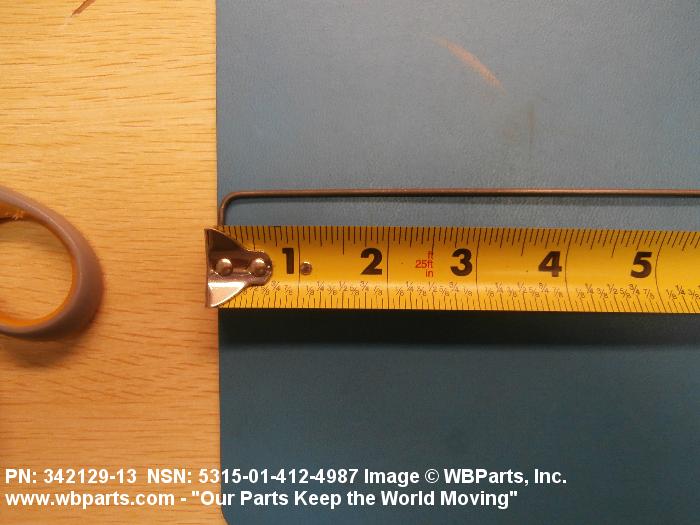

Drawings & Photos | NSN 5315-01-412-4987
Demand History | NSN 5315-01-412-4987
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-412-4987 | 2025-06-162 | 40 | France |
| 5315-01-412-4987 | 2024-07-185 | 2 | Malaysia |
| 34212913 | 2017-05-128 | 50 | SA |
| 5315-01-412-4987 | 2015-11-305 | 20 | United States |
| 34212913 | 2014-12-356 | 4 | United States |
| 5315-01-412-4987 | 2014-12-356 | 4 | United States |
| 342129-13 | 2012-06-178 | 4 | PK |
Cross Reference | NSN 5315-01-412-4987
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 342129-13 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-412-4987
Technical Data | NSN 5315-01-412-4987
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56401 OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |

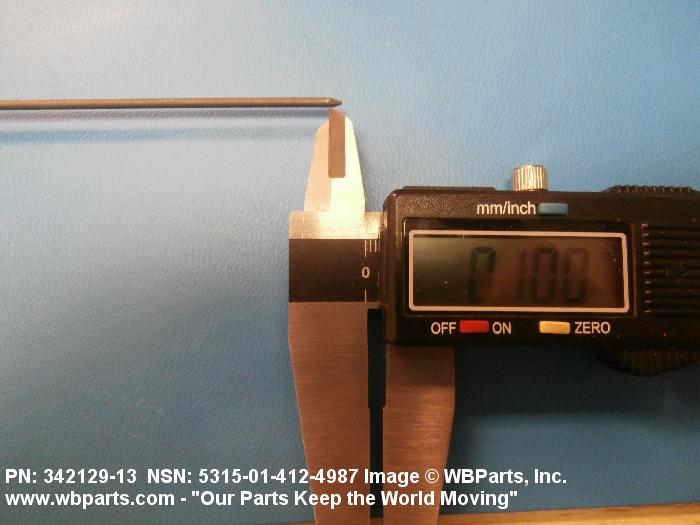

| CHAMFER LENGTH | 0.100 INCHES NOMINAL |

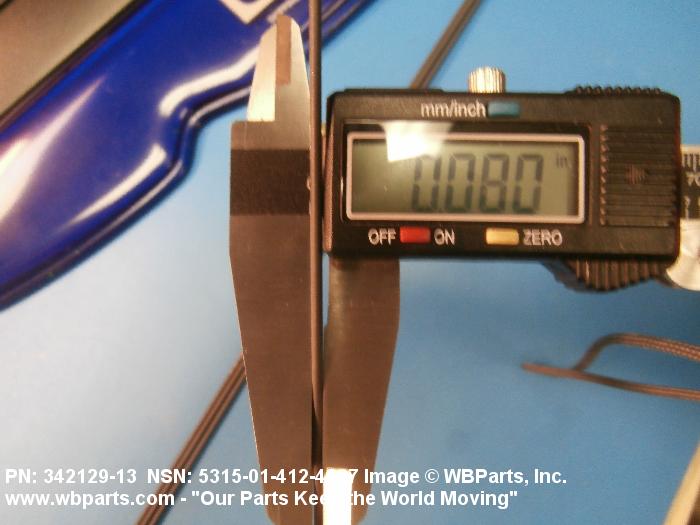

| DIAMETER | 0.080 INCHES NOMINAL |

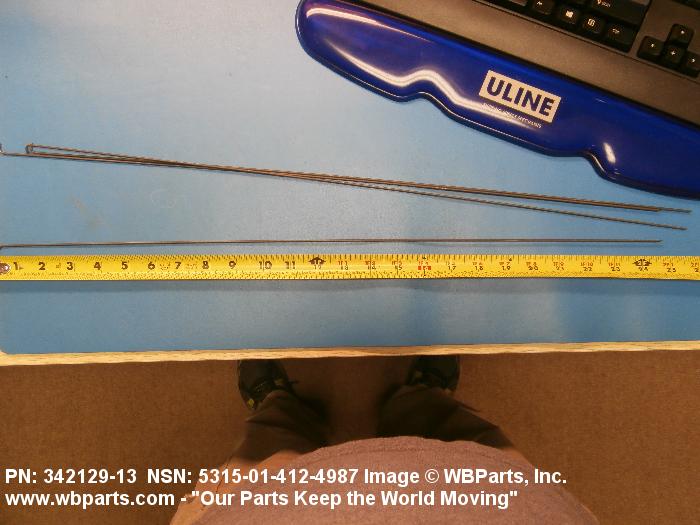

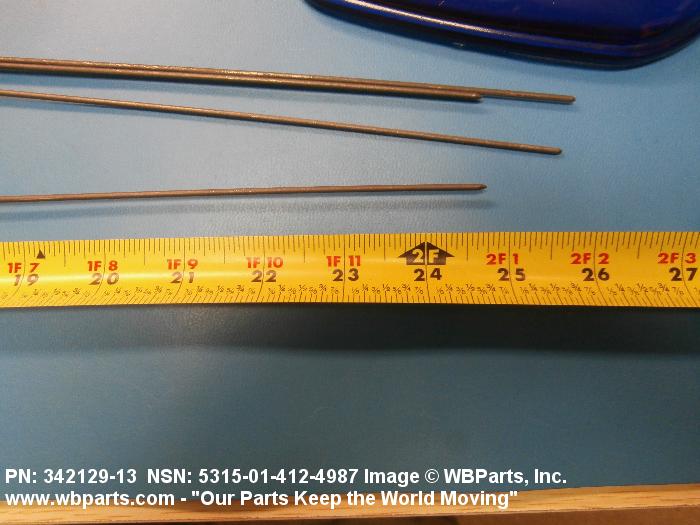

| UNDER HEAD LENGTH | 24.800 INCHES NOMINAL |
| PIN CHAMFER ANGLE | ANY ACCEPTABLE |
| HEAD STYLE | 70 L SHAPE |
| HEAD LENGTH | 0.450 INCHES NOMINAL |
| HEAD RADIUS | 0.180 INCHES NOMINAL |
| PIN HEAD DIAMETER | 0.080 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-412-4987
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
